MCV30L-BEAGKA (2001)

Toyota Lexus Es300/330

Production Jul 2001 - Jul 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

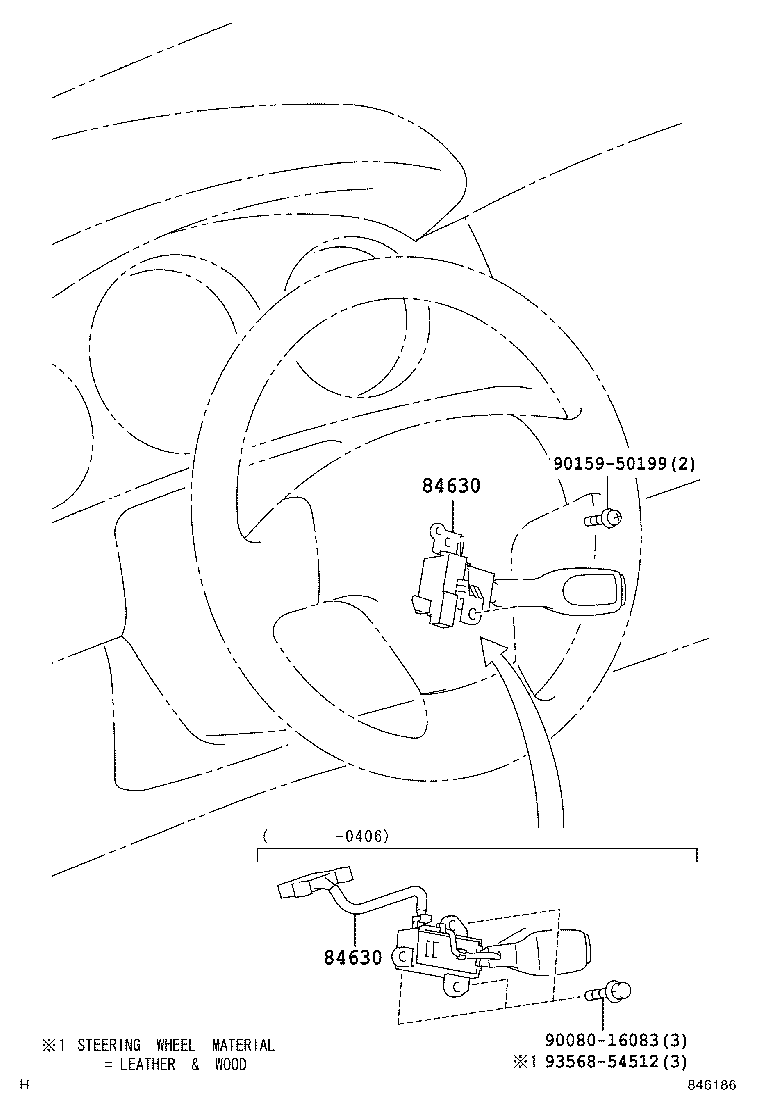

Click highlighted areas on diagram

diagram 84630 84630 9008016083 9015950199 9356854512
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-33080

MCV3#

STEERING WHEEL MATERIAL = LEATHER & WOOD

 1
84630-06040

MCV3#

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-33080

MCV3#

STEERING WHEEL MATERIAL = LEATHER & WOOD

 1
84630-06040

MCV3#

 1
Common parts
90080-16083
90159-50199
93568-54512
