MCV30L-BEAGKA (2001)

Toyota Lexus Es300/330

Production Jul 2001 - Jul 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )

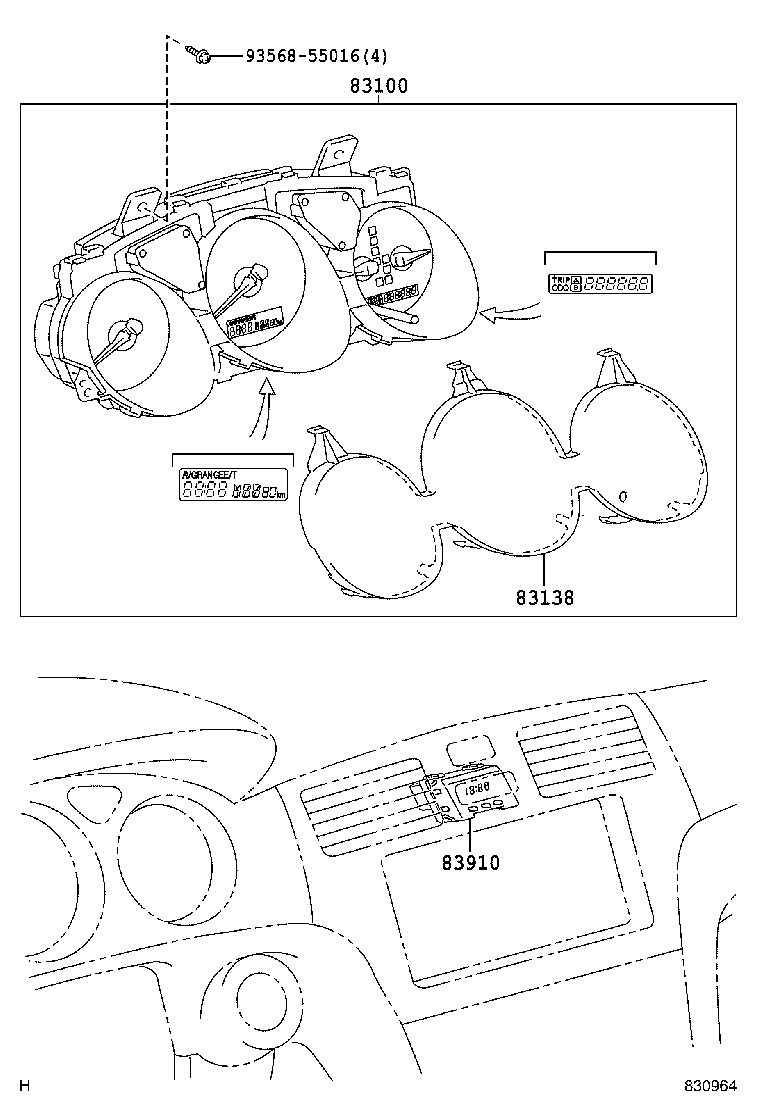

Click highlighted areas on diagram

diagram 83100 83138 83910 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-33611

MCV30

 1
83800-33610

MCV30

 1
83800-33620

MCV30

CANADA SPEC

 1
83800-33671

MCV30

KOREA SPEC

 1
83800-33621

MCV30

CANADA SPEC

 1
83800-33670

MCV30

KOREA SPEC

 1
83800-33630

MCV30

BRAZIL OR TAIWAN SPEC

 1
83800-33631

MCV30

BRAZIL OR TAIWAN SPEC

 1
83138 - GLASS, SPEEDOMETER
83852-33610

MCV3#

 1
83910 - CLOCK ASSY
83910-33090

MCV3#

 1
Common parts
93568-55016
