MCV30L-BEAGKA (2001)

Toyota Lexus Es300/330

Production Jul 2001 - Jul 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

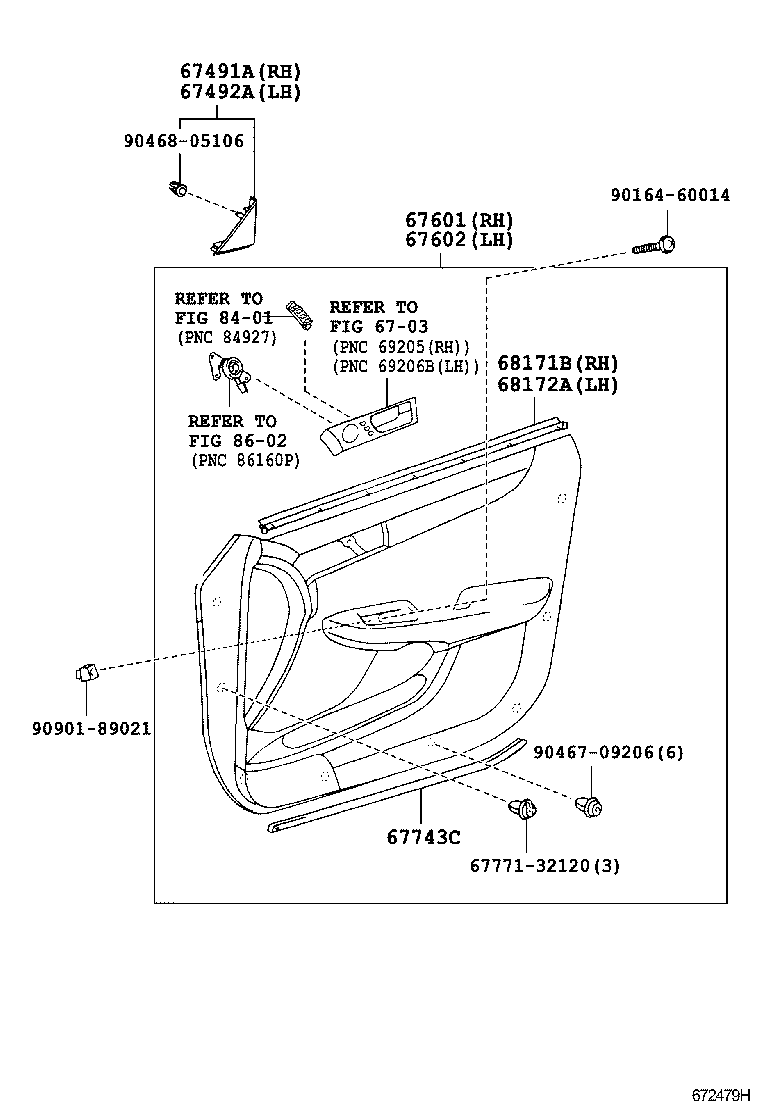

ILLUST NO. 1 OF 2(0107- )

Click highlighted areas on diagram

diagram 6703 67491A 67492A 67601 67602 67743C 6777132120 68171B 68172A 8401 8602 9016460014 9046709206 9046805106 9090189021
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-33100

MCV3#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-33100

MCV3#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-3T050C2

MCV30

BLACK,TRIM2#

 1
67610-3T050A0

MCV30

IVORY,TRIM0#

 1
67610-3T060A0

MCV30

W(MARK LEVINSON SPEAKER),IVORY,TRIM0#

 1
67610-3T060B1

MCV30

W(MARK LEVINSON SPEAKER),CHARCOAL,TRIM1#

 1
67610-3T050B1

MCV30

CHARCOAL,TRIM1#

 1
67610-3T060C1

MCV30

W(MARK LEVINSON SPEAKER),BLACK,TRIM2#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-3T070A0

MCV30

W(MARK LEVINSON SPEAKER & SEAT MEMORY SWITCH),IVORY,TRIM0#

 1
67620-3T060C1

MCV30

W(SEAT MEMORY SWITCH),BLACK,TRIM2#

 1
67620-3T070B1

MCV30

W(MARK LEVINSON SPEAKER & SEAT MEMORY SWITCH),CHARCOAL,TRIM1#

 1
67620-3T060B1

MCV30

W(SEAT MEMORY SWITCH),CHARCOAL,TRIM1#

 1
67620-3T050C2

MCV30

BLACK,TRIM2#

 1
67620-3T070C1

MCV30

W(MARK LEVINSON SPEAKER & SEAT MEMORY SWITCH),BLACK,TRIM2#

 1
67620-3T050A0

MCV30

IVORY,TRIM0#

 1
67620-3T060A0

MCV30

W(SEAT MEMORY SWITCH),IVORY,TRIM0#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-33050

MCV30

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-33060

MCV30

 1
Common parts
67771-32120
90164-60014
90467-09206
90468-05106
90901-89021
Linked diagrams
6703
8401
8602

ILLUST NO. 2 OF 2(0107- )

Click highlighted areas on diagram

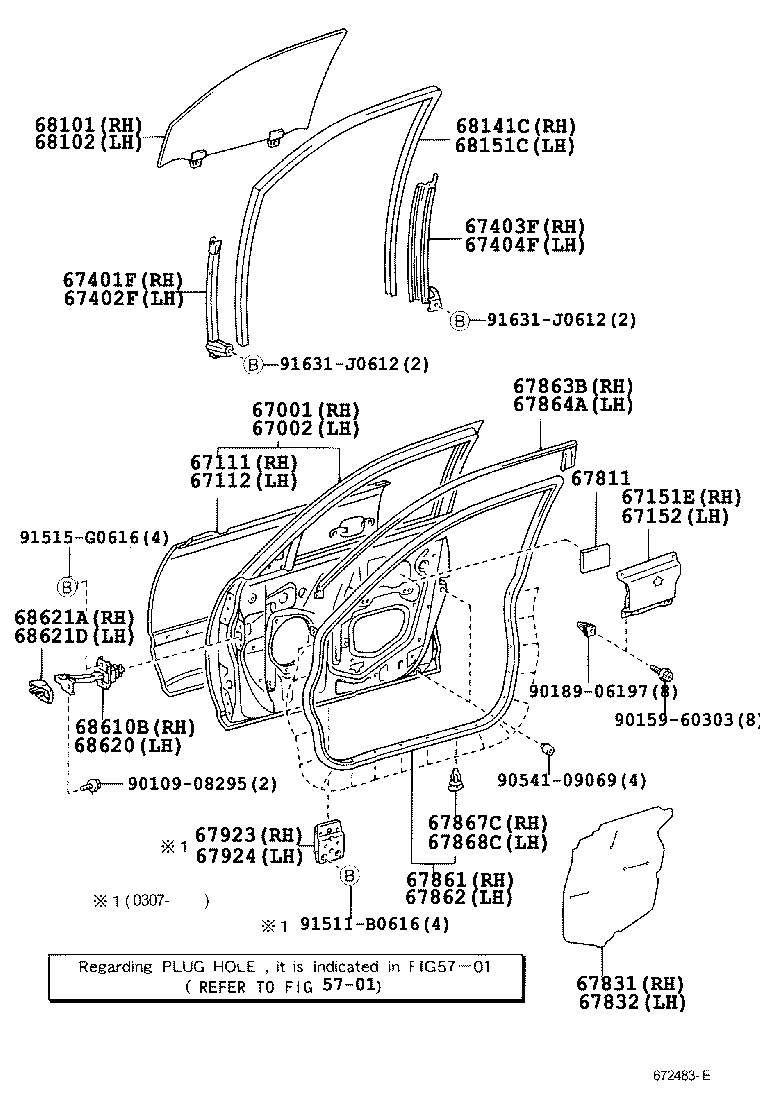

diagram 5701 67001 67002 67111 67112 67151E 67152 67401F 67402F 67403F 67404F 67811 67831 67832 67861 67862 67863B 67864A 67867C 67868C 67923 67924 68101 68102 68141C 68151C 68610B 68620 68621A 68621D 9010908295 9015960303 9018906197 9054109069 91511B0616 91515G0616 91631J0612 91631J0612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-33150

MCV3#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-33150

MCV3#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-33060

MCV3#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-33060

MCV3#

 1
67151E - REINFORCEMENT SUB-ASSY, FRONT DOOR INSIDE PANEL, RH
67053-33020

MCV3#

 1
67152 - REINFORCEMENT SUB-ASSY, FRONT DOOR INSIDE PANEL, LH
67054-33020

MCV3#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-33050

MCV3#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-33050

MCV3#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-33030

MCV3#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-33030

MCV3#

 1
67811 - PAD, FRONT DOOR SILENCER
67811-33040

MCV3#

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-33070

MCV3#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-33070

MCV3#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-33050

MCV3#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-33050

MCV3#

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-33010

MCV3#

 1
67864A - WEATHERSTRIP, FRONT DOOR, UPPER, LH
67864-33010

MCV3#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

MCV3#

 18
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

MCV3#

 18
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-33100

MCV3#

*UVCTT,T=5.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-33100

MCV3#

*UVCTT,T=5.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-33080

MCV3#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-33070

MCV3#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-33060

MCV3#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-33060

MCV3#

 1
68621A - COVER, FRONT DOOR CHECK, RH
68621-33010

MCV3#

 1
68621D - COVER, FRONT DOOR CHECK, LH
68622-33010

MCV3#

 1
Common parts
90109-08295
90159-60303
90189-06197
90541-09069
91511-B0616
91515-G0616
91631-J0612
Linked diagrams
5701
