MCV30L-BEAGKA (2001)
Toyota Lexus Es300/330
Production
Jul 2001
-
Jul 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )

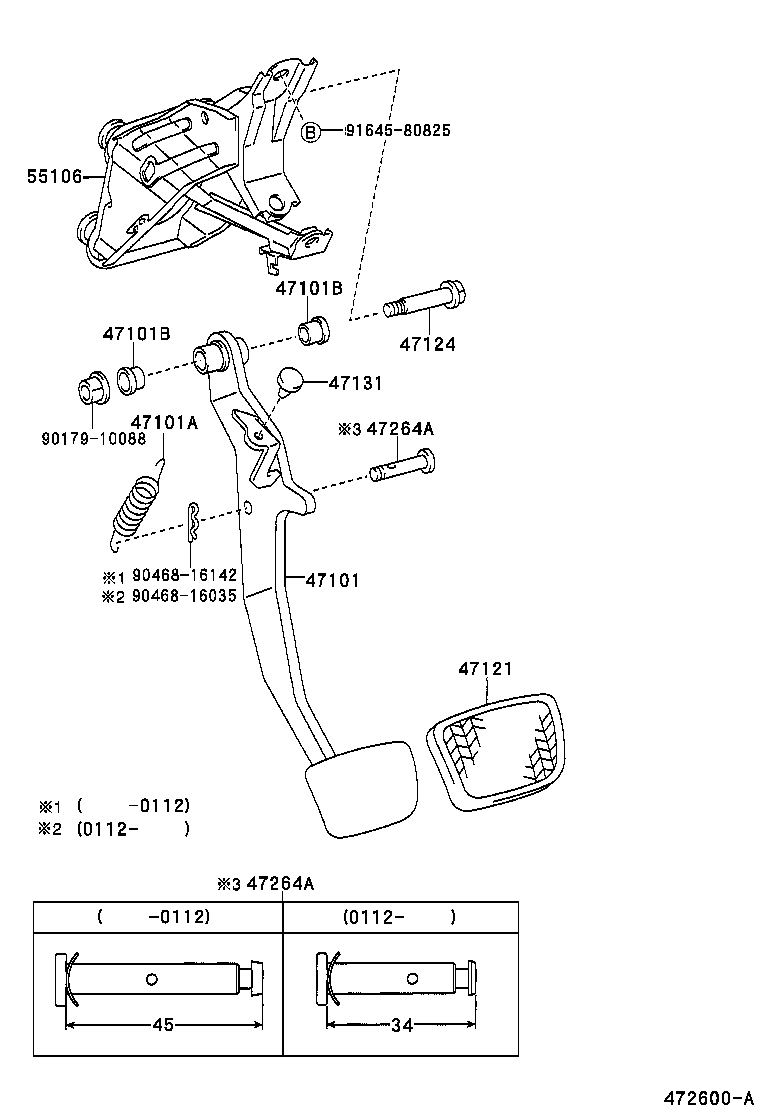

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-33070 |
MCV3# |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14051 |
MCV3# |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
MCV3# |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
MCV3# |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-50020 |
MCV3# |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90109-10167 |
MCV3# |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
MCV3# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-33020 |
MCV30 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-33020 |
MCV30 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-33080 |
MCV30 |
1 | ||
| Common parts | ||||
| 90179-10088 | ||||
| 90468-16035 | ||||
| 90468-16142 | ||||
| 91645-80825 | ||||
(0208- )
Click highlighted areas on diagram
POWER ADJUSTABLE PEDAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 7801 | ||||
