VZV21L-CTPNKA (1989)
Toyota Lexus Es250
ILLUST NO. 2 OF 2(8906- )
| Part # | Description | Qty | Price |
|---|

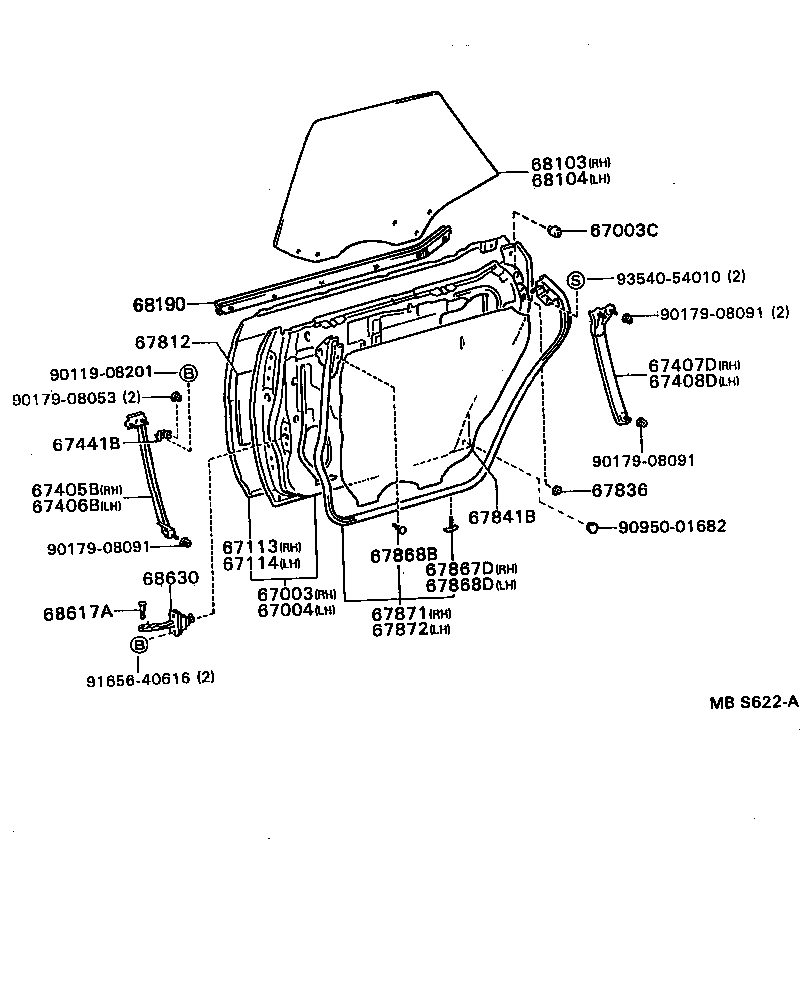

ILLUST NO. 1 OF 3(8906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-32180 |
VZV21 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
VZV21 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-32180 |
VZV21 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-32080 |
VZV21 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-32080 |
VZV21 |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-32020 |
VZV21 |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-32020 |
VZV21 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-32050 |
VZV21 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-32050 |
VZV21 |
1 | ||
| 67441B - PLATE, REAR DOOR FRONT GUIDE, UPPER | ||||
| 67441-32020 |
VZV21 |
2 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-12010 |
VZV21 |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-32010 |
VZV21 |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-32070 |
VZV21 |
2 | ||
| 67841-32071 |
VZV21 RH |
1 | ||
| 67842-32040 |
VZV21 LH |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
VZV21 |
16 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-30020 |
VZV21 |
4 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
VZV21 |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-32080 |
VZV21 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-32080 |
VZV21 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-32080 |
VZV21 *TT,T=5.0,BRONZE |
1 | ||
| 68113-32070 |
VZV21 *TT,T=5.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-32080 |
VZV21 *TT,T=5.0,BRONZE |
1 | ||
| 68114-32070 |
VZV21 *TT,T=5.0 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32040 |
VZV21 RH |
1 | ||
| 68240-32020 |
VZV21 LH |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-32010 |
VZV21 |
2 | ||
| 68617-20011 |
VZV21 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-32040 |
VZV21 |
2 | ||
| Common parts | ||||
| 90119-08201 | ||||
| 90179-08053 | ||||
| 90179-08091 | ||||
| 90950-01682 | ||||
| 91656-40616 | ||||
| 93540-54010 | ||||

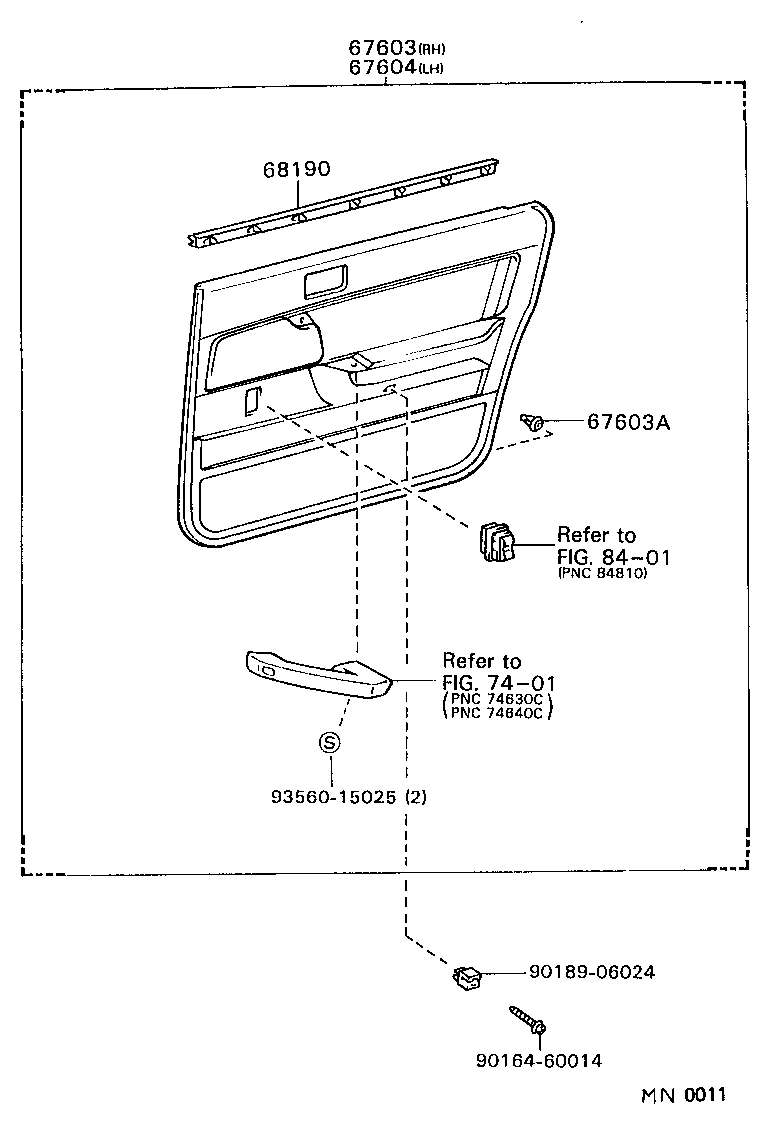

ILLUST NO. 2 OF 3(8906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3H04002 |
VZV21 LEATHER PACKAGE,MAROON,TRIM3# |
1 | ||
| 67630-3H03002 |
VZV21 MAROON,TRIM3# |
1 | ||
| 67630-3H03004 |
VZV21 DARK BLUE,TRIM8# |
1 | ||
| 67630-3H04004 |
VZV21 LEATHER PACKAGE,DARK BLUE,TRIM8# |
1 | ||
| 67630-3287005 |
VZV21 LEATHER PACKAGE,GREIGE,TRIM0# |
1 | ||
| 67630-3H04001 |
VZV21 LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 67630-3H03001 |
VZV21 BLACK,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-14040 |
VZV21 |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3287005 |
VZV21 LEATHER PACKAGE,GREIGE,TRIM0# |
1 | ||
| 67640-3H04004 |
VZV21 LEATHER PACKAGE,DARK BLUE,TRIM8# |
1 | ||
| 67640-3H04002 |
VZV21 LEATHER PACKAGE,MAROON,TRIM3# |
1 | ||
| 67640-3H03001 |
VZV21 BLACK,TRIM1# |
1 | ||
| 67640-3H03002 |
VZV21 MAROON,TRIM3# |
1 | ||
| 67640-3H03004 |
VZV21 DARK BLUE,TRIM8# |
1 | ||
| 67640-3H04001 |
VZV21 LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32040 |
VZV21 RH |
1 | ||
| 68240-32020 |
VZV21 LH |
1 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
