VZV21L-CTPNKA (1989)
Toyota Lexus Es250
Production
Jun 1989
-
Jul 1991
Engine
2VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8906- )

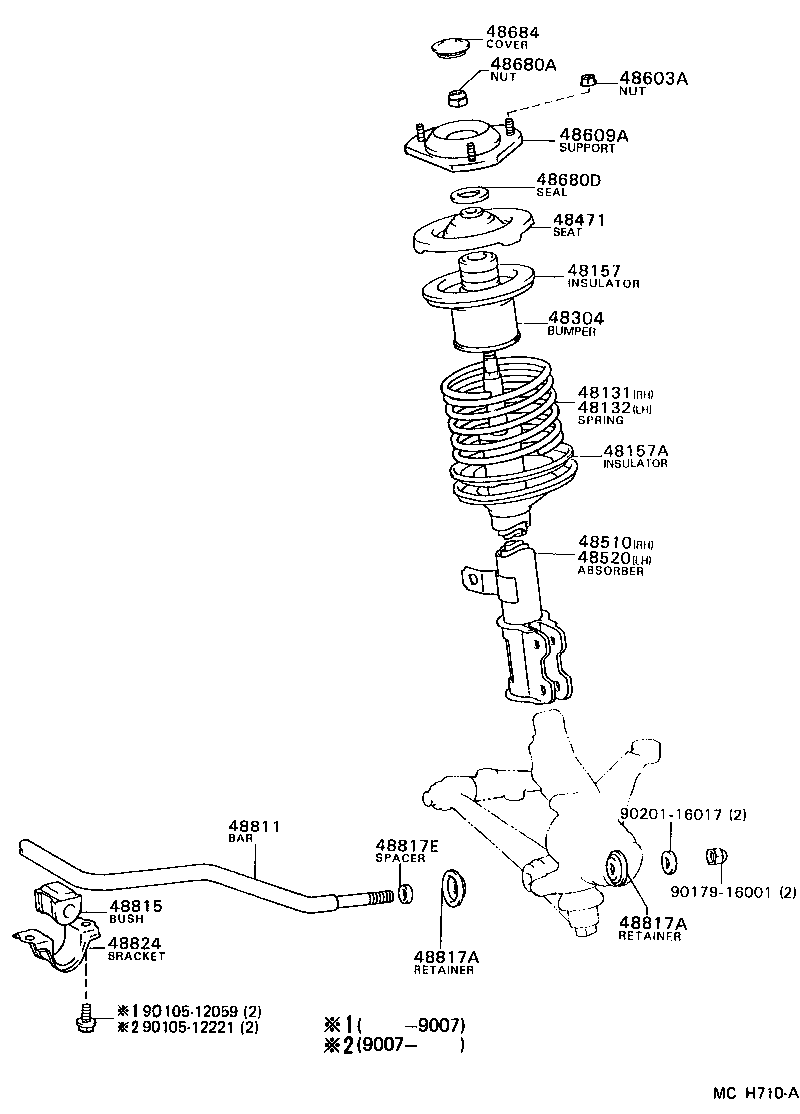

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-32800 |
VZV21..4FC |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-32800 |
VZV21..4FC |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-32020 |
VZV21 |
2 | ||
| 48157A - INSULATOR, FRONT COIL SPRING, LOWER | ||||
| 48158-32020 |
VZV21 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-32050 |
VZV21 |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-32020 |
VZV21 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-32151 |
VZV21 |
1 | ||
| 48510-32150 |
VZV21 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-32150 |
VZV21 |
1 | ||
| 48520-32151 |
VZV21 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10095 |
VZV21 |
6 | ||
| 90179-10095 |
VZV21 |
6 | ||
| 90179-10143 |
VZV21 |
6 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-32080 |
VZV21 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
VZV21 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
VZV21 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-32010 |
VZV21 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-32120 |
VZV21 |
1 | ||
| 48811-32220 |
VZV21 |
1 | ||
| 48811-32120 |
VZV21 |
1 | ||
| 48811-32180 |
VZV21 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-32060 |
VZV21 |
2 | ||
| 48815-32120 |
VZV21 |
2 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02115 |
VZV21 LH |
2 | ||
| 90948-02124 |
VZV21 RH |
2 | ||
| 48667-32011 |
VZV21 |
4 | ||
| 48667-32010 |
VZV21 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02115 |
VZV21 LH |
2 | ||
| 90948-02124 |
VZV21 RH |
2 | ||
| 48667-32011 |
VZV21 |
4 | ||
| 48667-32010 |
VZV21 |
4 | ||
| 48817E - SPACER(FOR STABILIZER BAR) | ||||
| 90560-16017 |
VZV21 |
2 | ||
| 90560-16005 |
VZV21 |
2 | ||
| 90560-16016 |
VZV21 |
2 | ||
| 90560-16015 |
VZV21 |
2 | ||
| 90560-16014 |
VZV21 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-32030 |
VZV21 |
2 | ||
| 48824-32040 |
VZV21 |
2 | ||
| Common parts | ||||
| 90105-12059 | ||||
| 90105-12221 | ||||
| 90179-16001 | ||||
| 90201-16017 | ||||
