VZV21L-CTPNKA (1989)

Toyota Lexus Es250

Production Jun 1989 - Jul 1991
Engine 2VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8906- )

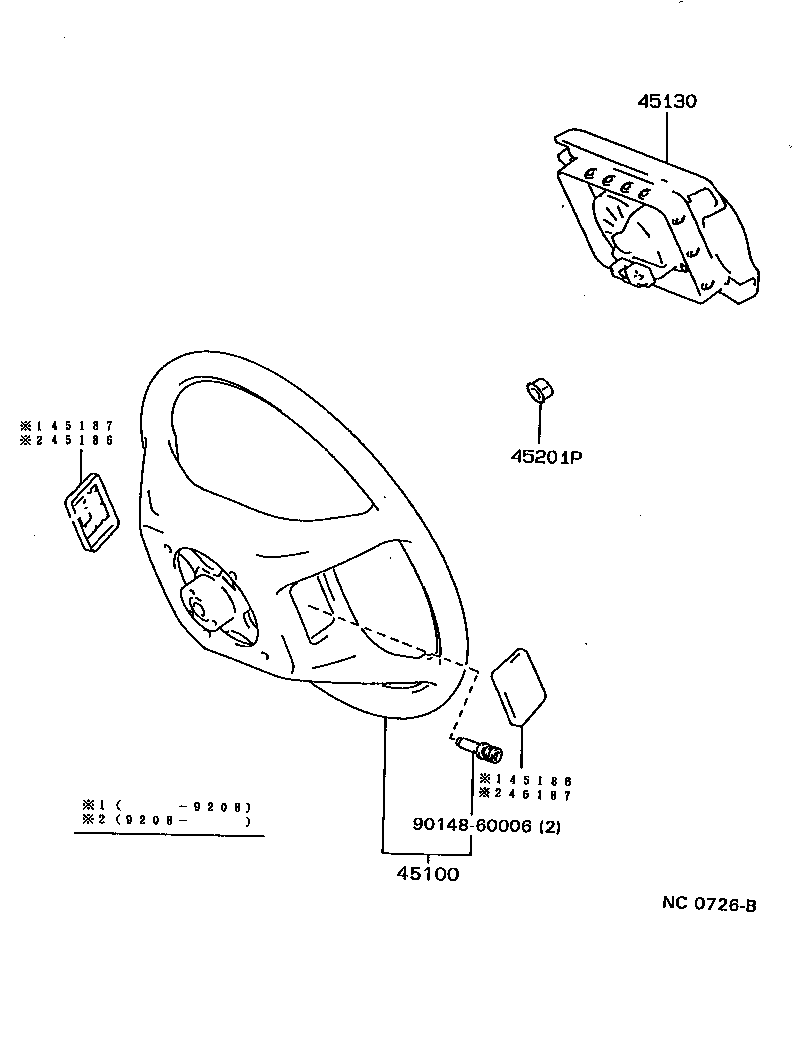

Click highlighted areas on diagram

diagram 45100 45130 45186 45186 45187 45187 45201P 9014860006
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3218005

VZV21

LEATHER PACKAGE,GREIGE,TRIM0#

 1
45100-3218004

VZV21

LEATHER PACKAGE,DARK BLUE,TRIM8#

 1
45100-3217005

VZV21

GREIGE,TRIM0#

 1
45100-3217002

VZV21

MAROON,TRIM3#

 1
45100-3218002

VZV21

LEATHER PACKAGE,MAROON,TRIM3#

 1
45100-3218001

VZV21

LEATHER PACKAGE,BLACK,TRIM1#

 1
45100-3217001

VZV21

BLACK,TRIM1#

 1
45100-3217004

VZV21

DARK BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-3225001

VZV21

BLACK,TRIM1#

 1
45130-3225004

VZV21

DARK BLUE,TRIM8#

 1
45130-3225002

VZV21

MAROON,TRIM3#

 1
45130-3225005

VZV21

GREIGE,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-3203012

VZV21

MAROON,TRIM3#

 1
45186-3203014

VZV21

DARK BLUE,TRIM8#

 1
45186-3203001

VZV21

BLACK,TRIM1#

 1
45186-3203005

VZV21

GREIGE,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-3203012

VZV21

MAROON,TRIM3#

 1
45186-3203014

VZV21

DARK BLUE,TRIM8#

 1
45186-3203001

VZV21

BLACK,TRIM1#

 1
45186-3203005

VZV21

GREIGE,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-3203012

VZV21

MAROON,TRIM3#

 1
45187-3203005

VZV21

GREIGE,TRIM0#

 1
45187-3203001

VZV21

BLACK,TRIM1#

 1
45187-3203014

VZV21

DARK BLUE,TRIM8#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-3203012

VZV21

MAROON,TRIM3#

 1
45187-3203005

VZV21

GREIGE,TRIM0#

 1
45187-3203001

VZV21

BLACK,TRIM1#

 1
45187-3203014

VZV21

DARK BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

VZV21

 1
Common parts
90148-60006
