VZV21L-CTPNKA (1989)
Toyota Lexus Es250
Production
Jun 1989
-
Jul 1991
Engine
2VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8906- )

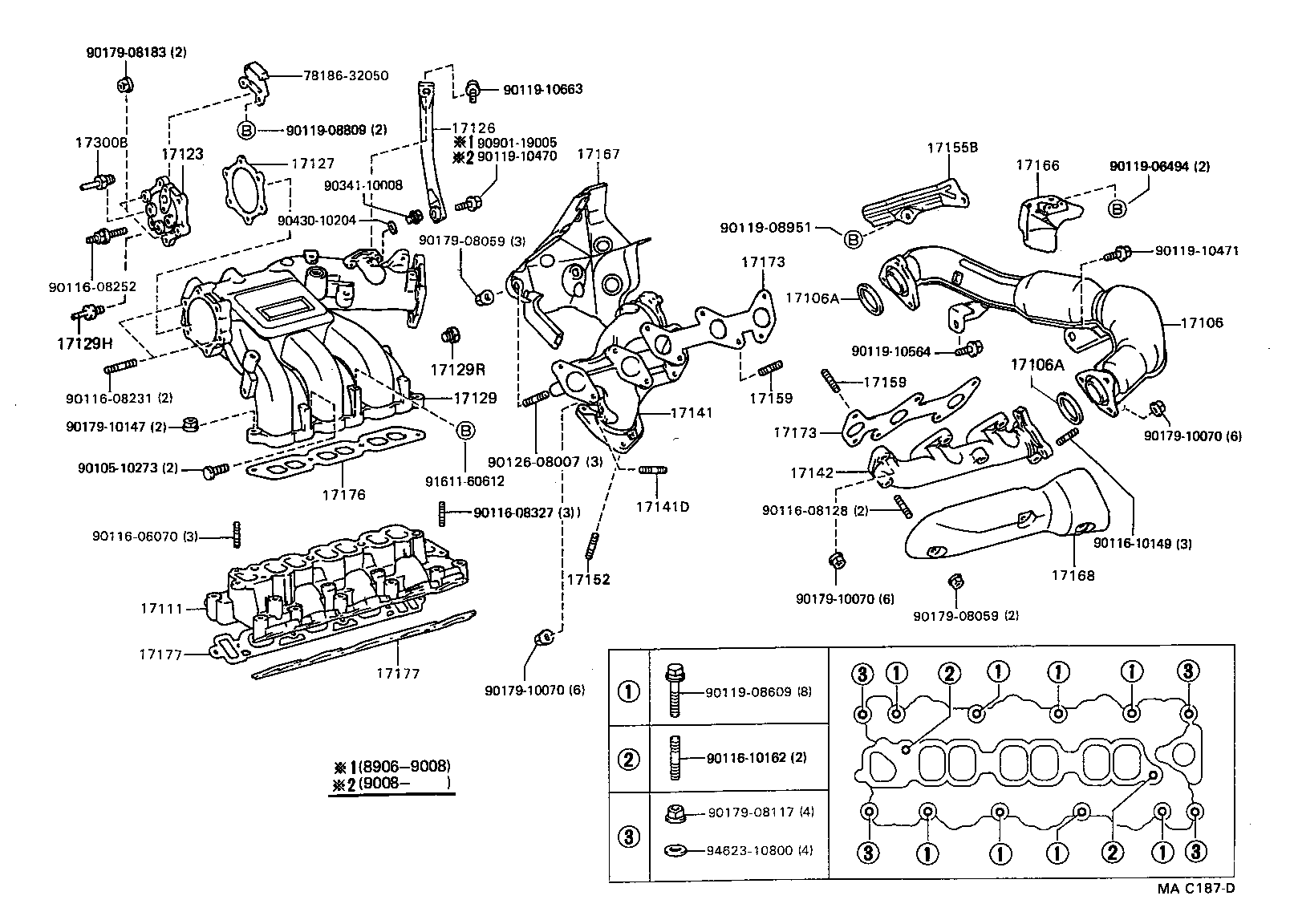

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER | ||||
| 17106-62012 |
2VZFE..VZV21 |
1 | ||
| 17106A - GASKET, EXHAUST PIPE | ||||
| 90917-06048 |
2VZFE..VZV21 |
2 | ||
| 17106A - GASKET, EXHAUST PIPE | ||||
| 90917-06048 |
2VZFE..VZV21 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-62020 |
2VZFE..VZV21 |
1 | ||
| 17123 - COVER, SURGE TANK | ||||
| 17123-62011 |
2VZFE..VZV21 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-62010 |
2VZFE..VZV21 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-62020 |
2VZFE..VZV21 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-62010 |
2VZFE..VZV21 |
1 | ||
| 17109-62012 |
2VZFE..VZV21 |
1 | ||
| 17109-62011 |
2VZFE..VZV21 |
1 | ||
| 17129H - UNION, NO.4 | ||||
| 90404-51010 |
2VZFE..VZV21 |
1 | ||
| 17129R - PLUG, W/HEAD TAPER SCREW(FOR INTAKE AIR SURGE TANK) | ||||
| 90345-51008 |
2VZFE..VZV21 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-62020 |
2VZFE..VZV21 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90126-08007 |
2VZFE..VZV21 |
2 | ||
| 90116-08128 |
2VZFE..VZV21 |
2 | ||
| 17142 - CASE, EXHAUST MANIFOLD, NO.2 | ||||
| 17142-62010 |
2VZFE..VZV21 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
2VZFE..VZV21 |
6 | ||
| 17155B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.5 | ||||
| 17155-62010 |
2VZFE..VZV21 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08251 |
2VZFE..VZV21 INTAKE MANIFOLD |
4 | ||
| 90116-10150 |
2VZFE..VZV21 EXHAUST MANIFOLD |
12 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08251 |
2VZFE..VZV21 INTAKE MANIFOLD |
4 | ||
| 90116-10150 |
2VZFE..VZV21 EXHAUST MANIFOLD |
12 | ||
| 17166 - INSULATOR, EXHAUST MANIFOLD HEAT,NO.4 | ||||
| 17166-62011 |
2VZFE..VZV21 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-62010 |
2VZFE..VZV21 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-62010 |
2VZFE..VZV21 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-62020 |
2VZFE..VZV21 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-62020 |
2VZFE..VZV21 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-62020 |
2VZFE..VZV21 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-62030 |
2VZFE..VZV21 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-62030 |
2VZFE..VZV21 |
2 | ||
| 17300B - UNION(FOR INTAKE AIR CONTROL VALVE) | ||||
| 90404-51026 |
2VZFE..VZV21 |
1 | ||
| 90404-51072 |
2VZFE..VZV21 |
1 | ||
| Common parts | ||||
| 78186-32050 | ||||
| 90105-10273 | ||||
| 90116-06070 | ||||
| 90116-08128 | ||||
| 90116-08231 | ||||
| 90116-08252 | ||||
| 90116-08327 | ||||
| 90116-10149 | ||||
| 90116-10162 | ||||
| 90119-06494 | ||||
| 90119-08609 | ||||
| 90119-08809 | ||||
| 90119-08951 | ||||
| 90119-10470 | ||||
| 90119-10471 | ||||
| 90119-10564 | ||||
| 90119-10663 | ||||
| 90126-08007 | ||||
| 90179-08059 | ||||
| 90179-08117 | ||||
| 90179-08183 | ||||
| 90179-10070 | ||||
| 90179-10147 | ||||
| 90341-10008 | ||||
| 90430-10204 | ||||
| 90901-19005 | ||||
| 91611-60612 | ||||
| 94623-10800 | ||||
