VZV21L-CTMNKA (1989)
Toyota Lexus Es250
Production
Jun 1989
-
Jul 1991
Engine
2VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8906- )

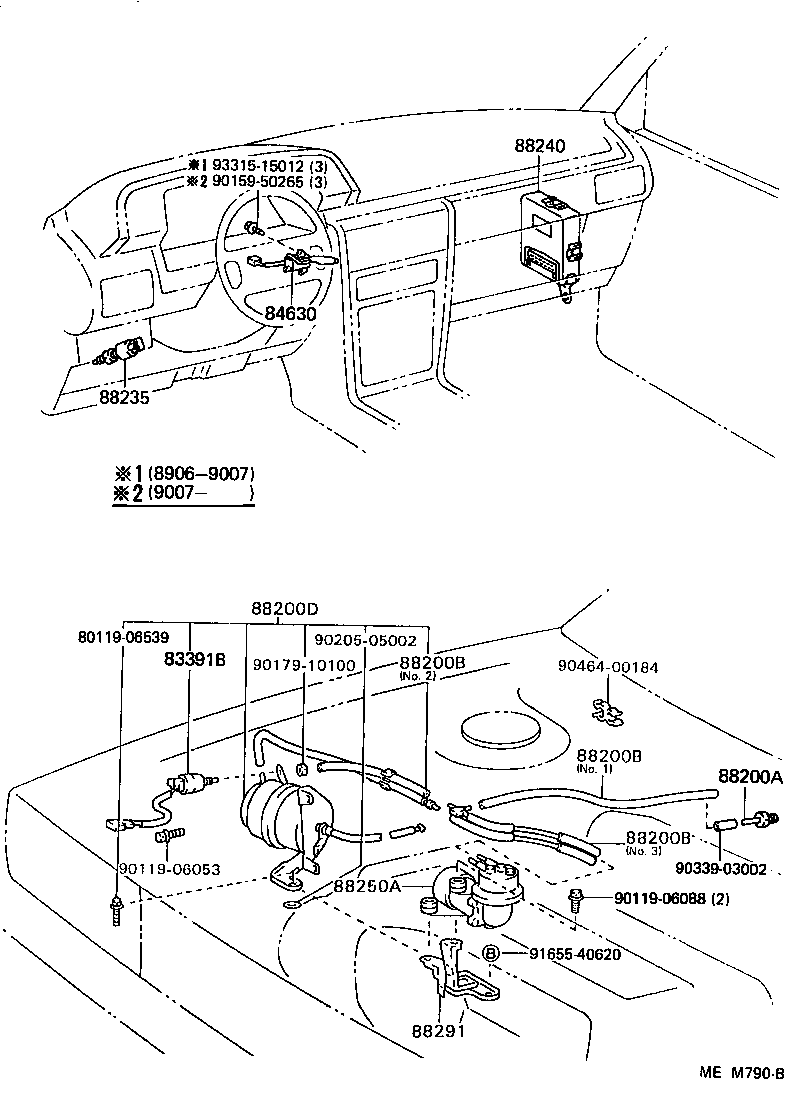

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391B - SWITCH, AUTO DRIVE VACUUM | ||||
| 83391-32050 |
VZV21 |
1 | ||
| 84630 - SWITCH ASSY, CRUISE CONTROL MAIN | ||||
| 84630-32090 |
VZV21 |
1 | ||
| 88200A - UNION OR WAY, CRUISE CONTROL VACUUM | ||||
| 90404-51010 |
VZV21 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-32060 |
VZV21 NO.2 |
1 | ||
| 88283-32050 |
VZV21 NO.3 |
1 | ||
| 90447-08047 |
VZV21 L=510,NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-32060 |
VZV21 NO.2 |
1 | ||
| 88283-32050 |
VZV21 NO.3 |
1 | ||
| 90447-08047 |
VZV21 L=510,NO.1 |
1 | ||
| 88200B - HOSE, CRUISE CONTROL VACUUM | ||||
| 88283-32060 |
VZV21 NO.2 |
1 | ||
| 88283-32050 |
VZV21 NO.3 |
1 | ||
| 90447-08047 |
VZV21 L=510,NO.1 |
1 | ||
| 88200D - ACTUATOR ASSY, CRUISE CONTROL | ||||
| 88200-32081 |
VZV21 |
1 | ||
| 88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE | ||||
| 88280-20010 |
VZV21..5F |
1 | ||
| 88240 - COMPUTER ASSY, CRUISE CONTROL | ||||
| 88240-32140 |
VZV21 |
1 | ||
| 88250A - PUMP ASSY, CRUISE CONTROL | ||||
| 88251-32060 |
VZV21 |
1 | ||
| 88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1 | ||||
| 88291-32030 |
VZV21 |
1 | ||
| Common parts | ||||
| 80119-06539 | ||||
| 90119-06053 | ||||
| 90119-06088 | ||||
| 90159-50265 | ||||
| 90179-10100 | ||||
| 90205-05002 | ||||
| 90339-03002 | ||||
| 90464-00184 | ||||
| 91655-40620 | ||||
| 93315-15012 | ||||
