VZV21L-CTMNKA (1989)
Toyota Lexus Es250
ILLUST NO. 1 OF 2(8906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-3214014 |
VZV21 DARK BLUE,TRIM8# |
1 | ||
| 46201-3214012 |
VZV21 MAROON,TRIM3# |
1 | ||
| 46201-3215004 |
VZV21 LEATHER PACKAGE,DARK BLUE,TRIM8# |
1 | ||
| 46201-3215001 |
VZV21 LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 46201-3215005 |
VZV21 LEATHER PACKAGE,GREIGE,TRIM0# |
1 | ||
| 46201-3214011 |
VZV21 BLACK,TRIM1# |
1 | ||
| 46201-3215002 |
VZV21 LEATHER PACKAGE,MAROON,TRIM3# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1202011 |
VZV21 BLACK,TRIM1# |
1 | ||
| 46217-12020J0 |
VZV21 DARK BLUE,TRIM8# |
1 | ||
| 46217-12020D0 |
VZV21 MAROON,TRIM3# |
1 | ||
| 46217-3201001 |
VZV21 LEATHER PACKAGE,BLACK,TRIM1# |
1 | ||
| 46217-32010D0 |
VZV21 LEATHER PACKAGE,MAROON,TRIM3# |
1 | ||
| 46217-3201005 |
VZV21 LEATHER PACKAGE,GREIGE,TRIM0# |
1 | ||
| 46217-32010J0 |
VZV21 LEATHER PACKAGE,DARK BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
VZV21 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-32030 |
VZV21 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
VZV21 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
VZV21 |
1 | ||
| 46341-32020 |
VZV21 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-32010 |
VZV21 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-39055 |
VZV21 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01605 |
VZV21 |
4 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01606 |
VZV21 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01604 |
VZV21 |
4 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01604 |
VZV21 |
4 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-39055 |
VZV21 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-32040 |
VZV21..USA CARIFORNIA SPEC |
1 | ||
| 46439-32020 |
VZV21 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
VZV21 |
4 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-32020 |
VZV21 |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91656-40816 | ||||
| 94180-40600 | ||||

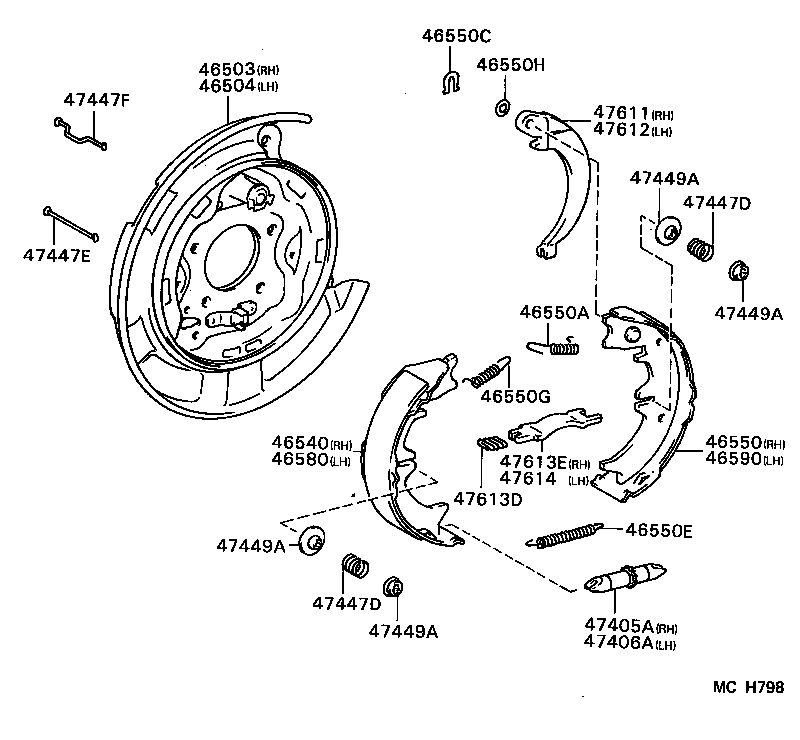

ILLUST NO. 2 OF 2(8906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-32010 |
VZV21 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-32010 |
VZV21 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-32010 |
VZV21 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-32010 |
VZV21 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-18015 |
VZV21 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
VZV21 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
VZV21 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-18016 |
VZV21 |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
VZV21 T=0.3 |
1 | ||
| 90564-09185 |
VZV21 T=0.6 |
1 | ||
| 90564-09186 |
VZV21 T=0.9 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-32010 |
VZV21 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-32010 |
VZV21 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
VZV21 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
VZV21 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
VZV21 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
VZV21 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
VZV21 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
VZV21 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
VZV21 INNER |
4 | ||
| 47449-30030 |
VZV21 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
VZV21 INNER |
4 | ||
| 47449-30030 |
VZV21 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
VZV21 INNER |
4 | ||
| 47449-30030 |
VZV21 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
VZV21 INNER |
4 | ||
| 47449-30030 |
VZV21 OUTER |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-32030 |
VZV21 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-32030 |
VZV21 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14004 |
VZV21 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-32020 |
VZV21 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-32020 |
VZV21 |
1 | ||
