VZV21L-CTMNKA (1989)
Toyota Lexus Es250

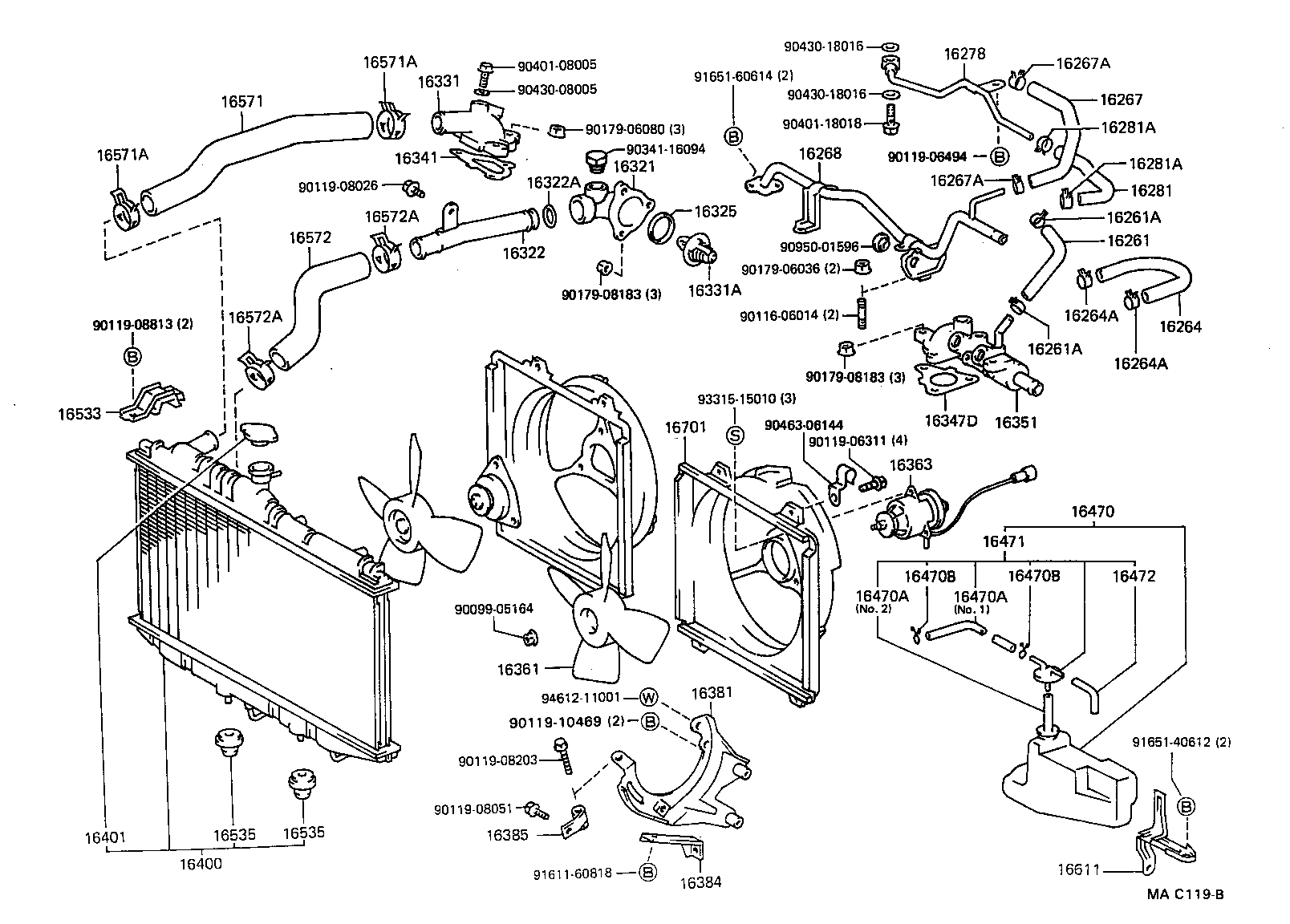

ILLUST NO. 1 OF 2(8906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-62010 |
2VZFE..VZV21 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-62020 |
2VZFE..VZV21 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-62010 |
2VZFE..VZV21 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-62010 |
2VZFE..VZV21 |
1 | ||
| 16268-62011 |
2VZFE..VZV21 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-62010 |
2VZFE..VZV21 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-62010 |
2VZFE..VZV21 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96135-41300 |
2VZFE..VZV21 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-62010 |
2VZFE..VZV21 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-62010 |
2VZFE..VZV21 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35031 |
2VZFE..VZV21 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2VZFE..VZV21 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-62011 |
2VZFE..VZV21 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
2VZFE..VZV21 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-62020 |
2VZFE..VZV21 |
1 | ||
| 16341-62030 |
2VZFE..VZV21 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-62020 |
2VZFE..VZV21 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-62021 |
2VZFE..VZV21 |
1 | ||
| 16361 - FAN | ||||
| 16361-64030 |
2VZFE..VZV21 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-55010 |
2VZFE..VZV21 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-62012 |
2VZFE..VZV21 |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-62010 |
2VZFE..VZV21 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-62010 |
2VZFE..VZV21 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-62050 |
2VZFE..VZV21..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2VZFE..VZV21 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74041 |
2VZFE..VZV21 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2VZFE..VZV21 L=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2VZFE..VZV21 L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2VZFE..VZV21 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2VZFE..VZV21 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74031 |
2VZFE..VZV21 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
2VZFE..VZV21 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-64071 |
2VZFE..VZV21 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-62010 |
2VZFE..VZV21 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-62010 |
2VZFE..VZV21 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-62010 |
2VZFE..VZV21 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
2VZFE..VZV21 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37004 |
2VZFE..VZV21 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-62010 |
2VZFE..VZV21 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2VZFE..VZV21 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
2VZFE..VZV21 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74030 |
2VZFE..VZV21 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-62020 |
2VZFE..VZV21 |
1 | ||
| Common parts | ||||
| 90099-05164 | ||||
| 90116-06014 | ||||
| 90119-06311 | ||||
| 90119-06494 | ||||
| 90119-08026 | ||||
| 90119-08051 | ||||
| 90119-08203 | ||||
| 90119-08813 | ||||
| 90119-10469 | ||||
| 90179-06036 | ||||
| 90179-06080 | ||||
| 90179-08183 | ||||
| 90341-16094 | ||||
| 90401-08005 | ||||
| 90401-18018 | ||||
| 90430-08005 | ||||
| 90430-18016 | ||||
| 90463-06144 | ||||
| 90950-01596 | ||||
| 91611-60818 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 93315-15010 | ||||
| 94612-11001 | ||||

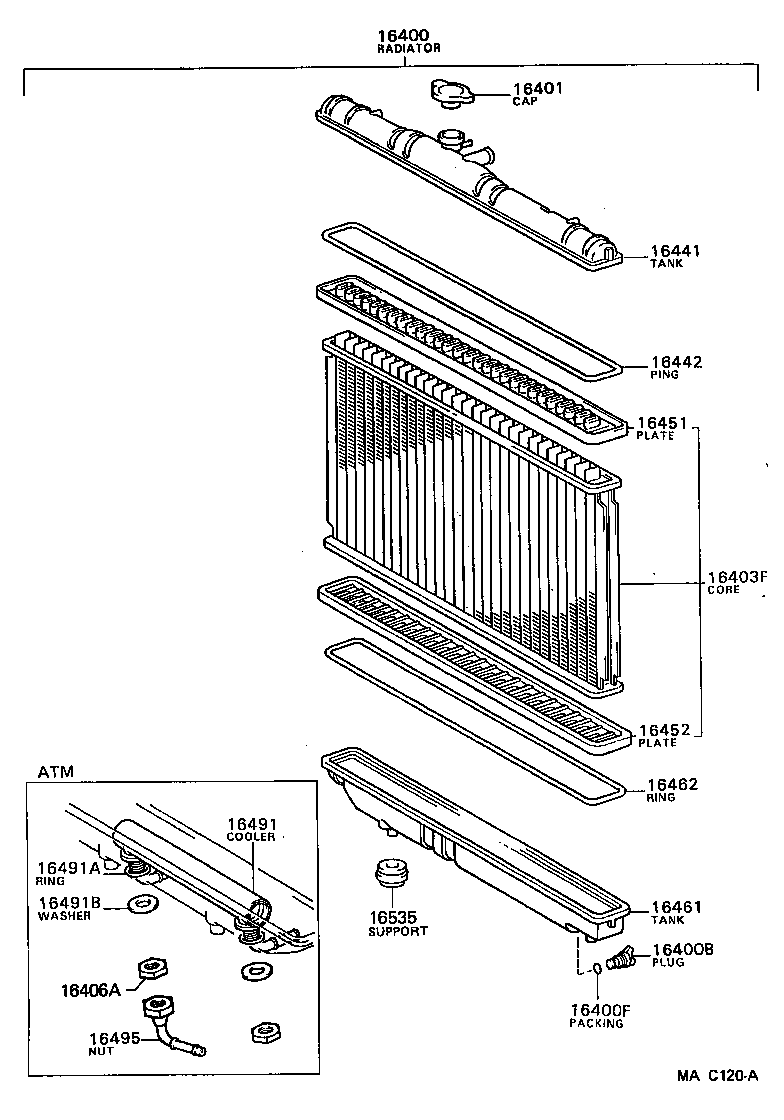

ILLUST NO. 2 OF 2(8906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-62050 |
2VZFE..VZV21..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2VZFE..VZV21 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2VZFE..VZV21 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2VZFE..VZV21 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-62050 |
2VZFE..VZV21 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-62050 |
2VZFE..VZV21 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-62050 |
2VZFE..VZV21 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-62050 |
2VZFE..VZV21 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-62050 |
2VZFE..VZV21 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-62050 |
2VZFE..VZV21..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-62050 |
2VZFE..VZV21 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-62010 |
2VZFE..VZV21 |
2 | ||
