UZJ100L-GNPEKA (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9801-0208)

Click highlighted areas on diagram

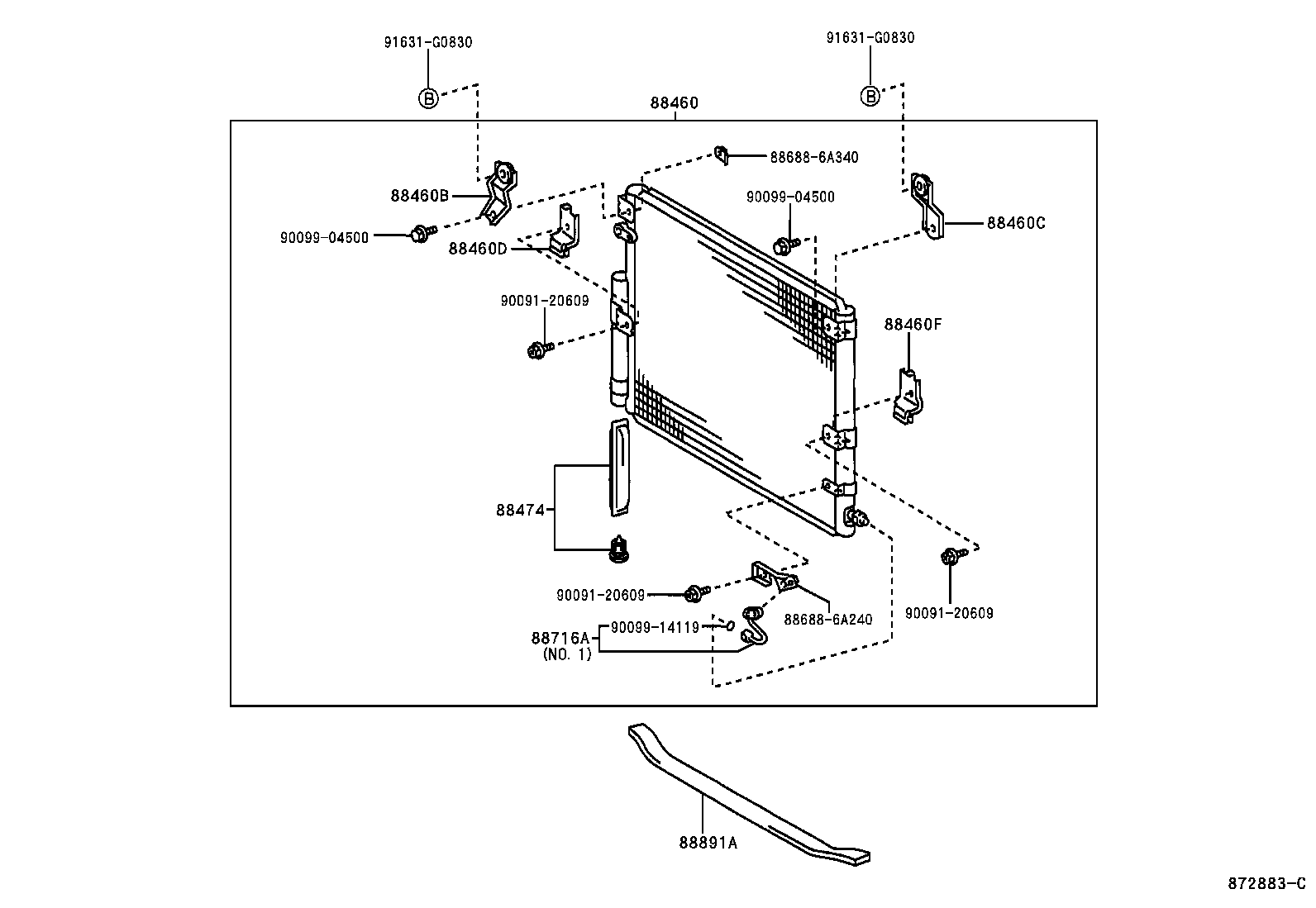

CONDENSER(SINGLE AIR CONDITIONER)

diagram 88460 88460B 88460C 88460D 88460F 88474 886886A240 886886A340 88716A 88891A 9009120609 9009120609 9009120609 9009904500 9009904500 9009914119 91631G0830 91631G0830
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60270

UZJ100

W(DUAL AIR CONDITIONER)

 1
88460-60271

UZJ100

W(DUAL AIR CONDITIONER)

 1
88460-60260

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88460-60261

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6A420

UZJ100

 1
88688-60770

UZJ100

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-60850

UZJ100

W(DUAL AIR CONDITIONER)

 1
88688-60780

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88688-60851

UZJ100

W(DUAL AIR CONDITIONER)

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-60790

UZJ100

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-60800

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88688-6A190

UZJ100

W(DUAL AIR CONDITIONER)

 1
88474 - DRYER, COOLER
88474-47010

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88474-22010

UZJ100

W(DUAL AIR CONDITIONER)

 1
88474-47010

UZJ100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60420

UZJ100

W(SINGLE AIR CONDITIONER),NO.2

 1
88726-60461

UZJ100

W(DUAL AIR CONDITIONER)

 1
88716-6A850

UZJ100

W(SINGLE AIR CONDITIONER),NO.1

 1
88726-60421

UZJ100

W(SINGLE AIR CONDITIONER),NO.2

 1
88726-60460

UZJ100

W(DUAL AIR CONDITIONER)

 1
88726-60462

UZJ100

W(DUAL AIR CONDITIONER)

 1
88891A - PACKING A (FOR COOLER)
88578-60100

UZJ100

 1
Common parts
88688-6A240
88688-6A340
90091-20609
90099-04500
90099-14119
91631-G0830

ILLUST NO. 1 OF 4(9801-0208)

Click highlighted areas on diagram

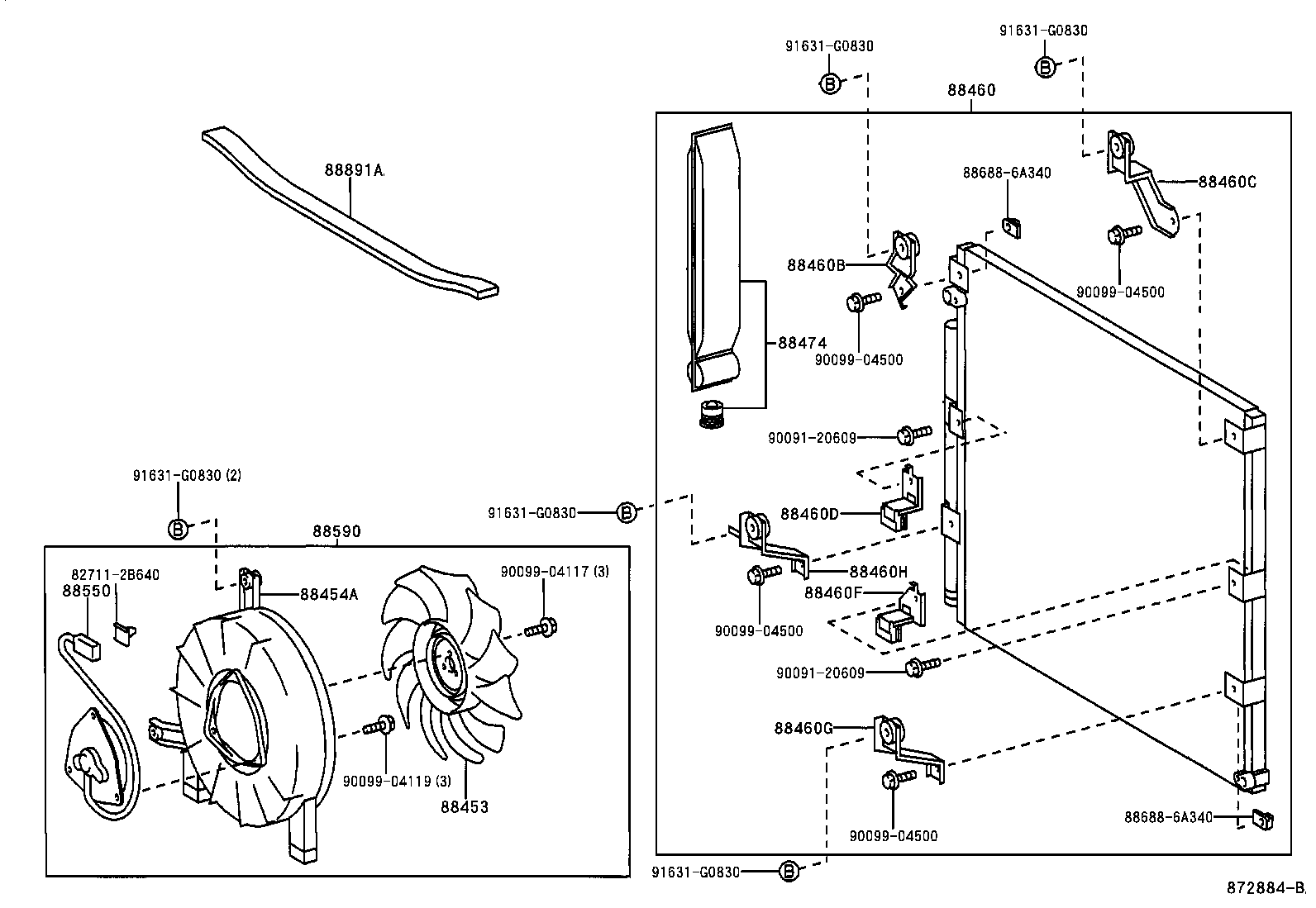

CONDENSER(DUAL AIR CONDITIONER)

diagram 827112B640 88453 88454A 88460 88460B 88460C 88460D 88460F 88460G 88460H 88474 88550 88590 886886A340 886886A340 88891A 9009120609 9009120609 9009904117 9009904119 9009904500 9009904500 9009904500 9009904500 91631G0830 91631G0830 91631G0830 91631G0830 91631G0830
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-60010

UZJ100

 1
88454A - SHROUD, FAN
88454-60020

UZJ100

 1
88460 - CONDENSER ASSY, COOLER
88460-60270

UZJ100

W(DUAL AIR CONDITIONER)

 1
88460-60271

UZJ100

W(DUAL AIR CONDITIONER)

 1
88460-60260

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88460-60261

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-6A420

UZJ100

 1
88688-60770

UZJ100

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-60850

UZJ100

W(DUAL AIR CONDITIONER)

 1
88688-60780

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88688-60851

UZJ100

W(DUAL AIR CONDITIONER)

 1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-60790

UZJ100

 1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-60800

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88688-6A190

UZJ100

W(DUAL AIR CONDITIONER)

 1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-6A180

UZJ100

 1
88460H - BRACKET, COOLER CONDENSER, NO.6
88688-60870

UZJ100

 1
88474 - DRYER, COOLER
88474-47010

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88474-22010

UZJ100

W(DUAL AIR CONDITIONER)

 1
88474-47010

UZJ100

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64080

UZJ100

 1
88590 - BLOWER ASSY, W/SHROUD
88590-60030

UZJ100

 1
88891A - PACKING A (FOR COOLER)
88578-60100

UZJ100

 1
Common parts
82711-2B640
88688-6A340
90091-20609
90099-04117
90099-04119
90099-04500
91631-G0830

ILLUST NO. 2 OF 4(9801-0208)

Click highlighted areas on diagram

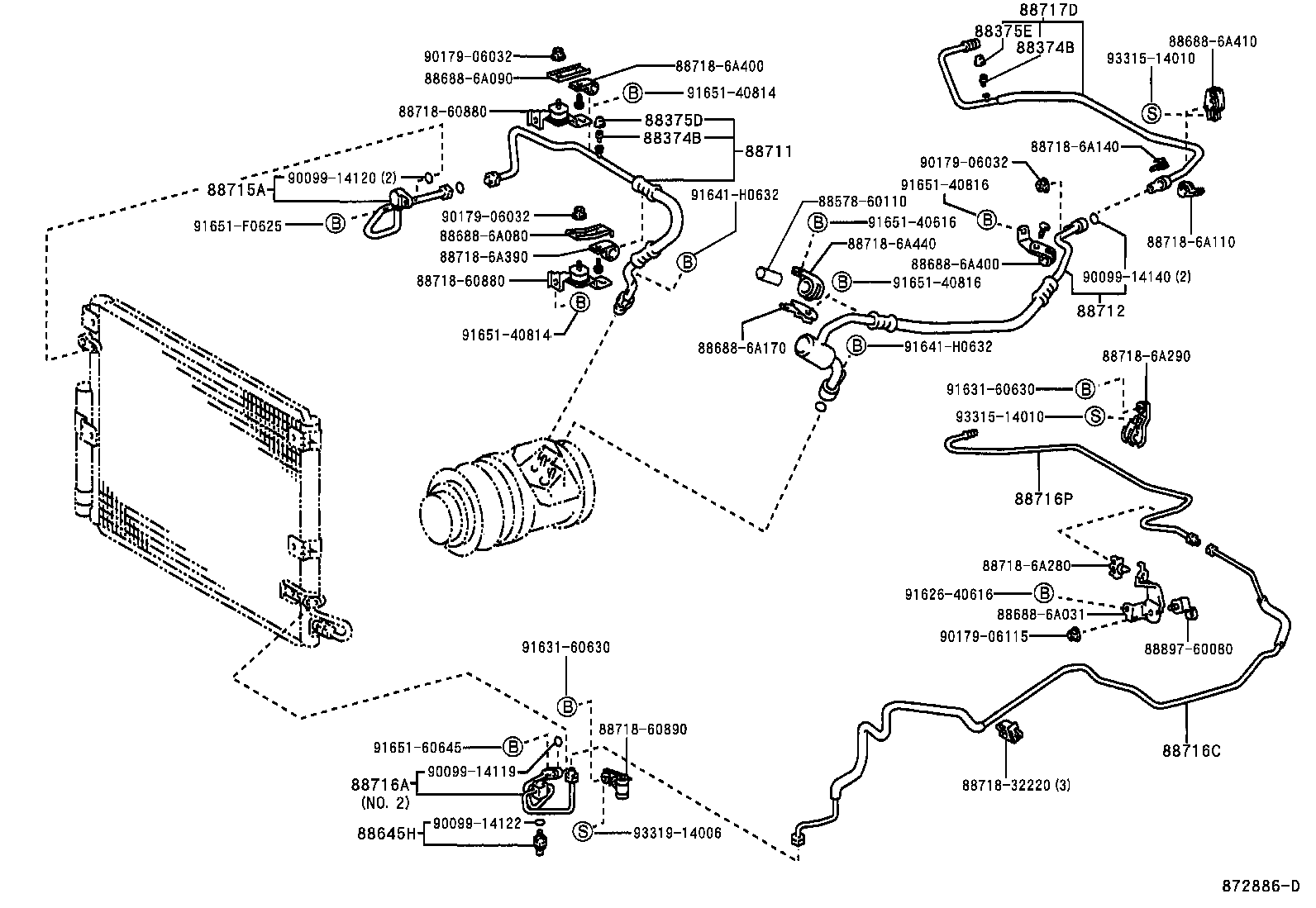

FRONT(SINGLE AIR CONDITIONER)

diagram 88374B 88374B 88375D 88375E 8857860110 88645H 886886A031 886886A080 886886A090 886886A170 886886A400 886886A410 88711 88712 88715A 88716A 88716C 88716P 88717D 8871832220 8871860880 8871860880 8871860890 887186A110 887186A140 887186A280 887186A290 887186A390 887186A400 887186A440 8889760080 9009914119 9009914120 9009914122 9009914140 9017906032 9017906032 9017906032 9017906115 9162640616 9163160630 9163160630 91641H0632 91641H0632 9165140616 9165140814 9165140814 9165140816 9165140816 9165160645 91651F0625 9331514010 9331514010 9331914006
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

UZJ100

 1
88375E - PLUG
88375-30290

UZJ100

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

UZJ100

W(DUAL AIR CONDITIONER)

 1
88645-34010

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60470

UZJ100

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60790

UZJ100

 1
88712-60850

UZJ100

 1
88712-60851

UZJ100

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60111

UZJ100

 1
88715-60110

UZJ100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60420

UZJ100

W(SINGLE AIR CONDITIONER),NO.2

 1
88726-60461

UZJ100

W(DUAL AIR CONDITIONER)

 1
88716-6A850

UZJ100

W(SINGLE AIR CONDITIONER),NO.1

 1
88726-60421

UZJ100

W(SINGLE AIR CONDITIONER),NO.2

 1
88726-60460

UZJ100

W(DUAL AIR CONDITIONER)

 1
88726-60462

UZJ100

W(DUAL AIR CONDITIONER)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60520

UZJ100

W(DUAL AIR CONDITIONER)

 1
88726-60730

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88726-60740

UZJ100

W(DUAL AIR CONDITIONER)

 1
88726-60570

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A140

UZJ100

W(DUAL AIR CONDITIONER)

 1
88717-6A141

UZJ100

W(DUAL AIR CONDITIONER)

 1
88717-6A150

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88717-6A151

UZJ100

W(SINGLE AIR CONDITIONER)

 1
Common parts
88578-60110
88688-6A031
88688-6A080
88688-6A090
88688-6A170
88688-6A400
88688-6A410
88718-32220
88718-60880
88718-60890
88718-6A110
88718-6A140
88718-6A280
88718-6A290
88718-6A390
88718-6A400
88718-6A440
88897-60080
90099-14119
90099-14120
90099-14122
90099-14140
90179-06032
90179-06115
91626-40616
91631-60630
91641-H0632
91651-40616
91651-40814
91651-40816
91651-60645
91651-F0625
93315-14010
93319-14006

ILLUST NO. 3 OF 4(9801-0508)

Click highlighted areas on diagram

REAR

diagram 886886A130 88704 8871495D00 8871495D00 8871495D00 8871495D00 8871495D00 88716L 88716M 88717A 88717B 88717T 887186A150 887186A200 887186A220 887186A230 887186A240 887186A330 887186A340 887186A350 887186A360 9004464009 9011906003 9017906161 9017906161 9331514010 9331515010 9338116012
Part # Description Qty Price
88704 - HOSE SUB-ASSY, SUCTION
88704-60230

UZJ100

 1
88716L - PIPE, COOLER REFRIGERANT LIQUID, L
88726-60630

UZJ100

 1
88716M - PIPE, COOLER REFRIGERANT LIQUID, M
88726-60650

UZJ100

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-6A220

UZJ100

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6A200

UZJ100

 1
88717T - PIPE, COOLER REFRIGERANT SUCTION, T
88717-6A270

UZJ100

 1
Common parts
88688-6A130
88714-95D00
88718-6A150
88718-6A200
88718-6A220
88718-6A230
88718-6A240
88718-6A330
88718-6A340
88718-6A350
88718-6A360
90044-64009
90119-06003
90179-06161
93315-14010
93315-15010
93381-16012

ILLUST NO. 4 OF 4(9801-0508)

Click highlighted areas on diagram

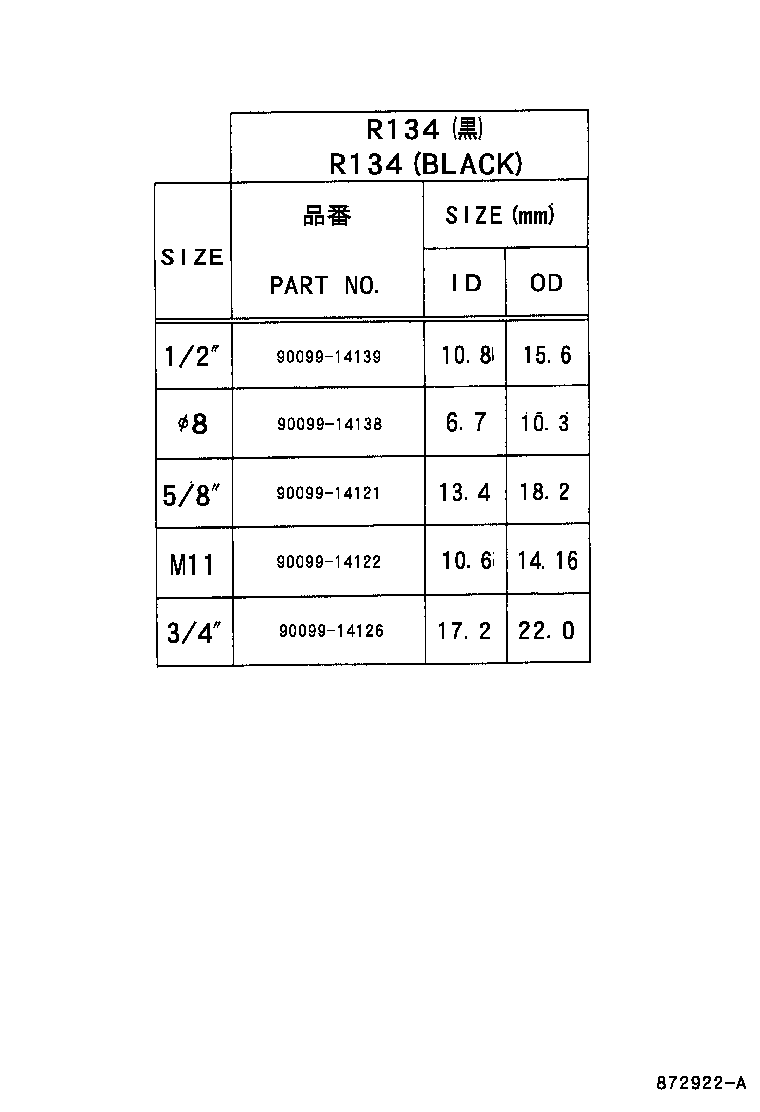

O-RING

diagram 9009914121 9009914122 9009914126 9009914138 9009914139
Part # Description Qty Price
Common parts
90099-14121
90099-14122
90099-14126
90099-14138
90099-14139

ILLUST NO. 2 OF 4(9801-0208)

Click highlighted areas on diagram

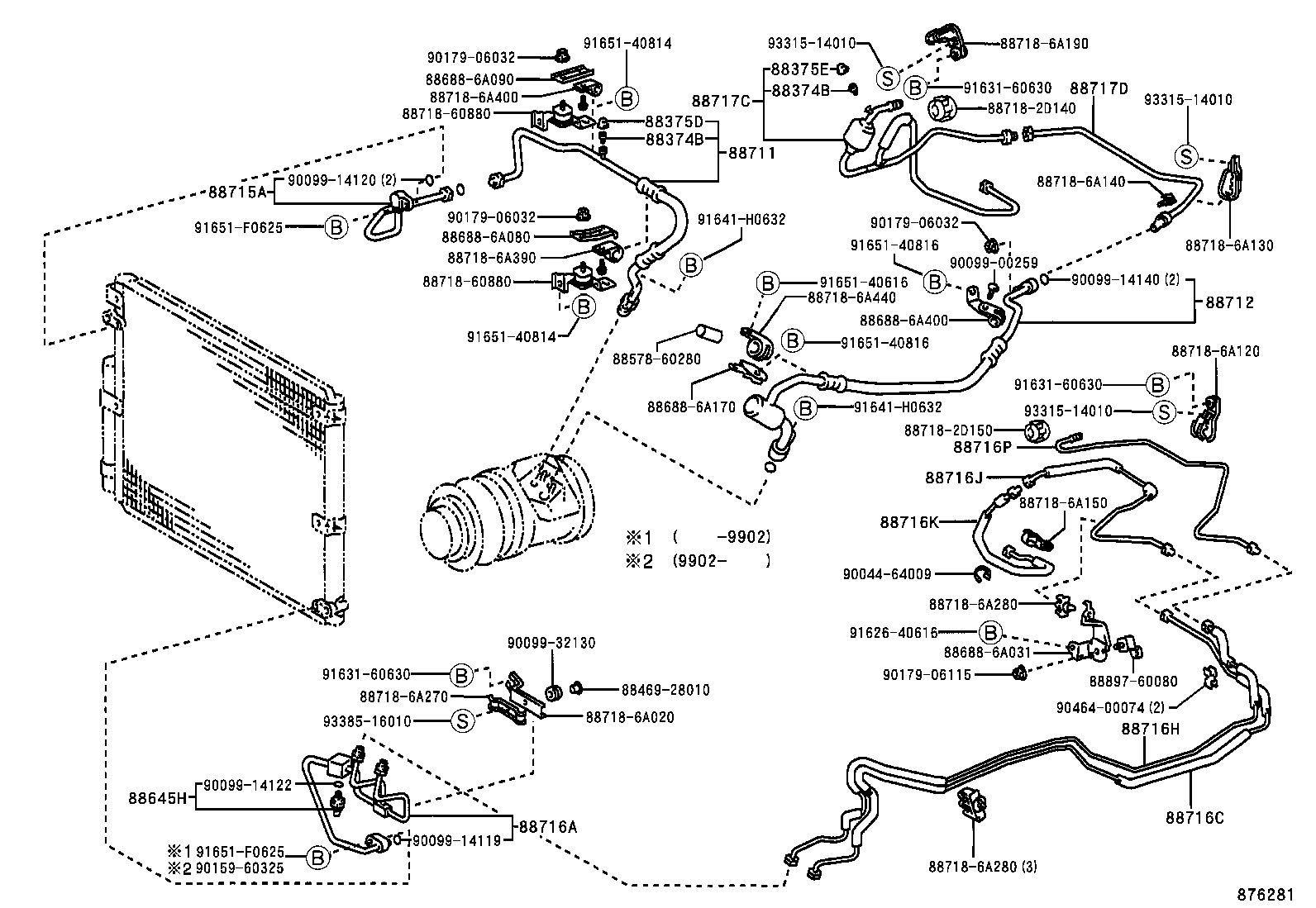

FRONT(DUAL AIR CONDITIONER)

diagram 88374B 88374B 88375D 88375E 8846928010 8857860280 88645H 886886A031 886886A080 886886A090 886886A170 886886A400 88711 88712 88715A 88716A 88716C 88716H 88716J 88716K 88716P 88717C 88717D 887182D140 887182D150 8871860880 8871860880 887186A020 887186A120 887186A130 887186A140 887186A150 887186A190 887186A270 887186A280 887186A280 887186A390 887186A400 887186A440 8889760080 9004464009 9009900259 9009914119 9009914120 9009914122 9009914140 9009932130 9015960325 9017906032 9017906032 9017906032 9017906115 9046400074 9162640616 9163160630 9163160630 9163160630 91641H0632 91641H0632 9165140616 9165140814 9165140814 9165140816 9165140816 91651F0625 91651F0625 9331514010 9331514010 9331514010 9338516010
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

UZJ100

 2
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

UZJ100

 1
88375E - PLUG
88375-30290

UZJ100

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

UZJ100

W(DUAL AIR CONDITIONER)

 1
88645-34010

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60470

UZJ100

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60790

UZJ100

 1
88712-60850

UZJ100

 1
88712-60851

UZJ100

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60111

UZJ100

 1
88715-60110

UZJ100

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-60420

UZJ100

W(SINGLE AIR CONDITIONER),NO.2

 1
88726-60461

UZJ100

W(DUAL AIR CONDITIONER)

 1
88716-6A850

UZJ100

W(SINGLE AIR CONDITIONER),NO.1

 1
88726-60421

UZJ100

W(SINGLE AIR CONDITIONER),NO.2

 1
88726-60460

UZJ100

W(DUAL AIR CONDITIONER)

 1
88726-60462

UZJ100

W(DUAL AIR CONDITIONER)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60520

UZJ100

W(DUAL AIR CONDITIONER)

 1
88726-60730

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-60530

UZJ100

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88726-60580

UZJ100

 1
88716K - PIPE, COOLER REFRIGERANT LIQUID, K
88726-60620

UZJ100

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88726-60740

UZJ100

W(DUAL AIR CONDITIONER)

 1
88726-60570

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-6A190

UZJ100

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A140

UZJ100

W(DUAL AIR CONDITIONER)

 1
88717-6A141

UZJ100

W(DUAL AIR CONDITIONER)

 1
88717-6A150

UZJ100

W(SINGLE AIR CONDITIONER)

 1
88717-6A151

UZJ100

W(SINGLE AIR CONDITIONER)

 1
Common parts
88469-28010
88578-60280
88688-6A031
88688-6A080
88688-6A090
88688-6A170
88688-6A400
88718-2D140
88718-2D150
88718-60880
88718-6A020
88718-6A120
88718-6A130
88718-6A140
88718-6A150
88718-6A190
88718-6A270
88718-6A280
88718-6A390
88718-6A400
88718-6A440
88897-60080
90044-64009
90099-00259
90099-14119
90099-14120
90099-14122
90099-14140
90099-32130
90159-60325
90179-06032
90179-06115
90464-00074
91626-40616
91631-60630
91641-H0632
91651-40616
91651-40814
91651-40816
91651-F0625
93315-14010
93385-16010
