UZJ100L-GNPEKA (1998)
Toyota Land Cruiser 100
ILLUST NO. 3 OF 5(9801- )
FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60090 |
UZJ100 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60120 |
UZJ100 |
1 | ||
| 55844-60130 |
UZJ100 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60080 |
UZJ100 |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-60080 |
UZJ100 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60090 |
UZJ100 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-60070 |
UZJ100 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-60040 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||

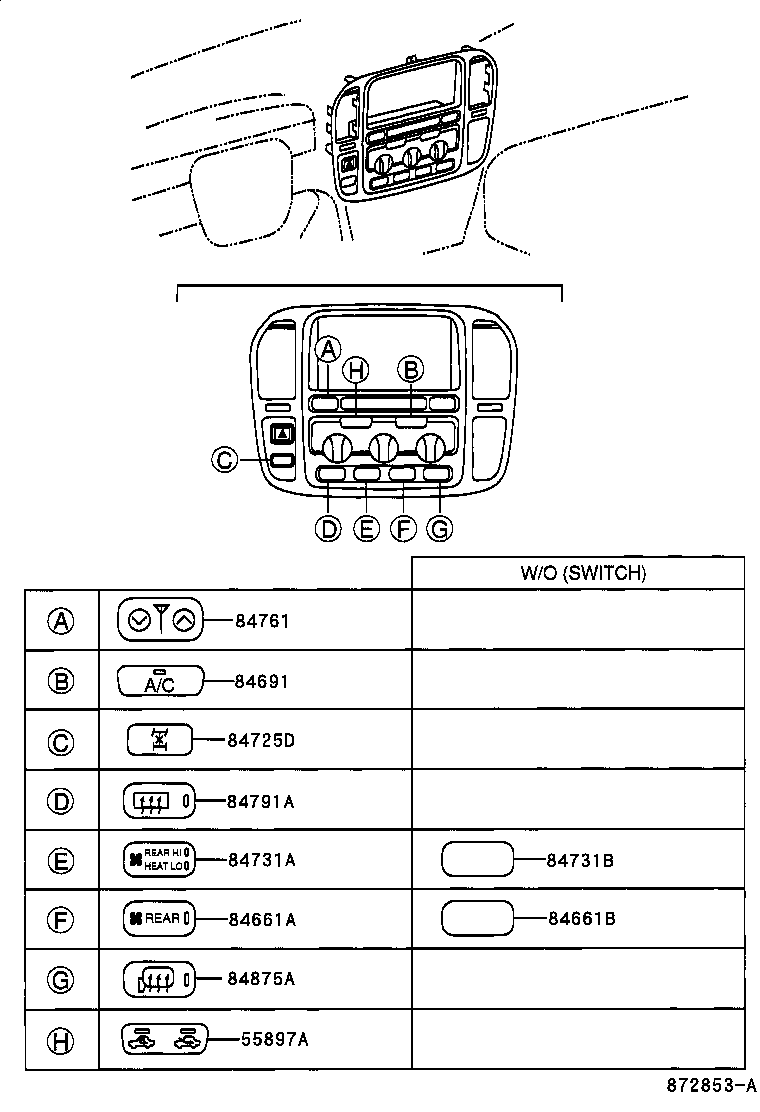

ILLUST NO. 1 OF 5(9801-0208)
FRONT HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55897A - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-60010 |
UZJ100 |
1 | ||
| 84661A - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-60020 |
UZJ100 |
1 | ||
| 84661B - BEZEL, SWITCH | ||||
| 84656-60020 |
UZJ100 |
1 | ||
| 84691 - KNOB, CONDITION INDICATOR | ||||
| 84691-60010 |
UZJ100 |
1 | ||
| 84725D - KNOB, DIFFERENTIAL LOCK SWITCH | ||||
| 84725-60050 |
UZJ100 |
1 | ||
| 84731A - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-60010 |
UZJ100 |
1 | ||
| 84731B - BEZEL, SWITCH | ||||
| 84656-60020 |
UZJ100 |
1 | ||
| 84761 - KNOB, ANTENNA SWITCH | ||||
| 84761-60010 |
UZJ100 |
1 | ||
| 84791A - KNOB, DEFOGGER TIME SWITCH | ||||
| 84791-60010 |
UZJ100 |
1 | ||
| 84875A - KNOB, OUTER MIRROR SWITCH | ||||
| 84875-60010 |
UZJ100 |
1 | ||
ILLUST NO. 4 OF 5(9801-0208)
REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-60121 |
UZJ100 |
1 | ||
| 87212-60120 |
UZJ100 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60120 |
UZJ100 |
1 | ||
| 88566B - DUCT, COOLER AIR, NO.2 | ||||
| 88566-60110 |
UZJ100 |
1 | ||
| 88566C - DUCT, COOLER AIR, NO.3 | ||||
| 88566-60150 |
UZJ100 |
1 | ||
| 88566-60130 |
UZJ100 W(MOON ROOF) |
1 | ||
| 88566D - DUCT, COOLER AIR, NO.4 | ||||
| 88566-60140 |
UZJ100 W(MOON ROOF) |
1 | ||
| 88566-60160 |
UZJ100 |
1 | ||
| 88570B - GRILLE ASSY, AIR OUTLET, NO.1 | ||||
| 88570-60070A0 |
UZJ100 W(MOON ROOF),IVORY,TRIM40,41,RH |
1 | ||
| 88570-60100B0 |
UZJ100 MD.GRAY,TRIM1# |
2 | ||
| 88570-60070B0 |
UZJ100 W(MOON ROOF),MD.GRAY,TRIM1#,RH |
1 | ||
| 88570-60100A0 |
UZJ100 IVORY,TRIM40,41 |
2 | ||
| 88570-60080B0 |
UZJ100 W(MOON ROOF),MD. GRAY,TRIM1#,LH |
1 | ||
| 88570-60080A0 |
UZJ100 W(MOON ROOF),IVORY,TRIM40,41,LH |
1 | ||
| 88570B - GRILLE ASSY, AIR OUTLET, NO.1 | ||||
| 88570-60070A0 |
UZJ100 W(MOON ROOF),IVORY,TRIM40,41,RH |
1 | ||
| 88570-60100B0 |
UZJ100 MD.GRAY,TRIM1# |
2 | ||
| 88570-60070B0 |
UZJ100 W(MOON ROOF),MD.GRAY,TRIM1#,RH |
1 | ||
| 88570-60100A0 |
UZJ100 IVORY,TRIM40,41 |
2 | ||
| 88570-60080B0 |
UZJ100 W(MOON ROOF),MD. GRAY,TRIM1#,LH |
1 | ||
| 88570-60080A0 |
UZJ100 W(MOON ROOF),IVORY,TRIM40,41,LH |
1 | ||
| 88570D - GRILLE ASSY, AIR OUTLET, NO.2 | ||||
| 88570-60090B0 |
UZJ100 MD.GRAY,TRIM1# |
3 | ||
| 88570-60090A0 |
UZJ100 IVORY,TRIM40,41 |
3 | ||
| 88570D - GRILLE ASSY, AIR OUTLET, NO.2 | ||||
| 88570-60090B0 |
UZJ100 MD.GRAY,TRIM1# |
3 | ||
| 88570-60090A0 |
UZJ100 IVORY,TRIM40,41 |
3 | ||
| 88570D - GRILLE ASSY, AIR OUTLET, NO.2 | ||||
| 88570-60090B0 |
UZJ100 MD.GRAY,TRIM1# |
3 | ||
| 88570-60090A0 |
UZJ100 IVORY,TRIM40,41 |
3 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90467-08056C0 | ||||
| 90467-1001711 | ||||
| 91635-40618 | ||||

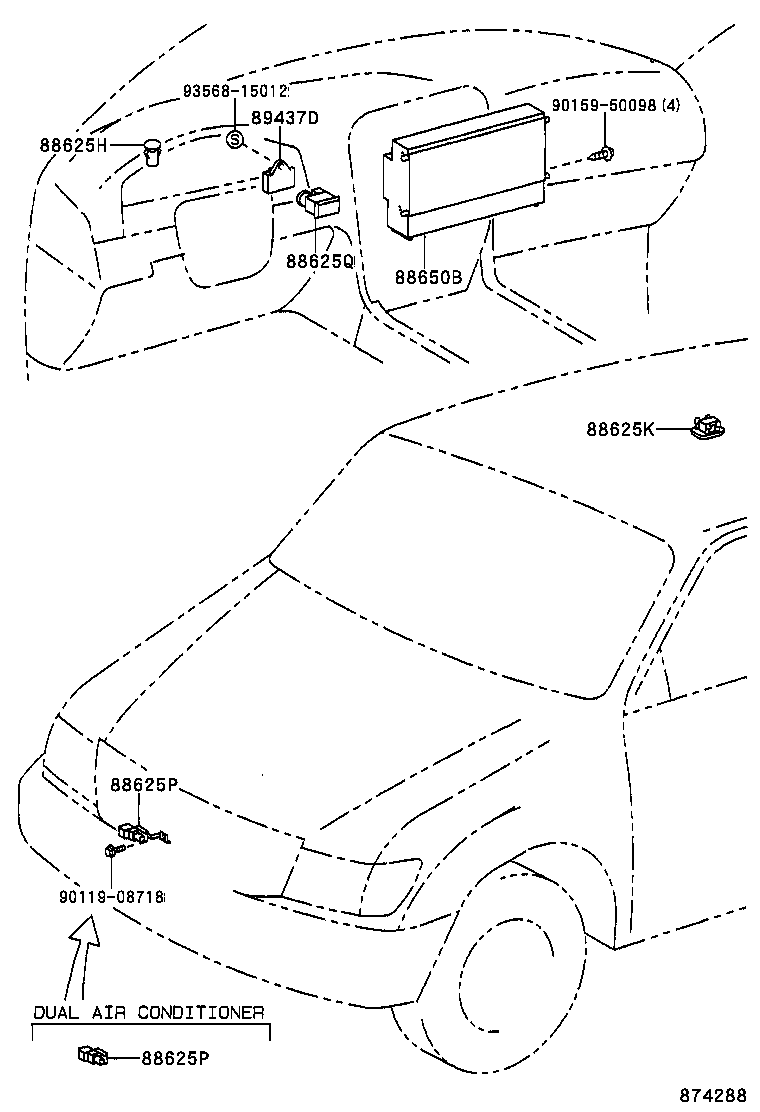

ILLUST NO. 5 OF 5(9801-0208)
SENSOR & AMPLIFIER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
UZJ100 |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88625-60100B0 |
UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 88625-60100A0 |
UZJ100 IVORY,TRIM40,41 |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88625-32170 |
UZJ100 W(DUAL AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88790-60091 |
UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88625-32171 |
UZJ100 W(DUAL AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88790-60090 |
UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88625-32170 |
UZJ100 W(DUAL AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88790-60091 |
UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88625-32171 |
UZJ100 W(DUAL AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88790-60090 |
UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
UZJ100 |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-60590 |
UZJ100 |
1 | ||
| 89437D - COVER, SENSOR | ||||
| 89437-60070 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90119-08718 | ||||
| 90159-50098 | ||||
| 93568-15012 | ||||

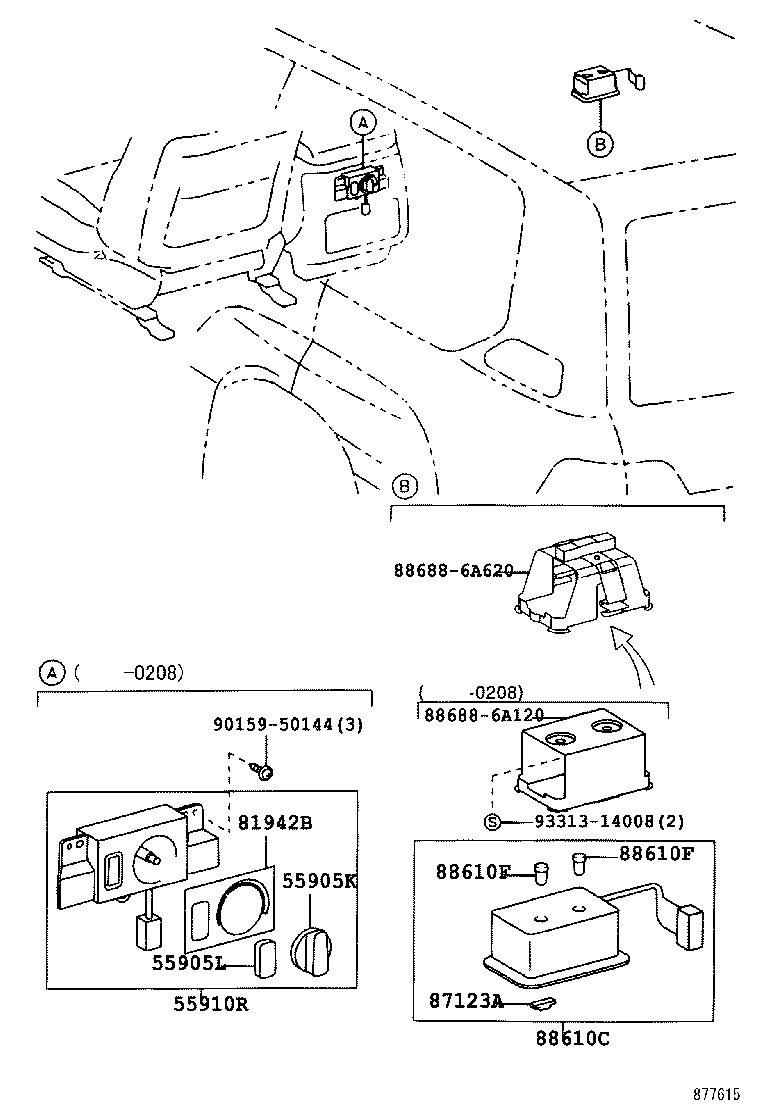

ILLUST NO. 2 OF 5(9801- )
REAR HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-60250 |
UZJ100 |
1 | ||
| 55905L - KNOB, HEATER CONTROL, NO.5 | ||||
| 55905-60260 |
UZJ100 |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55900-60500 |
UZJ100 |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-60050 |
UZJ100 |
1 | ||
| 87123A - KNOB, HEATER CONTROL | ||||
| 87123-60010 |
UZJ100 |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-60130A0 |
UZJ100 IVORY,TRIM4# |
1 | ||
| 88610-60130B0 |
UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 88610-60131A0 |
UZJ100 IVORY,TRIM4# |
1 | ||
| 88610-60131B0 |
UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 88610F - BULB, COOLER CONTROL SWITCH | ||||
| 84999-60700 |
UZJ100 |
2 | ||
| 88610F - BULB, COOLER CONTROL SWITCH | ||||
| 84999-60700 |
UZJ100 |
2 | ||
| Common parts | ||||
| 88688-6A120 | ||||
| 88688-6A620 | ||||
| 90159-50144 | ||||
| 93313-14008 | ||||
