UZJ100L-GNPEKA (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0505)

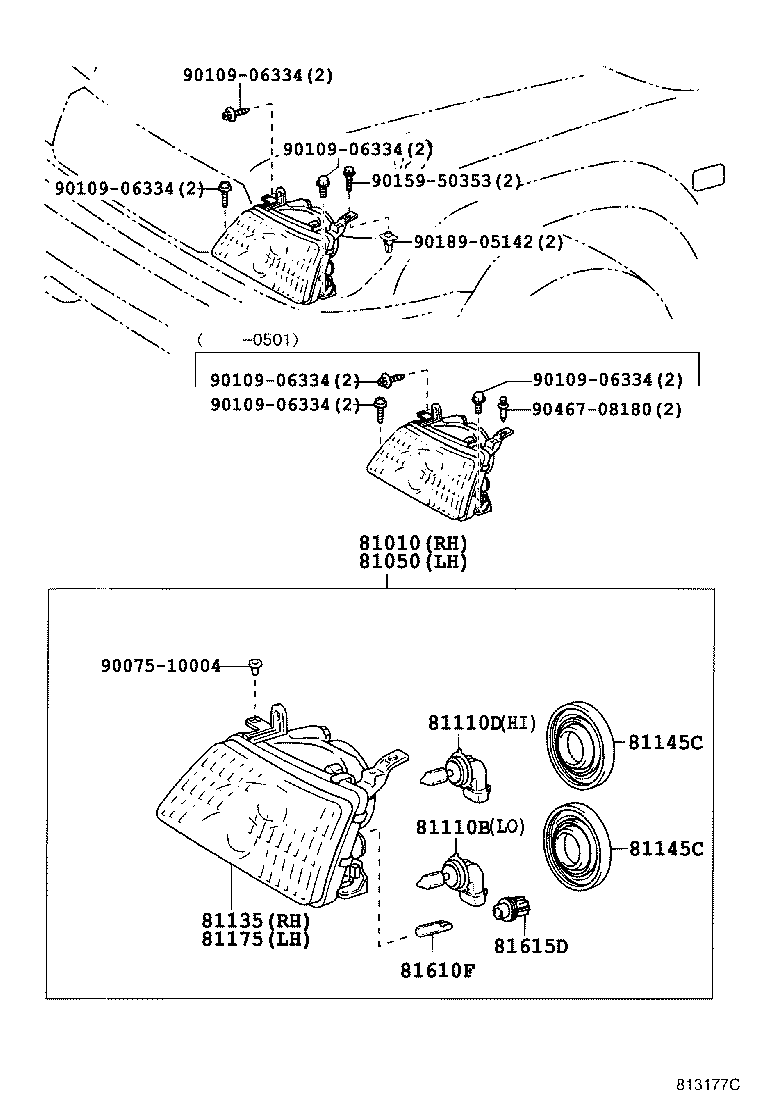

Click highlighted areas on diagram

diagram 81010 81050 81110B 81110D 81135 81145C 81145C 81175 81610F 81615D 9007510004 9010906334 9010906334 9010906334 9010906334 9010906334 9010906334 9015950353 9018905142 9046708180
Part # Description Qty Price
81010 - HEADLAMP ASSY, W/CLEARANCE, RH
81010-60070

UZJ100

 1
81050 - HEADLAMP ASSY, W/CLEARANCE, LH
81050-60070

UZJ100

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

UZJ100

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

UZJ100

12V 51W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81019-60070

UZJ100

 1
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-65006

UZJ100

 4
81145C - COVER, HEADLAMP SOCKET, NO.2
90075-65006

UZJ100

 4
81175 - UNIT ASSY, HEADLAMP, LH
81059-60070

UZJ100

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

UZJ100

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60004

UZJ100

 2
Common parts
90075-10004
90109-06334
90159-50353
90189-05142
90467-08180
