UZJ100L-GNPEKA (1998)
Toyota Land Cruiser 100

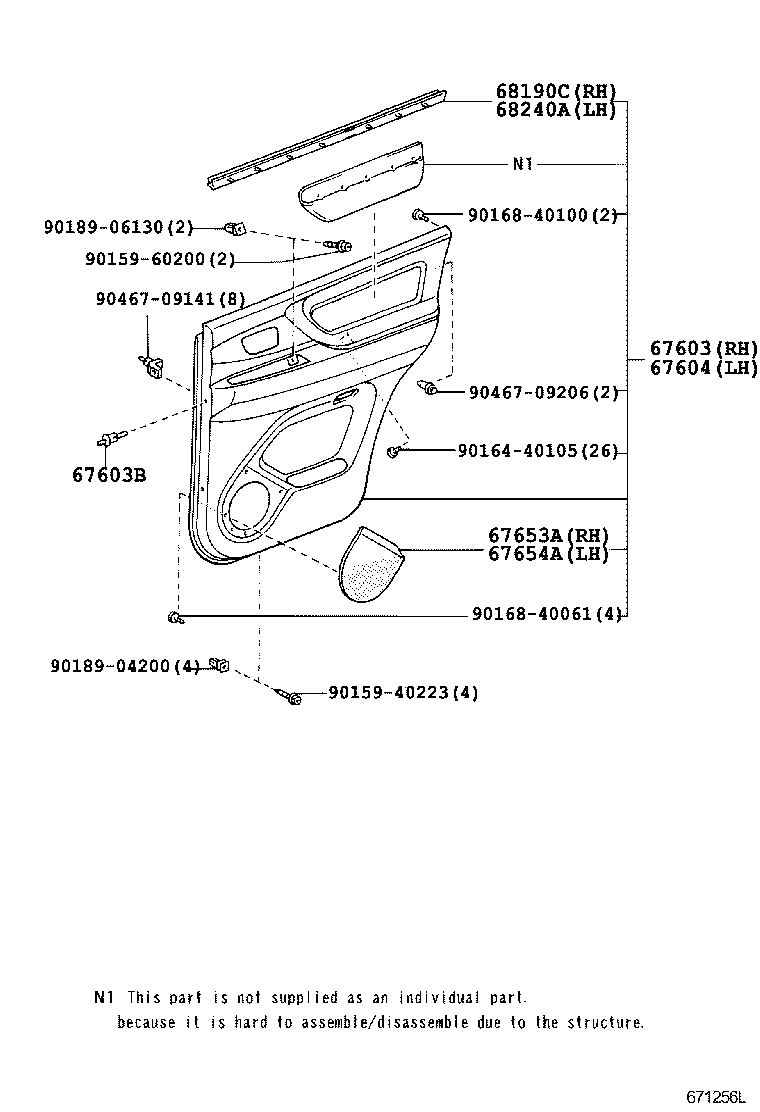

ILLUST NO. 1 OF 2(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-60531E3 |
UZJ100 OAK,TRIM4# |
1 | ||
| 67630-60531B2 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-60550E0 |
UZJ100 W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 67630-60531B3 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-60530B0 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67630-60531E4 |
UZJ100 0AK,TRIM4# |
1 | ||
| 67630-60550B0 |
UZJ100 W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-60530E0 |
UZJ100 OAK,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066P2 |
UZJ100 MD.GRAY,TRIM1# |
8 | ||
| 90467-07066A1 |
UZJ100 IVORY,TRIM40,41 |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-60531B2 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-60530E0 |
UZJ100 OAK,TRIM4# |
1 | ||
| 67640-60531E3 |
UZJ100 OAK,TRIM4# |
1 | ||
| 67640-60530B0 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-60550B0 |
UZJ100 W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-60531B3 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67640-60550E0 |
UZJ100 W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 67640-60531E4 |
UZJ100 OAK,TRIM4# |
1 | ||
| 67653A - GRILLE, SPEAKER REAR DOOR, RH | ||||
| 67071-60010E0 |
UZJ100 OAK,TRIM40,41 |
1 | ||
| 67071-60010B2 |
UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67071-60010B0 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67071-60010A1 |
UZJ100 IVORY,TRIM40,41 |
1 | ||
| 67654A - GRILLE, SPEAKER REAR DOOR, LH | ||||
| 67072-60010B0 |
UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 67072-60010B2 |
UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67072-60010A1 |
UZJ100 IVORY,TRIM40,41 |
1 | ||
| 67072-60010E0 |
UZJ100 OAK,TRIM40,41 |
1 | ||
| 68190C - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH | ||||
| 68190-60080 |
UZJ100 |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-60060 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90159-40223 | ||||
| 90159-60200 | ||||
| 90164-40105 | ||||
| 90168-40061 | ||||
| 90168-40100 | ||||
| 90189-04200 | ||||
| 90189-06130 | ||||
| 90467-09141 | ||||
| 90467-09206 | ||||

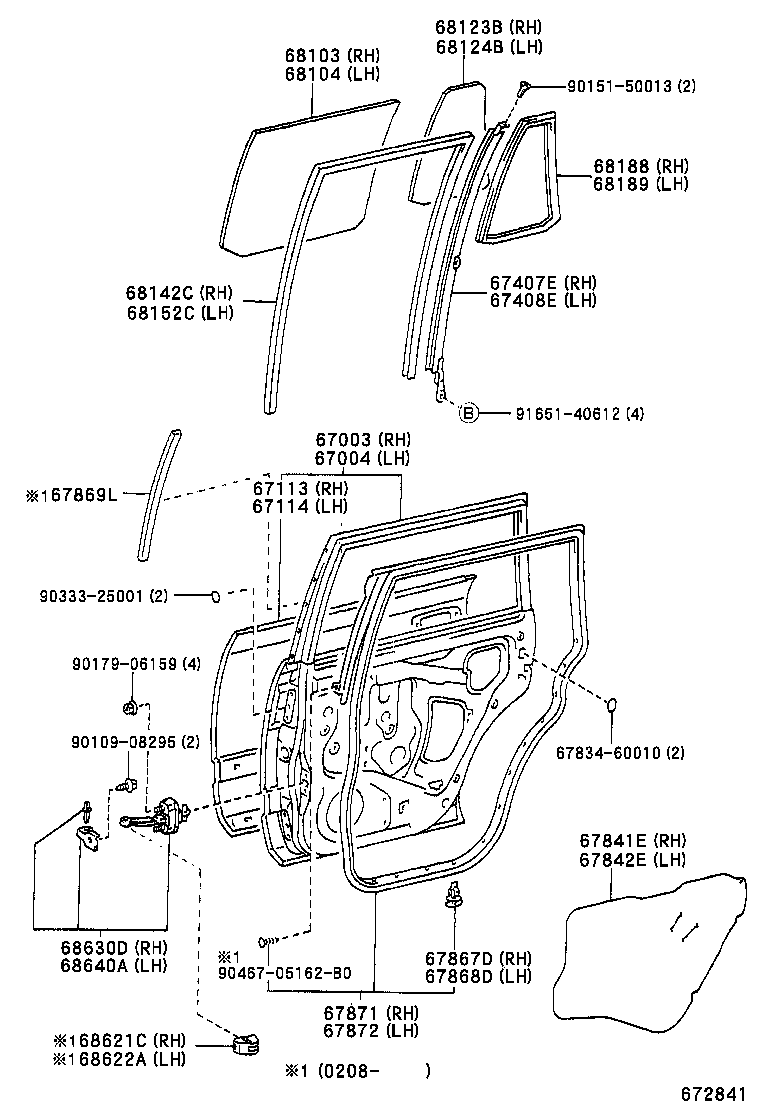

ILLUST NO. 2 OF 2(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-60220 |
UZJ100 |
1 | ||
| 67003-60230 |
UZJ100 W(SIDE PROTECTION MOULDING) |
1 | ||
| 67003-60221 |
UZJ100 |
1 | ||
| 67003-60231 |
UZJ100 W(SIDE PROTECTION MOULDING) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-60230 |
UZJ100 W(SIDE PROTECTION MOULDING) |
1 | ||
| 67004-60220 |
UZJ100 |
1 | ||
| 67004-60221 |
UZJ100 |
1 | ||
| 67004-60231 |
UZJ100 W(SIDE PROTECTION MOULDING) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-60160 |
UZJ100 |
1 | ||
| 67113-60170 |
UZJ100 W(SIDE PROTECTION MOULDING) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-60170 |
UZJ100 W(SIDE PROTECTION MOULDING) |
1 | ||
| 67114-60160 |
UZJ100 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-60040 |
UZJ100 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-60040 |
UZJ100 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-60090 |
UZJ100 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-60040 |
UZJ100 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
UZJ100 |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
UZJ100 |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-60070 |
UZJ100 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-60070 |
UZJ100 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-60150 |
UZJ100 *TT,T=4.0,GREEN |
1 | ||
| 68113-60170 |
UZJ100 *UVCSERT,T=4.0,GRAY |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-60150 |
UZJ100 *TT,T=4.0,GREEN |
1 | ||
| 68114-60170 |
UZJ100 *UVCSERT,T=4.0,GRAY |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-60160 |
UZJ100 *TT,T=3.5,GREEN |
1 | ||
| 68123-60180 |
UZJ100 *UVCSERT,T=4.0,GRAY |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-60180 |
UZJ100 *UVCSERT,T=4.0,GRAY |
1 | ||
| 68124-60160 |
UZJ100 *TT,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-60040 |
UZJ100 |
1 | ||
| 68142-60042 |
UZJ100 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-60032 |
UZJ100 |
1 | ||
| 68152-60030 |
UZJ100 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-60040 |
UZJ100 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-60040 |
UZJ100 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-60070 |
UZJ100 |
1 | ||
| 68630-60051 |
UZJ100 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-60050 |
UZJ100 |
1 | ||
| 68640-60060 |
UZJ100 |
1 | ||
| Common parts | ||||
| 67834-60010 | ||||
| 90109-08295 | ||||
| 90151-50013 | ||||
| 90179-06159 | ||||
| 90333-25001 | ||||
| 90467-05162B0 | ||||
| 91651-40612 | ||||
