UZJ100L-GNPEKA (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)

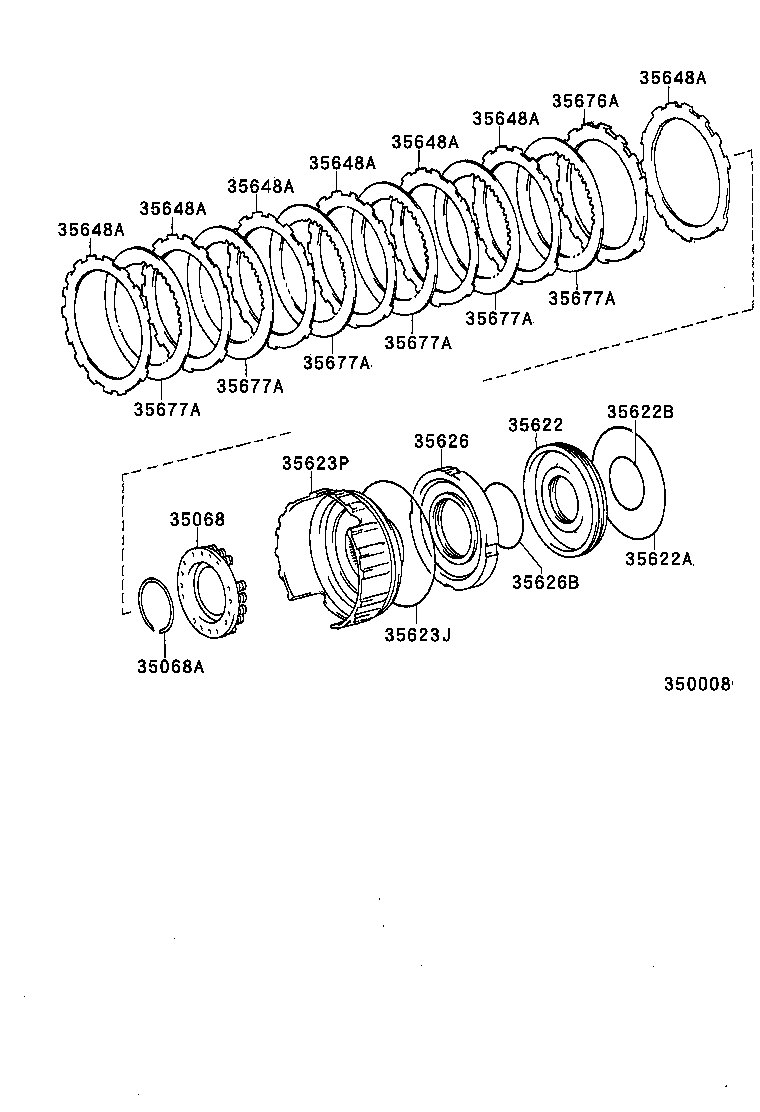

Click highlighted areas on diagram
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-50010 |
UZJ100 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
UZJ100 |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30010 |
UZJ100 |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99084 |
UZJ100 |
1 | ||
| 35622B - RING (FOR BRAKE PISTON INNER) | ||||
| 90301-56007 |
UZJ100 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99192 |
UZJ100 |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-14011 |
UZJ100 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
UZJ100 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-67005 |
UZJ100 |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UZJ100 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UZJ100 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UZJ100 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UZJ100 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UZJ100 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UZJ100 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
UZJ100 |
7 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-30100 |
UZJ100 T=5.2 |
1 | ||
| 35676-50020 |
UZJ100 T=4.8 |
1 | ||
| 35676-50010 |
UZJ100 T=5.0 |
1 | ||
| 35676-50050 |
UZJ100 T=4.2 |
1 | ||
| 35676-50060 |
UZJ100 T=4.0 |
1 | ||
| 35676-50040 |
UZJ100 T=4.4 |
1 | ||
| 35676-30110 |
UZJ100 T=5.4 |
1 | ||
| 35676-50030 |
UZJ100 T=4.6 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30130 |
UZJ100 |
7 | ||
| 35677-30180 |
UZJ100 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30130 |
UZJ100 |
7 | ||
| 35677-30180 |
UZJ100 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30130 |
UZJ100 |
7 | ||
| 35677-30180 |
UZJ100 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30130 |
UZJ100 |
7 | ||
| 35677-30180 |
UZJ100 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30130 |
UZJ100 |
7 | ||
| 35677-30180 |
UZJ100 |
7 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30130 |
UZJ100 |
7 | ||
| 35677-30180 |
UZJ100 |
7 | ||
