UZJ100L-GNPEKA (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )2UZFE..4FC

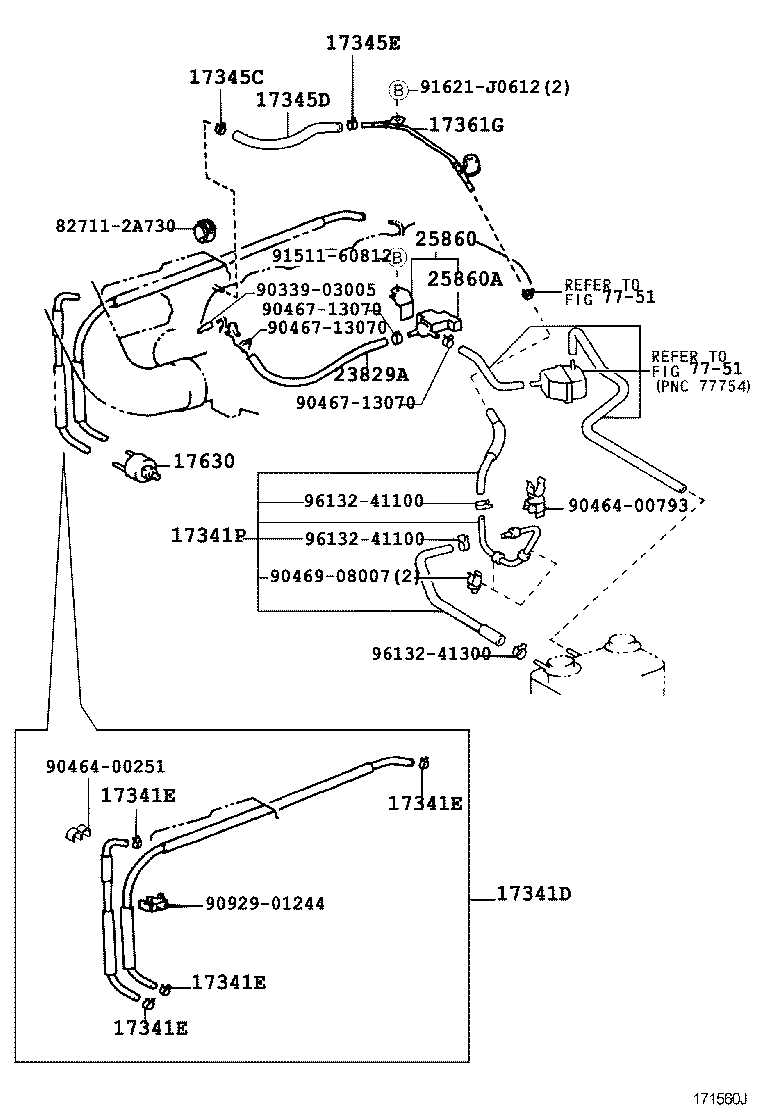

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9801-0208)

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17341E 17341E 17341P 17345C 17345D 17345E 17361G 17630 23829A 25860 25860A 7751 7751 827112A730 9033903005 9046400251 9046400793 9046713070 9046713070 9046713070 9046908007 9092901244 9151160812 91621J0612 9613241100 9613241100 9613241300
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17030-50070

2UZFE..UZJ100

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099

2UZFE..UZJ100

 4
96132-51000

2UZFE..UZJ100

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099

2UZFE..UZJ100

 4
96132-51000

2UZFE..UZJ100

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099

2UZFE..UZJ100

 4
96132-51000

2UZFE..UZJ100

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10099

2UZFE..UZJ100

 4
96132-51000

2UZFE..UZJ100

 4
17341P - HOSE, AIR
17341-50110

2UZFE..UZJ100

 1
17345C - CLIP, NO.5(FOR IDLE-UP HOSE)
96132-41100

2UZFE..UZJ100

 1
17345D - HOSE, AIR, NO.5
17345-50080

2UZFE..UZJ100

 1
17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5)
90467-13007

2UZFE..UZJ100

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-50010

2UZFE..UZJ100

 1
17630 - VALVE ASSY, AIR CONTROL
17630-16040

2UZFE..UZJ100

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50070

2UZFE..UZJ100

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50100

2UZFE..UZJ100

NO.1

 1
25860-50150

2UZFE..UZJ100

NO.2

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12173

2UZFE..UZJ100

 1
Common parts
82711-2A730
90339-03005
90464-00251
90464-00793
90467-13070
90469-08007
90929-01244
91511-60812
91621-J0612
96132-41100
96132-41300
Linked diagrams
7751
