UZJ100L-GNAEKA (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

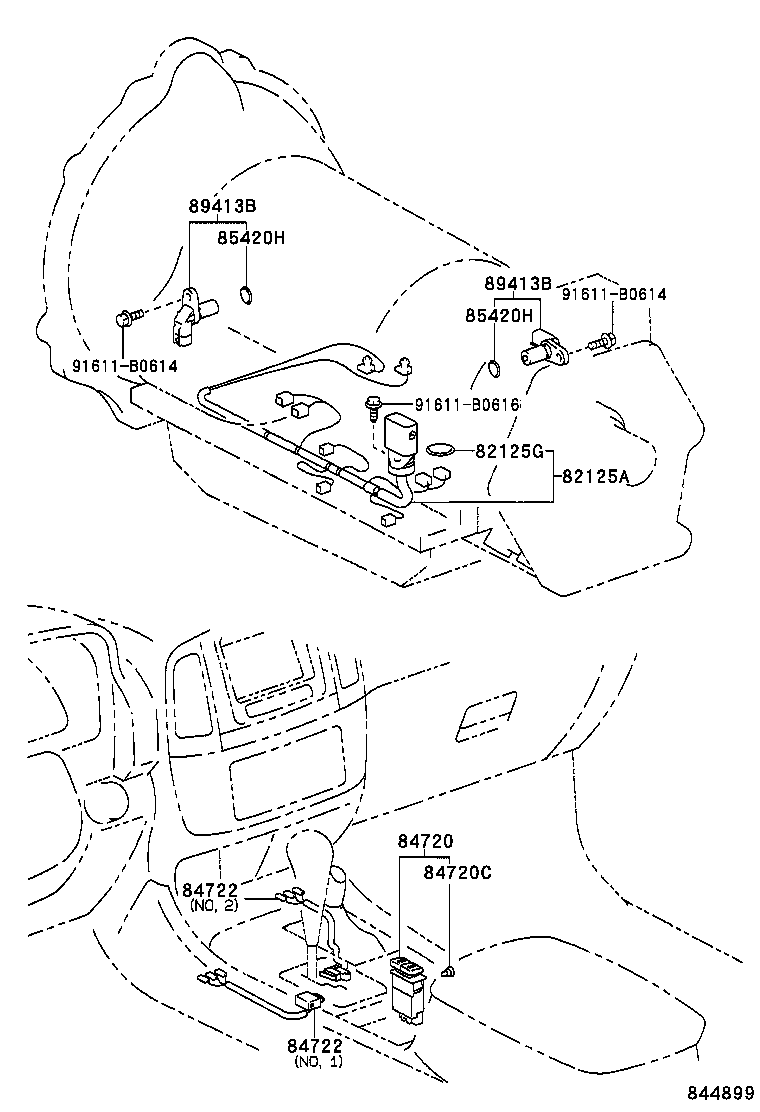

Click highlighted areas on diagram

diagram 82125A 82125G 84720 84720C 84722 84722 85420H 85420H 89413B 89413B 91611B0614 91611B0614 91611B0616
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-35130

UZJ100

 1
82125-60550

UZJ100

 1
82125-35150

UZJ100

 1
82125-60650

UZJ100

 1
82125-60310

UZJ100

 1
82125G - RING, O(FOR TRANSMISSION WIRE)
96721-24018

UZJ100

 1
90301-21009

UZJ100

 1
90301-21009

UZJ100

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-60120

UZJ100

 1
84720-60120

UZJ100

 1
84720-60120

UZJ100

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
90010-01039

UZJ100

14V0.91W,W(GREEN CAP

 1
90010-01039

UZJ100

14V0.91W,W(GREEN CAP

 1
90010-01039

UZJ100

14V0.91W,W(GREEN CAP

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-60230

UZJ100

NO.2

 1
84722-60220

UZJ100

NO.1

 1
84722-60220

UZJ100

NO.1

 1
84722-60150C0

UZJ100

BLACK,TRIM1#,40,41

 1
84722-60230

UZJ100

NO.2

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-60230

UZJ100

NO.2

 1
84722-60220

UZJ100

NO.1

 1
84722-60220

UZJ100

NO.1

 1
84722-60150C0

UZJ100

BLACK,TRIM1#,40,41

 1
84722-60230

UZJ100

NO.2

 1
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

UZJ100

 1
90301-11008

UZJ100

 2
90301-11008

UZJ100

 2
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

UZJ100

 1
90301-11008

UZJ100

 2
90301-11008

UZJ100

 2
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

UZJ100

 1
89413-32010

UZJ100

 2
89413-32010

UZJ100

 2
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

UZJ100

 1
89413-32010

UZJ100

 2
89413-32010

UZJ100

 2
Common parts
91611-B0614
91611-B0616
