Toyota Land cruiser 100 UZJ100 ROOF PANEL & BACK PANEL

UZJ100L-GNAEKA (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007

Engine 2UZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0208- )

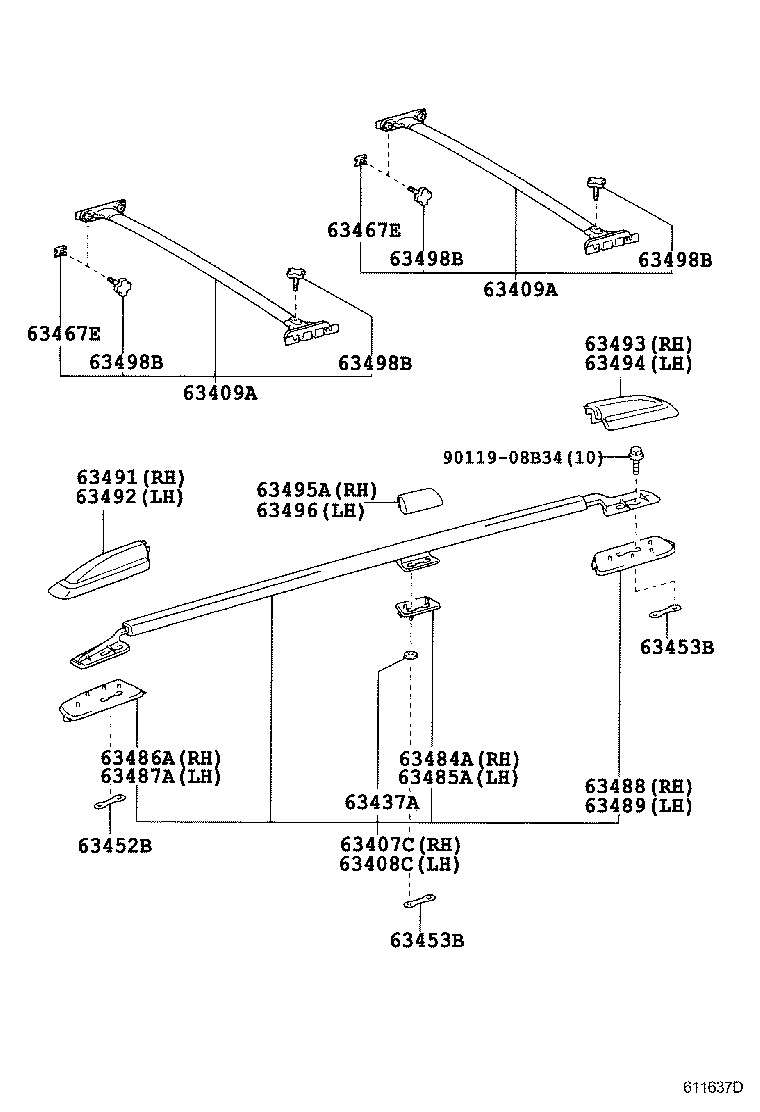

Click highlighted areas on diagram

W(ROOF RAIL)

Part #	Description	Period	Qty
63407C - CARRIER SUB-ASSY, ROOF, RH
63407-60080	UZJ100	05/2005 - 07/2005	1
63407-60080	UZJ100	08/2002 - 05/2005	1
63407-60081	UZJ100	07/2005 - 08/2007	1
63408C - CARRIER SUB-ASSY, ROOF, LH
63408-60071	UZJ100	07/2005 - 08/2007	1
63408-60070	UZJ100	08/2002 - 05/2005	1
63408-60070	UZJ100	05/2005 - 07/2005	1
63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER
63409-60050	UZJ100	05/2005 - 07/2005	2
63409-60050	UZJ100	08/2002 - 05/2005	2
63409-60051	UZJ100	07/2005 - 08/2007	2
63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER
63409-60050	UZJ100	05/2005 - 07/2005	2
63409-60050	UZJ100	08/2002 - 05/2005	2
63409-60051	UZJ100	07/2005 - 08/2007	2
63437A - SEAL, ROOF CARRIER, NO.2
63437-60010	UZJ100	05/2005 - 06/2005	2
63437-60010	UZJ100	08/2002 - 05/2005	2
63437-60010	UZJ100	07/2005 - 12/2999	2
63452B - REINFORCEMENT, ROOF RACK, NO.2
63452-60021	UZJ100	08/2002 - 05/2005	2
63452-60021	UZJ100	05/2005 - 12/2999	2
63453B - REINFORCEMENT, ROOF RACK, NO.3
63451-60031	UZJ100 W(ROOF RAIL)	05/2005 - 08/2007	4
63451-60031	UZJ100 W(ROOF RAIL)	08/2002 - 05/2005	4
63453B - REINFORCEMENT, ROOF RACK, NO.3
63451-60031	UZJ100 W(ROOF RAIL)	05/2005 - 08/2007	4
63451-60031	UZJ100 W(ROOF RAIL)	08/2002 - 05/2005	4
63467E - PLATE, ROOF RACK, REAR
63467-42011	UZJ100	07/2005 - 12/2999	8
63467-42010	UZJ100	08/2002 - 10/2002	8
63467-42011	UZJ100	10/2002 - 05/2005	8
63467-42011	UZJ100	05/2005 - 06/2005	8
63467E - PLATE, ROOF RACK, REAR
63467-42011	UZJ100	07/2005 - 12/2999	8
63467-42010	UZJ100	08/2002 - 10/2002	8
63467-42011	UZJ100	10/2002 - 05/2005	8
63467-42011	UZJ100	05/2005 - 06/2005	8
63484A - CUSHION, ROOF RACK LEG, CENTER RH
63484-60060	UZJ100	07/2005 - 12/2999	1
63484-60060	UZJ100	05/2005 - 06/2005	1
63484-60060	UZJ100	08/2002 - 05/2005	1
63485A - CUSHION, ROOF RACK LEG, CENTER LH
63485-60070	UZJ100	08/2002 - 05/2005	1
63485-60070	UZJ100	05/2005 - 06/2005	1
63485-60070	UZJ100	07/2005 - 12/2999	1
63486A - CUSHION, ROOF RACK LEG, FRONT RH
63486-60090	UZJ100	07/2005 - 12/2999	1
63486-60090	UZJ100	05/2005 - 06/2005	1
63486-60090	UZJ100	08/2002 - 05/2005	1
63487A - CUSHION, ROOF RACK LEG, FRONT LH
63487-60070	UZJ100	08/2002 - 05/2005	1
63487-60070	UZJ100	05/2005 - 06/2005	1
63487-60070	UZJ100	07/2005 - 12/2999	1
63488 - CUSHION, ROOF RACK LEG, REAR RH
63488-60070	UZJ100	05/2005 - 06/2005	1
63488-60070	UZJ100	08/2002 - 05/2005	1
63488-60070	UZJ100	07/2005 - 12/2999	1
63489 - CUSHION, ROOF RACK LEG, REAR LH
63489-60060	UZJ100	08/2002 - 05/2005	1
63489-60060	UZJ100	05/2005 - 06/2005	1
63489-60060	UZJ100	07/2005 - 12/2999	1
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-60080	UZJ100	08/2002 - 05/2005	1
63491-60080	UZJ100	05/2005 - 08/2007	1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-60060	UZJ100	08/2002 - 05/2005	1
63492-60060	UZJ100	05/2005 - 08/2007	1
63493 - COVER, ROOF RACK LEG, REAR RH
63493-60070	UZJ100	05/2005 - 08/2007	1
63493-60070	UZJ100	08/2002 - 05/2005	1
63494 - COVER, ROOF RACK LEG, REAR LH
63494-60060	UZJ100	08/2002 - 05/2005	1
63494-60060	UZJ100	05/2005 - 08/2007	1
63495A - COVER, ROOF RACK LEG, CENTER
63495-60040	UZJ100	08/2002 - 05/2005	1
63495-60040	UZJ100	05/2005 - 12/2999	1
63496 - COVER, ROOF RACK LEG, CENTER LH
63496-60040	UZJ100	08/2002 - 05/2005	1
63496-60040	UZJ100	05/2005 - 12/2999	1
63498B - CAP, ROOF CARRIER
63498-42011	UZJ100	10/2002 - 05/2005	10
63498-42011	UZJ100	07/2005 - 12/2999	10
63498-42011	UZJ100	05/2005 - 06/2005	10
63498-42010	UZJ100	08/2002 - 10/2002	10
63498B - CAP, ROOF CARRIER
63498-42011	UZJ100	10/2002 - 05/2005	10
63498-42011	UZJ100	07/2005 - 12/2999	10
63498-42011	UZJ100	05/2005 - 06/2005	10
63498-42010	UZJ100	08/2002 - 10/2002	10
63498B - CAP, ROOF CARRIER
63498-42011	UZJ100	10/2002 - 05/2005	10
63498-42011	UZJ100	07/2005 - 12/2999	10
63498-42011	UZJ100	05/2005 - 06/2005	10
63498-42010	UZJ100	08/2002 - 10/2002	10
63498B - CAP, ROOF CARRIER
63498-42011	UZJ100	10/2002 - 05/2005	10
63498-42011	UZJ100	07/2005 - 12/2999	10
63498-42011	UZJ100	05/2005 - 06/2005	10
63498-42010	UZJ100	08/2002 - 10/2002	10
Common parts
90119-08B34

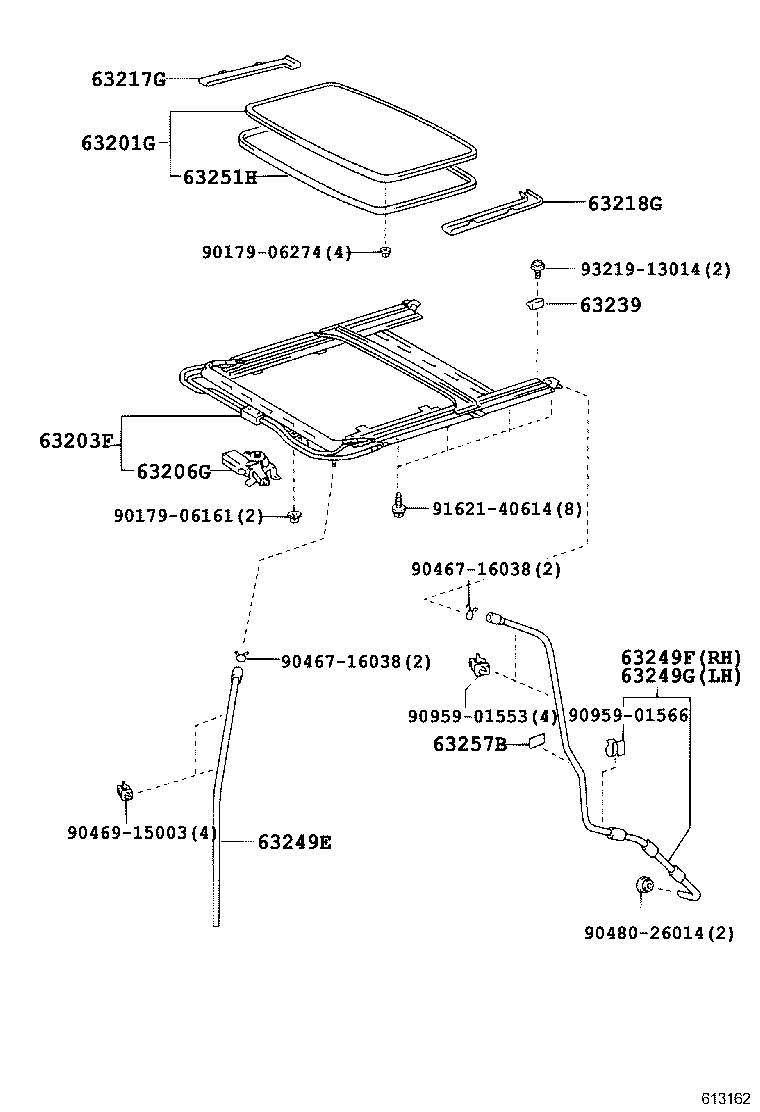

ILLUST NO. 2 OF 2(0208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-60062	UZJ100 *TEM,T=4.0,GRAY	12/2002 - 08/2003	1
63204-60030	UZJ100 *TEM,T=4.0,GRAY	01/1998 - 09/1999	1
63201-60063	UZJ100 *TEM,T=4.0,GRAY	05/2005 - 12/2999	1
63201-60061	UZJ100 *TEM,T=4.0,GRAY	08/2002 - 12/2002	1
63201-60063	UZJ100 *TEM,T=4.0,GRAY	08/2003 - 05/2005	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63200-60151	UZJ100	07/2004 - 05/2005	1
63200-60151	UZJ100	05/2005 - 12/2999	1
63200-60150	UZJ100	08/2002 - 07/2004	1
63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-60060	UZJ100	01/1998 - 08/2002	1
63260-60110	UZJ100	08/2002 - 05/2005	1
63260-60110	UZJ100	05/2005 - 12/2999	1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-60040	UZJ100	05/2005 - 12/2999	1
63217-60040	UZJ100	01/1998 - 08/2002	1
63217-60040	UZJ100	08/2002 - 05/2005	1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-60040	UZJ100	08/2002 - 05/2005	1
63218-60040	UZJ100	01/1998 - 08/2002	1
63218-60040	UZJ100	05/2005 - 12/2999	1
63239 - STOPPER, SLIDING ROOF PANEL
63239-60010	UZJ100	05/2005 - 12/2999	2
63239-60010	UZJ100	01/1998 - 08/2002	2
63239-60010	UZJ100	08/2002 - 05/2005	2
63249E - HOSE, SLIDING ROOF DRAIN
63249-60150	UZJ100 LH	08/2002 - 05/2005	1
63249-60120	UZJ100 RH	08/2002 - 05/2005	1
63249-60122	UZJ100 RH	06/2005 - 12/2999	1
63249-60152	UZJ100 LH	06/2005 - 12/2999	1
63249-60120	UZJ100	01/1998 - 01/2000	2
63249F - HOSE, SLIDING ROOF DRAIN
63249-60130	UZJ100 L=1840	01/1998 - 01/2000	1
63249-60172	UZJ100 L=1415	06/2005 - 12/2999	1
63249-60170	UZJ100 L=1415	08/2002 - 05/2005	1
63249G - HOSE, SLIDING ROOF DRAIN
63249-60140	UZJ100 L=1930	01/1998 - 01/2000	1
63249-60180	UZJ100 L=1525	08/2002 - 05/2005	1
63249-60182	UZJ100 L=1525	06/2005 - 12/2999	1
63251H - WEATHERSTRIP, SLIDING ROOF
63251-60060	UZJ100	01/1998 - 08/1999	1
63251-60062	UZJ100	05/2004 - 05/2005	1
63251-60062	UZJ100	05/2005 - 12/2999	1
63251-60061	UZJ100	08/2002 - 05/2004	1
63257B - SEAL, SLIDING ROOF
63257-60020	UZJ100	01/1998 - 01/2000	2
63257-60020	UZJ100	08/2002 - 05/2005	2
63257-60020	UZJ100	05/2005 - 12/2999	2
Common parts
90179-06161
90179-06274
90467-16038
90469-15003
90480-26014
90959-01553
90959-01566
91621-40614
93219-13014

UZJ100L-GNAEKA (2002)

(0208- )

ILLUST NO. 2 OF 2(0208- )
