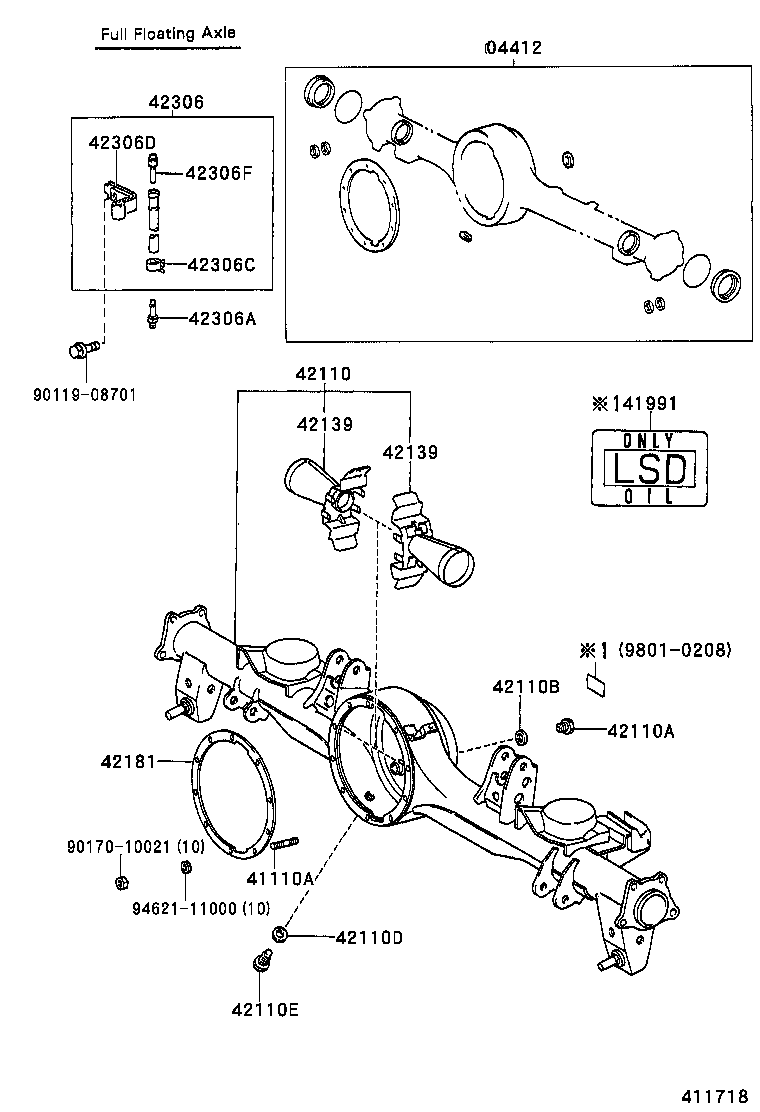

Toyota Land cruiser 100 UZJ100 REAR AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-60170	UZJ100	01/1998 - 08/2002	1
04412-60310	UZJ100	08/2002 - 05/2005	1
04412-60180	UZJ100 W(REAR DIFFERENTIAL LOCK)	01/1998 - 08/2002	1
04412-60480	UZJ100	05/2005 - 08/2007	1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10075	UZJ100 S=18 & 12.5,L=53.5	01/1998 - 08/2002	2
90116-10074	UZJ100 S=16 & 12.5,L=40.5,W(REAR DIFFERENTIAL LOCK)	01/1998 - 08/2002	4
90116-10075	UZJ100 S=18 & 12.5,L=53.5	08/2002 - 05/2005	2
90116-10167	UZJ100 S=28 & 12.5,L=63.5,W(REAR DIFFERENTIAL LOCK)	01/1998 - 08/2002	1
90116-10124	UZJ100 S=32 & 12.5,L=91.4,W(REAR DIFFERENTIAL LOCK)	01/1998 - 08/2002	2
90116-10074	UZJ100 S=16 & 12.5,L=40.5	08/2002 - 05/2005	8
90116-10075	UZJ100 S=18 & 12.5,L=53.5	05/2005 - 08/2007	2
90116-10074	UZJ100 S=16 & 12.5,L=40.5	05/2005 - 08/2007	8
90116-10074	UZJ100 S=16 & 12.5,L=40.5	01/1998 - 08/2002	8
90116-10075	UZJ100 S=18 & 12.5,L=53.5,W(REAR DIFFERENTIAL LOCK)	01/1998 - 08/2002	3
41991 - CAUTION PLATE, REAR DIFFERENTIAL
41991-22010	UZJ100	01/1998 - 08/2002	1
42110 - HOUSING ASSY, REAR AXLE
42110-60730	UZJ100	01/1998 - 07/1999	1
42110-60630	UZJ100 W(REAR DIFFERENTIAL LOCK)	01/1998 - 07/1999	1
42110-60731	UZJ100	05/2005 - 08/2007	1
42110-60731	UZJ100	08/2002 - 05/2005	1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006	UZJ100	01/1998 - 08/2002	1
90341-18006	UZJ100	05/2005 - 08/2007	1
90341-18006	UZJ100	08/2002 - 05/2005	1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010	UZJ100	08/2002 - 05/2005	1
12157-10010	UZJ100	01/1998 - 08/2002	1
12157-10010	UZJ100	05/2005 - 08/2007	1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010	UZJ100	01/1998 - 08/2002	1
12157-10010	UZJ100	08/2002 - 05/2005	1
12157-10010	UZJ100	05/2005 - 08/2007	1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18040	UZJ100	01/1998 - 08/2002	1
90341-18040	UZJ100	08/2002 - 05/2005	1
90341-18040	UZJ100	05/2005 - 08/2007	1
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-60030	UZJ100	05/2005 - 08/2007	2
42108-60030	UZJ100	08/2002 - 05/2005	2
42108-60030	UZJ100	01/1998 - 08/2002	2
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-60030	UZJ100	05/2005 - 08/2007	2
42108-60030	UZJ100	08/2002 - 05/2005	2
42108-60030	UZJ100	01/1998 - 08/2002	2
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-60070	UZJ100 W(REAR DIFFERENTIAL LOCK)	01/1998 - 08/2002	1
42181-60060	UZJ100	08/2002 - 05/2005	1
42181-60060	UZJ100	05/2005 - 08/2007	1
42181-60060	UZJ100	01/1998 - 08/2002	1
42306 - HOSE SUB-ASSY, REAR AXLE BREATHER
42306-60140	UZJ100	08/2002 - 05/2005	1
42306-60140	UZJ100	05/2005 - 12/2999	1
43209-60050	UZJ100	01/1998 - 08/2002	1
42306A - UNION (FOR REAR AXLE BREATHER HOUSE)
90404-51052	UZJ100	05/2005 - 12/2999	1
90404-51052	UZJ100	08/2002 - 05/2005	1
90404-51052	UZJ100	01/1998 - 08/2002	1
42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
96132-30600	UZJ100	01/1998 - 08/2002	1
96132-51100	UZJ100	08/2002 - 05/2005	1
96132-51100	UZJ100	05/2005 - 12/2999	1
42306D - CLAMP (FOR REAR AXLE BRATHER HOSE)
90949-01C09	UZJ100	05/2005 - 12/2999	1
90949-01678	UZJ100	01/1998 - 08/2002	1
90949-01C09	UZJ100	08/2002 - 05/2005	1
42306F - PLUG, BREATHER (FOR REAR AXLE)
90930-03097	UZJ100	01/1998 - 08/2002	1
90930-03097	UZJ100	05/2005 - 12/2999	1
90930-03097	UZJ100	08/2002 - 05/2005	1
Common parts
90119-08701
90170-10021
94621-11000

UZJ100L-GNAEKA (2002)

ILLUST NO. 2 OF 2(0208- )
