VDJ79R-TJMNYQ3 (2016)
Toyota Land Cruiser

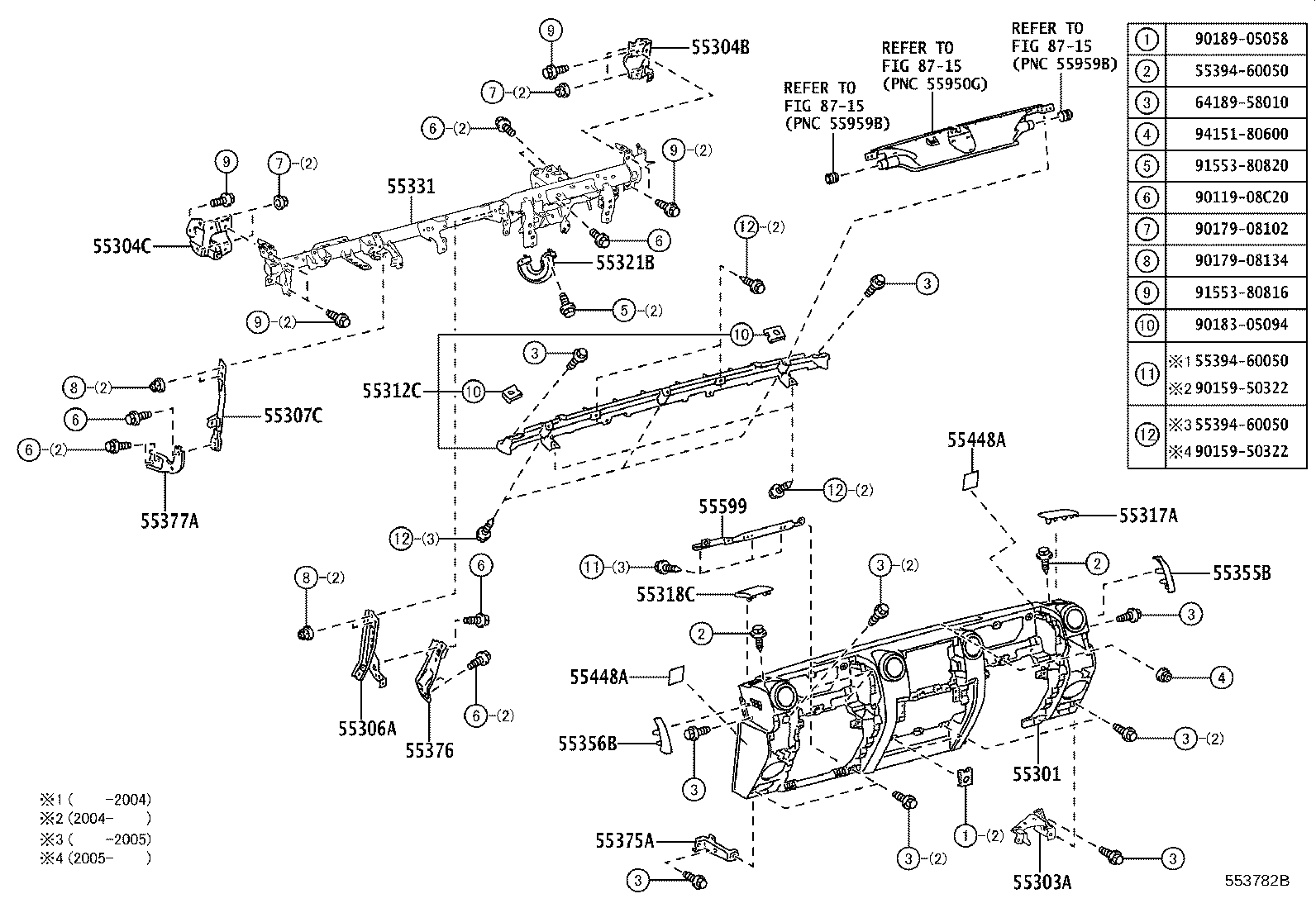

ILLUST NO. 1 OF 2(1608- )VDJ79..PIC..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-60A40B0 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55301-60A50B0 |
VDJ79..LX..IV BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-60090 |
VDJ79..PIC..IV |
1 | ||
| 55304B - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-60051 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
1 | ||
| 55304C - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-60061 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-60190 |
VDJ79..PIC..IV |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-60130 |
VDJ79..PIC..IV |
1 | ||
| 55312C - PLATE, INSTRUMENT RETAINER | ||||
| 55312-60091 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-60070E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55317-60070B0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-60160E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55318-60160B0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-60190 |
VDJ79..PIC..IV |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60450 |
VDJ79..PIC..IV |
1 | ||
| 55355B - PLATE, INSTRUMENT PANEL, RH | ||||
| 55355-60220B0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55355-60220E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55356B - PLATE, INSTRUMENT PANEL, LH | ||||
| 55356-60160B0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55356-60160E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-60141 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-60120 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-60150 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60080 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60080 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 55599 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH | ||||
| 55599-60020 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 64189-58010 | ||||
| 90119-08C20 | ||||
| 90159-50322 | ||||
| 90179-08102 | ||||
| 90179-08134 | ||||
| 90183-05094 | ||||
| 90189-05058 | ||||
| 91553-80816 | ||||
| 91553-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8715 | ||||

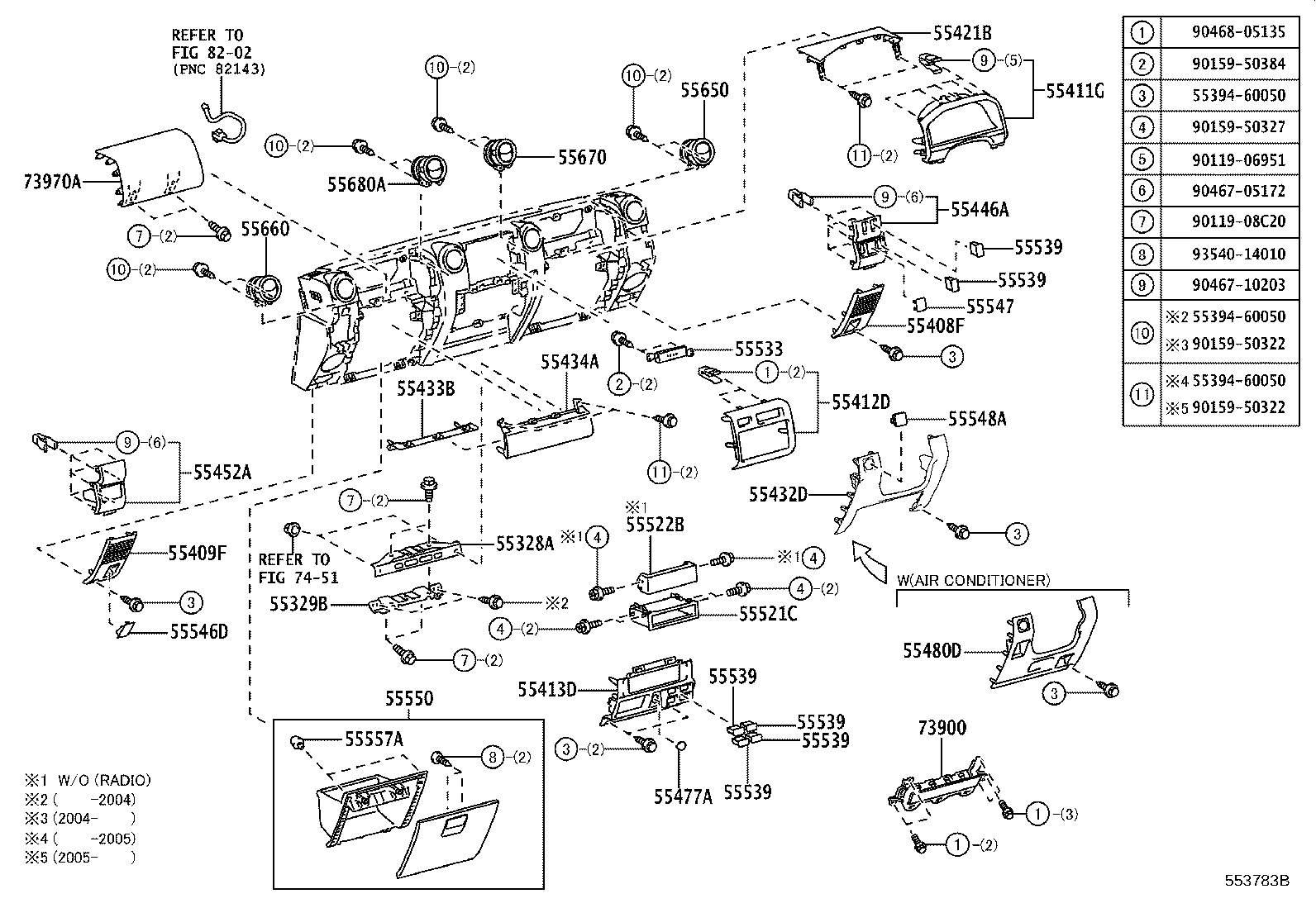

ILLUST NO. 2 OF 2(1608- )VDJ79..PIC..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-60150 |
HZJ76,78,79;GRJ7#,HZJ71..(DCB,HT,PIC)..GEN SRS AIR BAG-WITH(D+P) |
1 | ||
| 55328-60150 |
HZJ76,78,79;GRJ7#,HZJ71..GEN |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-60170B0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55472-60170E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-60120B0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55473-60120E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-60350B0 |
VDJ76..ARL;HZJ76,79..RHD;VDJ79..RHD..LX;VDJ79..RHD..DCB BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55411-60350E0 |
GRJ79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60380 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-60300 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60140E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55421-60140B0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60510B0 |
VDJ79..LX..IV BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60150B0 |
VDJ79..LX;VDJ79..DCB;HZJ76,79..RHD;VDJ76..ARL,GCC;HZJ79..LHD..PIC..GEN..CBU BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55433-60150E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-60020B0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55434-60030B0 |
VDJ79..LX;VDJ79..DCB;VDJ76..ARL,GCC BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55434-60030B0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU SRS AIR BAG-WITH(D+P),BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55434-60030E0 |
HZJ76,78,79;GRJ7#,HZJ71..(DCB,HT,PIC)..GEN SRS AIR BAG-WITH(D+P),OAK,TRIM4# |
1 | ||
| 55434-60020E0 |
HZJ76,78,79;GRJ7#,HZJ71..(DCB,HT,PIC)..GEN OAK,TRIM4# |
1 | ||
| 55434-60030E0 |
VDJ7# OAK,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60150B0 |
GRJ79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55446-60150E0 |
GRJ79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-60400E0 |
GRJ79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55452-60400B0 |
VDJ76..ARL;HZJ76,79..RHD;VDJ79..RHD..LX;VDJ79..RHD..DCB BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-60060 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 55477-60060 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 55477-60060 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-60300B0 |
VDJ7#..ARL AIR CONDITIONER-WITH(FITTINGS ONLY),BLUISH GRAY,TRIM1# |
1 | ||
| 55480-60300E0 |
VDJ7#..ARL AIR CONDITIONER-WITH(FITTINGS ONLY),OAK,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-44020 |
VDJ79..RHD..LX;GRJ76,79,VDJ76..LX..GCC AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12180 |
VDJ79..RHD..LX;GRJ71,76,79,VDJ76..LHD..LX AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-60020 |
VDJ79..IV;VDJ7#..RHD..(DCB,HT)..CBU CLOCK-W/O |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-48030C0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU TRANSFER & CENTER DIFF-BF1B 2-4SELECTOR,BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-48030C0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU TRANSFER & CENTER DIFF-BF1B 2-4SELECTOR,BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-48030C0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU TRANSFER & CENTER DIFF-BF1B 2-4SELECTOR,BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-48030C0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU TRANSFER & CENTER DIFF-BF1B 2-4SELECTOR,BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-48030C0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU TRANSFER & CENTER DIFF-BF1B 2-4SELECTOR,BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55539-48030C0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU TRANSFER & CENTER DIFF-BF1B 2-4SELECTOR,BLACK,TRIM1#,2#,4# |
1 | ||
| 55546D - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55546-60010E0 |
VDJ79..CBU;GRJ71..HT..STD;VDJ79..DCB..IV;GRJ78,79,HZJ71,78,79,VDJ78..DCB,HT,PIC OAK,TRIM4# |
2 | ||
| 55546-60010B0 |
HZJ76..RHD;VDJ79..LX..IV;GRJ76,VDJ76..ARL,GCC BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55546-60010E0 |
GRJ76,HZJ76;VDJ79..PIC..IV;GRJ71,VDJ76..LX OAK,TRIM4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-28010C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60040C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55548-60040C0 |
GRJ79..LX;HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79..(DCB,HT)..GCC REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,BLACK,TRIM1#,2#,4# |
1 | ||
| 55548-60040C0 |
VDJ79..LX;VDJ79..DCB;VDJ76..ARL,GCC REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,BLACK,TRIM1#,2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-60240B0 |
VDJ79..LX;VDJ79..DCB;VDJ76..ARL,GCC BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55550-60240E0 |
VDJ7#;GRJ79..RHD OAK,TRIM4# |
1 | ||
| 55550-60240B0 |
GRJ79..LX;HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79..(DCB,HT)..GCC GLOVE BOX-WITH KEY,BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55550-60250B0 |
GRJ79..LX;HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79..(DCB,HT)..GCC BLUISH GRAY,TRIM1#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60200C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-60200C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60240C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60160C0 |
VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) BLACK,TRIM1#,2#,4# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60070B0 |
VDJ79..LX..IV BLUISH GRAY,TRIM1#,2# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-60031B0 |
VDJ79..LX;VDJ79..DCB;VDJ76..ARL,GCC BLUISH GRAY,TRIM1#,2# |
1 | ||
| 73970-60031E0 |
VDJ79..LX;VDJ7#..DCB,HT OAK,TRIM4# |
1 | ||
| 73970-60031E0 |
HZJ76,78,79;GRJ7#,HZJ71..(DCB,HT,PIC)..GEN SRS AIR BAG-WITH(D+P),OAK,TRIM4# |
1 | ||
| 73970-60031B0 |
HZJ76,79..RHD;HZJ79..LHD..PIC..GEN..CBU SRS AIR BAG-WITH(D+P),BLUISH GRAY,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 90119-06951 | ||||
| 90119-08C20 | ||||
| 90159-50322 | ||||
| 90159-50327 | ||||
| 90159-50384 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
