VDJ79R-TJMNYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )VDJ79..PIC..IV

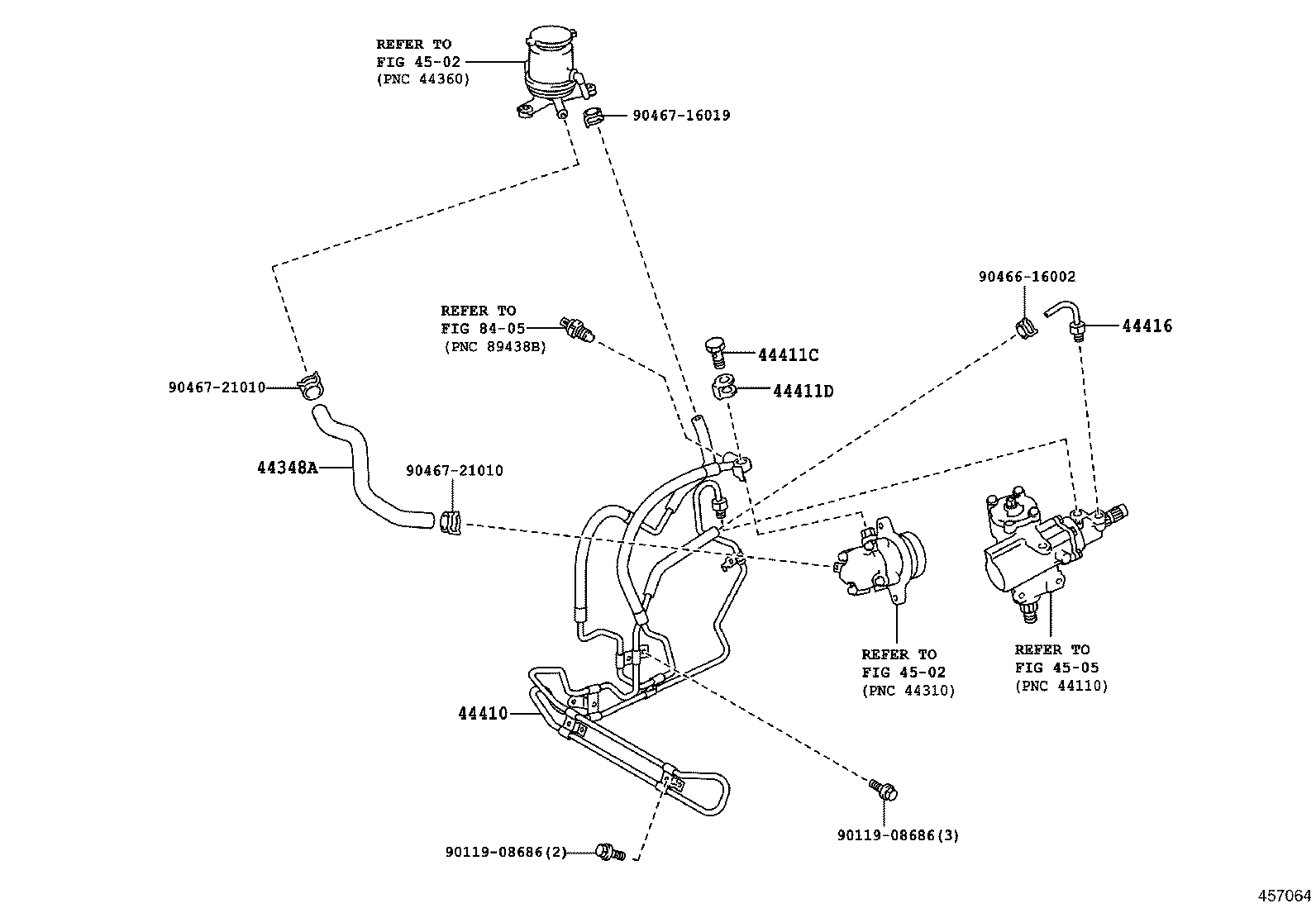

Click highlighted areas on diagram

diagram 44348A 44410 44411C 44411D 44416 4502 4502 4505 8405 9011908686 9011908686 9046616002 9046716019 9046721010 9046721010
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60380

VDJ7#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60A90

VDJ79..PIC..IV

 1
44410-60A91

VDJ79..PIC..IV

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

GRJ7#,VDJ7#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

GRJ7#,VDJ7#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60470

VDJ79..PIC..IV

 1
Common parts
90119-08686
90466-16002
90467-16019
90467-21010
Linked diagrams
4502
4505
8405
