VDJ79R-DKMRY (2016)
Toyota Land Cruiser
ILLUST NO. 1 OF 5(1608- )DCB..CBU ; (1608- )VDJ79..IV

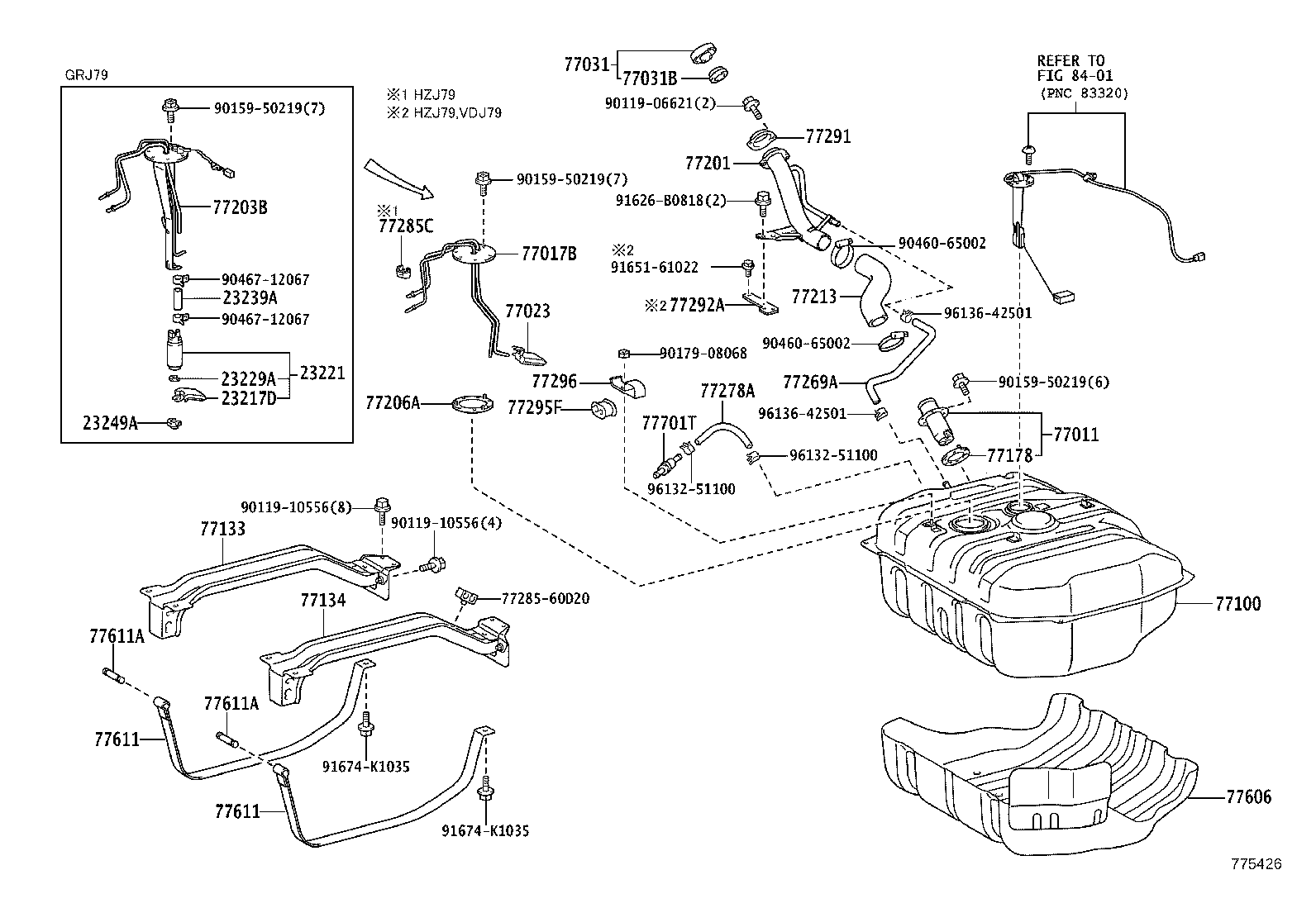

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60180 |
VDJ79..IV;GRJ7#,HZJ7#,VDJ76;VDJ78,79..STD..(GCC,GEN) |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60630 |
HZJ76,79..DCB,HT |
1 | ||
| 77017-60640 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-26010 |
HZJ76,79..DCB,HT |
1 | ||
| 77023-60030 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60A80 |
VDJ79..IV;GRJ76,79,HZJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60160 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77134-60050 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ79..IV;GRJ7#,HZJ7#,VDJ76;VDJ78,79..STD..(GCC,GEN) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60C20 |
VDJ79..IV;HZJ79..DCB..GEN;VDJ79..STD..CBU |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60330 |
GRJ76,79..DCB,HT |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
VDJ79..IV;GRJ71,76,79,HZJ76,79,VDJ76,79..(DCB,HT,SOT)..CBU |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60341 |
VDJ79..IV;HZJ79..DCB..GEN;GRJ79,VDJ79..DCB..CBU |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-60041 |
HZJ79..DCB..GEN;GRJ79,VDJ79..DCB |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
VDJ79..IV;HZJ76,79,VDJ76,79..(DCB,HT)..CBU *H,L=300 |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 90464-00192 |
GRJ76,79..DCB,HT |
1 | ||
| 77285-30140 |
HZJ76,79..DCB,HT |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
VDJ79..IV;HZJ78,79..GEN;GRJ78,79,VDJ78;VDJ79..STD..CBU |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-60360 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77295-60370 |
HZJ76,79..DCB,HT |
1 | ||
| 90480-01303 |
GRJ71,76,79..DCB,HT,SOT |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-60200 |
VDJ79..IV;HZJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 90949-01182 |
GRJ71,76,79..DCB,HT,SOT |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60160 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60350 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60350 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-60080 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-60080 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10092 |
HZJ76,78,79,VDJ7# |
1 | ||
| Common parts | ||||
| 77285-60D20 | ||||
| 90119-06621 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90179-08068 | ||||
| 90460-65002 | ||||
| 90467-12067 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 91674-K1035 | ||||
| 96132-51100 | ||||
| 96136-42501 | ||||
