VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1701- )VDJ7#..GCC

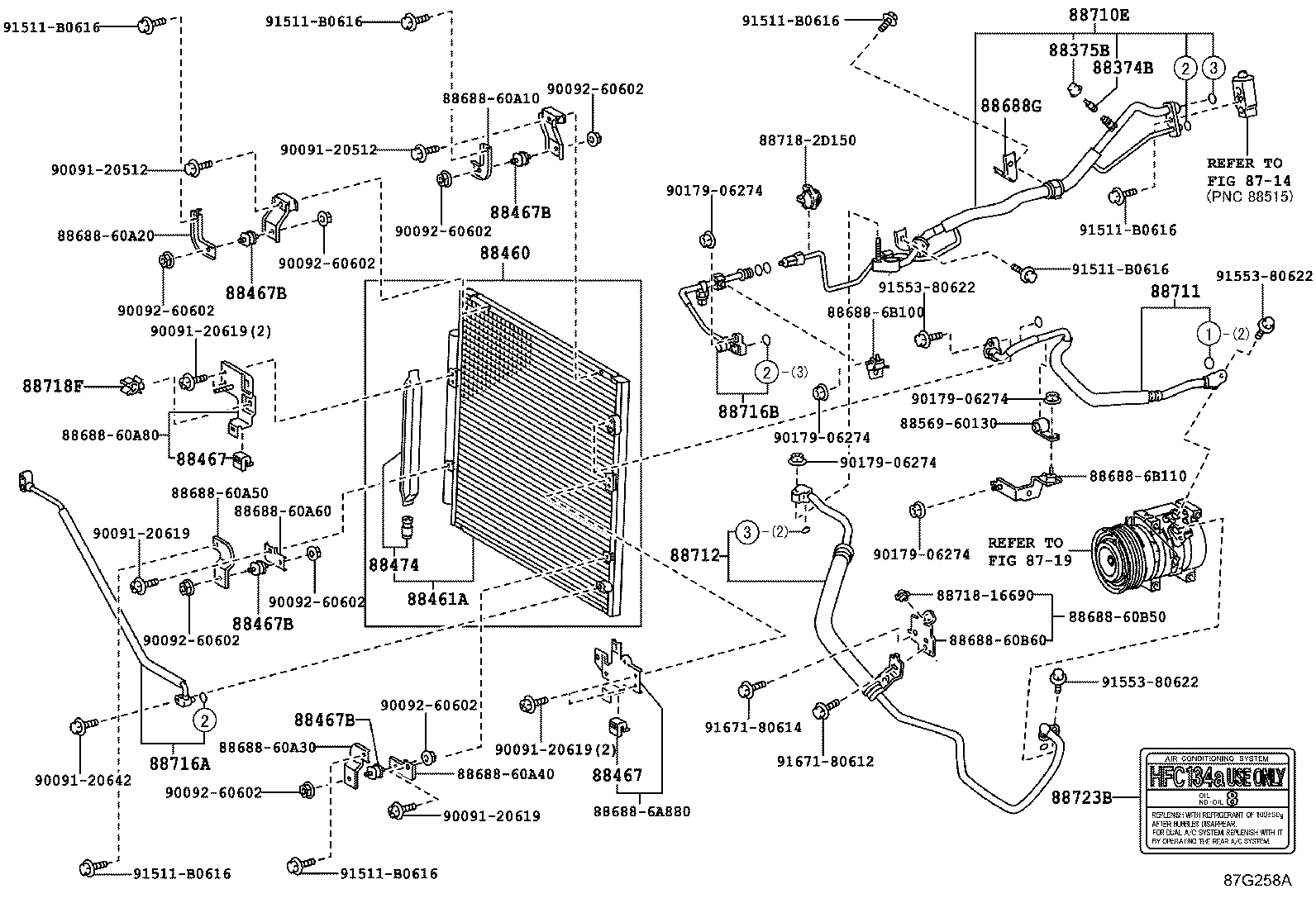

Click highlighted areas on diagram

diagram 8714 8719 88374B 88375B 88460 88461A 88467 88467 88467B 88467B 88467B 88467B 88474 8856960130 8868860A10 8868860A20 8868860A30 8868860A40 8868860A50 8868860A60 8868860A80 8868860B50 8868860B60 886886A880 886886B100 886886B110 88688G 88710E 88711 88712 88716A 88716B 8871816690 887182D150 88718F 88723B 9009120512 9009120512 9009120619 9009120619 9009120619 9009120619 9009120642 9009260602 9009260602 9009260602 9009260602 9009260602 9009260602 9009260602 9009260602 9017906274 9017906274 9017906274 9017906274 9017906274 91511B0616 91511B0616 91511B0616 91511B0616 91511B0616 91511B0616 91511B0616 9155380622 9155380622 9155380622 9167180612 9167180614
Part # Description Qty Price
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-60B40

GRJ7#,VDJ7#..LHD

AIR CONDITIONER-WITH

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60G80

VDJ7#..GCC

AIR CONDITIONER-WITH

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60A40

VDJ7#..GCC

AIR CONDITIONER-WITH

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60A80

VDJ7#..GCC

AIR CONDITIONER-WITH

 1
Common parts
88569-60130
88688-60A10
88688-60A20
88688-60A30
88688-60A40
88688-60A50
88688-60A60
88688-60A80
88688-60B50
88688-60B60
88688-6A880
88688-6B100
88688-6B110
88718-16690
88718-2D150
90091-20512
90091-20619
90091-20642
90092-60602
90179-06274
91511-B0616
91553-80622
91671-80612
91671-80614
