VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(1701- )VDJ79..STD..GCC

Click highlighted areas on diagram

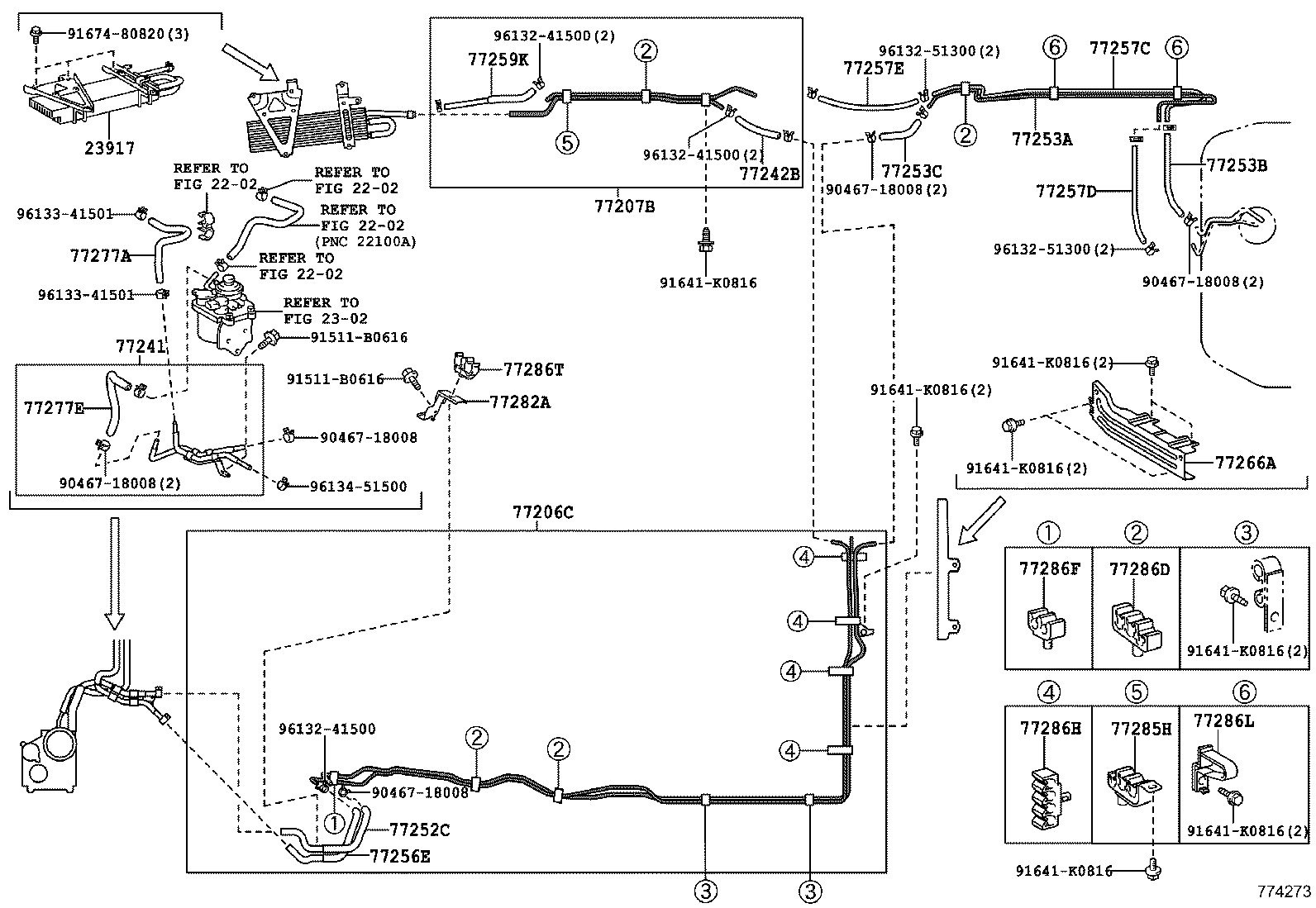

FUEL TUBE

diagram 2202 2202 2202 2202 2302 23917 77206C 77207B 77241 77242B 77252C 77253A 77253B 77253C 77256E 77257C 77257D 77257E 77259K 77266A 77277A 77277E 77282A 77285H 77286D 77286F 77286H 77286L 77286T 9046718008 9046718008 9046718008 9046718008 9046718008 91511B0616 91511B0616 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 91641K0816 9167480820 9613241500 9613241500 9613241500 9613251300 9613251300 9613341501 9613341501 9613451500
Part # Description Qty Price
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-60860

VDJ79..STD..GCC

 1
77241 - TUBE, FUEL MAIN, NO.1
77205-60D00

VDJ7#..GCC

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
77259-60L30

VDJ7#..GCC

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
77259-60L40

VDJ7#..GCC

 1
77282A - BRACKET, FUEL MAIN TUBE, NO.2
77282-60050

VDJ7#..GCC

 1
77286T - CLAMP, FUEL TUBE, NO.11
23842-51010

VDJ7#..GCC

 1
Common parts
90467-18008
91511-B0616
91641-K0816
91674-80820
96132-41500
96132-51300
96133-41501
96134-51500
Linked diagrams
2202
2302
