VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

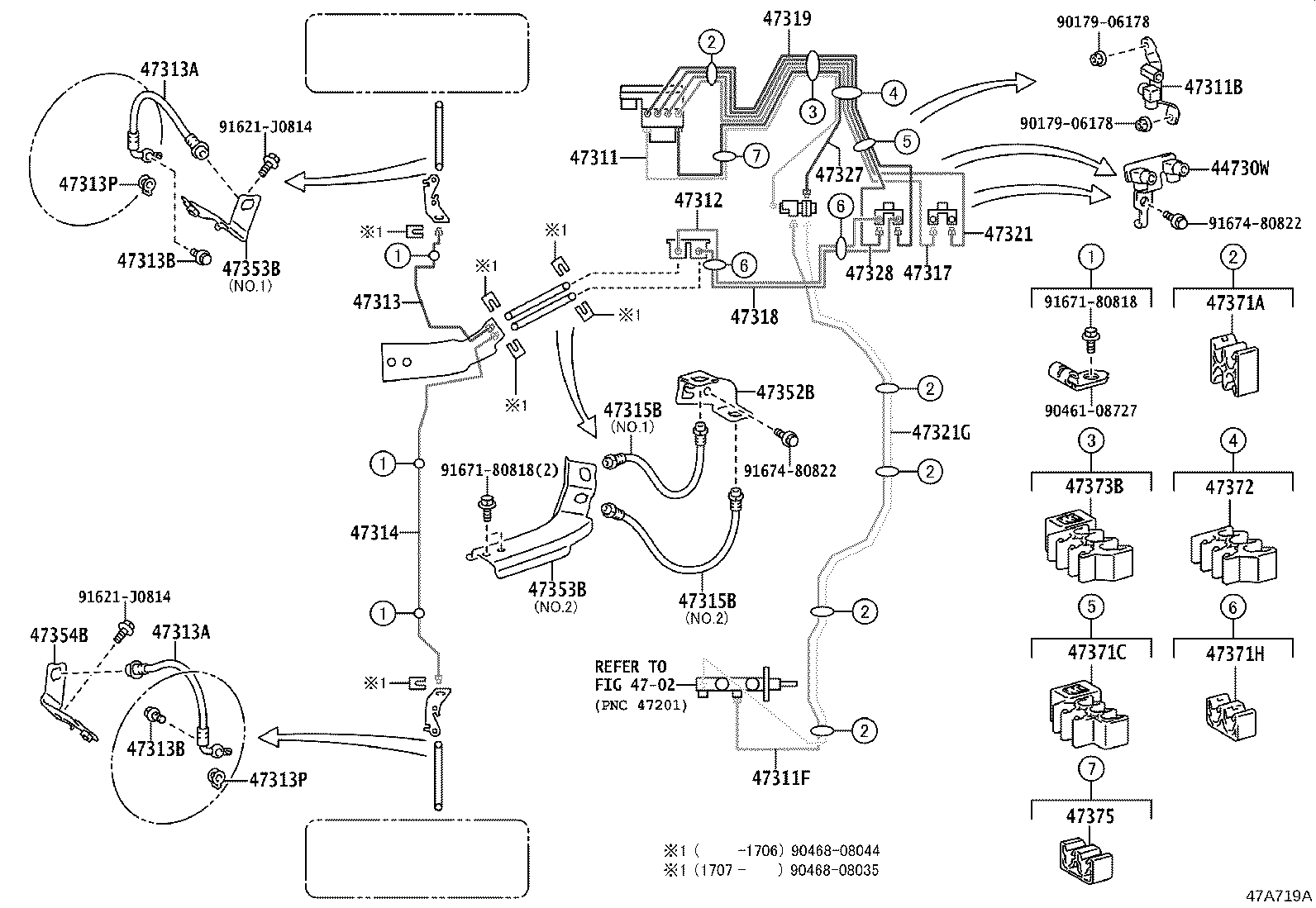

ILLUST NO. 3 OF 6(1701- )VDJ7#..GCC

Click highlighted areas on diagram

W(VSC)

diagram 44730W 4702 47311 47311B 47311F 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315B 47315B 47317 47318 47319 47321 47321G 47327 47328 47352B 47353B 47353B 47354B 47371A 47371C 47371H 47372 47373B 47375 9017906178 9017906178 9046108727 91621J0814 91621J0814 9167180818 9167180818 9167480822 9167480822
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47312-60B30

GRJ7#,VDJ7#..GCC

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-12069

GRJ7#,VDJ7#..GCC

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-60710

VDJ7#..GCC

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-60351

VDJ7#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47315-60611

VDJ7#

 1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-60450

VDJ7#..GCC

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-60240

GRJ7#,VDJ7#..GCC

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00920

GRJ7#,VDJ7#..GCC

 1
Common parts
90179-06178
90461-08727
91621-J0814
91671-80818
91674-80822
Linked diagrams
4702

ILLUST NO. 4 OF 6(1701- )VDJ78,79..GCC

Click highlighted areas on diagram

W(VSC)

diagram 47311H 47316A 47322 47323 47324 47324B 47329 47355A 8414 9094901854 9167180818 9167480822 9167480822
Part # Description Qty Price
47311H - GROMMET(FOR BRAKE TUBE)
90480-01107

GRJ78,79..GCC

 7
47323 - TUBE, REAR BRAKE, NO.3
47324-60520

GRJ7#,VDJ7#..GCC

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-60480

GRJ7#,VDJ7#..GCC

 1
Common parts
90949-01854
91671-80818
91674-80822
Linked diagrams
8414
