VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )VDJ7#..GCC

Click highlighted areas on diagram

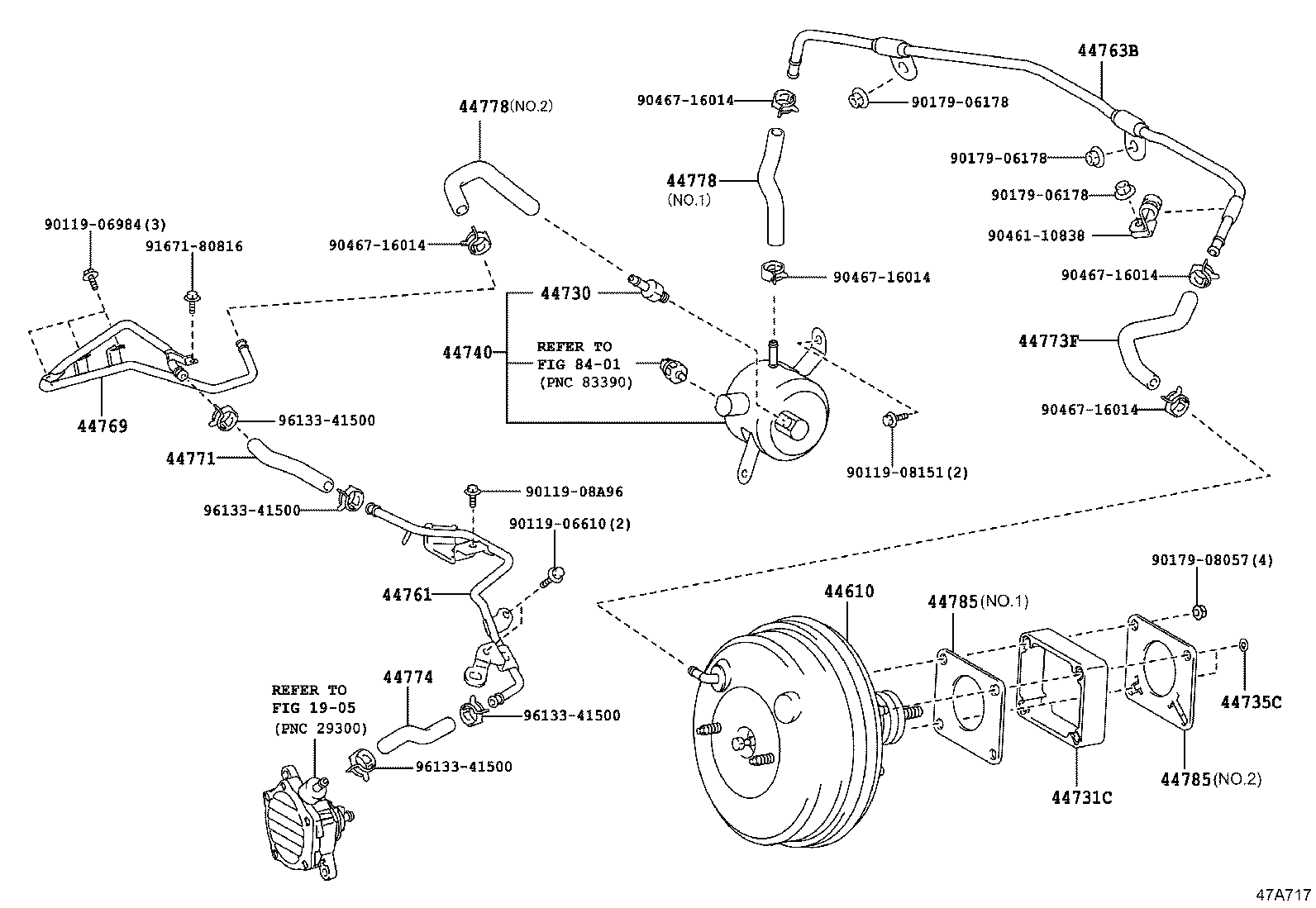

diagram 1905 44610 44730 44731C 44735C 44740 44761 44763B 44769 44771 44773F 44774 44778 44778 44785 44785 8401 9011906610 9011906984 9011908151 9011908A96 9017906178 9017906178 9017906178 9017908057 9046110838 9046716014 9046716014 9046716014 9046716014 9046716014 9167180816 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60A20

VDJ7#..GCC

 1
44740 - RESERVOIR ASSY, VACUUM
44740-60290

VDJ7#..GCC

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44763-60230

VDJ7#..GCC

 1
44769 - TUBE, VACUUM RESERVOIR CONNECT
44769-60110

VDJ7#..GCC

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-60330

VDJ7#..GCC

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60270

VDJ7#..GCC

NO.1

 1
44778-60280

VDJ7#..GCC

NO.2

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60270

VDJ7#..GCC

NO.1

 1
44778-60280

VDJ7#..GCC

NO.2

 1
Common parts
90119-06610
90119-06984
90119-08151
90119-08A96
90179-06178
90179-08057
90461-10838
90467-16014
91671-80816
96133-41500
Linked diagrams
1905
8401
