VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )VDJ7#..GCC

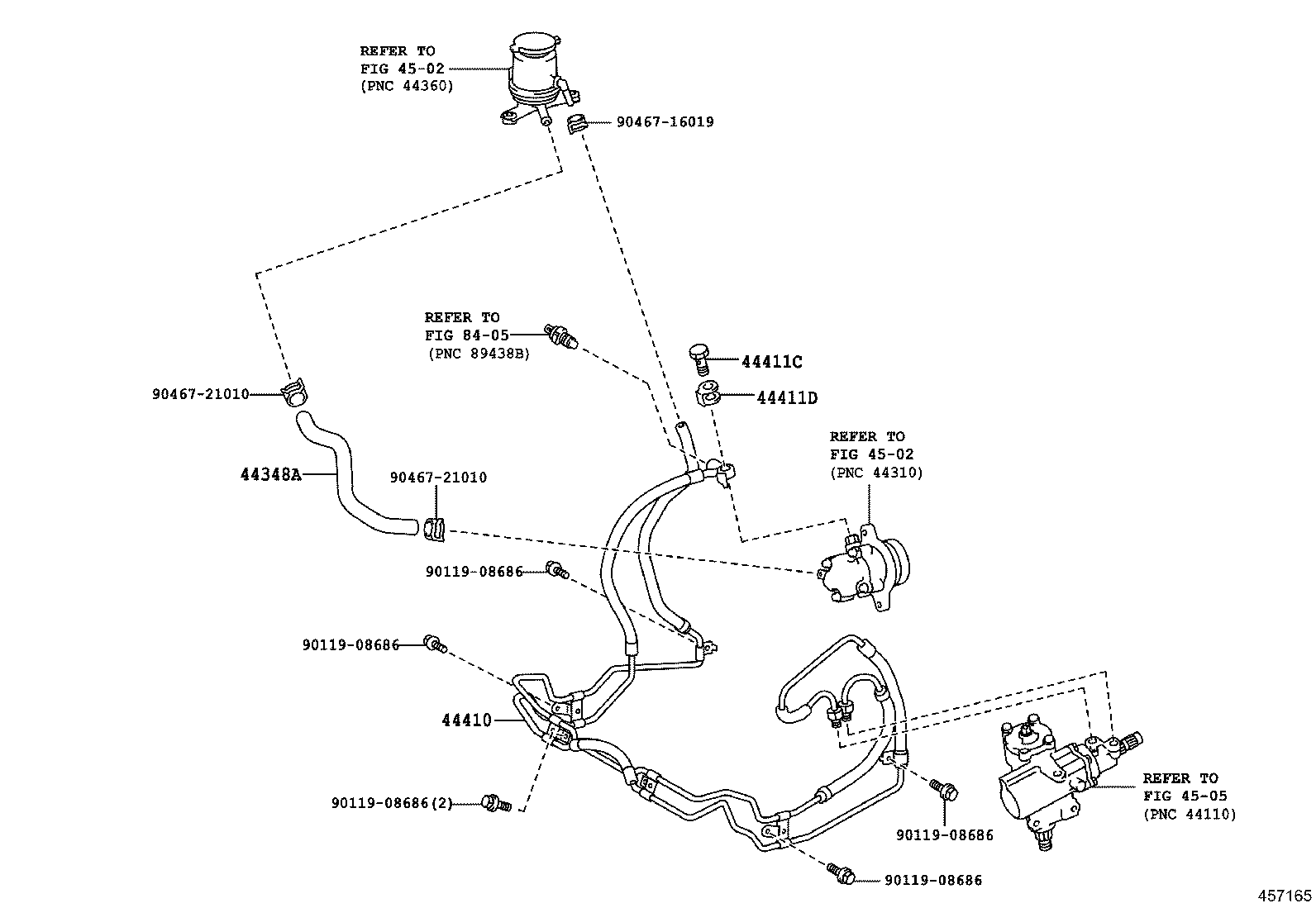

Click highlighted areas on diagram

diagram 44348A 44410 44411C 44411D 4502 4502 4505 8405 9011908686 9011908686 9011908686 9011908686 9011908686 9046716019 9046721010 9046721010
Part # Description Qty Price
44410 - TUBE ASSY, PRESSURE FEED
44410-60B01

VDJ7#..GCC

 1
44410-60B00

VDJ7#..GCC

 1
44410-60B02

VDJ7#..GCC

 1
Common parts
90119-08686
90467-16019
90467-21010
Linked diagrams
4502
4505
8405
