VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )VDJ7#..GCC

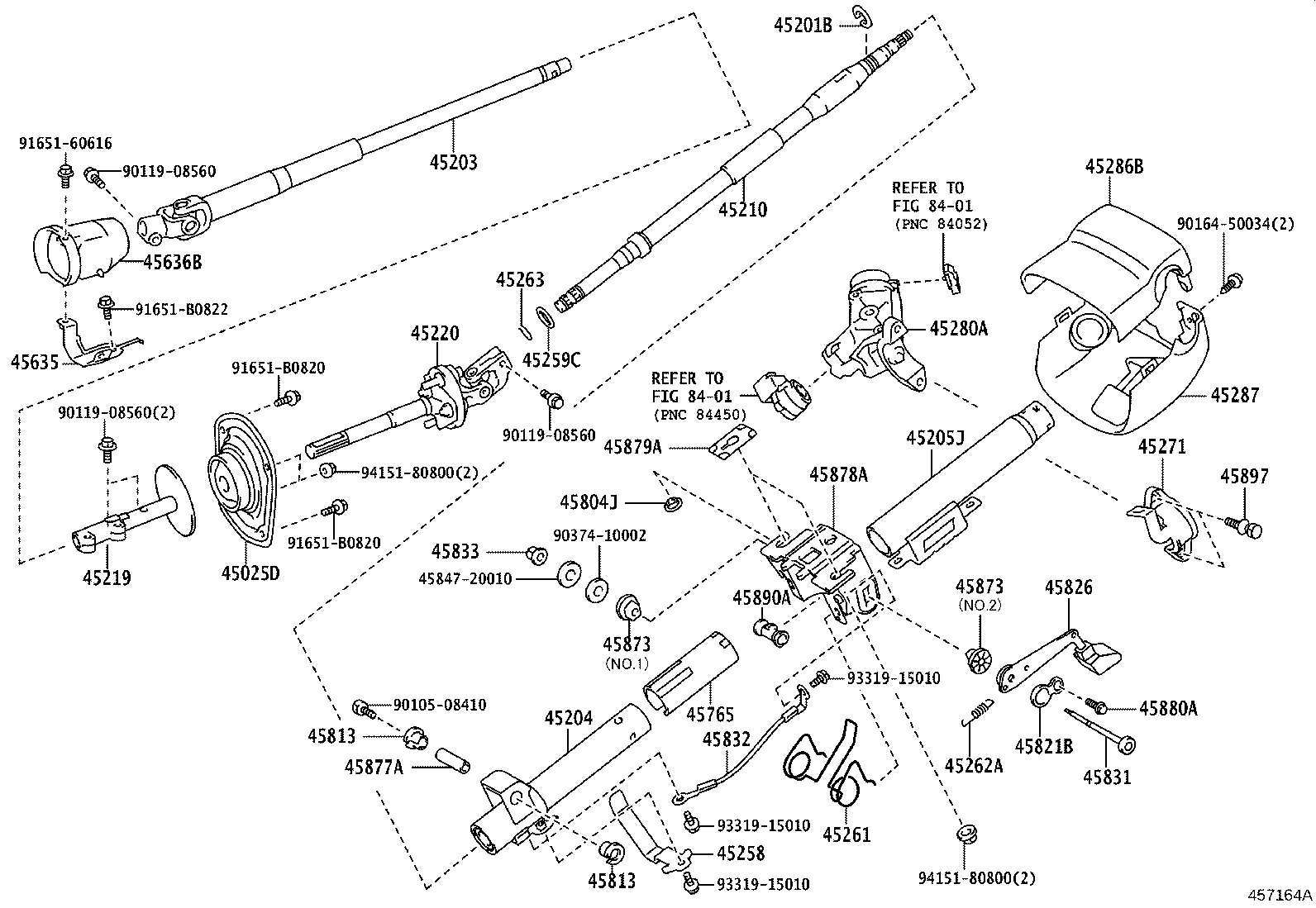

Click highlighted areas on diagram

diagram 45025D 45201B 45203 45204 45205J 45210 45219 45220 45258 45259C 45261 45262A 45263 45271 45280A 45286B 45287 45635 45636B 45765 45804J 45813 45813 45821B 45826 45831 45832 45833 4584720010 45873 45873 45877A 45878A 45879A 45880A 45890A 45897 8401 8401 9010508410 9011908560 9011908560 9011908560 9016450034 9037410002 9165160616 91651B0820 91651B0820 91651B0822 9331915010 9331915010 9331915010 9415180800 9415180800
Part # Description Qty Price
45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45203-60260

VDJ7#..GCC

 1
45219 - YOKE, STEERING SLIDING
45219-60120

VDJ7#..GCC

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60320

VDJ7#..GCC

 1
45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR
45635-60061

GRJ7#,HZJ7#,VDJ7#..LHD

 1
45636B - PROTECTOR, INTERMEDIATE LINK JOINT
45636-60062

GRJ7#,HZJ7#,VDJ7#..LHD

 1
Common parts
45847-20010
90105-08410
90119-08560
90164-50034
90374-10002
91651-60616
91651-B0820
91651-B0822
93319-15010
94151-80800
Linked diagrams
8401
