VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

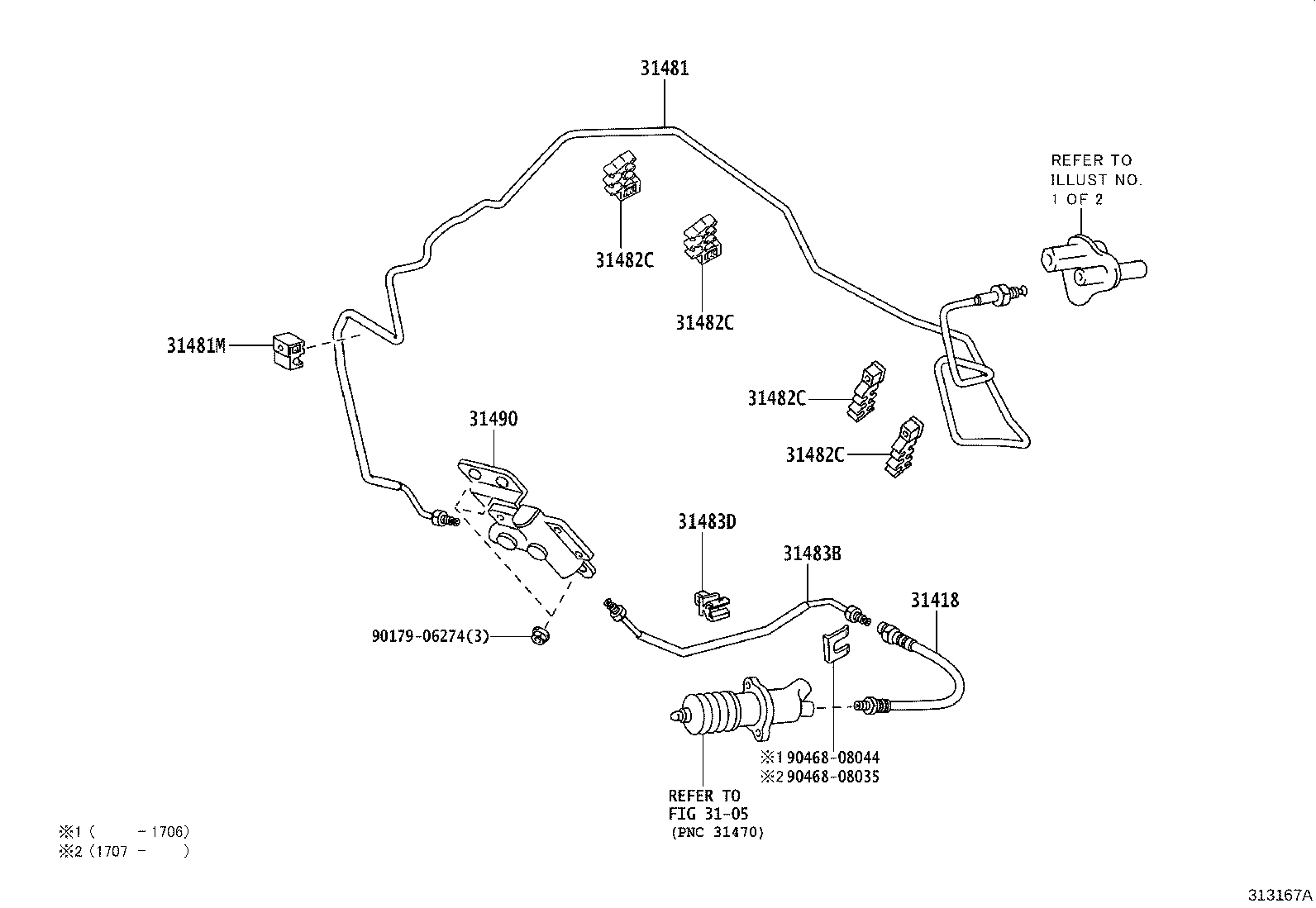

ILLUST NO. 2 OF 2(1701- )VDJ7#..GCC

Click highlighted areas on diagram

diagram 3105 31418 31481 31481M 31482C 31482C 31482C 31482C 31483B 31483D 31490 9017906274 9046808035 9046808044
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60C50

VDJ7#..GCC

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D66

VDJ7#..GCC

 4
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D66

VDJ7#..GCC

 4
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D66

VDJ7#..GCC

 4
31482C - CLAMP(FOR CLUTCH TUBE)
90949-01D66

VDJ7#..GCC

 4
Common parts
90179-06274
90468-08035
90468-08044
Linked diagrams
3105
