VDJ79L-DKMRYV (2017)

Toyota Land Cruiser

Production Jan 2017 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

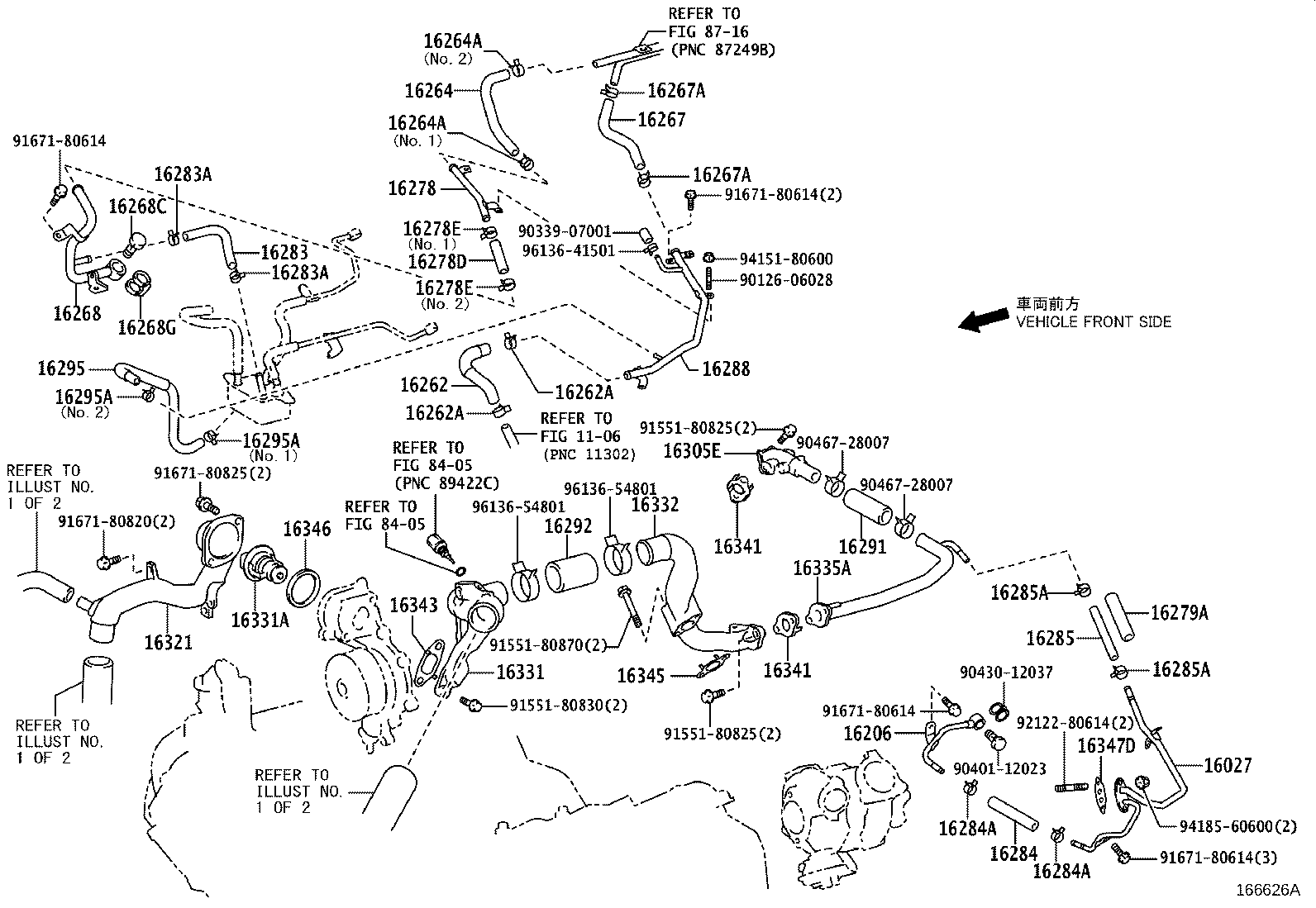

ILLUST NO. 2 OF 2(1701- )1VDFTV..GCC

Click highlighted areas on diagram

ENGINE SIDE,EXCEPT EURO 5,W/O(EGR)

diagram 1106 16027 16206 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16268C 16268G 16278 16278D 16278E 16278E 16279A 16283 16283A 16283A 16284 16284A 16284A 16285 16285A 16285A 16288 16291 16292 16295 16295A 16295A 16305E 16321 16331 16331A 16332 16335A 16341 16341 16343 16345 16346 16347D 8405 8405 8716 9012606028 9033907001 9040112023 9043012037 9046728007 9046728007 9155180825 9155180825 9155180830 9155180870 9167180614 9167180614 9167180614 9167180614 9167180820 9167180825 9212280614 9415180600 9418560600 9613641501 9613654801 9613654801
Part # Description Qty Price
16262 - HOSE, WATER INLET
16262-51010

1VDFTV..VDJ7#..GCC

EXHAUST EMISSION CONTROL-DIESEL EURO4 (W/O OBD)

 1
16262-51010

1VDFTV..VDJ7#..GCC

UAE SPEC

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-51010

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM)

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-20011

1VDFTV..VDJ7#..GCC

 1
96136-42501

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM),NO.2:REFER ILLUST.

 1
90467-20011

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM),NO.1:REFER ILLUST.

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-20011

1VDFTV..VDJ7#..GCC

 1
96136-42501

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM),NO.2:REFER ILLUST.

 1
90467-20011

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM),NO.1:REFER ILLUST.

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-51010

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM)

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM)

 2
96136-42501

1VDFTV..VDJ7#..GCC

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

1VDFTV..VDJ7#..GCC

HEATER-FR(AL CORE 36MM)

 2
96136-42501

1VDFTV..VDJ7#..GCC

 1
16278D - HOSE, WATER BY-PASS
99556-20200

1VDFTV..VDJ7#..GCC

*H,L=90,EXHAUST EMISSION CONTROL-DIESEL EURO4 (W/O OBD)

 1
99556-20200

1VDFTV..VDJ7#..GCC

*H,L=90,UAE SPEC

 1
16278E - CLIP(FOR WATER BY-PASS HOSE)
96138-42101

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
16278E - CLIP(FOR WATER BY-PASS HOSE)
96138-42101

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
16283 - HOSE, WATER BY-PASS, NO.6
16283-51010

1VDFTV..VDJ7#..GCC

UAE SPEC

 1
16283-51010

1VDFTV..VDJ7#..GCC

EXHAUST EMISSION CONTROL-DIESEL EURO4 (W/O OBD)

 1
16288 - PIPE, WATER BY-PASS, NO.4
16288-51010

1VDFTV..VDJ7#..GCC

UAE SPEC

 1
16288-51030

1VDFTV..VDJ7#..GCC

 1
16288-51010

1VDFTV..VDJ7#..GCC

EXHAUST EMISSION CONTROL-DIESEL EURO4 (W/O OBD)

 1
16288-51030

1VDFTV..VDJ7#..GCC

 1
16288-51010

1VDFTV..VDJ7#..GCC

 1
16305E - OUTLET SUB-ASSY, WATER BY-PASS
16305-51010

1VDFTV..VDJ7#..GCC

 1
16305-51050

1VDFTV..VDJ7#..GCC

 1
16305-51010

1VDFTV..VDJ7#..GCC

EXHAUST EMISSION CONTROL-DIESEL EURO4 (W/O OBD)

 1
16305-51050

1VDFTV..VDJ7#..GCC

 1
16305-51010

1VDFTV..VDJ7#..GCC

UAE SPEC

 1
Common parts
90126-06028
90339-07001
90401-12023
90430-12037
90467-28007
91551-80825
91551-80830
91551-80870
91671-80614
91671-80820
91671-80825
92122-80614
94151-80600
94185-60600
96136-41501
96136-54801
Linked diagrams
1106
8405
8716
