Toyota Land cruiser URJ200 FRONT SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
US
LAND CRUISER
URJ200L-GNZVKA (2015)
4803 - FRONT SPRING & SHOCK ABSORBER

URJ200L-GNZVKA (2015)

Toyota Land Cruiser

Production Aug 2015 - Sep 9999

Engine 3URFE

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

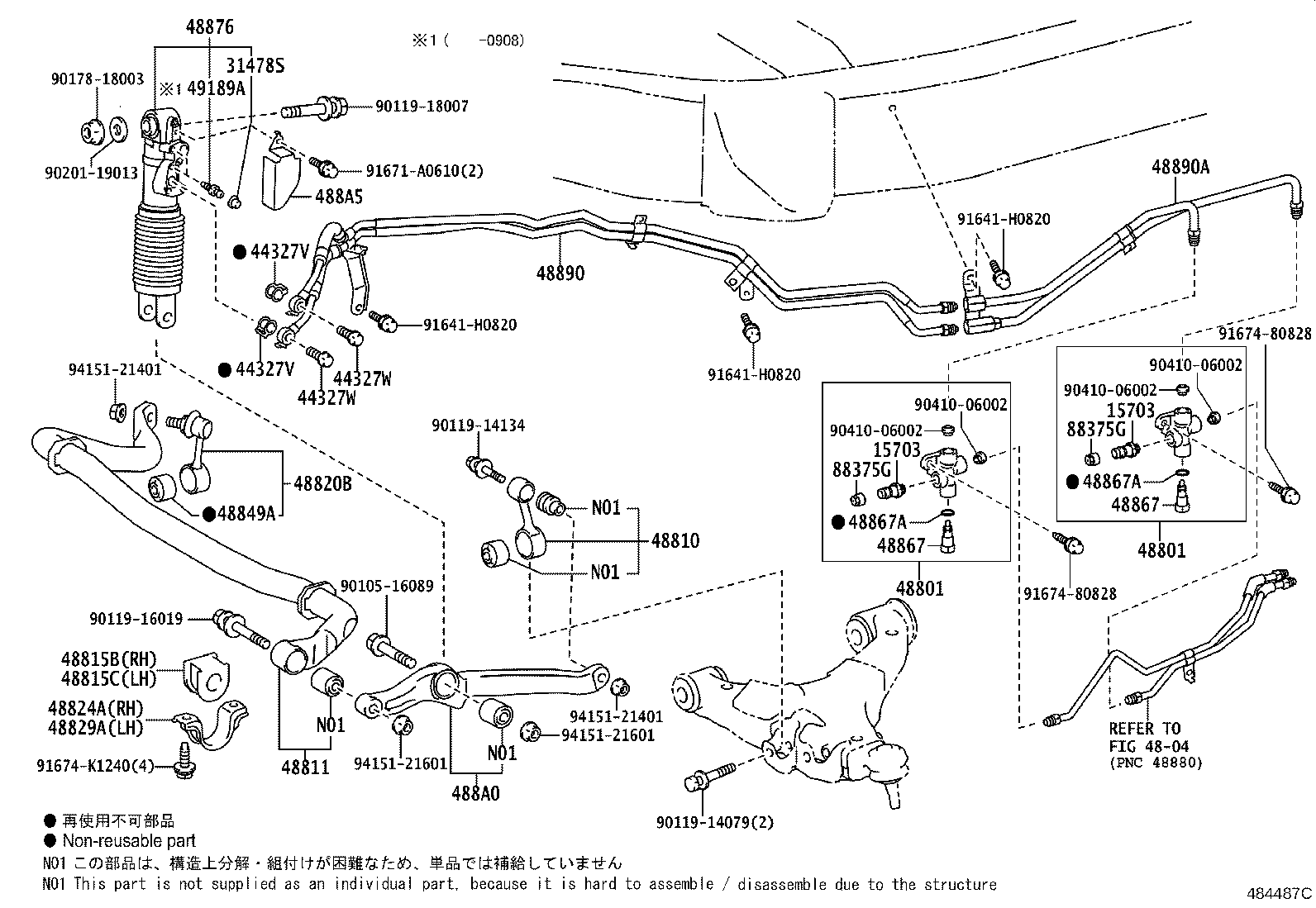

ILLUST NO. 2 OF 2(1704- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
15703 - VALVE SUB-ASSY, OIL NOZZLE
15703-60010	3URFE..URJ200	08/2015 - 04/2017	2
15703-60010	3URFE..URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
15703-60010	3URFE..URJ200	04/2017 - 03/2021	1
31478S - CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL)
31478-60020	URJ200	08/2015 - 03/2021	2
31478-60020	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ200	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ200	08/2015 - 03/2021	2
48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL
48001-60020	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2017	2
48001-60020	URJ200	08/2015 - 03/2017	2
48001-60021	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48001-60021	URJ200	04/2017 - 03/2021	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-60060	URJ200	08/2015 - 03/2021	1
48811 - BAR, STABILIZER, FRONT
48804-60120	URJ200	08/2015 - 03/2021	1
48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH
48815-60260	URJ200	08/2015 - 03/2021	1
48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH
48815-60260	URJ200	08/2015 - 03/2021	1
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-60082	URJ200	08/2015 - 03/2021	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-60180	URJ200	08/2015 - 03/2021	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-60180	URJ200	08/2015 - 03/2021	1
48849A - BUSH, FRONT STABILIZER LINK, RH
48849-60120	URJ200	08/2015 - 03/2021	1
48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER
48867-60010	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48867-60011	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48867-60011	URJ200	04/2017 - 03/2021	1
48867-60010	URJ200	08/2015 - 04/2017	2
48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE)
96711-19007	URJ200	08/2015 - 04/2017	2
96711-19007	URJ200	04/2017 - 03/2021	1
96711-19007	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48876 - CYLINDER, FRONT STABILIZER CONTROL
48876-60021	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 09/2018	1
48876-60022	URJ200	10/2018 - 03/2021	1
48876-60022	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	10/2018 - 03/2021	1
48876-60021	URJ200	08/2015 - 09/2018	1
48890 - TUBE ASSY, FRONT STABILIZER CONTROL, NO.1
48890-60023	URJ200	01/2016 - 03/2021	1
48890-60022	URJ200	08/2015 - 12/2015	1
48890A - TUBE ASSY, FRONT STABILIZER CONTROL, NO.2
48890-60030	URJ200	08/2015 - 04/2017	1
48880-60060	URJ200	04/2017 - 03/2021	1
488A0 - ARM ASSY, STABILIZER CONTROL, FRONT
488A0-60010	URJ200	08/2015 - 03/2021	1
488A5 - PROTECTOR, STABILIZER CONTROL TUBE
488A5-60010	URJ200	08/2015 - 03/2021	1
88375G - CAP, SERVICE VALVE
88375-60010	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
88375-60010	URJ200	08/2015 - 04/2017	2
88375-60010	URJ200	04/2017 - 03/2021	1
Common parts
90105-16089
90119-14079
90119-14134
90119-16019
90119-18007
90178-18003
90201-19013
90410-06002
91641-H0820
91671-A0610
91674-80828
91674-K1240
94151-21401
94151-21601
Linked diagrams
4804

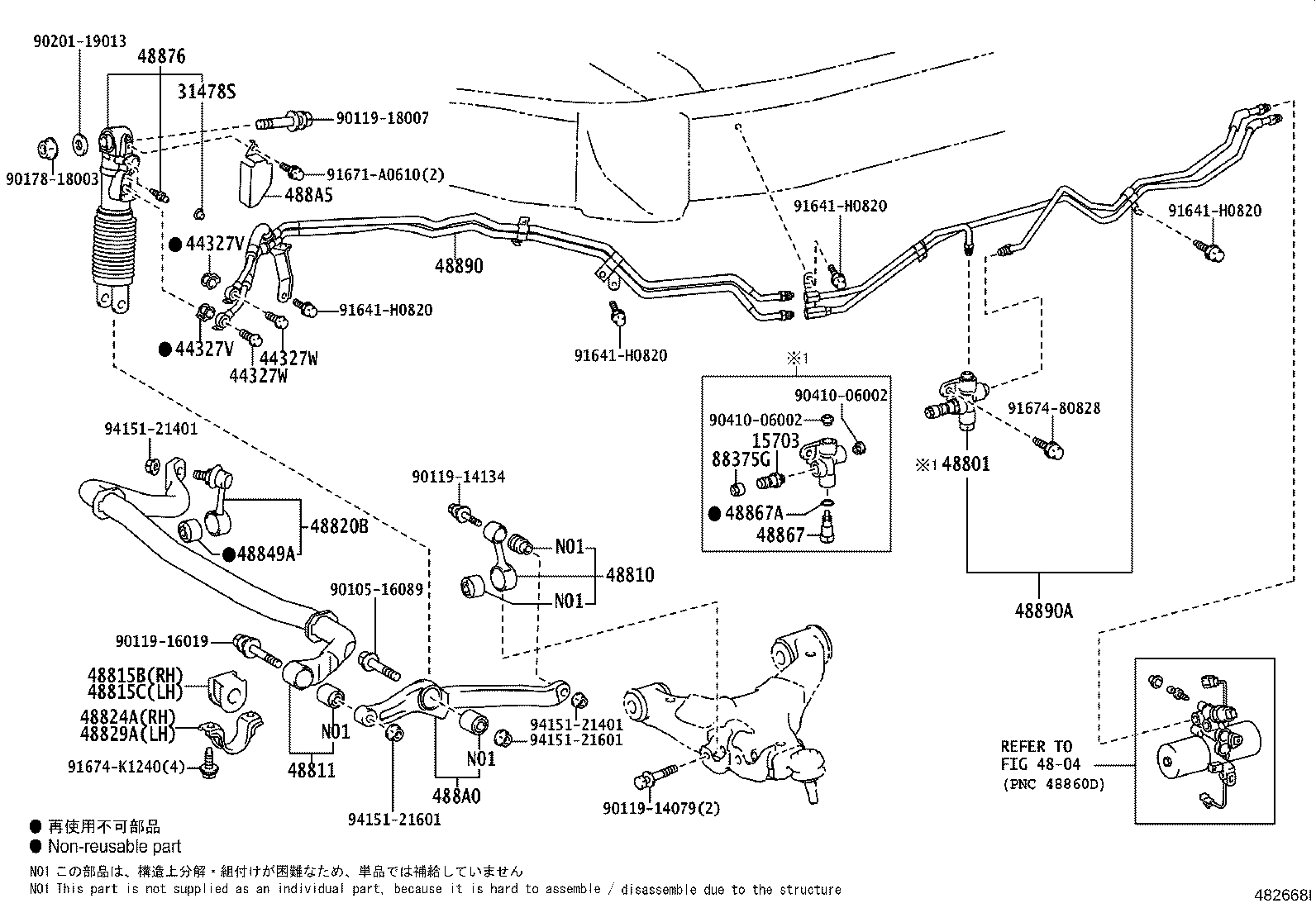

ILLUST NO. 2 OF 2(0709-1704)

Click highlighted areas on diagram

Part #	Description	Period	Qty
15703 - VALVE SUB-ASSY, OIL NOZZLE
15703-60010	3URFE..URJ200	08/2015 - 04/2017	2
15703-60010	3URFE..URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
15703-60010	3URFE..URJ200	04/2017 - 03/2021	1
15703 - VALVE SUB-ASSY, OIL NOZZLE
15703-60010	3URFE..URJ200	08/2015 - 04/2017	2
15703-60010	3URFE..URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
15703-60010	3URFE..URJ200	04/2017 - 03/2021	1
31478S - CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL)
31478-60020	URJ200	08/2015 - 03/2021	2
31478-60020	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ200	08/2015 - 03/2021	2
44327V - GASKET, PRESSURE PORT(FOR FRONT STABILIZER CONTROL TUBE
90430-16016	URJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ200	08/2015 - 03/2021	2
44327W - BOLT, UNION(FOR FRONT STABILIZER CONTOROL TUBE)
96341-41603	URJ200	08/2015 - 03/2021	2
48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL
48001-60020	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2017	2
48001-60020	URJ200	08/2015 - 03/2017	2
48001-60021	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48001-60021	URJ200	04/2017 - 03/2021	1
48801 - ADAPTER SUB-ASSY, STABILIZER CONTROL
48001-60020	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 03/2017	2
48001-60020	URJ200	08/2015 - 03/2017	2
48001-60021	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48001-60021	URJ200	04/2017 - 03/2021	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-60060	URJ200	08/2015 - 03/2021	1
48811 - BAR, STABILIZER, FRONT
48804-60120	URJ200	08/2015 - 03/2021	1
48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH
48815-60260	URJ200	08/2015 - 03/2021	1
48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH
48815-60260	URJ200	08/2015 - 03/2021	1
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-60082	URJ200	08/2015 - 03/2021	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-60180	URJ200	08/2015 - 03/2021	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-60180	URJ200	08/2015 - 03/2021	1
48849A - BUSH, FRONT STABILIZER LINK, RH
48849-60120	URJ200	08/2015 - 03/2021	1
48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER
48867-60010	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48867-60011	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48867-60011	URJ200	04/2017 - 03/2021	1
48867-60010	URJ200	08/2015 - 04/2017	2
48867 - VALVE, STABILIZER CONTROL ADAPTER SHUTTER
48867-60010	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48867-60011	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	04/2017 - 03/2021	1
48867-60011	URJ200	04/2017 - 03/2021	1
48867-60010	URJ200	08/2015 - 04/2017	2
48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE)
96711-19007	URJ200	08/2015 - 04/2017	2
96711-19007	URJ200	04/2017 - 03/2021	1
96711-19007	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48867A - RING, O(FOR STABILIZER CONTROK ADAPTER SHUTTER VALVE)
96711-19007	URJ200	08/2015 - 04/2017	2
96711-19007	URJ200	04/2017 - 03/2021	1
96711-19007	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
48876 - CYLINDER, FRONT STABILIZER CONTROL
48876-60021	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 09/2018	1
48876-60022	URJ200	10/2018 - 03/2021	1
48876-60022	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	10/2018 - 03/2021	1
48876-60021	URJ200	08/2015 - 09/2018	1
48890 - TUBE ASSY, FRONT STABILIZER CONTROL, NO.1
48890-60023	URJ200	01/2016 - 03/2021	1
48890-60022	URJ200	08/2015 - 12/2015	1
48890A - TUBE ASSY, FRONT STABILIZER CONTROL, NO.2
48890-60030	URJ200	08/2015 - 04/2017	1
48880-60060	URJ200	04/2017 - 03/2021	1
488A0 - ARM ASSY, STABILIZER CONTROL, FRONT
488A0-60010	URJ200	08/2015 - 03/2021	1
488A5 - PROTECTOR, STABILIZER CONTROL TUBE
488A5-60010	URJ200	08/2015 - 03/2021	1
88375G - CAP, SERVICE VALVE
88375-60010	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
88375-60010	URJ200	08/2015 - 04/2017	2
88375-60010	URJ200	04/2017 - 03/2021	1
88375G - CAP, SERVICE VALVE
88375-60010	URJ200 SUSPENSION-ACTIVE HEIGHT CONTROL	08/2015 - 04/2017	2
88375-60010	URJ200	08/2015 - 04/2017	2
88375-60010	URJ200	04/2017 - 03/2021	1
Common parts
90105-16089
90119-14079
90119-14134
90119-16019
90119-18007
90178-18003
90201-19013
90410-06002
91641-H0820
91671-A0610
91674-80828
91674-K1240
94151-21401
94151-21601
Linked diagrams
4804

URJ200L-GNZVKA (2015)

ILLUST NO. 2 OF 2(1704- )

ILLUST NO. 2 OF 2(0709-1704)
