Toyota Land cruiser URJ200 WIRING & CLAMP

URJ200L-GNTEKA (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015

Engine 3URFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF12(0709-1301)

Click highlighted areas on diagram

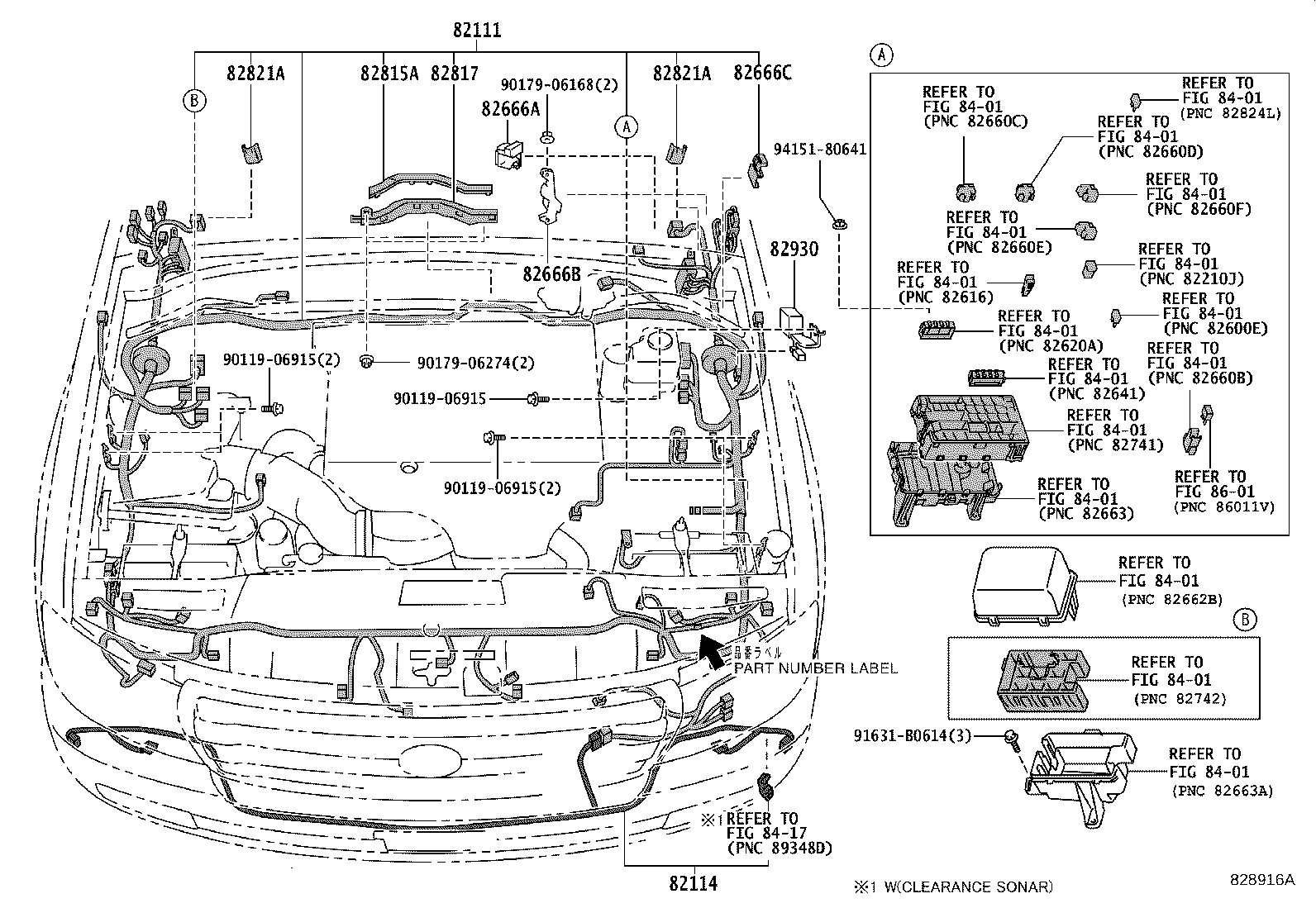

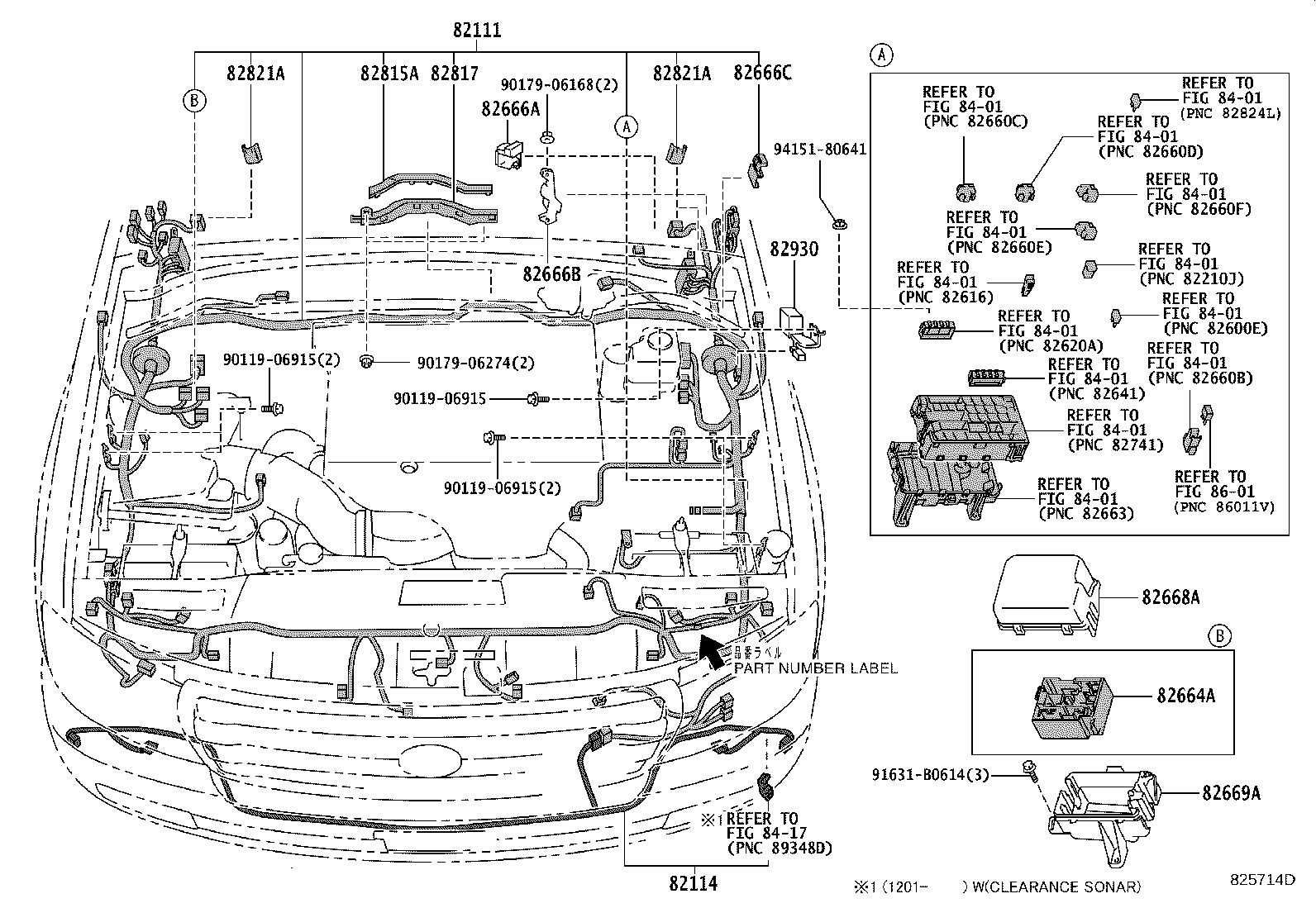

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-60V20	URJ200	01/2012 - 01/2013	1
82111-60V23	URJ200	08/2013 - 08/2015	1
82111-60V22	URJ200	01/2013 - 08/2013	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-60180	URJ200	01/2012 - 08/2015	1
82664A - BLOCK, CONNECTOR HOLDER
82664-60020	URJ200	01/2012 - 01/2013	1
82666A - HOLDER, CONNECTOR NO.2
82666-60680	URJ200	01/2012 - 08/2015	1
82666B - HOLDER, CONNECTOR NO.3
82666-60690	URJ200	01/2012 - 08/2015	1
82666C - HOLDER, CONNECTOR NO.4
82666-60600	URJ200	01/2012 - 08/2015	1
82668A - COVER, CONNECTOR HOLDER BLOCK, UPPER
82668-0C010	URJ200	01/2012 - 01/2013	1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-60020	URJ200	01/2012 - 01/2013	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-60490	URJ200	01/2013 - 08/2015	1
82815-60410	URJ200	01/2012 - 01/2013	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60F70	URJ200	01/2012 - 01/2013	1
82817-60T10	URJ200	01/2013 - 08/2015	1
82821A - COVER, CONNECTOR
82821-60210	URJ200	01/2012 - 08/2015	3
82821A - COVER, CONNECTOR
82821-60210	URJ200	01/2012 - 08/2015	3
82930 - CONDENSER ASSY, WIRING HARNESS, NO.1
82930-60010	URJ200	01/2012 - 09/2013	1
82930-60020	URJ200	10/2013 - 08/2015	1
Common parts
90119-06915
90179-06168
90179-06274
91631-B0614
94151-80641
Linked diagrams
8401
8417
8601

ILLUST NO. 3 OF12(1201-1508)

Click highlighted areas on diagram

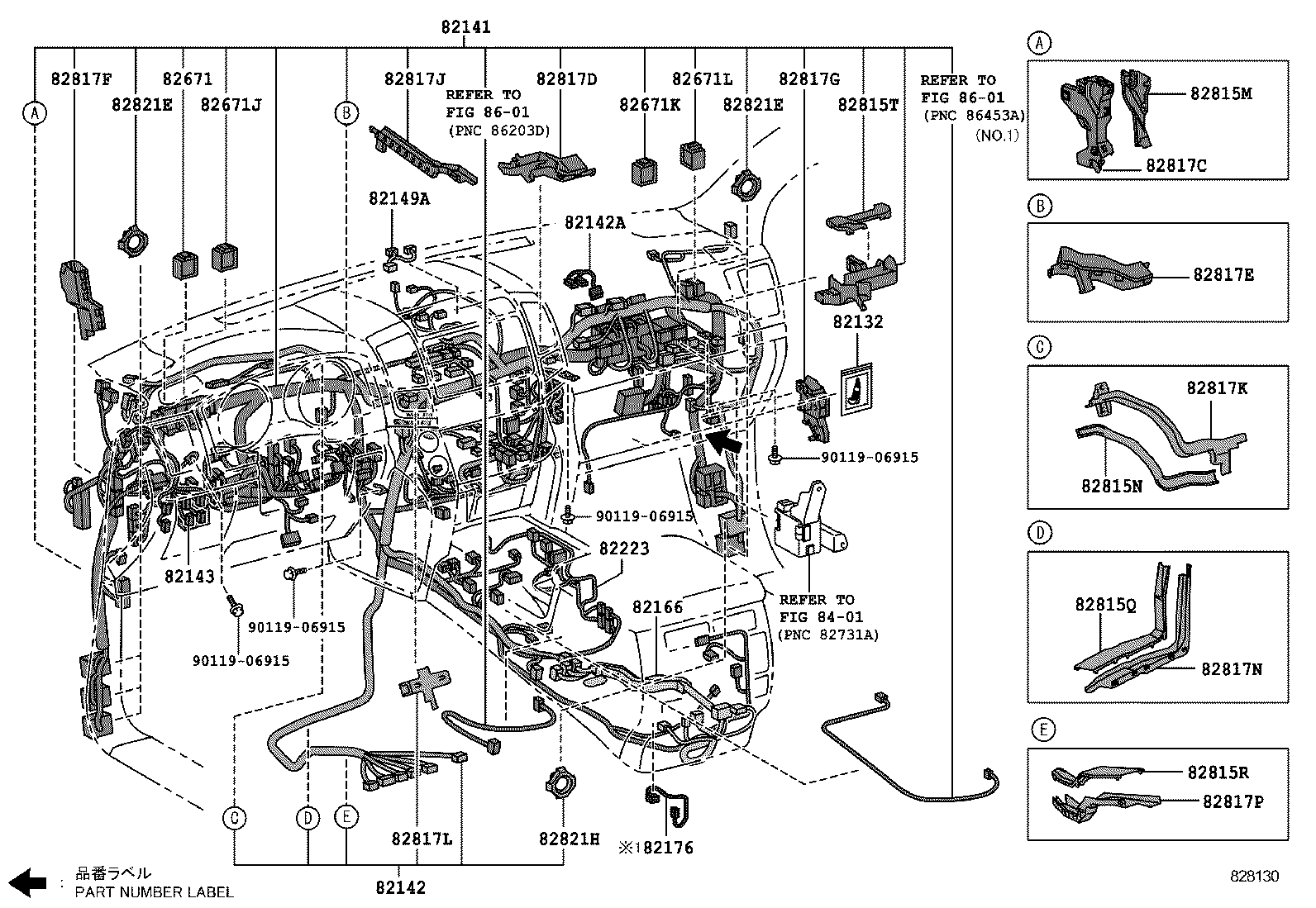

INSTRUMENT PANEL & CONSOLE BOX

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-60110	URJ200	01/2012 - 08/2015	1
82141 - WIRE, INSTRUMENT PANEL
82141-60X90	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2& WITH(GUIDE)	01/2012 - 01/2013	1
82141-60X90	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	01/2012 - 01/2013	1
82141-6AA90	URJ200 STEERING-WITH(POWER STEERING & VGRS)	01/2012 - 01/2013	1
82141-60Z90	URJ200	01/2012 - 01/2013	1
82141-6AB00	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	01/2012 - 01/2013	1
82141-60X92	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	01/2013 - 08/2013	1
82141-60Z93	URJ200	08/2013 - 05/2014	1
82141-6AB02	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)	01/2013 - 08/2013	1
82141-6AA92	URJ200 STEERING-WITH(POWER STEERING & VGRS)	01/2013 - 08/2013	1
82141-60X92	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2& WITH(GUIDE)	01/2013 - 08/2013	1
82141-60X93	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	08/2013 - 05/2014	1
82141-60X94	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	06/2014 - 08/2015	1
82141-6AB02	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	01/2013 - 08/2013	1
82141-60Z94	URJ200	06/2014 - 08/2015	1
82141-6AB03	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	08/2013 - 05/2014	1
82141-60Z92	URJ200	01/2013 - 08/2013	1
82141-6AA93	URJ200 STEERING-WITH(POWER STEERING & VGRS)	08/2013 - 05/2014	1
82141-6AB03	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)	08/2013 - 05/2014	1
82141-60X93	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2& WITH(GUIDE)	08/2013 - 05/2014	1
82141-6AB04	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)	06/2014 - 08/2015	1
82141-6AB00	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)	01/2012 - 01/2013	1
82141-60X94	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2& WITH(GUIDE)	06/2014 - 08/2015	1
82141-6AA94	URJ200 STEERING-WITH(POWER STEERING & VGRS)	06/2014 - 08/2015	1
82141-6AB04	URJ200 STEERING-WITH(POWER STEERING & VGRS)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	06/2014 - 08/2015	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-60G30	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	01/2012 - 01/2013	1
82142-60F90	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2& WITH(GUIDE)	01/2012 - 01/2013	1
82142-60F91	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-FRONT,SIDE X 2& WITH(GUIDE)	01/2013 - 08/2015	1
82142-60G40	URJ200	01/2012 - 01/2013	1
82142-60G41	URJ200	01/2013 - 08/2015	1
82142-60G31	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-WITH	01/2013 - 08/2015	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82142-33120	URJ200	01/2012 - 08/2015	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-60570	URJ200	01/2012 - 08/2015	1
82149A - WIRE, INSTRUMENT PANEL, NO.5
82149-60020	URJ200 EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)	01/2012 - 08/2015	1
82149-60020	URJ200	01/2012 - 08/2015	1
82166 - WIRE, CONSOLE BOX
82166-60880	URJ200 WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR)	01/2012 - 08/2015	1
82166-60830	URJ200 HAWAII OR PUERTO RICO SPEC	01/2012 - 08/2015	1
82166-60840	URJ200 HAWAII OR PUERTO RICO SPEC&REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR)	01/2012 - 08/2015	1
82166-60830	URJ200 GUAM OR SAIPAN SPEC&WITH(COOL BOX)	01/2012 - 08/2015	1
82166-60830	URJ200 MEXICO SPEC	01/2012 - 08/2015	1
82166-60830	URJ200 MEXICO SPEC&WITH(COOL BOX)	01/2012 - 08/2015	1
82166-60830	URJ200 HAWAII OR PUERTO RICO SPEC&WITH(COOL BOX)	01/2012 - 08/2015	1
82166-60830	URJ200 GUAM OR SAIPAN SPEC	01/2012 - 08/2015	1
82166-60850	URJ200 REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR)	01/2012 - 08/2015	1
82166-60870	URJ200 HAWAII OR PUERTO RICO SPEC&WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR)	01/2012 - 08/2015	1
82166-60870	URJ200 GUAM OR SAIPAN SPEC&WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR)	01/2012 - 08/2015	1
82166-60830	URJ200	01/2012 - 08/2015	1
82166-60840	URJ200 GUAM OR SAIPAN SPEC&REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR)	01/2012 - 08/2015	1
82166-60860	URJ200 WITH(COOL BOX)	01/2012 - 08/2015	1
82176 - WIRE, REAR CONSOLE BOX
82176-60090	URJ200	01/2012 - 08/2015	1
82176-60090	URJ200 MEXICO SPEC	01/2012 - 08/2015	1
82176-60090	URJ200 GUAM OR SAIPAN SPEC	01/2012 - 08/2015	1
82176-60090	URJ200 HAWAII OR PUERTO RICO SPEC	01/2012 - 08/2015	1
82223 - WIRE, SWITCH
82223-60700	URJ200	01/2012 - 08/2015	1
82671 - BLOCK, JUNCTION
82671-60030	URJ200	01/2012 - 08/2015	1
82671J - BLOCK, JUNCTION, NO.2
82671-60040	URJ200	01/2012 - 08/2015	1
82671K - BLOCK, JUNCTION, NO.3
82671-60050	URJ200	01/2012 - 08/2015	1
82671L - BLOCK, JUNCTION, NO.4
82671-60060	URJ200	01/2012 - 08/2015	1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-60100	URJ200	01/2012 - 08/2015	1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-60140	URJ200	01/2012 - 08/2015	1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-60110	URJ200	01/2012 - 08/2015	1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-60120	URJ200	01/2012 - 08/2015	1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-60300	URJ200	01/2012 - 08/2015	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-60A90	URJ200	01/2012 - 08/2015	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-60S50	URJ200	01/2012 - 08/2015	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-60S40	URJ200	01/2012 - 08/2015	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-60A70	URJ200	01/2012 - 08/2015	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-60B50	URJ200	01/2012 - 08/2015	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-60A80	URJ200	01/2012 - 08/2015	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-60B90	URJ200	01/2012 - 08/2015	1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-60G10	URJ200	01/2012 - 08/2015	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-60B60	URJ200	01/2012 - 08/2015	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-60B70	URJ200	01/2012 - 08/2015	1
82821E - COVER, CONNECTOR
82821-60180	URJ200	01/2012 - 08/2015	6
82821E - COVER, CONNECTOR
82821-60180	URJ200	01/2012 - 08/2015	6
82821H - COVER, CONNECTOR
82821-60180	URJ200	01/2012 - 08/2015	1
Common parts
90119-06915
Linked diagrams
8401
8601

ILLUST NO. 1 OF12(1301-1508)

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-60V20	URJ200	01/2012 - 01/2013	1
82111-60V23	URJ200	08/2013 - 08/2015	1
82111-60V22	URJ200	01/2013 - 08/2013	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-60180	URJ200	01/2012 - 08/2015	1
82666A - HOLDER, CONNECTOR NO.2
82666-60680	URJ200	01/2012 - 08/2015	1
82666B - HOLDER, CONNECTOR NO.3
82666-60690	URJ200	01/2012 - 08/2015	1
82666C - HOLDER, CONNECTOR NO.4
82666-60600	URJ200	01/2012 - 08/2015	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-60490	URJ200	01/2013 - 08/2015	1
82815-60410	URJ200	01/2012 - 01/2013	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60F70	URJ200	01/2012 - 01/2013	1
82817-60T10	URJ200	01/2013 - 08/2015	1
82821A - COVER, CONNECTOR
82821-60210	URJ200	01/2012 - 08/2015	3
82821A - COVER, CONNECTOR
82821-60210	URJ200	01/2012 - 08/2015	3
82930 - CONDENSER ASSY, WIRING HARNESS, NO.1
82930-60010	URJ200	01/2012 - 09/2013	1
82930-60020	URJ200	10/2013 - 08/2015	1
Common parts
90119-06915
90179-06168
90179-06274
91631-B0614
94151-80641
Linked diagrams
8401
8417
8601
