URJ200L-GNTEKA (2012)
Toyota Land Cruiser
Production
Jan 2012
-
Aug 2015
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

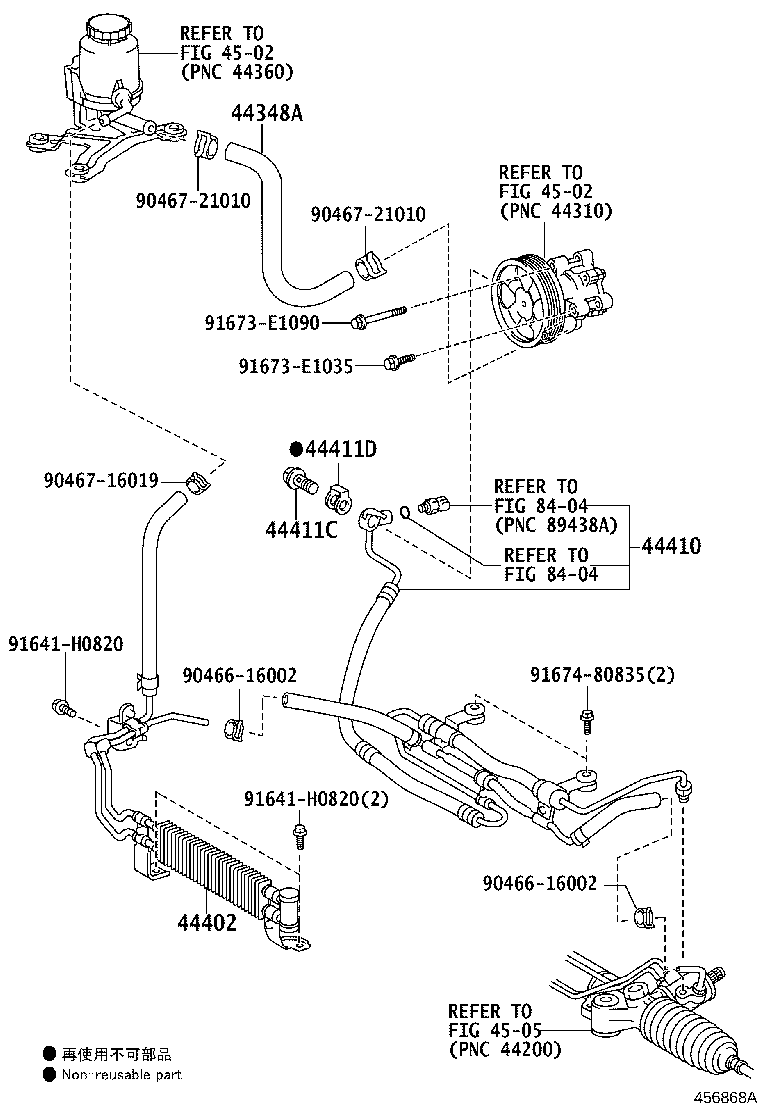

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60410 |
URJ200 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-60051 |
URJ200 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-60710 |
URJ200 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16034 |
URJ200 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30040 |
URJ200 |
1 | ||
| Common parts | ||||
| 90466-16002 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91641-H0820 | ||||
| 91673-E1035 | ||||
| 91673-E1090 | ||||
| 91674-80835 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
| 8404 | ||||
