URJ200L-GNTEKA (2007)
Toyota Land Cruiser
ILLUST NO. 1 OF 5(0709-1508)

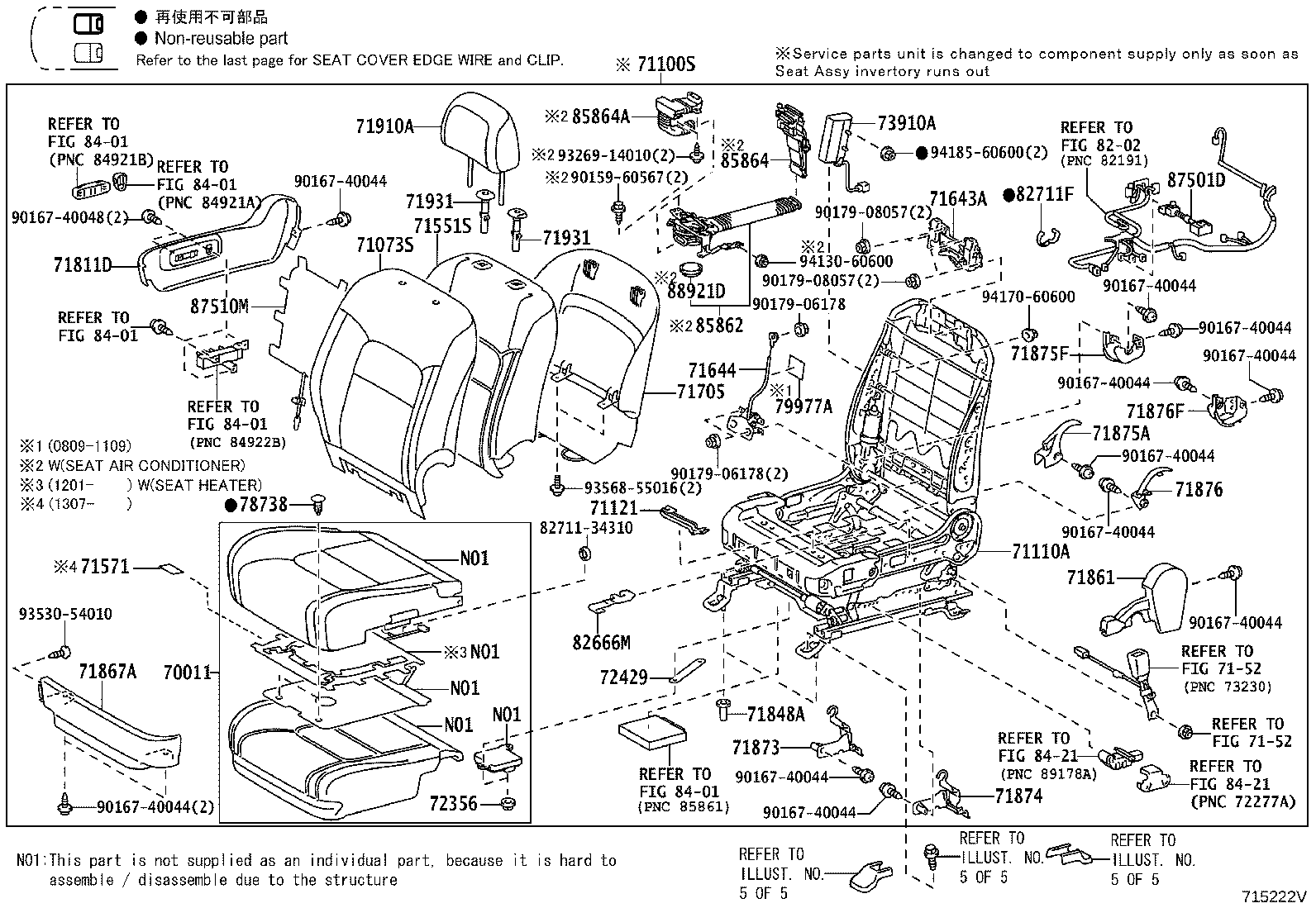

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71001-60J60B0 |
URJ200 MID.GRAY LC,TRIM1# |
1 | ||
| 71001-60J60E0 |
URJ200 SAND BEIGE LC,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6A670B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71073-6A671B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71073-6A672E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71073-6A672B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71073-6A670E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71073-6A671E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-60J11E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71100-60J12B2 |
URJ200 MD.GRAY LC,TRIM1# |
1 | ||
| 71100-60J12E1 |
URJ200 SAND BEIGE LC,TRIM4# |
1 | ||
| 71100-60J10B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71100-60J11B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71100-60J10E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-60460 |
URJ200 |
1 | ||
| 71110-60461 |
URJ200 |
1 | ||
| 71121 - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 71121-60140 |
URJ200 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60100 |
URJ200 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
URJ200 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
URJ200 |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-60280B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71705-60280E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71811-28360E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
URJ200 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110E3 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71861-60110B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60020B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71867-60020E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
URJ200 |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
URJ200 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58030B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71875-58030E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58050 |
URJ200 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60150B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71875-60150E4 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58050 |
URJ200 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60701B1 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71910-60700B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71910-60700E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71910-60701E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-33010 |
URJ200 |
2 | ||
| 72429 - PLATE, FRONT SEAT ADJUSTER, RH | ||||
| 72439-33010 |
URJ200 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-60020 |
URJ200 |
1 | ||
| 78738 - PIN, SUB SEAT CUSHION PIN | ||||
| 78738-0W010 |
URJ200 |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-60050 |
URJ200 |
2 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-60650 |
URJ200 |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-10070 |
URJ200 |
1 | ||
| 87501D - CONTROL SUB-ASSY, SEAT HEATER | ||||
| 87501-60010 |
URJ200 |
2 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-60280 |
URJ200 |
1 | ||
| Common parts | ||||
| 82711-34310 | ||||
| 90159-60567 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93269-14010 | ||||
| 93530-54010 | ||||
| 93568-55016 | ||||
| 94130-60600 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 5(0709-1508)

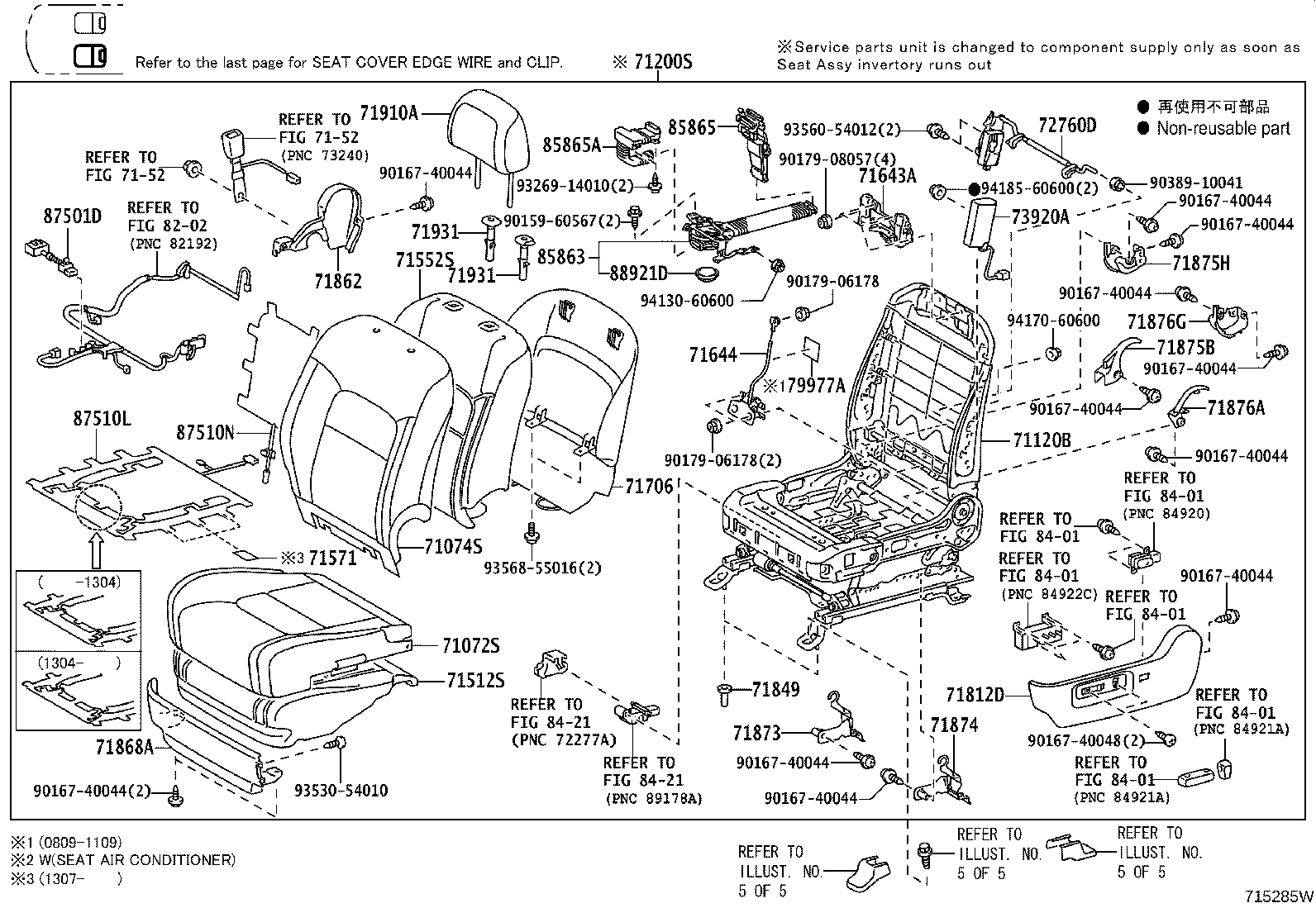

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60A90B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71072-60A91E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71072-60A91B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71072-60A90E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-60A00B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71074-60A01E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71074-60A02B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71074-60A00E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71074-60A01B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71074-60A02E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-60510 |
URJ200 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-60B72B2 |
URJ200 MD.GRAY LC,TRIM1# |
1 | ||
| 71200-60B70E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71200-60B71E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71200-60B71B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71200-60B70B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71200-60B72E1 |
URJ200 SAND BEIGE LC,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60190 |
URJ200 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60100 |
URJ200 |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
URJ200 |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
URJ200 |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71706-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42110E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71812-42110B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
URJ200 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100E3 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71862-60100B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60020B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71868-60020E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-30020 |
URJ200 |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
URJ200 |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-60170B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71876-60170E3 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60140 |
URJ200 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71876-60150E3 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60140 |
URJ200 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60701B1 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71910-60700B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71910-60700E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71910-60701E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30170 |
URJ200 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-60020 |
URJ200 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-60050 |
URJ200 |
2 | ||
| 87501D - CONTROL SUB-ASSY, SEAT HEATER | ||||
| 87501-60010 |
URJ200 |
2 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-60400 |
URJ200 |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-60280 |
URJ200 |
1 | ||
| Common parts | ||||
| 90159-60567 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90389-10041 | ||||
| 93269-14010 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94130-60600 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

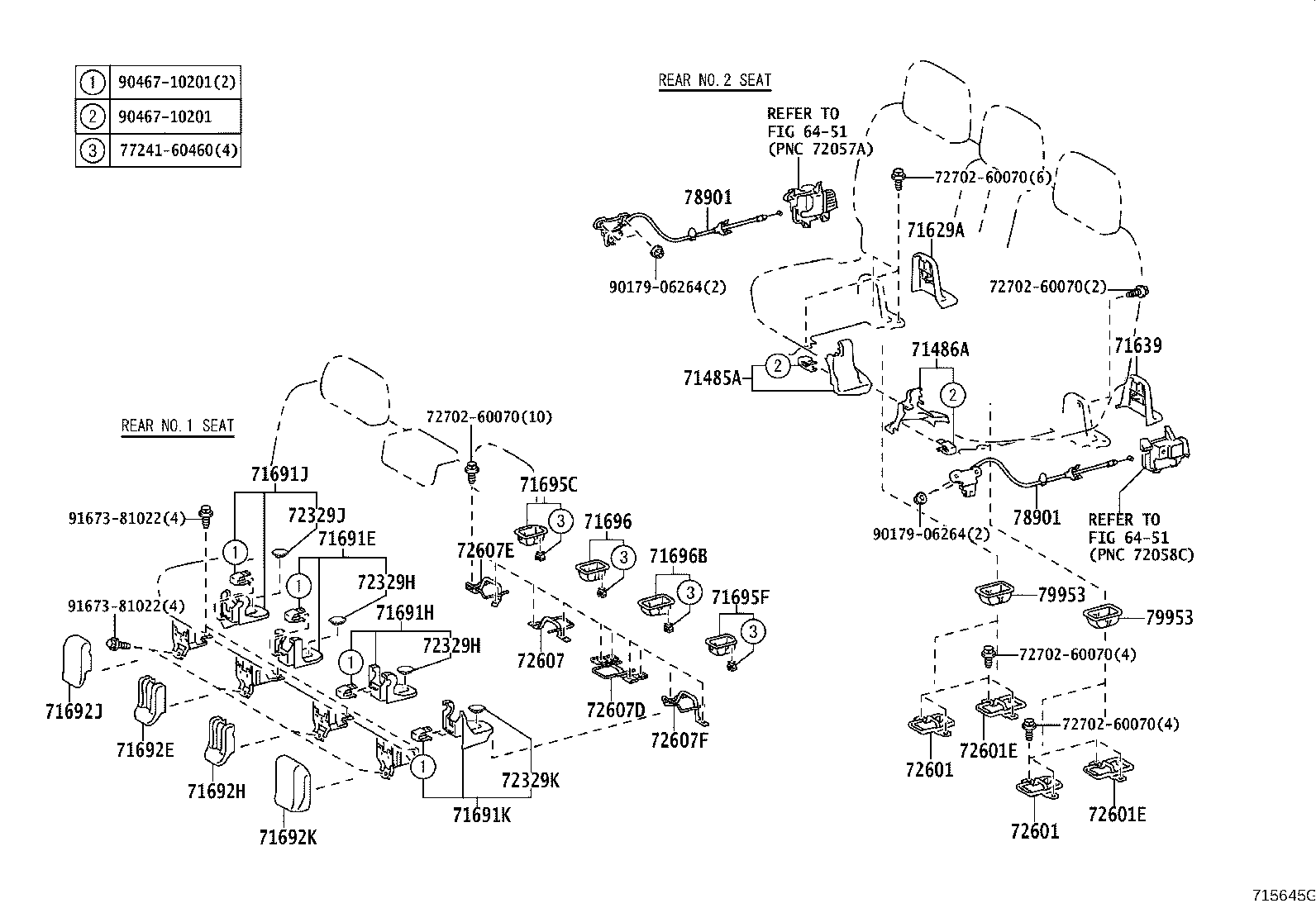

ILLUST NO. 5 OF 5(0709- )
COVER & LOCK STRIKER(REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71485A - COVER, REAR SEAT HINGE, NO.2 RH | ||||
| 71485-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71485-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71486A - COVER, REAR SEAT HINGE, NO.2 LH | ||||
| 71486-60050B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71486-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-60380E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71629-60380B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-60110B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71639-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-60051E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691-60051B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691-60050B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691H - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71691-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691-60071E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691-60071B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691J - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71691-60080E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691-60081B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691-60081E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691-60080B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691K - COVER, REAR SEAT CUSHION HINGE, NO.4 | ||||
| 71691-60091E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71691-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691-60091B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71691-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-60071B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71692-60071E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71692-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692H - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71692-60100B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71692-60101B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71692-60100E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692-60101E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692J - COVER, REAR SEAT CUSHION HINGE, NO.4 | ||||
| 71692-60051B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71692-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692-60051E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692-60050B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71692K - COVER, REAR SEAT CUSHION HINGE, NO.5 | ||||
| 71692-60061E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692-60060E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71692-60061B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71692-60060B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-60280B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71695-60280E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71695F - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-60290B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71695-60290E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71696 - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71696-60150B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71696-60150E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71696B - PROTECTOR, REAR SEAT, NO.2 | ||||
| 71696-60160B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71696-60160E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72329H - COVER, SEAT ADJUSTER BOLT, NO.1 | ||||
| 72329-60090B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72329-60090E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72329H - COVER, SEAT ADJUSTER BOLT, NO.1 | ||||
| 72329-60090B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72329-60090E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72329J - COVER, SEAT ADJUSTER BOLT, NO.2 | ||||
| 72329-60100B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72329-60100E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72329K - COVER, SEAT ADJUSTER BOLT, NO.3 | ||||
| 72329-60110E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72329-60110B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-60010 |
URJ200 |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-60010 |
URJ200 |
2 | ||
| 72601E - STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2 | ||||
| 72601-60020 |
URJ200 |
2 | ||
| 72601E - STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2 | ||||
| 72601-60020 |
URJ200 |
2 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-60150 |
URJ200 |
1 | ||
| 72607D - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72607-60160 |
URJ200 |
1 | ||
| 72607E - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.3 | ||||
| 72607-60110 |
URJ200 |
1 | ||
| 72607F - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.4 | ||||
| 72607-60120 |
URJ200 |
1 | ||
| 78901 - LOCK SUB-ASSY, FOLD SEAT LEG | ||||
| 78901-60050E1 |
URJ200 SAND BEIGE,TRIM4#,RH |
1 | ||
| 78901-60050B1 |
URJ200 LT.GRAY,TRIM1#,RH |
1 | ||
| 78902-60050B1 |
URJ200 LT.GRAY,TRIM1#,LH |
1 | ||
| 78902-60050E1 |
URJ200 SAND BEIGE,TRIM4#,LH |
1 | ||
| 78901 - LOCK SUB-ASSY, FOLD SEAT LEG | ||||
| 78901-60050E1 |
URJ200 SAND BEIGE,TRIM4#,RH |
1 | ||
| 78901-60050B1 |
URJ200 LT.GRAY,TRIM1#,RH |
1 | ||
| 78902-60050B1 |
URJ200 LT.GRAY,TRIM1#,LH |
1 | ||
| 78902-60050E1 |
URJ200 SAND BEIGE,TRIM4#,LH |
1 | ||
| 79953 - COVER, NO.3 SEAT CUSHION | ||||
| 79953-60010B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 79953-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 79953 - COVER, NO.3 SEAT CUSHION | ||||
| 79953-60010B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 79953-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| Common parts | ||||
| 72702-60070 | ||||
| 77241-60460 | ||||
| 90179-06264 | ||||
| 90467-10201 | ||||
| 91673-81022 | ||||
| Linked diagrams | ||||
| 6451 | ||||

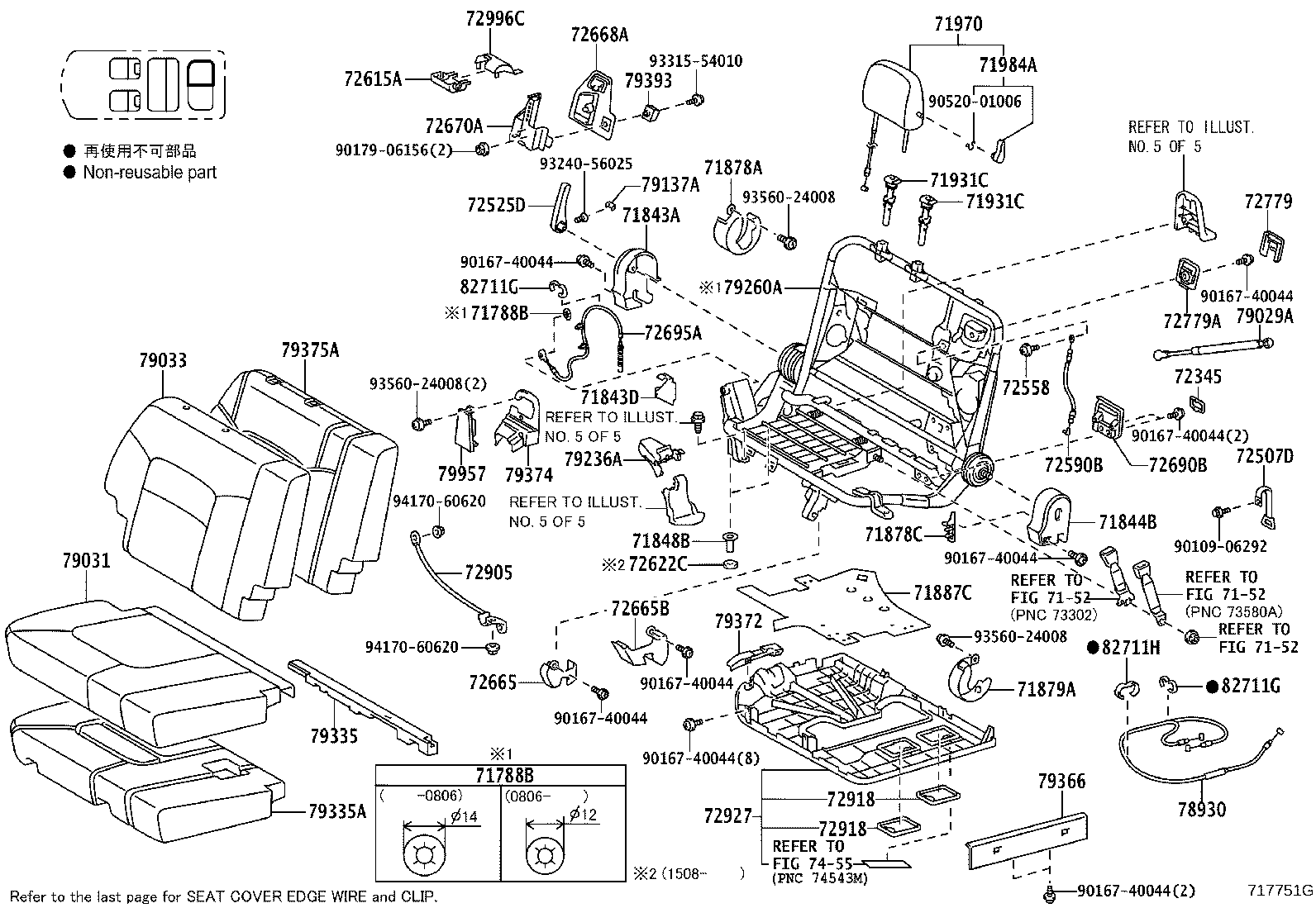

ILLUST NO. 4 OF 4(0709- )
REAR NO.2 SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-60081 |
URJ200 |
2 | ||
| 71788-60080 |
URJ200 |
2 | ||
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-60081 |
URJ200 |
2 | ||
| 71788-60080 |
URJ200 |
2 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71843-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-60110B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71843-60111B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71843-60111E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71843-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71844B - COVER, RECLINING ADJUSTER, LH | ||||
| 71844-60080B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71844-60080E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
URJ200 |
2 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60150 |
URJ200 |
1 | ||
| 71878-60151 |
URJ200 |
1 | ||
| 71878C - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60170E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71878-60170B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60140 |
URJ200 |
1 | ||
| 71879-60141 |
URJ200 |
1 | ||
| 71887C - CARPET, REAR SEAT CUSHION | ||||
| 79225-60040 |
URJ200 |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71990-60010E0 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010B0 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71990-60010E0 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010B0 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-60570B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71970-60530E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71970-60531B1 |
URJ200 MD.GARY/GRAY,TRIM1# |
2 | ||
| 71970-60530B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71970-60531E1 |
URJ200 SAND BEIGE/BEIGE,TRIM4# |
2 | ||
| 71970-60570E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71984A - HANDLE, REAR SEAT HEADREST | ||||
| 71984-60010E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71984-60010B2 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72345 - CAP, SEAT STAND FRAME | ||||
| 72345-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72345-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE | ||||
| 72507-60020E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72507-60020B1 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72526-60060B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72526-60060E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72558 - STOPPER, RECLINING | ||||
| 72558-44010 |
URJ200 |
2 | ||
| 72590B - CABLE ASSY, RECLINING REMOTE CONTROL | ||||
| 72590-60020 |
URJ200 |
2 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72615-60010B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-60100B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72665-60100E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-60110B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72665-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72668A - BEZEL, REAR SEAT BACK LOCK, LOWER | ||||
| 72668-60030E0 |
URJ200 SAND BEIGE,TRIM4#,RH |
1 | ||
| 72668-60040B0 |
URJ200 MD.GRAY,TRIM1#,LH |
1 | ||
| 72668-60030B0 |
URJ200 MD.GRAY,TRIM1#,RH |
1 | ||
| 72668-60040E0 |
URJ200 SAND BEIGE,TRIM4#,LH |
1 | ||
| 72670A - STRIKER ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72670-60060 |
URJ200 |
1 | ||
| 72690B - LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH | ||||
| 72690-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72690-60030B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-60160 |
URJ200 |
2 | ||
| 72779 - GUIDE, REAR SEAT HINGE PAWL | ||||
| 78772-60010B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78772-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72779A - GUIDE, REAR SEAT HINGE PAWL | ||||
| 78772-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 78772-60020B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72905 - LINK SUB-ASSY, 3RD SEAT, RH | ||||
| 72905-60010 |
URJ200 |
1 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60021E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60020B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72918-60021B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60021E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60020B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72918-60021B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-60121B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72927-60120E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72927-60121E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72927-60120B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72996C - COVER, REAR NO.2 SEAT BACK, RH | ||||
| 72996-60150B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72996-60150E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 78930 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 | ||||
| 78930-60010 |
URJ200 |
2 | ||
| 79029A - STAY SUB-ASSY, NO.2 SEAT | ||||
| 79089-60020 |
URJ200 |
2 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-60671B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79031-60670B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79031-60672B1 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 79031-60671E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79031-60670E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79031-60672E1 |
URJ200 SAN BEIGE/BEIGE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-60702B2 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 79033-60701E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79033-60700E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79033-60701B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79033-60700B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79033-60702E2 |
URJ200 SAN BEIGE/BEIGE,TRIM4# |
1 | ||
| 79137A - COVER, NO.2 SEAT HINGE | ||||
| 72329-60030B1 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72329-60030E4 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-60100E1 |
URJ200 DK. BROWN,TRIM4# |
1 | ||
| 79236-60100C0 |
URJ200 BLACK,TRIM1# |
1 | ||
| 79260A - SPRING ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79260-60010 |
URJ200 |
1 | ||
| 79260-60011 |
URJ200 |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79335-60150 |
URJ200 RH |
1 | ||
| 79345-60150 |
URJ200 LH |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-60130 |
URJ200 |
1 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-60040E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79366-60040B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79372-60050B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-60030B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79374-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-60130 |
URJ200 |
1 | ||
| 79393 - CUSHION, REAR NO.2 SEAT BACK | ||||
| 79393-60050B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 79393-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79393-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 79393-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79957-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 |
4 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 |
4 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-34310 |
URJ200 |
2 | ||
| Common parts | ||||
| 90109-06292 | ||||
| 90167-40044 | ||||
| 90179-06156 | ||||
| 90520-01006 | ||||
| 93240-56025 | ||||
| 93315-54010 | ||||
| 93560-24008 | ||||
| 94170-60620 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

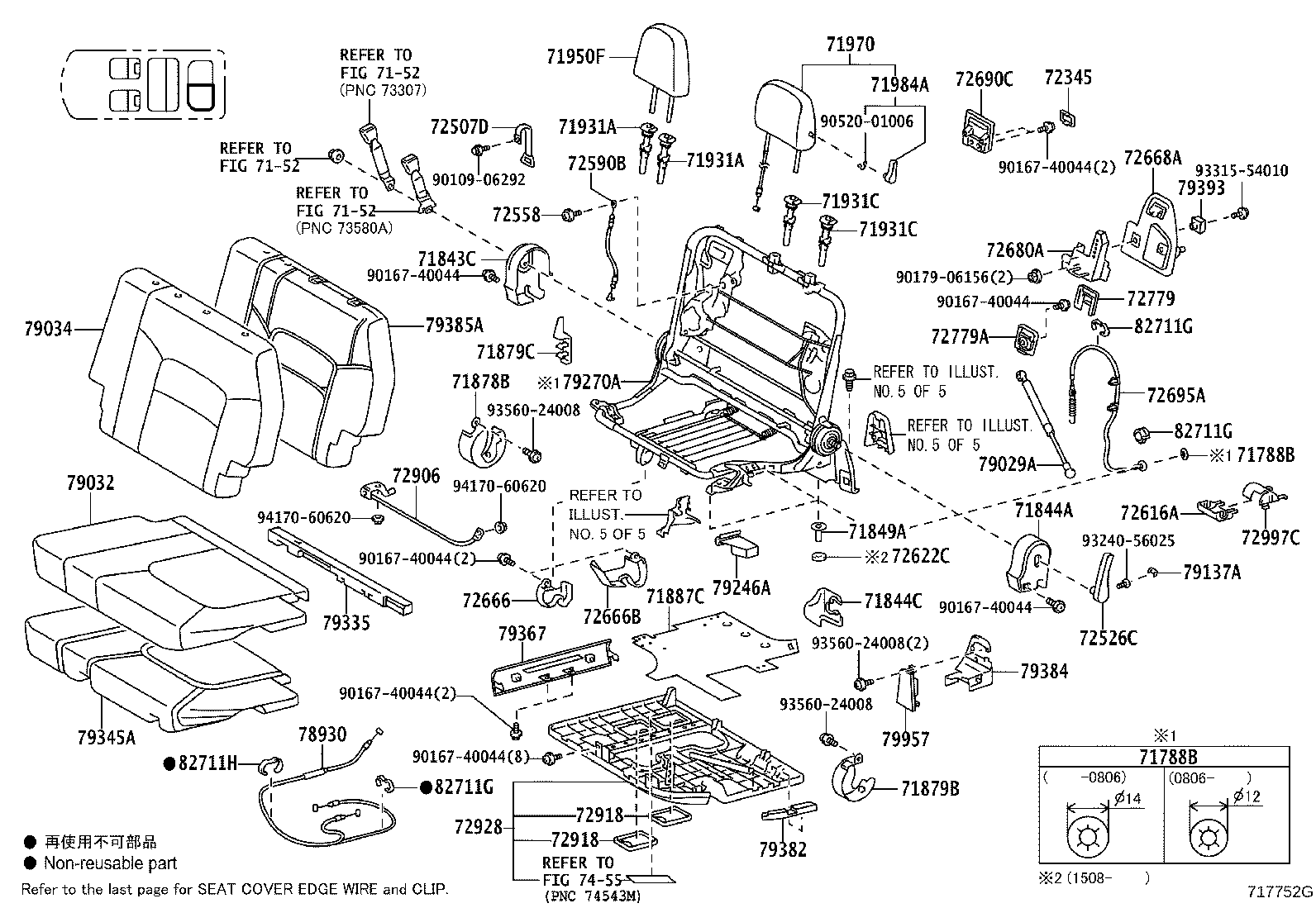

ILLUST NO. 4 OF 4(0709- )
REAR NO.2 SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-60081 |
URJ200 |
2 | ||
| 71788-60080 |
URJ200 |
2 | ||
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-60081 |
URJ200 |
2 | ||
| 71788-60080 |
URJ200 |
2 | ||
| 71843C - COVER, RECLINING ADJUSTER, RH | ||||
| 71843-60100B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71843-60100E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71844-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-60100E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71844-60101E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71844-60100B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71844-60101B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
URJ200 |
2 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-60161 |
URJ200 |
1 | ||
| 71878-60160 |
URJ200 |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60150 |
URJ200 |
1 | ||
| 71879-60151 |
URJ200 |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-60160B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71879-60160E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71887C - CARPET, REAR SEAT CUSHION | ||||
| 79225-60040 |
URJ200 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71990-60010E0 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010B0 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71990-60010E0 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71990-60010B0 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71950F - HEADREST ASSY, REAR NO.2 SEAT, LH | ||||
| 71950-60071E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71950-60041B0 |
URJ200 MD.GARY,TRIM1# |
1 | ||
| 71950-60070B0 |
URJ200 MD.GARY,TRIM1# |
1 | ||
| 71950-60041E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71950-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71950-60071B0 |
URJ200 MD.GARY,TRIM1# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-60570B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71970-60530E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71970-60531B1 |
URJ200 MD.GARY/GRAY,TRIM1# |
2 | ||
| 71970-60530B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71970-60531E1 |
URJ200 SAND BEIGE/BEIGE,TRIM4# |
2 | ||
| 71970-60570E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71984A - HANDLE, REAR SEAT HEADREST | ||||
| 71984-60010E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71984-60010B2 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72345 - CAP, SEAT STAND FRAME | ||||
| 72345-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72345-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE | ||||
| 72507-60020E1 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72507-60020B1 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72525-60090E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72525-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72558 - STOPPER, RECLINING | ||||
| 72558-44010 |
URJ200 |
2 | ||
| 72590B - CABLE ASSY, RECLINING REMOTE CONTROL | ||||
| 72590-60020 |
URJ200 |
2 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72616-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72616-60010B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72666-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-60100E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72666-60100B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72668A - BEZEL, REAR SEAT BACK LOCK, LOWER | ||||
| 72668-60030E0 |
URJ200 SAND BEIGE,TRIM4#,RH |
1 | ||
| 72668-60040B0 |
URJ200 MD.GRAY,TRIM1#,LH |
1 | ||
| 72668-60030B0 |
URJ200 MD.GRAY,TRIM1#,RH |
1 | ||
| 72668-60040E0 |
URJ200 SAND BEIGE,TRIM4#,LH |
1 | ||
| 72680A - STRIKER ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72680-60060 |
URJ200 |
1 | ||
| 72690C - LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH | ||||
| 72690-60040E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72690-60040B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-60160 |
URJ200 |
2 | ||
| 72779 - GUIDE, REAR SEAT HINGE PAWL | ||||
| 78772-60010B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78772-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72779A - GUIDE, REAR SEAT HINGE PAWL | ||||
| 78772-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 78772-60020B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72906 - LINK SUB-ASSY, 3RD SEAT, LH | ||||
| 72906-60010 |
URJ200 |
1 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60021E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60020B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72918-60021B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72918 - COVER, 3RD SEAT CUSHION LOCK | ||||
| 72918-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60021E0 |
URJ200 SAND BEIGE,TRIM4# |
4 | ||
| 72918-60020B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72918-60021B0 |
URJ200 MD.GRAY,TRIM1# |
4 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72928-60071E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72928-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72928-60071B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72997C - COVER, REAR NO.2 SEAT BACK, LH | ||||
| 72997-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72997-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 78930 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 | ||||
| 78930-60010 |
URJ200 |
2 | ||
| 79029A - STAY SUB-ASSY, NO.2 SEAT | ||||
| 79089-60020 |
URJ200 |
2 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-60670B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79032-60670E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79032-60672E1 |
URJ200 SAN BEIGE/BEIGE,TRIM4# |
1 | ||
| 79032-60671B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79032-60671E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79032-60672B1 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-60701B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79034-60700B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79034-60701E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79034-60702B2 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 79034-60700E1 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79034-60702E2 |
URJ200 SAN BEIGE/BEIGE,TRIM4# |
1 | ||
| 79137A - COVER, NO.2 SEAT HINGE | ||||
| 72329-60030B1 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72329-60030E4 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79246A - COVER, NO.2 SEAT LEG, NO.2 | ||||
| 79246-60020C0 |
URJ200 BLACK,TRIM1# |
1 | ||
| 79246-60020E1 |
URJ200 DK. BROWN,TRIM4# |
1 | ||
| 79270A - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79270-60011 |
URJ200 |
1 | ||
| 79270-60010 |
URJ200 |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79335-60150 |
URJ200 RH |
1 | ||
| 79345-60150 |
URJ200 LH |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-60100 |
URJ200 |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79367-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-60110B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79382-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79384-60050B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-60130 |
URJ200 |
1 | ||
| 79393 - CUSHION, REAR NO.2 SEAT BACK | ||||
| 79393-60050B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 79393-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79393-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 79393-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79957-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 |
4 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 |
4 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 |
4 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-34310 |
URJ200 |
2 | ||
| Common parts | ||||
| 90109-06292 | ||||
| 90167-40044 | ||||
| 90179-06156 | ||||
| 90520-01006 | ||||
| 93240-56025 | ||||
| 93315-54010 | ||||
| 93560-24008 | ||||
| 94170-60620 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

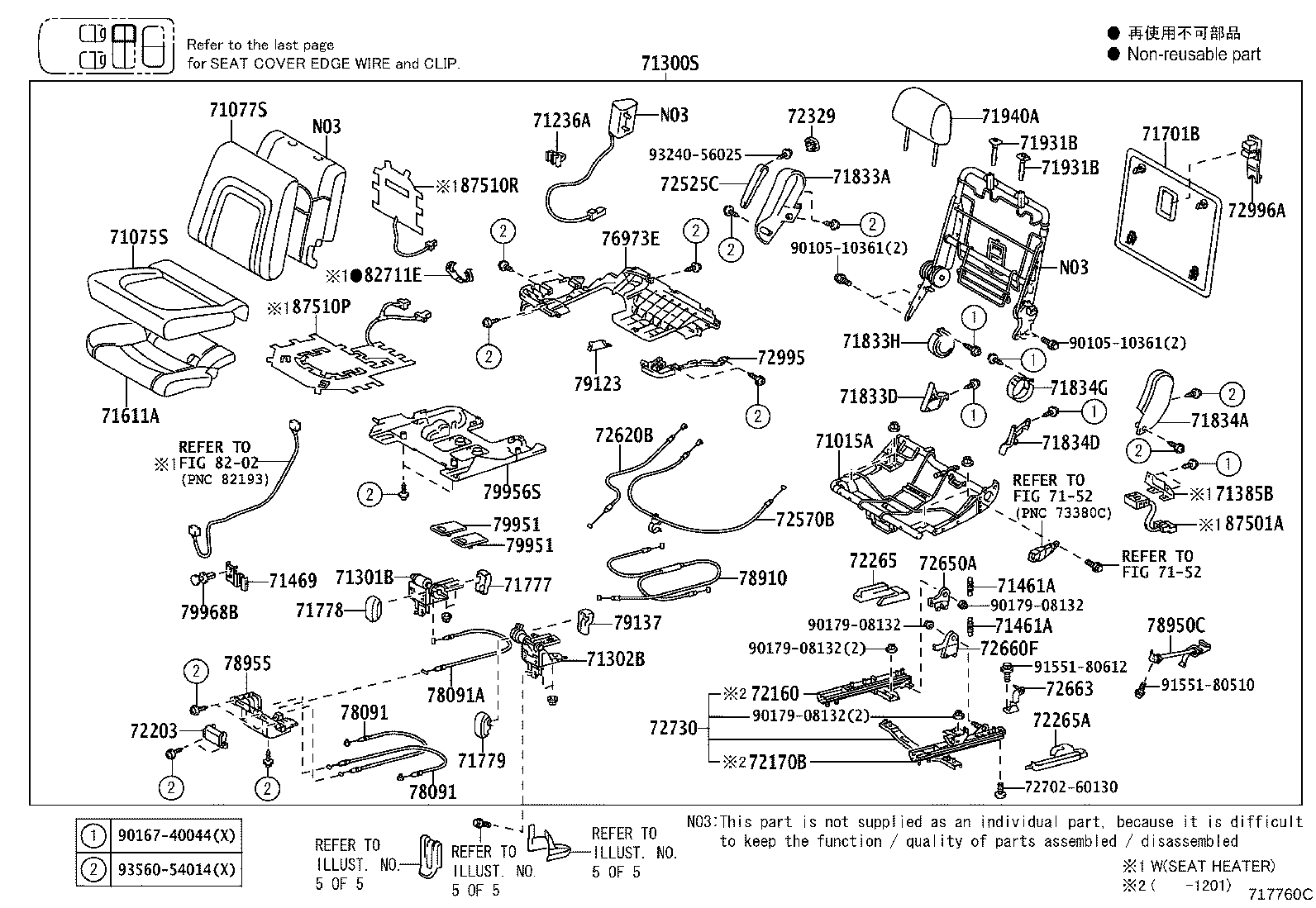

ILLUST NO. 2 OF 5(0709- )
REAR NO.1 SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-60270 |
URJ200 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-60B81E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71075-60B80B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71075-60B80E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71075-60B90B0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71075-60B90E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71075-60B91E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71075-60B81B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71075-60B82B1 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71075-60B82E1 |
URJ200 SAND BEIGE/BEIGE,TRIM4# |
1 | ||
| 71075-60B91B0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71075-60B92B1 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71075-60B92E1 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE/BEIGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-60B90B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71077-60B90E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71077-60C00B2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71077-60B91B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71077-60C00E2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71077-60C02E4 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAN BEIGE/BEIGE/MD.NEUTRA,TRIM4# |
1 | ||
| 71077-60C02B4 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71077-60C01E2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71077-60C01B2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71077-60B91E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71077-60B92B4 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71077-60B92E4 |
URJ200 SANDBEIGE/BEIGE/MD.NEUTRA,TRIM4# |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-60040 |
URJ200 |
2 | ||
| 71300S - SEAT ASSY, REAR RH | ||||
| 71300-60G00B3 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY LC,TRIM1# |
1 | ||
| 71300-60F90B3 |
URJ200 MD.GRAY LC,TRIM1# |
1 | ||
| 71300-60F92E2 |
URJ200 SAND BEIGE LC,TRIM4# |
1 | ||
| 71300-60F90E2 |
URJ200 SAND BEIGE LC,TRIM4# |
1 | ||
| 71300-60F92B3 |
URJ200 MD.GRAY LC,TRIM1# |
1 | ||
| 71300-60G01B0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71300-60G01E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71300-60F92B4 |
URJ200 MD.GRAY LC,TRIM1# |
1 | ||
| 71300-60F91B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71300-60F91E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71300-60G02B3 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY LC,TRIM1# |
1 | ||
| 71300-60G00E2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAD BEIGE LC,TRIM4# |
1 | ||
| 71300-60T60E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71300-60G02B4 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY LC,TRIM1# |
1 | ||
| 71300-60T60B0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71300-60T50B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71300-60G02E2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE LC,TRIM4# |
1 | ||
| 71300-60T50E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-60150 |
URJ200 |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71302-60130 |
URJ200 |
1 | ||
| 71385B - BRACKET, REAR SEAT CUSHION HOLDER, RH | ||||
| 71385-60150 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
1 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-60030 |
URJ200 |
3 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-60030 |
URJ200 |
3 | ||
| 71469 - PROTECTOR, REAR SEAT, NO.2 | ||||
| 82817-60F90 |
URJ200 |
2 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-60060 |
URJ200 |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-60140B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71701-60140E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71777 - COVER, REAR SEAT SIDE HINGE FEMALE | ||||
| 71777-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71777-60110B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71778-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-60110B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71779-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-60130B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71833-60130E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71833D - COVER REAR SEAT RECLINING, RH | ||||
| 71833-60150E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71833-60150B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71833H - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-60190 |
URJ200 |
2 | ||
| 71833-60191 |
URJ200 |
2 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71833-60170E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71833-60170B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71834D - COVER, REAR SEAT RECLINING, LH | ||||
| 71833-60180B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71833-60180E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71834G - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-60141 |
URJ200 |
1 | ||
| 71834-60140 |
URJ200 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
URJ200 W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
URJ200 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B6 |
URJ200 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
URJ200 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
URJ200 W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
URJ200 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B6 |
URJ200 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
URJ200 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60320B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71940-60390B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71940-60391E1 |
URJ200 SAND BEIGE/BEIGE,TRIM4# |
2 | ||
| 71940-60391B1 |
URJ200 MD.GARY/GRAY,TRIM1# |
2 | ||
| 71940-60390E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71940-60320E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-60030 |
URJ200 |
1 | ||
| 72160-60080 |
URJ200 |
1 | ||
| 72170B - TRACK ASSY, REAR NO.1 SEAT, LH | ||||
| 72170-60100 |
URJ200 |
1 | ||
| 72170-60050 |
URJ200 |
1 | ||
| 72203 - HANDLE SUB-ASSY, REAR SEAT TRACK | ||||
| 72203-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72203-60010B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-60050B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72265-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-60080B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72265-60080E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72329-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-60120E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72525-60120B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-60010 |
URJ200 |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-60050 |
URJ200 |
2 | ||
| 72650A - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-60170 |
URJ200 |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-60170 |
URJ200 |
2 | ||
| 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 | ||||
| 78095-60020 |
URJ200 |
1 | ||
| 72730 - ADJUSTER ASSY, REAR SEAT RECLINING | ||||
| 72030-60070 |
URJ200 |
1 | ||
| 72030-60030 |
URJ200 |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-60290B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72995-60290E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-60160E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72996-60160B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72996-60160E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72996-60160B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 76973E - COVER, REAR UNDER SIDE, RH | ||||
| 76973-60041E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 76973-60040B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 76973-60040E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 76973-60041B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60040 |
URJ200 |
4 | ||
| 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60040 |
URJ200 |
4 | ||
| 78091A - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60080 |
URJ200 |
2 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-60080 |
URJ200 |
1 | ||
| 78950C - BAND ASSY, FOLD SEAT STOPPER | ||||
| 78950-60140B1 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78950-60140B2 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78950-60140E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-60030B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 78955-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79123 - PLATE, NO.1 SEAT CUSHION | ||||
| 79156-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79156-60020B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79156-60021B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79156-60021E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 71777-60120B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71777-60120E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79951 - COVER, NO.1 SEAT CUSHION | ||||
| 79951-60050B0 |
URJ200 MD.GRAY,TRIM1# |
3 | ||
| 79951-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
3 | ||
| 79951 - COVER, NO.1 SEAT CUSHION | ||||
| 79951-60050B0 |
URJ200 MD.GRAY,TRIM1# |
3 | ||
| 79951-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
3 | ||
| 79956S - COVER, REAR SEAT LEG SIDE | ||||
| 79956-60040E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79956-60041E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79956-60041B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79956-60040B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79968B - CLIP | ||||
| 77241-60470 |
URJ200 |
2 | ||
| 82711E - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
4 | ||
| 82711-2B660 |
URJ200 |
2 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60020 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
1 | ||
| 87510P - HEATER ASSY, SEAT | ||||
| 87510-60450 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
1 | ||
| 87510R - HEATER ASSY, SEAT | ||||
| 87510-60470 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
2 | ||
| Common parts | ||||
| 72702-60130 | ||||
| 90105-10361 | ||||
| 90167-40044 | ||||
| 90179-08132 | ||||
| 91551-80510 | ||||
| 91551-80612 | ||||
| 93240-56025 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(0709- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 2 OF 5(0709- )
REAR NO.1 SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 79951-60060E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79951-60060B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-60140 |
URJ200 |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-60B00B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71076-60B10B0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71076-60B01E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71076-60B10E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71076-60B02B1 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71076-60B01B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71076-60B00E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71076-60B12E1 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE/BEIGE,TRIM4# |
1 | ||
| 71076-60B11B0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71076-60B02E1 |
URJ200 SAND BEIGE/BEIGE,TRIM4# |
1 | ||
| 71076-60B11E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71076-60B12B1 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-60C00B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71078-60C10E2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71078-60C11B2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71078-60C11E2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71078-60C10B2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71078-60C01E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71078-60C00E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71078-60C12E4 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAN BEIGE/BEIGE/MD.NEUTRA,TRIM4# |
1 | ||
| 71078-60C01B2 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71078-60C12B4 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71078-60C02B4 |
URJ200 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 71078-60C02E4 |
URJ200 SANDBEIGE/BEIGE/MDNEUTRAL,TRIM4# |
1 | ||
| 71099 - COVER SUB-ASSY, REAR SEAT BACK, LOWER LH | ||||
| 71099-60040E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71099-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71099-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71099-60040B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-60040 |
URJ200 |
2 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-60200 |
URJ200 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-60180 |
URJ200 |
1 | ||
| 71369B - COVER, REAR SEAT BACK STAY, LH | ||||
| 71369-60010B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71369-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71379B - COVER, REAR SEAT BACK HINGE, LH | ||||
| 71369-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71369-60020B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71386A - BRACKET, REAR SEAT CUSHION HOLDER, LH | ||||
| 71386-60130 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
1 | ||
| 71400S - SEAT ASSY, REAR, LH (FOR SEPARATE TYPE) | ||||
| 71400-60F80B4 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71400-60F70B4 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71400-60F71B1 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71400-60F70E3 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71400-60F82B3 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71400-60F80E3 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71400-60F71E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71400-60F81E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71400-60F72B3 |
URJ200 MD.GRAY LC,TRIM1# |
1 | ||
| 71400-60F72B4 |
URJ200 MD.GRAY LC,TRIM1# |
1 | ||
| 71400-60F82B4 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY LC,TRIM1# |
1 | ||
| 71400-60T40E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71400-60F82E2 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE LC,TRIM4# |
1 | ||
| 71400-60F72E2 |
URJ200 SAND BEIGE LC,TRIM4# |
1 | ||
| 71400-60F81B1 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71400-60T50B0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,MD.GRAY,TRIM1# |
1 | ||
| 71400-60T50E0 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1,SAND BEIGE,TRIM4# |
1 | ||
| 71400-60T40B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71461A - SPRING, REAR SEAT CUSHION, NO.1 | ||||
| 71461-60030 |
URJ200 |
3 | ||
| 71469 - PROTECTOR, REAR SEAT, NO.2 | ||||
| 82817-60F90 |
URJ200 |
2 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-60080 |
URJ200 |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-60130B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71702-60130E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71777 - COVER, REAR SEAT SIDE HINGE FEMALE | ||||
| 71777-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71777-60110B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71778-60030B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-60110B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71779-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71834-60200E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71834-60200B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 71834-60210B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71834-60210E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71833H - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-60190 |
URJ200 |
2 | ||
| 71833-60191 |
URJ200 |
2 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-60150B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71834-60150E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71834C - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71834-60170B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 71834-60170E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
URJ200 W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
URJ200 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B6 |
URJ200 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
URJ200 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030E4 |
URJ200 W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020E3 |
URJ200 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-42020B6 |
URJ200 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-52030B7 |
URJ200 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60320B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71940-60390B0 |
URJ200 MD.GARY,TRIM1# |
2 | ||
| 71940-60391E1 |
URJ200 SAND BEIGE/BEIGE,TRIM4# |
2 | ||
| 71940-60391B1 |
URJ200 MD.GARY/GRAY,TRIM1# |
2 | ||
| 71940-60390E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71940-60320E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71931-42020E3 |
URJ200 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E4 |
URJ200 W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71931-42020B6 |
URJ200 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
URJ200 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
1 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020B1 |
URJ200 W(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-44020E2 |
URJ200 W(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71931-42020E3 |
URJ200 W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71931-47010B8 |
URJ200 W/O(LOCK),MD.GRAY,TRIM1# |
1 | ||
| 71930-52030E4 |
URJ200 W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4# |
1 | ||
| 71931-42020B6 |
URJ200 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
1 | ||
| 71930-52030B7 |
URJ200 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
1 | ||
| 71931-47010E8 |
URJ200 W/O(LOCK),SAND BEIGE,TRIM4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-60271B0 |
URJ200 MD.GARY,TRIM1# |
1 | ||
| 71960-60270E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 71960-60270B0 |
URJ200 MD.GARY,TRIM1# |
1 | ||
| 71960-60271E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72040 - ADJUSTER ASSY, REAR NO.2 SEAT | ||||
| 72030-60080 |
URJ200 |
1 | ||
| 72030-60040 |
URJ200 |
1 | ||
| 72160B - TRACK ASSY, REAR NO.1 SEAT, RH | ||||
| 72160-60050 |
URJ200 |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-60030 |
URJ200 |
1 | ||
| 72203 - HANDLE SUB-ASSY, REAR SEAT TRACK | ||||
| 72203-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72203-60010B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-60040E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72266-60040B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72266-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72329B - COVER, SEAT ADJUSTER BOLT, NO.1 | ||||
| 72329-60080E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72329-60080B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72526-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72569 - PLATE, SEAT BACK STOPPER | ||||
| 72569-60030 |
URJ200 |
1 | ||
| 72580A - CABLE ASSY, RECLINING ADJUSTING, LH | ||||
| 72580-60010 |
URJ200 |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-60050 |
URJ200 |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-60170 |
URJ200 |
2 | ||
| 72664 - LEVER, REAR SEAT LOCK CONTROL, LH | ||||
| 78096-60020 |
URJ200 |
1 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-60320B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72995-60320E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-60160E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72996-60160B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 72996-60160E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 72996-60160B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 73174A - COVER, REAR SEAT BELT HOLE, LH | ||||
| 73375-60070 |
URJ200 |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 73178-60030B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 73237 - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 73237-60030B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 73375B - COVER, REAR SEAT SHOULDER BELT HOLE, LH | ||||
| 73375-60060B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 73375-60060E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 76974E - COVER, REAR UNDER SIDE, LH | ||||
| 76974-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 76974-60020B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 76974-60021E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 76974-60021B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60040 |
URJ200 |
4 | ||
| 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60040 |
URJ200 |
4 | ||
| 78091A - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL | ||||
| 78091-60080 |
URJ200 |
2 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-60110 |
URJ200 |
1 | ||
| 78950C - BAND ASSY, FOLD SEAT STOPPER | ||||
| 78950-60140B1 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78950-60140B2 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78950-60140E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 78950C - BAND ASSY, FOLD SEAT STOPPER | ||||
| 78950-60140B1 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78950-60140B2 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 78950-60140E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 78956 - COVER, REAR SEAT UNDER TRAY LH | ||||
| 78955-60010B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 78955-60010E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79120-60040 |
URJ200 |
1 | ||
| 79123A - PLATE, NO.1 SEAT CUSHION | ||||
| 79156-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79156-60030B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79156-60031E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79156-60031B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79137 - COVER, NO.1 SEAT HINGE | ||||
| 71777-60120B0 |
URJ200 MD.GRAY,TRIM1# |
2 | ||
| 71777-60120E0 |
URJ200 SAND BEIGE,TRIM4# |
2 | ||
| 79951 - COVER, NO.1 SEAT CUSHION | ||||
| 79951-60050B0 |
URJ200 MD.GRAY,TRIM1# |
3 | ||
| 79951-60050E0 |
URJ200 SAND BEIGE,TRIM4# |
3 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-60021E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79965-60020B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79965-60021B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 79965-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 79968B - CLIP | ||||
| 77241-60470 |
URJ200 |
2 | ||
| 82711E - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
4 | ||
| 82711-2B660 |
URJ200 |
2 | ||
| 82711E - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
4 | ||
| 82711-2B660 |
URJ200 |
2 | ||
| 82711E - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
4 | ||
| 82711-2B660 |
URJ200 |
2 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60020 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
1 | ||
| 87510Q - HEATER ASSY, SEAT | ||||
| 87510-60460 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
1 | ||
| 87510R - HEATER ASSY, SEAT | ||||
| 87510-60470 |
URJ200 SEAT HEATER-DRIVER & PASSENGER & REAR NO.1 |
2 | ||
| Common parts | ||||
| 72702-60130 | ||||
| 78899-60040 | ||||
| 78899-60050 | ||||
| 78899-60060 | ||||
| 90105-10361 | ||||
| 90119-08970 | ||||
| 90167-40044 | ||||
| 90179-08132 | ||||
| 90386-12005 | ||||
| 91551-80510 | ||||
| 91551-80612 | ||||
| 93240-56025 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 5(0709-1508)
CENTER ARMREST(REAR NO.1 SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-60020E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 66990-60020B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-60300B3 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72830-60300B4 |
URJ200 MD.GRAY/GRAY/SHADOW GRAY,TRIM1# |
1 | ||
| 72830-60300E2 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72830-60300B5 |
URJ200 MD.GRAY/GRAY NO.166/BLACK,TRIM1# |
1 | ||
| 72830-60300E3 |
URJ200 SAND BEIGE/BEIGE/IVORY,TRIM4# |
1 | ||
| 72832 - PLATE, REAR SEAT ARMREST | ||||
| 72831-60060B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72831-60060E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72832A - PLATE, NO.1 SEAT ARMREST | ||||
| 72832-60030E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72832-60030B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
ILLUST NO. 5 OF 5(0709- )
COVER & LOCK STRIKER(FRONT SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-60110E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72123-60110B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72124-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-60090B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72127-60090E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-60060B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72128-60060E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-60130B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72137-60130E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-60070E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72138-60070B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH | ||||
| 72157-60140B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| 72157-60140E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH | ||||
| 72158-60080E0 |
URJ200 SAND BEIGE,TRIM4# |
1 | ||
| 72158-60080B0 |
URJ200 MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
