URJ200L-GNTEKA (2007)
Toyota Land Cruiser
Production
Sep 2007
-
Jan 2012
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )

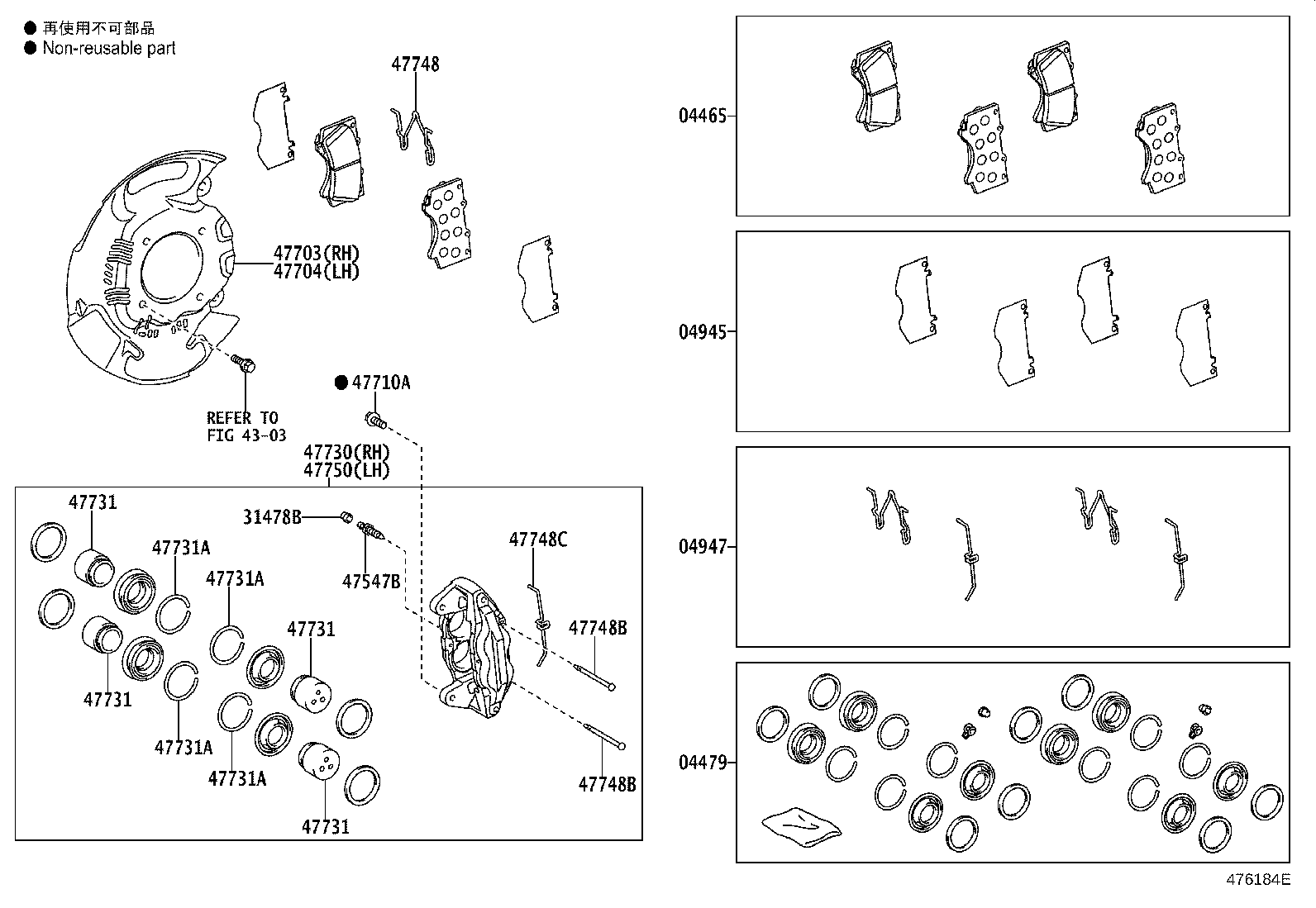

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-60280 |
URJ200 MARK ADVICS PV565H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-60070 |
URJ200 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-60080 |
URJ200 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-60140 |
URJ200 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
URJ200 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
URJ200 |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-60090 |
URJ200 |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-60090 |
URJ200 |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91672-L1240 |
URJ200 *12-1.25PX40-30 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-60280 |
URJ200 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60280 |
URJ200 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60280 |
URJ200 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60280 |
URJ200 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60280 |
URJ200 |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-56003 |
URJ200 |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-56003 |
URJ200 |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-56003 |
URJ200 |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-56003 |
URJ200 |
8 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-60280 |
URJ200 |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06024 |
URJ200 |
4 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06024 |
URJ200 |
4 | ||
| 47748C - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-60280 |
URJ200 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-60280 |
URJ200 |
1 | ||
| Linked diagrams | ||||
| 4303 | ||||
