RJ77RV-MN (1990)
Toyota Land Cruiser

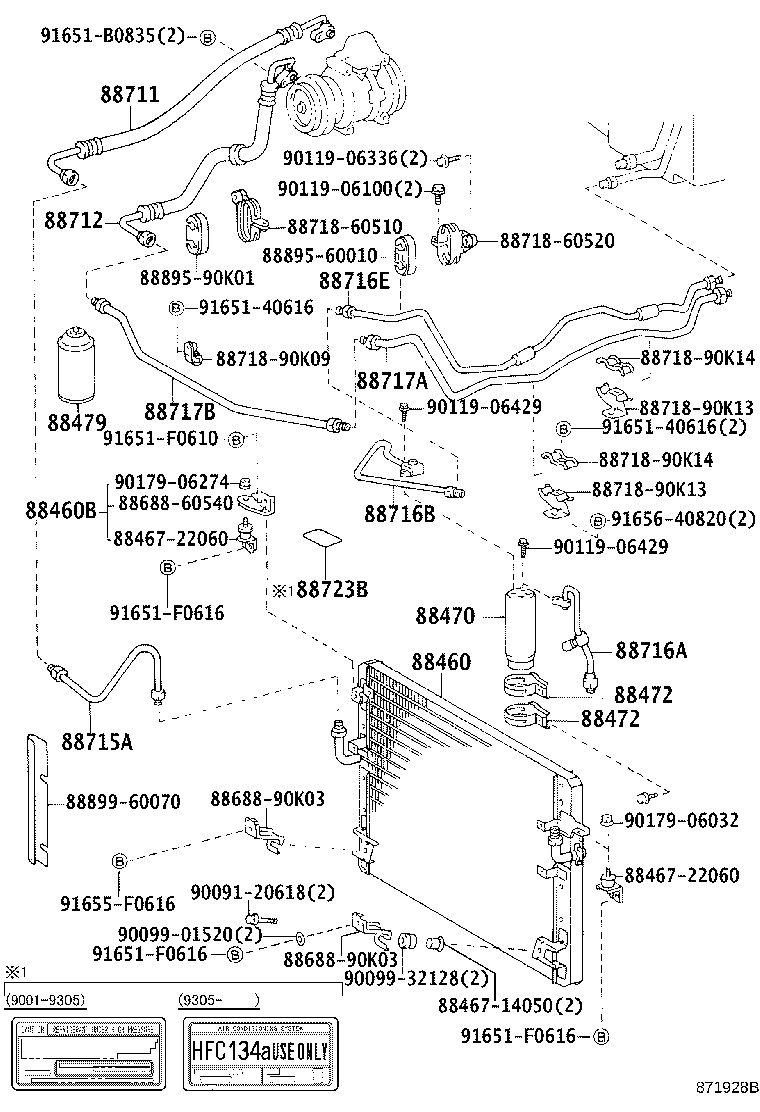

ILLUST NO. 1 OF 3(9001-9604)LJ72,77,79,RJ7#..RHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60080 |
LJ7#,RJ7# |
1 | ||
| 88460-60150 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-60020 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88409-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-12020 |
LJ7#,RJ7# |
1 | ||
| 88471-60010 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60080 |
LJ7#,RJ7# |
1 | ||
| 88472-60100 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60080 |
LJ7#,RJ7# |
1 | ||
| 88472-60100 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60190 |
RJ7#..ARL,GEN |
1 | ||
| 88711-60170 |
RJ7# |
1 | ||
| 88711-60290 |
RJ7#..HT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60250 |
RJ7#..RHD |
1 | ||
| 88712-60570 |
RJ77..RHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60080 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
1 | ||
| 88715-60030 |
LJ7#,RJ7# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60520 |
LJ7#,RJ7# |
1 | ||
| 88716-6A110 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60470 |
LJ7#,RJ7#..RHD |
1 | ||
| 88716-6A260 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-60480 |
LJ7#,RJ7#..RHD |
1 | ||
| 88716-6A270 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60260 |
LJ7#,RJ7#..RHD |
1 | ||
| 88717-60620 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60290 |
LJ7#,RJ7#..RHD |
1 | ||
| 88717-60630 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-22050 |
FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7# |
1 | ||
| 88723-22050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-60540 | ||||
| 88688-90K03 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88718-90K09 | ||||
| 88718-90K13 | ||||
| 88718-90K14 | ||||
| 88895-60010 | ||||
| 88895-90K01 | ||||
| 88899-60070 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-32128 | ||||
| 90119-06100 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91651-40616 | ||||
| 91651-B0835 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
| 91655-F0616 | ||||
| 91656-40820 | ||||

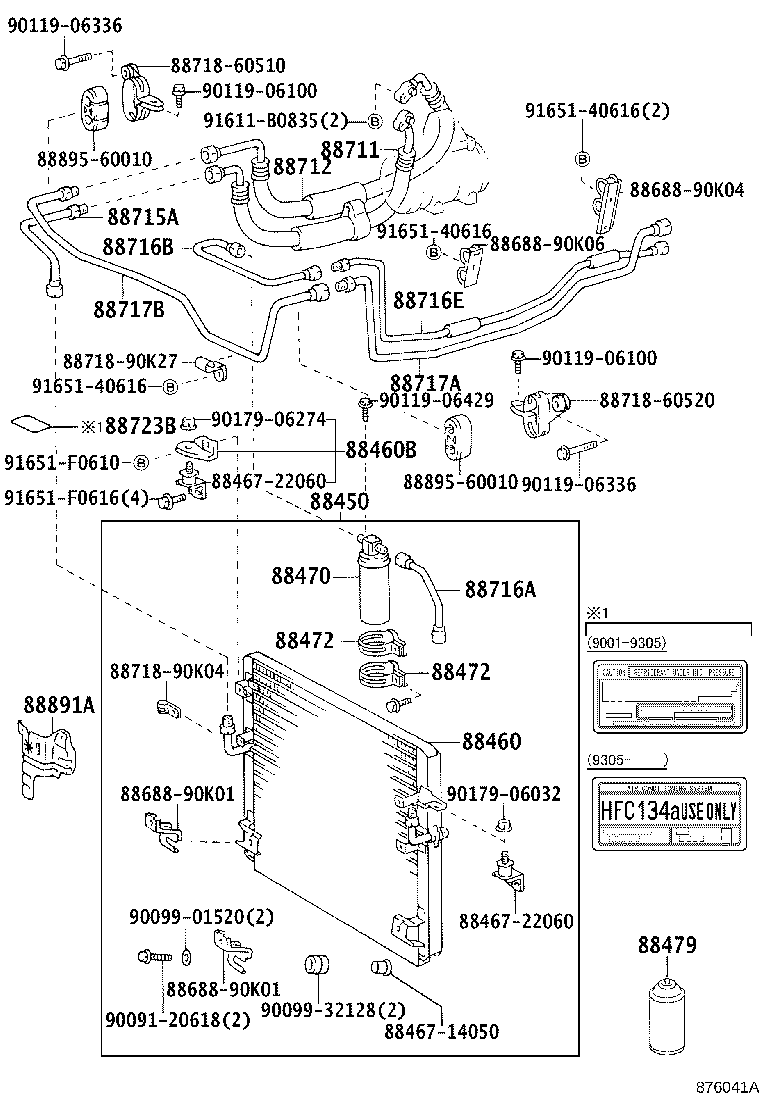

ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60080 |
LJ7#,RJ7# |
1 | ||
| 88460-60150 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-60020 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88409-60020 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-12020 |
LJ7#,RJ7# |
1 | ||
| 88471-60010 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60080 |
LJ7#,RJ7# |
1 | ||
| 88472-60100 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60080 |
LJ7#,RJ7# |
1 | ||
| 88472-60100 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60190 |
RJ7#..ARL,GEN |
1 | ||
| 88711-60170 |
RJ7# |
1 | ||
| 88711-60290 |
RJ7#..HT |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60570 |
RJ77..RHD |
1 | ||
| 88712-60250 |
RJ7#..RHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60080 |
LJ79..STD;LJ72,RJ7#..HT;LJ79..LHD..LX |
1 | ||
| 88715-60030 |
LJ7#,RJ7# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60520 |
LJ7#,RJ7# |
1 | ||
| 88716-6A110 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60470 |
LJ7#,RJ7#..RHD |
1 | ||
| 88716-6A260 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-60480 |
LJ7#,RJ7#..RHD |
1 | ||
| 88716-6A270 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60260 |
LJ7#,RJ7#..RHD |
1 | ||
| 88717-60620 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60290 |
LJ7#,RJ7#..RHD |
1 | ||
| 88717-60630 |
LJ72,RJ77..RHD;LJ79..RHD..STD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ75,KZJ7#,LJ72,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;FZJ7#,HZJ7#,KZJ7#,LJ72,RJ7#..GCC,GEN |
1 | ||
| 88723-22050 |
FJ75..GEN..CBU;FJ70,73,FZJ7#,HZJ75,LJ72,77,79,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| 88723-20040 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7# |
1 | ||
| 88723-22050 |
FJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88718-90K04 | ||||
| 88718-90K27 | ||||
| 88895-60010 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-32128 | ||||
| 90119-06100 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91611-B0835 | ||||
| 91651-40616 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
