RJ77RV-MN (1990)
Toyota Land Cruiser
Production
Apr 1990
-
Apr 1996
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9604)RJ7#

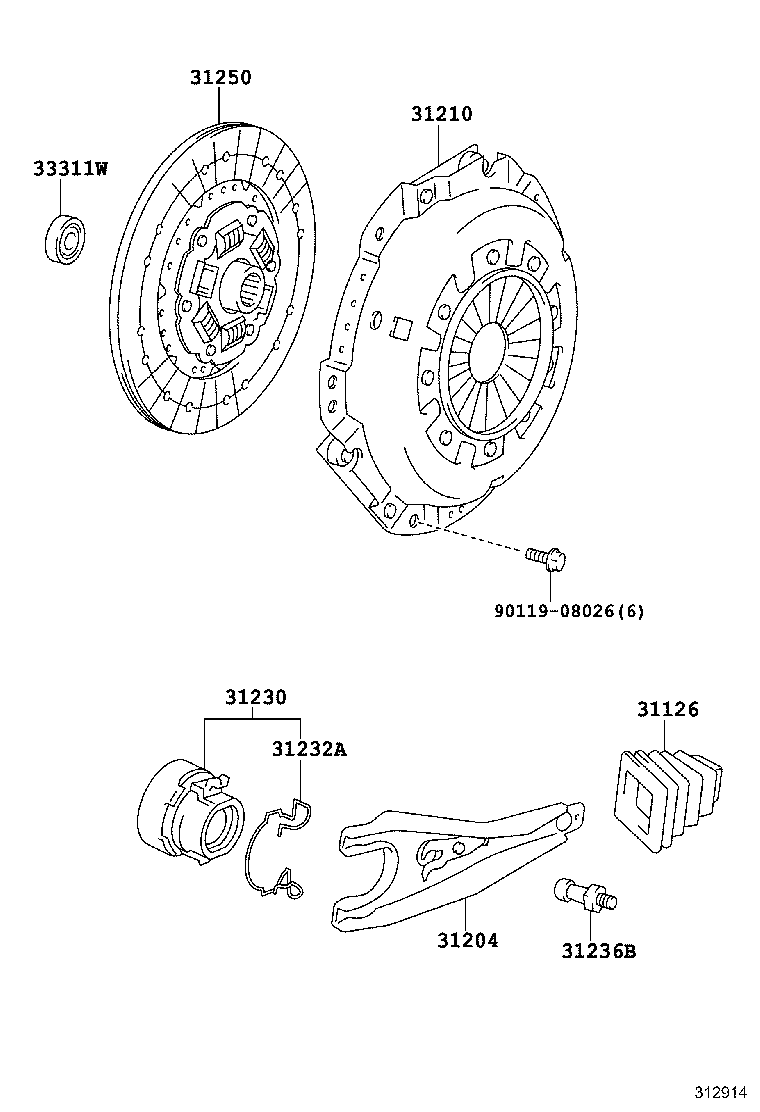

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20060 |
RJ7# |
1 | ||
| 31126-20060 |
RJ7#..HT |
1 | ||
| 31126-26020 |
LJ70,77 |
1 | ||
| 31126-20060 |
LJ70,77,RJ7# |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-35031 |
LJ70,77 |
1 | ||
| 31204-20071 |
RJ7# |
1 | ||
| 31204-20071 |
RJ7#..HT |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35110 |
LJ70,77,RJ7# |
1 | ||
| 31210-35110 |
RJ7# |
1 | ||
| 31210-35110 |
RJ7#..HT |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-35070 |
LJ70,77,RJ7# |
1 | ||
| 31230-35070 |
RJ7#..HT |
1 | ||
| 31230-35070 |
RJ7# |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35030 |
RJ7# TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 31232-35030 |
RJ7#..HT TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-30060 |
LJ72,79,RJ7# |
1 | ||
| 31236-35030 |
HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FZJ70,71,74,78,79,HZJ71,73,78,79,LJ70,77,PZJ7#..MTM |
1 | ||
| 31236-30060 |
LJ7#,RJ7#..HT |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-22290 |
RJ7# |
1 | ||
| 31250-22320 |
RJ7# |
1 | ||
| 31250-22320 |
RJ7#..HT |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
LJ7#,RJ7# |
1 | ||
| 90363-12002 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
