RJ77LV-KR (1990)

Toyota Land Cruiser

Production Apr 1990 - Apr 1996
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

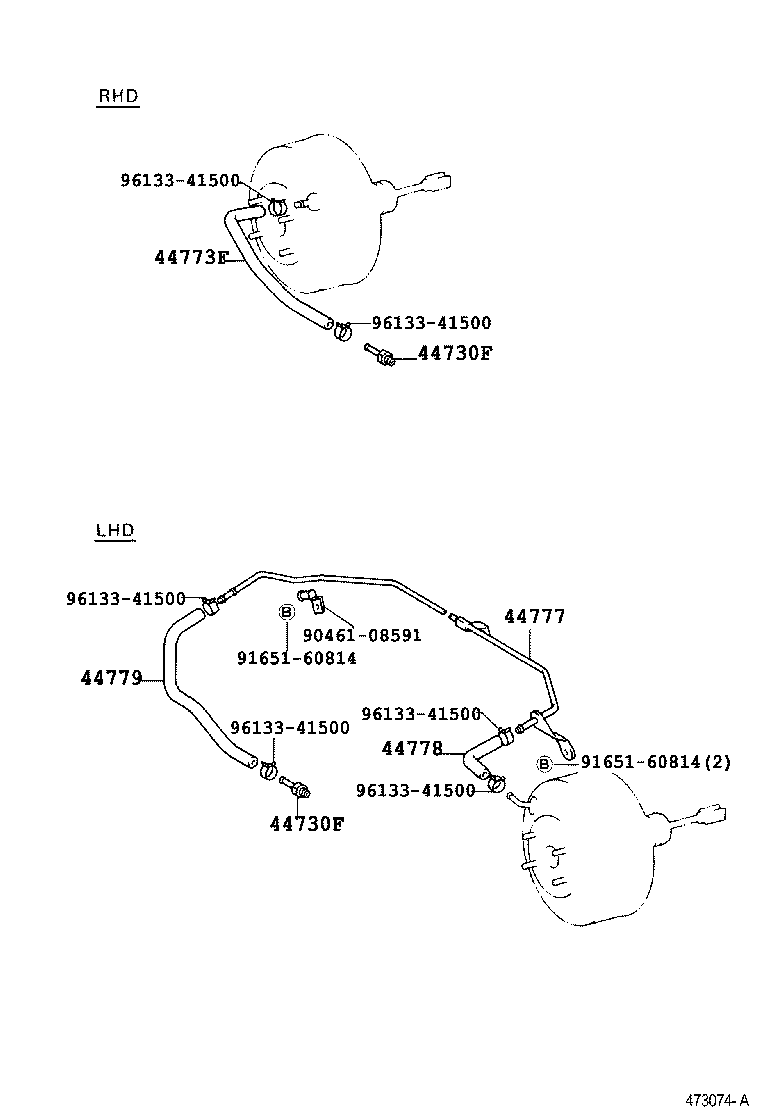

ILLUST NO. 2 OF 2(9001-9604)RJ7#

Click highlighted areas on diagram

diagram 44730F 44730F 44773F 44777 44778 44779 9046108591 9165160814 9165160814 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RJ7#;FZJ70,75..EFI

 1
90404-51319

RJ7#..HT

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RJ7#;FZJ70,75..EFI

 1
90404-51319

RJ7#..HT

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60070

RJ7#..LHD..GEN

 1
44777-60070

RJ7#..LHD..HT..GEN

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60090

RJ77..LHD

 1
44778-60090

RJ77..LHD

 1
44779 - HOSE, UNION TO CONNECTOR
44774-60010

RJ7#..LHD..GEN

 1
44774-60010

RJ7#..LHD..HT..GEN

 1
Common parts
90461-08591
91651-60814
96133-41500
