RJ70RV-KR (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

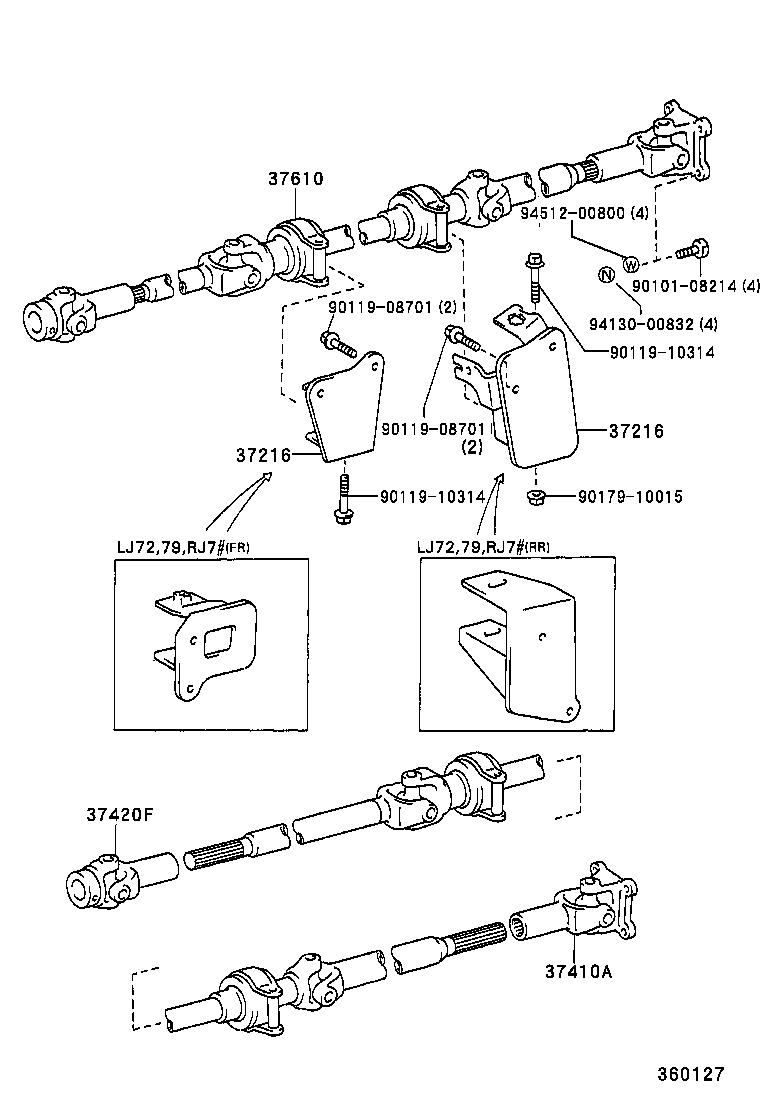

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37216 - BRACKET, PILLOW BLOCK | ||||
| 37216-60200 |
RJ70..GEN RR |
1 | ||
| 37216-60200 |
LJ72,79,RJ7#..GCC,GEN RR |
1 | ||
| 37216-60190 |
RJ70..GEN FR |
1 | ||
| 37216-60190 |
LJ72,79,RJ7#..GCC,GEN FR |
1 | ||
| 37216 - BRACKET, PILLOW BLOCK | ||||
| 37216-60200 |
RJ70..GEN RR |
1 | ||
| 37216-60200 |
LJ72,79,RJ7#..GCC,GEN RR |
1 | ||
| 37216-60190 |
RJ70..GEN FR |
1 | ||
| 37216-60190 |
LJ72,79,RJ7#..GCC,GEN FR |
1 | ||
| 37410A - JOINT ASSY, UNIVERSAL, W/YOKE (FOR WINCH) | ||||
| 37410-60090 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 37410-60090 |
FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN) |
1 | ||
| 37420F - JOINT ASSY, UNIVERSAL, W/FLANGE YOKE | ||||
| 37420-60050 |
FJ7#,HZJ75,PZJ7#,RJ70..MTM..(GCC,GEN) |
1 | ||
| 37420-60050 |
FJ7#,HZJ75,LJ72,79,PZJ7#,RJ7#..MTM..(GCC,GEN) |
1 | ||
| 37610 - SHAFT ASSY, DRIVE, FRONT | ||||
| 37610-60320 |
RJ70..GEN |
1 | ||
| 37610-60320 |
LJ72,79,RJ7#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90101-08214 | ||||
| 90119-08701 | ||||
| 90119-10314 | ||||
| 90179-10015 | ||||
| 94130-00832 | ||||
| 94512-00800 | ||||
