RJ70RV-KR (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )22R

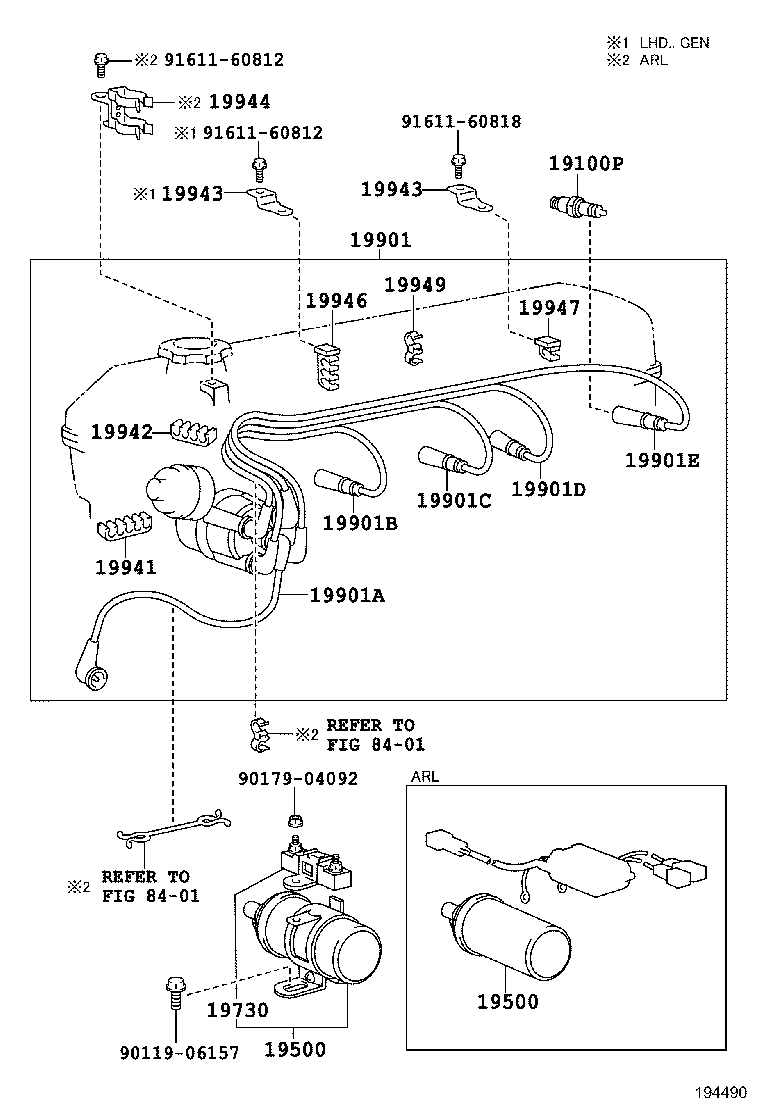

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01064 |
22R..RJ70 W16EXR-U |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02111 |
22R..RJ70..GEN |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02111 |
22R..RJ70..GEN |
1 | ||
| 19730 - RESISTOR, IGNITION COIL | ||||
| 90919-04033 |
22R..RJ70..GEN |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21364 |
22R..RJ70..GEN |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13146 |
22R..RJ70..GEN |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12230 |
22R..RJ70 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12231 |
22R..RJ70 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12232 |
22R..RJ70 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12233 |
22R..RJ70 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00214 |
22R..RJ70 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00061 |
22R..RJ70 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-35010 |
22R..RJ70..RHD |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-35010 |
22R..RJ70..RHD |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00303 |
22R..RJ70 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00059 |
22R..RJ70 |
1 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90464-00144 |
22R..RJ70 |
1 | ||
| Common parts | ||||
| 90119-06157 | ||||
| 90179-04092 | ||||
| 91611-60812 | ||||
| 91611-60818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
