RJ70LV-MN (1990)
Toyota Land Cruiser
(9001- )22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-35060 |
22R..RJ70 |
1 | ||
| 16261-35060 |
22R..RJ7# |
1 | ||
| 16261-35061 |
22R..RJ7# |
1 | ||
| 16261-35061 |
22R..RJ7# |
1 | ||
| 16261-35061 |
22R..RJ7# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R..RJ70 |
2 | ||
| 90467-20005 |
22R..RJ7# |
2 | ||
| 90467-20005 |
22R..RJ7# |
2 | ||
| 90467-20005 |
22R..RJ7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R..RJ70 |
2 | ||
| 90467-20005 |
22R..RJ7# |
2 | ||
| 90467-20005 |
22R..RJ7# |
2 | ||
| 90467-20005 |
22R..RJ7# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53040 |
22R..RJ7# |
1 | ||
| 90404-53070 |
22R..RJ7# |
1 | ||
| 90404-53040 |
22R..RJ70 |
1 | ||
| 90404-53070 |
22R..RJ7# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-35010 |
22R..RJ70 |
1 | ||
| 16268-35010 |
22R..RJ7# |
1 | ||
| 16268-35010 |
22R..RJ7# |
1 | ||
| 16268-35010 |
22R..RJ7# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-35050 |
22R..RJ7# |
1 | ||
| 16331-35050 |
22R..RJ70 |
1 | ||
| 16331-35051 |
22R..RJ7# |
1 | ||
| 16331-35051 |
22R..RJ7# |
1 | ||
| 16331-35051 |
22R..RJ7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03078 |
22R..RJ70 *WAX 88-100 |
1 | ||
| 90916-03078 |
22R..RJ7# *WAX 88-100 |
1 | ||
| 90916-03078 |
22R..RJ7# *WAX 88-100 |
1 | ||
| 90916-03078 |
22R..RJ7# *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
22R..RJ70 |
1 | ||
| 16341-35010 |
22R..RJ7# |
1 | ||
| 16341-35010 |
22R..RJ7# |
1 | ||
| 16341-35010 |
22R..RJ7# |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
22R..RJ70 |
1 | ||
| 16361-38010 |
22R..RJ7# |
1 | ||
| 16361-38010 |
22R..RJ7# |
1 | ||
| 16361-38010 |
22R..RJ7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-35010 |
22R..RJ70 |
1 | ||
| 16381-35010 |
22R..RJ7# |
1 | ||
| 16381-35010 |
22R..RJ7# |
1 | ||
| 16381-35010 |
22R..RJ7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-35550 |
22R..RJ70 |
1 | ||
| 16400-35550 |
22R..RJ7# |
1 | ||
| 16400-35550 |
22R..RJ7# |
1 | ||
| 16400-35550 |
22R..RJ7# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
22R..RJ70 |
1 | ||
| 16417-24200 |
22R..RJ7# |
1 | ||
| 16417-24200 |
22R..RJ7# |
1 | ||
| 16417-24200 |
22R..RJ7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
22R..RJ70 |
1 | ||
| 16418-24200 |
22R..RJ7# |
1 | ||
| 16418-24200 |
22R..RJ7# |
1 | ||
| 16418-24200 |
22R..RJ7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
22R..RJ70 |
1 | ||
| 16401-71010 |
22R..RJ7# |
1 | ||
| 16401-71010 |
22R..RJ7# |
1 | ||
| 16401-71010 |
22R..RJ7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-35090 |
22R..RJ70 |
1 | ||
| 16470-35090 |
22R..RJ7# |
1 | ||
| 16470-35090 |
22R..RJ7# |
1 | ||
| 16470-35090 |
22R..RJ7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12129 |
22R..RJ70 L=480,NO.2 |
1 | ||
| 90445-12078 |
22R..RJ70 *H,L=180,NO.1 |
1 | ||
| 90445-12078 |
22R..RJ7# *H,L=180,NO.1 |
1 | ||
| 90445-12129 |
22R..RJ7# L=480,NO.2 |
1 | ||
| 90445-12078 |
22R..RJ7# *H,L=180,NO.1 |
1 | ||
| 90445-12129 |
22R..RJ7# L=480,NO.2 |
1 | ||
| 90445-12129 |
22R..RJ7# L=480,NO.2 |
1 | ||
| 90445-12078 |
22R..RJ7# *H,L=180,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12129 |
22R..RJ70 L=480,NO.2 |
1 | ||
| 90445-12078 |
22R..RJ70 *H,L=180,NO.1 |
1 | ||
| 90445-12078 |
22R..RJ7# *H,L=180,NO.1 |
1 | ||
| 90445-12129 |
22R..RJ7# L=480,NO.2 |
1 | ||
| 90445-12078 |
22R..RJ7# *H,L=180,NO.1 |
1 | ||
| 90445-12129 |
22R..RJ7# L=480,NO.2 |
1 | ||
| 90445-12129 |
22R..RJ7# L=480,NO.2 |
1 | ||
| 90445-12078 |
22R..RJ7# *H,L=180,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R..RJ7# |
2 | ||
| 90467-11085 |
22R..RJ70 |
2 | ||
| 90467-11085 |
22R..RJ7# |
2 | ||
| 90467-11085 |
22R..RJ7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R..RJ7# |
2 | ||
| 90467-11085 |
22R..RJ70 |
2 | ||
| 90467-11085 |
22R..RJ7# |
2 | ||
| 90467-11085 |
22R..RJ7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-35050 |
22R..RJ7# |
1 | ||
| 16405-35050 |
22R..RJ7# |
1 | ||
| 16405-35050 |
22R..RJ7# |
1 | ||
| 16405-35050 |
22R..RJ70 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-70100 |
22R..RJ70 |
1 | ||
| 85338-70100 |
22R..RJ7# |
1 | ||
| 85338-70100 |
22R..RJ7# |
1 | ||
| 85338-70100 |
22R..RJ7# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-35100 |
22R..RJ70 |
1 | ||
| 16571-35100 |
22R..RJ7# |
1 | ||
| 16571-35100 |
22R..RJ7# |
1 | ||
| 16571-35100 |
22R..RJ7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
22R..RJ7# |
2 | ||
| 90467-37002 |
22R..RJ70 |
2 | ||
| 90467-37003 |
22R..RJ7# |
2 | ||
| 90467-37003 |
22R..RJ7# |
2 | ||
| 90467-37003 |
22R..RJ7# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
22R..RJ7# |
2 | ||
| 90467-37002 |
22R..RJ70 |
2 | ||
| 90467-37003 |
22R..RJ7# |
2 | ||
| 90467-37003 |
22R..RJ7# |
2 | ||
| 90467-37003 |
22R..RJ7# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-35130 |
22R..RJ70 |
1 | ||
| 16572-35130 |
22R..RJ7# |
1 | ||
| 16572-35130 |
22R..RJ7# |
1 | ||
| 16572-35130 |
22R..RJ7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
22R..RJ70 |
2 | ||
| 96111-10460 |
22R..RJ7# |
2 | ||
| 96111-10460 |
22R..RJ7# |
2 | ||
| 96111-10460 |
22R..RJ7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
22R..RJ70 |
2 | ||
| 96111-10460 |
22R..RJ7# |
2 | ||
| 96111-10460 |
22R..RJ7# |
2 | ||
| 96111-10460 |
22R..RJ7# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-38020 |
22R..RJ7# |
1 | ||
| 16573-38020 |
22R..RJ70 |
1 | ||
| 16573-38020 |
22R..RJ7# |
1 | ||
| 16573-38020 |
22R..RJ7# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10490 |
22R..RJ70 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
22R..RJ70 PIPE SIDE |
1 | ||
| 96111-10490 |
22R..RJ7# WATER PUMP SIDE |
1 | ||
| 96111-10490 |
22R..RJ7# WATER PUMP SIDE |
1 | ||
| 96111-10490 |
22R..RJ7# WATER PUMP SIDE |
1 | ||
| 96111-10460 |
22R..RJ7# PIPE SIDE |
1 | ||
| 96111-10460 |
22R..RJ7# PIPE SIDE |
1 | ||
| 96111-10460 |
22R..RJ7# PIPE SIDE |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10490 |
22R..RJ70 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
22R..RJ70 PIPE SIDE |
1 | ||
| 96111-10490 |
22R..RJ7# WATER PUMP SIDE |
1 | ||
| 96111-10490 |
22R..RJ7# WATER PUMP SIDE |
1 | ||
| 96111-10490 |
22R..RJ7# WATER PUMP SIDE |
1 | ||
| 96111-10460 |
22R..RJ7# PIPE SIDE |
1 | ||
| 96111-10460 |
22R..RJ7# PIPE SIDE |
1 | ||
| 96111-10460 |
22R..RJ7# PIPE SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-35060 |
22R..RJ7# |
1 | ||
| 16577-35060 |
22R..RJ70 |
1 | ||
| 16577-35060 |
22R..RJ7# |
1 | ||
| 16577-35060 |
22R..RJ7# |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54110 |
22R..RJ7# |
1 | ||
| 16611-54110 |
22R..RJ70 |
1 | ||
| 16611-54110 |
22R..RJ7# |
1 | ||
| 16611-54110 |
22R..RJ7# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-35080 |
22R..RJ70 |
1 | ||
| 16711-35080 |
22R..RJ7# |
1 | ||
| 16711-35080 |
22R..RJ7# |
1 | ||
| 16711-35080 |
22R..RJ7# |
1 | ||
| Common parts | ||||
| 90119-08539 | ||||
| 90119-08801 | ||||
| 90179-06070 | ||||
| 90179-08195 | ||||
| 90179-08204 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91611-61050 | ||||
| 91612-61050 | ||||
| 91651-61025 | ||||

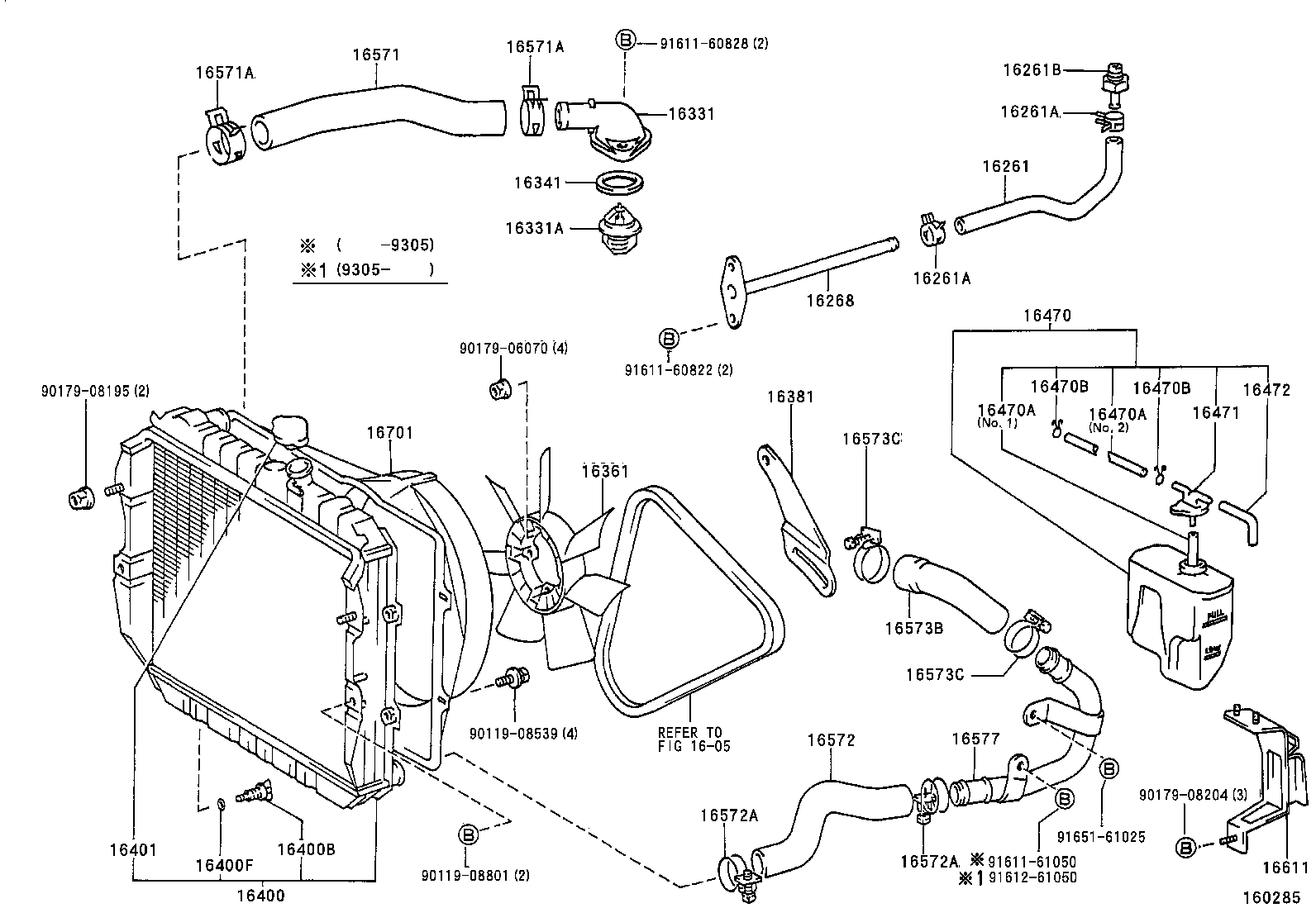

| Linked diagrams | ||||
| 1605 | ||||
