RJ70L-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1994
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9604)LJ72,79,RJ7#

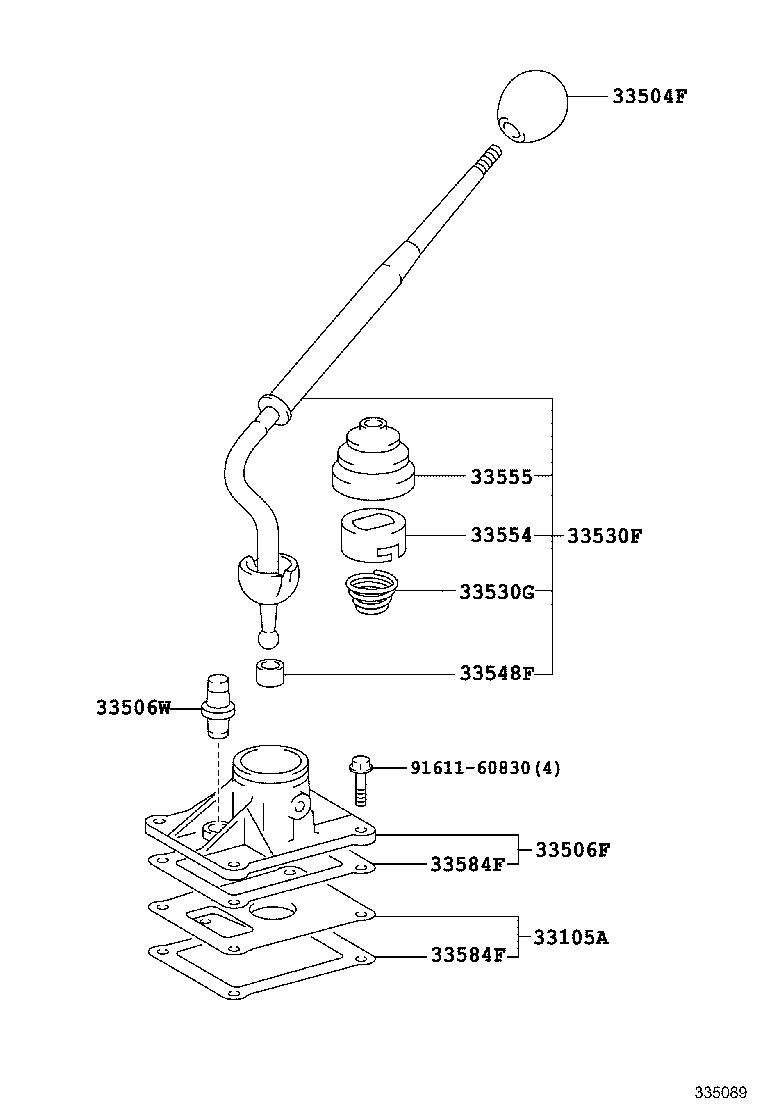

Click highlighted areas on diagram

diagram 33105A 33504F 33506F 33506W 33530F 33530G 33548F 33554 33555 33584F 33584F 9161160830
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33105-35040

RJ70..SOT

 1
33105-60010

LJ7#,PZJ7#,RJ7#

 1
33105-60010

KZJ7#,LJ7#,PZJ7#,RJ7#

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2210113

LJ72,79,PZJ7#,RJ7#..4F

BLUISH GRAY,TRIM1#

 1
33504-2210146

LJ72,79,PZJ7#,RJ7#..4F

SABLE,TRIM4#

 1
33504-2210146

PZJ7#..4F;RJ70..SOT

SABLE,TRIM4#

 1
33504-2210113

PZJ7#..4F;RJ70..SOT

BLUISH GRAY,TRIM1#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-60020

RJ70..SOT

 1
33506-60020

LJ72,79,RJ7#

 1
33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER)
90930-03075

HZJ71,78,79,LJ72,79,RJ7#

 1
90930-03075

PZJ7#..4F;RJ70..SOT

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60121

LJ7#,RJ7#..LHD

 1
33530-60121

RJ70..SOT

 1
33530G - SPRING, CONICAL (FOR SHIFT LEVER)
90502-26005

LJ7#,PZJ7#,RJ7#

 1
90502-26005

PZJ70,73;PZJ75..4F;RJ70..SOT

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

LJ7#,PZJ7#,RJ7#

 1
33548-35010

LJ7#,PZJ7#,RJ7#

 1
33548-31010

KZJ7#,LJ7#,PZJ7#,RJ7#

 1
33548-31010

PZJ70,73;PZJ75..4F;RJ70..SOT

 1
33554 - CAP, SHIFT LEVER
33554-30012

PZJ70,73;PZJ75..4F;RJ70..SOT

 1
33554-30012

LJ7#,PZJ7#,RJ7#

 1
33555 - BOOT, SHIFT LEVER
33555-60030

LJ7#,PZJ7#,RJ7#

 1
33555-60030

PZJ70,73;PZJ75..4F;RJ70..SOT

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-60010

LJ7#,PZJ7#,RJ7#

 2
33584-60010

LJ70,PZJ7#,RJ70

 2
33584-60010

KZJ7#,LJ7#,PZJ7#,RJ7#

 2
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-60010

LJ7#,PZJ7#,RJ7#

 2
33584-60010

LJ70,PZJ7#,RJ70

 2
33584-60010

KZJ7#,LJ7#,PZJ7#,RJ7#

 2
Common parts
91611-60830
