PZJ70RV-KR (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1994
Engine
1PZ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9501)1PZ

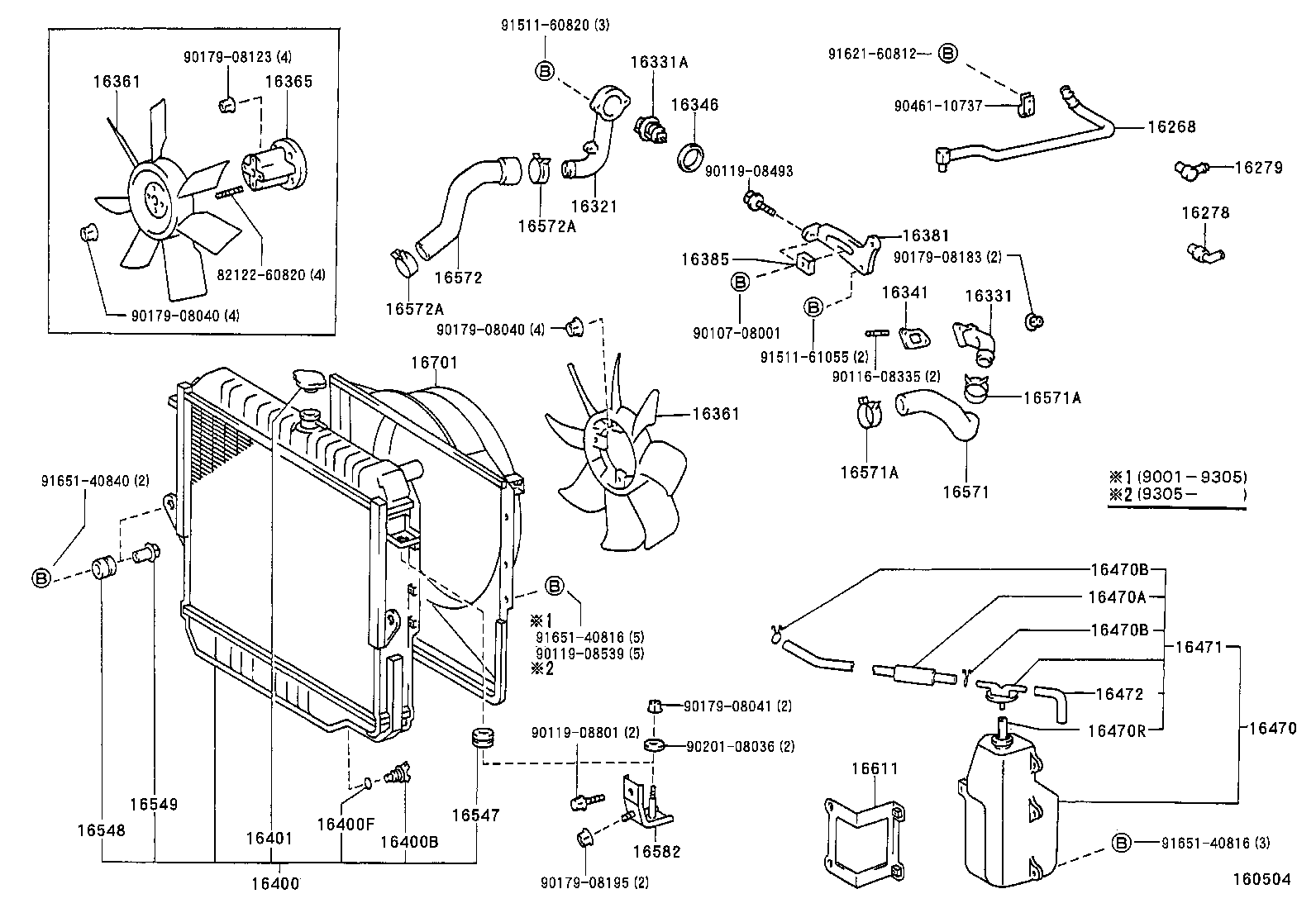

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1PZ..PZJ7# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1PZ..PZJ7# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-17010 |
1PZ..PZJ70,75..HT..GEN |
1 | ||
| 16279-17010 |
1PZ..PZJ70,75..HT |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1PZ..PZJ7# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17010 |
1PZ..PZJ7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1PZ..PZJ7# *WAX 76-90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1PZ..PZJ7# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1PZ..PZJ7# |
1 | ||
| 16361 - FAN | ||||
| 16361-68040 |
1PZ..PZJ7#..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-68040 |
1PZ..PZJ7#..GEN |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-18010 |
1PZ..PZJ7#..GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17010 |
1PZ..PZJ7# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1PZ..PZJ7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17070 |
1PZ..PZJ7# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
1PZ..PZJ7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1PZ..PZJ7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1PZ..PZJ7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17010 |
1PZ..PZJ7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1PZ..PZJ7# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1PZ..PZJ7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1PZ..PZJ7# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1PZ..PZJ7# *H,L=280 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17010 |
1PZ..PZJ7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
1PZ..PZJ7# |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-68070 |
1PZ..PZJ7# |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-68070 |
1PZ..PZJ7# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-68070 |
1PZ..PZJ7# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17030 |
1PZ..PZJ7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1PZ..PZJ7# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1PZ..PZJ7# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-17030 |
1PZ..PZJ7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
1PZ..PZJ7# RADIATOR SIDE |
1 | ||
| 96111-10530 |
1PZ..PZJ7# ENGINE SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
1PZ..PZJ7# RADIATOR SIDE |
1 | ||
| 96111-10530 |
1PZ..PZJ7# ENGINE SIDE |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-68010 |
1PZ..PZJ7# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-17010 |
1PZ..PZJ7# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17030 |
1PZ..PZJ7# |
1 | ||
| Common parts | ||||
| 82122-60820 | ||||
| 90107-08001 | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90119-08801 | ||||
| 90179-08040 | ||||
| 90179-08041 | ||||
| 90179-08123 | ||||
| 90179-08183 | ||||
| 90179-08195 | ||||
| 90201-08036 | ||||
| 90461-10737 | ||||
| 91511-60820 | ||||
| 91511-61055 | ||||
| 91621-60812 | ||||
| 91651-40816 | ||||
| 91651-40840 | ||||
