PZJ70R-KR (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)1PZ ; (9001-9908)1HZ ; (9908-0701)1H#..HDJ7#,HZJ71,78,79

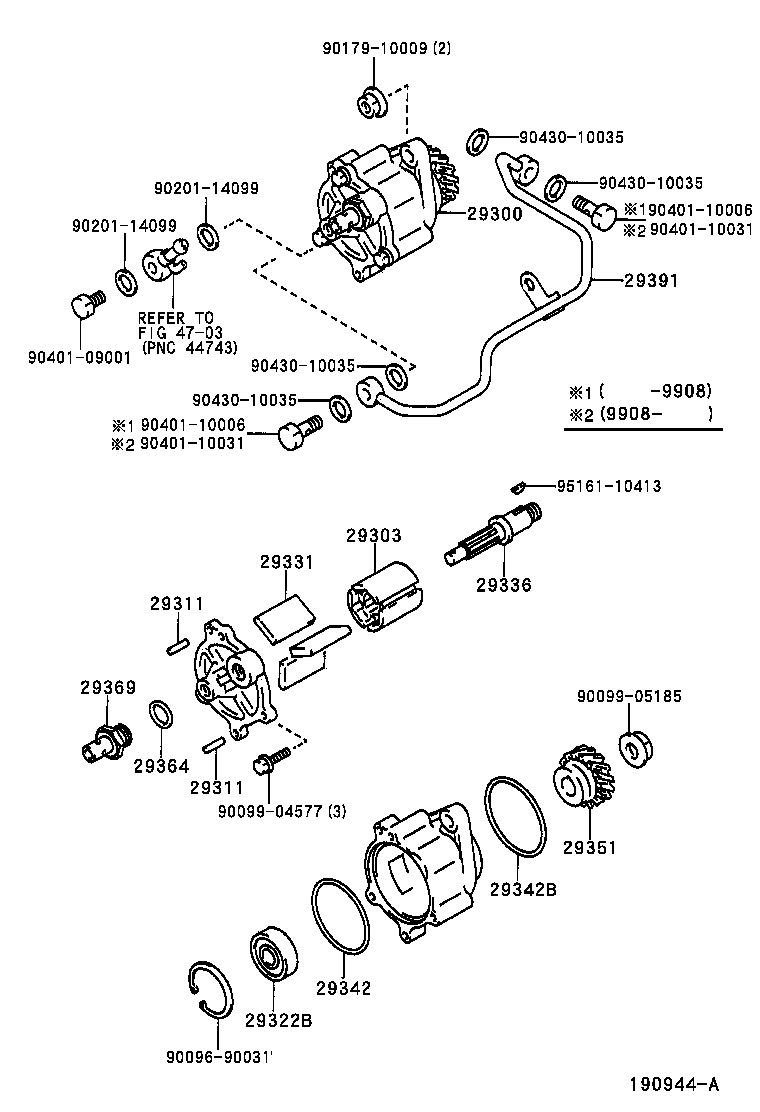

Click highlighted areas on diagram

diagram 29300 29303 29311 29311 29322B 29331 29336 29342 29342B 29351 29364 29369 29391 4703 9009690031 9009904577 9009905185 9017910009 9020114099 9020114099 9040109001 9040110006 9040110006 9040110031 9040110031 9043010035 9043010035 9043010035 9043010035 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-17010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
29300-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-67020

1HZ,1PZ..HZJ7#,PZJ7#

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 2
29311-76010

1HZ,1PZ..HZJ7#,PZJ7#

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 2
29311-76010

1HZ,1PZ..HZJ7#,PZJ7#

 2
29322B - BEARING, VACUUM PUMP
90099-10185

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
90099-10185

1HZ,1PZ..HZJ7#,PZJ7#

 1
29331 - BLADE, VACUUM PUMP, A
29331-58050

1PZ..PZJ70,73;1PZ..PZJ75..4F

 3
29331-58050

1HZ,1PZ..HZJ7#,PZJ7#

 3
29336 - SHAFT, VACUUM PUMP
29336-58050

1HZ,1PZ..HZJ7#,PZJ7#

 1
29336-58050

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
29342 - PACKING, VACUUM PUMP
29342-58010

1HZ,1PZ..HZJ7#,PZJ7#

 1
29342-58010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
29342B - RING, O
29342-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
29342-17010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
29351 - GEAR, VACUUM PUMP
29351-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
29351-17010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1HZ,2H,2LT,3L,1PZ..HJ75,HZJ7#,LJ7#,PZJ7#

 1
29364-66010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1HZ,2LT,3L,1PZ..HZJ7#,LJ7#,PZJ7#

 1
29369-64030

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
29391 - TUBE, VACUUM PUMP
29391-17010

1HZ,1PZ..HZJ7#,PZJ7#

 1
29391-17010

1PZ..PZJ70,73;1PZ..PZJ75..4F

 1
Common parts
90096-90031
90099-04577
90099-05185
90179-10009
90201-14099
90401-09001
90401-10006
90401-10031
90430-10035
95161-10413
Linked diagrams
4703
