Toyota Land cruiser LJ79 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
US
LAND CRUISER
LJ79RV-MN (1990)
4804 - REAR SPRING & SHOCK ABSORBER

LJ79RV-MN (1990)

Toyota Land Cruiser

Production Apr 1990 - Apr 1996

Engine 3L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

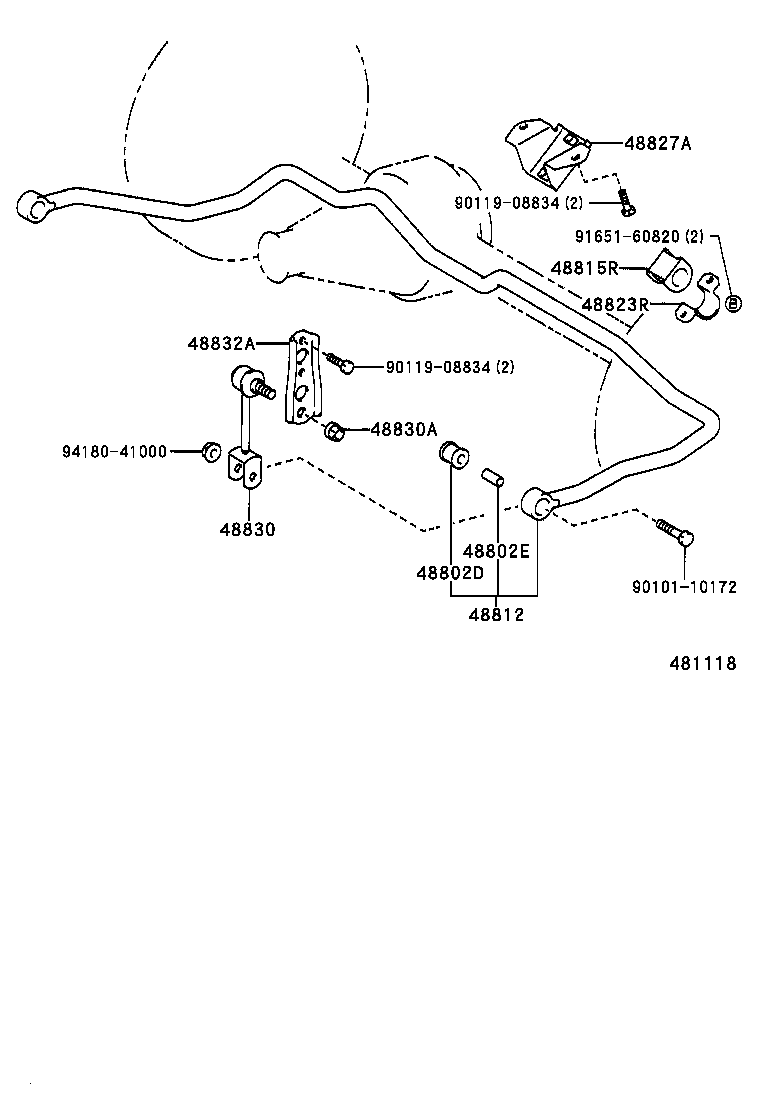

ILLUST NO. 2 OF 2(9004-9604)KZJ77,LJ77,79,RJ77

Click highlighted areas on diagram

Part #	Description	Period	Qty
48802D - BUSH, STABILIZER LINK
90385-11021	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
90385-11021	LJ77,79,RJ77	04/1990 - 05/1993	2
48802E - SPACER(FOR REAR STABILIZER BAR)
90560-10275	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
90560-10275	LJ77,79,RJ77	04/1990 - 05/1993	2
48812 - BAR, STABILIZER, REAR
48805-60040	KZJ77,LJ79,RJ77	05/1993 - 04/1996	1
48805-60040	LJ77,79,RJ77	04/1990 - 05/1993	1
48815R - BUSH, STABILIZER(FOR REAR)
48815-26040	LJ77,79,RJ77	04/1990 - 05/1993	2
48815-26040	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
48823R - COVER, STABILIZER LINK(FOR REAR)
48823-60030	LJ77,79,RJ77	04/1990 - 05/1993	2
48823-60030	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
48827A - BRACKET, REAR STABILIZER BAR, NO.2
48827-60010	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
48827-60010	LJ77,79,RJ77	04/1990 - 05/1993	2
48830 - LINK ASSY, REAR STABILIZER
48830-60010	LJ77,79,RJ77	04/1990 - 05/1993	2
48830-60010	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-12052	LJ77,79,RJ77	04/1990 - 05/1993	2
90179-12052	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-60020	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
48832-60020	LJ77,79,RJ77	04/1990 - 05/1993	2
Common parts
90101-10172
90119-08834
91651-60820
94180-41000

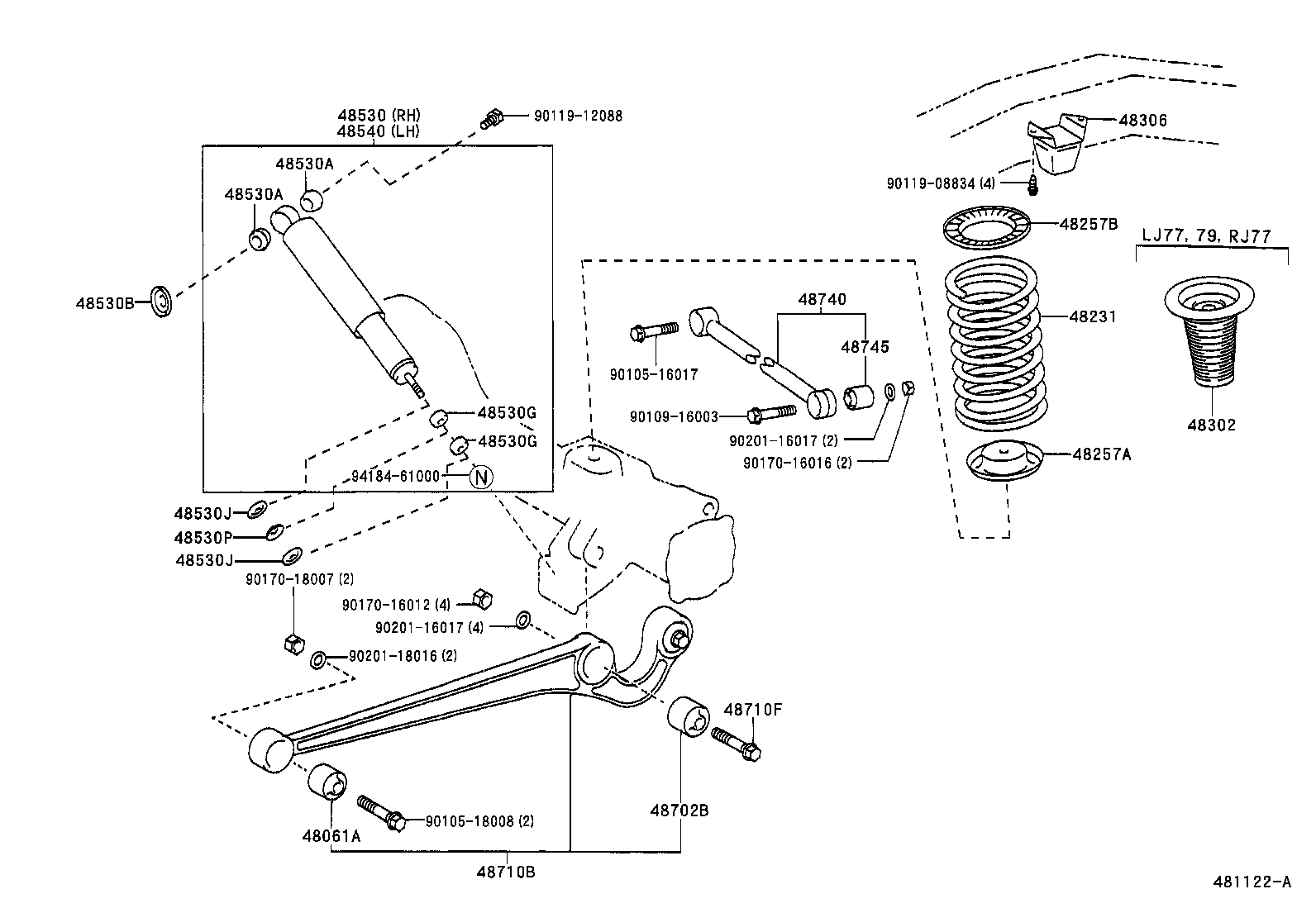

ILLUST NO. 1 OF 2(9001-9604)KZJ7#,LJ7#,RJ7#

Click highlighted areas on diagram

Part #	Description	Period	Qty
48061A - BUSH SUB-ASSY, TRAILING ARM, NO.2
48061-60030	LJ7#,RJ7#	04/1990 - 05/1993	2
48061-60040	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	2
48061-60040	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	2
48231 - SPRING, COIL, REAR
48231-60220	KZJ77,LJ79,RJ77..RHD RH	05/1993 - 04/1996	1
48231-60170	LJ77,79,RJ77..RHD LH	04/1990 - 05/1993	1
48231-60220	LJ77,79,RJ77..RHD RH	04/1990 - 05/1993	1
48231-60170	KZJ77,LJ79,RJ77..RHD LH	05/1993 - 04/1996	1
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-60010	LJ77,79,RJ77	06/1991 - 05/1993	2
48258-60010	KZJ77,LJ79,RJ77	05/1993 - 12/1994	2
48258-60010	KZJ7#,LJ7#,RJ7#	12/1994 - 04/1996	2
48258-60010	LJ7#,RJ7#	04/1990 - 06/1991	2
48302 - SPRING SUB-ASSY, HOLLOW
48302-60020	LJ77,79,RJ77	04/1990 - 05/1993	2
48302-60020	KZJ77,LJ79,RJ77	05/1993 - 04/1996	2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-60062	LJ7#,RJ7#	01/1990 - 05/1993	2
48306-60062	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-69335	LJ7#,RJ7# MARK 48531-60290	01/1990 - 05/1993	1
48531-69455	KZJ7#,LJ7#,RJ7#..HT MARK 48531-60281	05/1993 - 04/1996	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	4
90385-19003	LJ7#,RJ7#	01/1990 - 05/1993	4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	4
90385-19003	LJ7#,RJ7#	01/1990 - 05/1993	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011	LJ7#,RJ7#	01/1990 - 05/1993	2
90948-03011	KZJ7#,LJ7#,RJ7#..HT	05/1993 - 04/1996	2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01031	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	4
90948-01031	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	4
90948-01031	LJ7#,RJ7#	04/1990 - 05/1993	4
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01031	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	4
90948-01031	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	4
90948-01031	LJ7#,RJ7#	04/1990 - 05/1993	4
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02114	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	4
90948-02114	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	4
90948-02114	LJ7#,RJ7#	04/1990 - 05/1993	4
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02114	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	4
90948-02114	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	4
90948-02114	LJ7#,RJ7#	04/1990 - 05/1993	4
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02017	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	2
90948-02017	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	2
90948-02017	LJ7#,RJ7#	04/1990 - 05/1993	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-69335	LJ7#,RJ7# MARK 48531-60290	01/1990 - 05/1993	1
48531-69455	KZJ7#,LJ7#,RJ7#..HT MARK 48531-60281	05/1993 - 04/1996	1
48702B - BUSH SUB-ASSY, TRAILING ARM, NO.1
48702-60060	LJ7#,RJ7#	04/1990 - 05/1993	4
48702-60060	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	4
48702-60060	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	4
48710B - ARM ASSY, TRAILING, REAR
48710-60013	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	2
48710-60012	LJ7#,RJ7#	04/1990 - 05/1993	2
48710-60013	KZJ7#,LJ7#,RJ7#	01/1994 - 02/1994	2
48710-60014	KZJ7#,LJ7#,RJ7#	02/1994 - 04/1996	2
48710F - BOLT(FOR REAR TRAILING ARM)
90105-16024	KZJ7#,LJ7#,RJ7#	01/1994 - 12/1994	4
90105-16024	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	4
90105-16024	LJ7#,RJ7#	04/1990 - 05/1993	4
90119-16003	KZJ7#,LJ7#,RJ7#	12/1994 - 04/1996	4
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-60012	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	1
48740-60012	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	1
48740-60012	LJ7#,RJ7#	04/1990 - 05/1993	1
48745 - BUSH, LATERAL CONTROL ROD
48706-60050	KZJ7#,LJ7#,RJ7#	01/1994 - 04/1996	2
48706-60050	LJ7#,RJ7#	04/1990 - 05/1993	2
48706-60050	KZJ7#,LJ7#,RJ7#	05/1993 - 01/1994	2
Common parts
90105-16017
90105-18008
90109-16003
90119-08834
90119-12088
90170-16012
90170-16016
90170-18007
90201-16017
90201-18016
94184-61000

LJ79RV-MN (1990)

ILLUST NO. 2 OF 2(9004-9604)KZJ77,LJ77,79,RJ77

ILLUST NO. 1 OF 2(9001-9604)KZJ7#,LJ7#,RJ7#
