LJ79RV-KR (1990)

Toyota Land Cruiser

Production Apr 1990 - Apr 1996
Engine 3L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9004-9604)3L

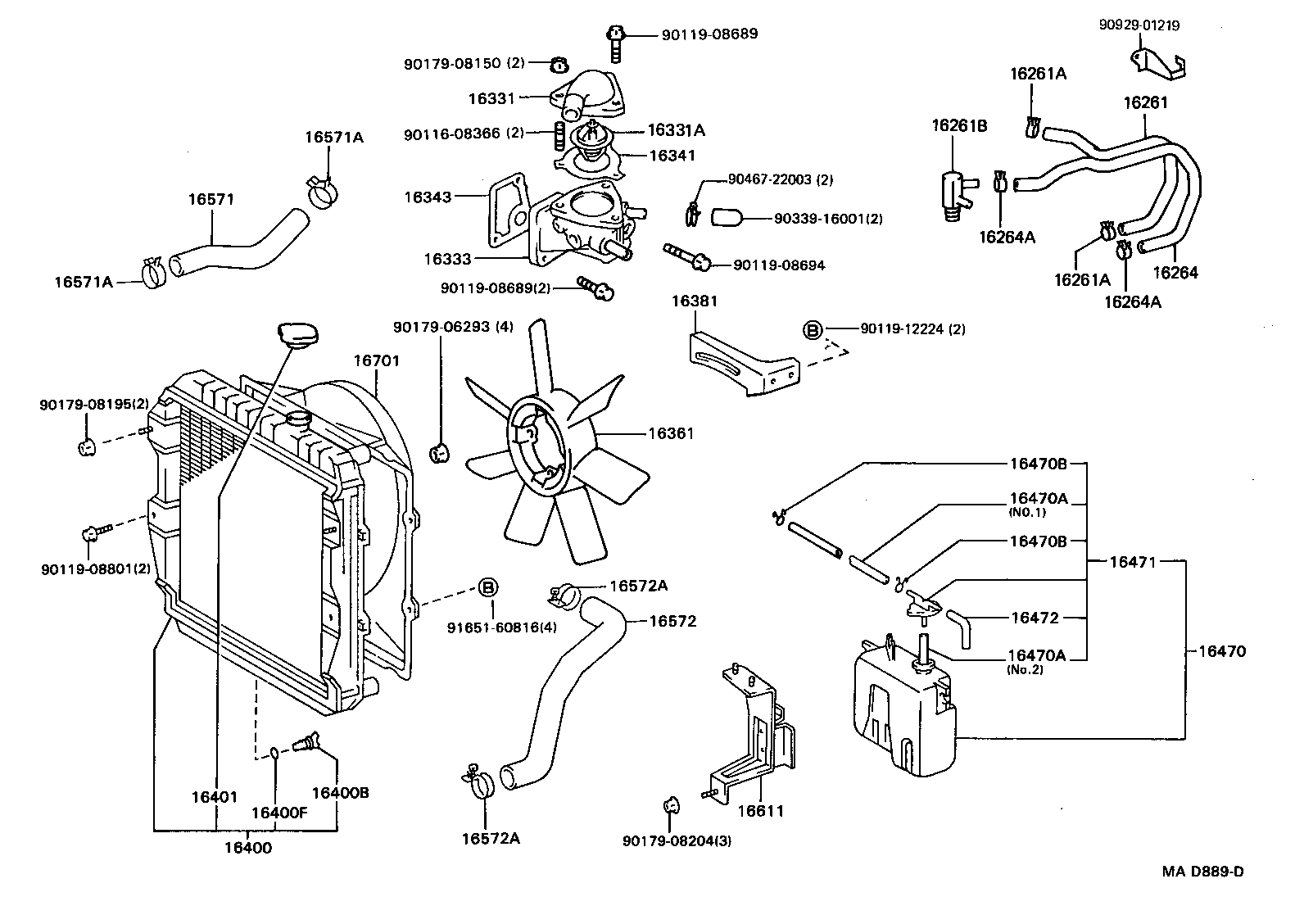

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16264 16264A 16264A 16331 16331A 16333 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16611 16701 9011608366 9011908689 9011908689 9011908694 9011908801 9011912224 9017906293 9017908150 9017908195 9017908204 9033916001 9046722003 9092901219 9165160816
Part # Description Qty Price
16331 - OUTLET, WATER
16331-54090

3L..LJ72,79

 1
16331-54090

3L..LJ7#

 1
16331A - THERMOSTAT
90916-03099

2LT,3L..LJ7#

*WAX 88-100

 1
90916-03072

2LT,3L..LJ7#

*WAX 88-100

 1
90916-03099

3L..LJ7#

*WAX 88-100

 1
16340-54010

3L..LJ7#

*WAX 88-100

 1
16333 - HOUSING, WATER OUTLET
16333-54121

3L..LJ72,79

 1
16333-54122

3L..LJ72,79

 1
16333-54122

3L..LJ7#

 1
16333-54123

3L..LJ7#

 1
16341 - GASKET, WATER OUTLET
16341-54030

3L..LJ72,79

 1
16341-54040

3L..LJ72,79

 1
16341-54040

3L..LJ7#

 1
16341-35010

3L..LJ7#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-54040

2LT,3L..LJ7#

 1
16343-54030

2LT,3L..LJ7#

 1
16343-54040

3L..LJ7#

 1
16361 - FAN
16361-54040

3L..LJ72,79

 1
16361-54040

3L..LJ7#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-54120

2LT,3L..LJ7#

 1
16381-54120

3L..LJ7#

 1
16400 - RADIATOR ASSY
16400-54860

3L..LJ72,79

 1
16400-54861

3L..LJ7#

 1
16400-54860

3L..LJ7#

 1
16400-54862

3L..LJ7#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

2LT,3L..LJ7#

 1
16417-24200

3L..LJ7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

2LT,3L..LJ7#

 1
16418-24200

3L..LJ7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

2LT,3L..LJ7#

 1
16401-71010

3L..LJ7#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54230

3L..LJ72,79

 1
16470-54230

3L..LJ7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2LT,3L..LJ7#

*H,L=180,NO.2

 1
90445-12078

3L..LJ72,79

*H,L=490,NO.1

 1
90445-12078

3L..LJ7#

*H,L=500,NO.1

 1
90445-12078

3L..LJ7#

*H,L=180,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2LT,3L..LJ7#

*H,L=180,NO.2

 1
90445-12078

3L..LJ72,79

*H,L=490,NO.1

 1
90445-12078

3L..LJ7#

*H,L=500,NO.1

 1
90445-12078

3L..LJ7#

*H,L=180,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2LT,3L..LJ7#

 2
90467-11085

3L..LJ7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2LT,3L..LJ7#

 2
90467-11085

3L..LJ7#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54220

3L..LJ7#

 1
16405-54220

3L..LJ72,79

 1
16472 - HOSE, BREATHER
85338-74040

3L..LJ7#

 1
85338-74040

2LT,3L..LJ7#

 1
16571 - HOSE, RADIATOR, INLET
16571-54340

3L..LJ72,79

 1
16571-54340

3L..LJ7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2LT,3L..LJ7#

 2
90467-37003

3L..LJ7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2LT,3L..LJ7#

 2
90467-37003

3L..LJ7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-54360

3L..LJ7#

 1
16572-54360

3L..LJ72,79

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10500

2LT,3L..LJ7#

ENGINE SIDE

 1
96111-10440

2LT,3L..LJ7#

RADIATOR SIDE

 1
96111-10440

3L..LJ7#

RADIATOR SIDE

 1
96111-10500

3L..LJ7#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10500

2LT,3L..LJ7#

ENGINE SIDE

 1
96111-10440

2LT,3L..LJ7#

RADIATOR SIDE

 1
96111-10440

3L..LJ7#

RADIATOR SIDE

 1
96111-10500

3L..LJ7#

ENGINE SIDE

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-54110

2LT,3L..LJ7#

 1
16611-54110

3L..LJ7#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-54390

3L..LJ72,79

 1
16711-54391

3L..LJ72,79

 1
16711-54391

3L..LJ7#

 1
Common parts
90116-08366
90119-08689
90119-08694
90119-08801
90119-12224
90179-06293
90179-08150
90179-08195
90179-08204
90339-16001
90467-22003
90929-01219
91651-60816
