Toyota Land cruiser LJ79 OIL FILTER

LJ79LV-MN (1990)

Toyota Land Cruiser

Production Apr 1990 - Apr 1996

Engine 3L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9004-9604)3L

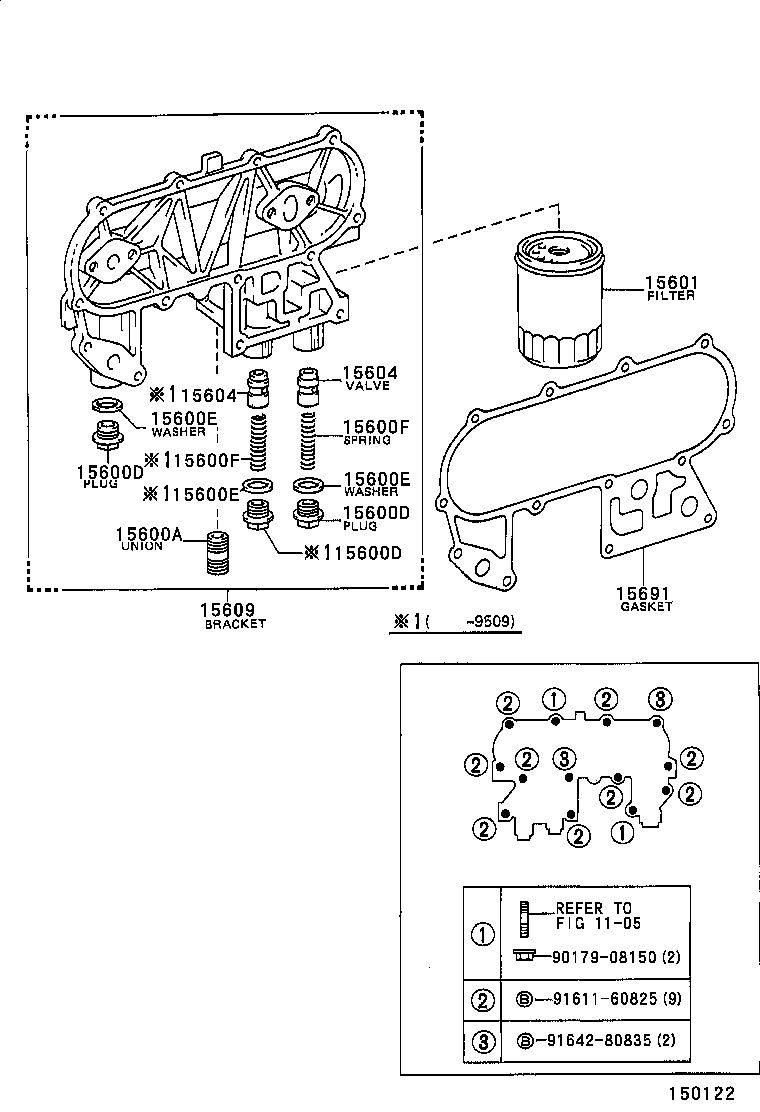

Click highlighted areas on diagram

Part #	Description	Period	Qty
15600A - UNION(FOR OIL FILTER)
90404-19011	3L..LJ72,79	04/1990 - 05/1993	1
90404-19011	3L..LJ7#	05/1993 - 04/1996	1
15600D - PLUG(FOR OIL FILTER)
90341-18015	3L..LJ72,79	04/1990 - 05/1993	3
90341-18015	3L..LJ7#	05/1993 - 09/1995	3
90341-18015	3L..LJ7#	09/1995 - 04/1996	2
15600D - PLUG(FOR OIL FILTER)
90341-18015	3L..LJ72,79	04/1990 - 05/1993	3
90341-18015	3L..LJ7#	05/1993 - 09/1995	3
90341-18015	3L..LJ7#	09/1995 - 04/1996	2
15600D - PLUG(FOR OIL FILTER)
90341-18015	3L..LJ72,79	04/1990 - 05/1993	3
90341-18015	3L..LJ7#	05/1993 - 09/1995	3
90341-18015	3L..LJ7#	09/1995 - 04/1996	2
15600E - WASHER(FOR OIL FILTER)
90430-18029	3L..LJ7#	09/1995 - 04/1996	2
90430-18001	2LT,3L..LJ7#	01/1990 - 12/1991	3
90430-18021	3L..LJ7#	05/1993 - 10/1993	3
90430-18021	2LT,3L..LJ7#	12/1991 - 05/1993	3
90430-18029	3L..LJ7#	10/1993 - 09/1995	3
15600E - WASHER(FOR OIL FILTER)
90430-18029	3L..LJ7#	09/1995 - 04/1996	2
90430-18001	2LT,3L..LJ7#	01/1990 - 12/1991	3
90430-18021	3L..LJ7#	05/1993 - 10/1993	3
90430-18021	2LT,3L..LJ7#	12/1991 - 05/1993	3
90430-18029	3L..LJ7#	10/1993 - 09/1995	3
15600E - WASHER(FOR OIL FILTER)
90430-18029	3L..LJ7#	09/1995 - 04/1996	2
90430-18001	2LT,3L..LJ7#	01/1990 - 12/1991	3
90430-18021	3L..LJ7#	05/1993 - 10/1993	3
90430-18021	2LT,3L..LJ7#	12/1991 - 05/1993	3
90430-18029	3L..LJ7#	10/1993 - 09/1995	3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026	3L..LJ7#	05/1993 - 09/1995	2
90501-16026	3L..LJ7#	09/1995 - 04/1996	1
90501-16026	2LT,3L..LJ7#	01/1990 - 05/1993	2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026	3L..LJ7#	05/1993 - 09/1995	2
90501-16026	3L..LJ7#	09/1995 - 04/1996	1
90501-16026	2LT,3L..LJ7#	01/1990 - 05/1993	2
15601 - FILTER SUB-ASSY, OIL
15600-41010	3L..LJ72,79	04/1990 - 05/1993	1
15600-41010	3L..LJ7#	05/1993 - 04/1996	1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010	2LT,3L..LJ7#	01/1990 - 05/1993	2
15131-54010	3L..LJ7#	05/1993 - 09/1995	2
15131-54010	3L..LJ7#	09/1995 - 04/1996	1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010	2LT,3L..LJ7#	01/1990 - 05/1993	2
15131-54010	3L..LJ7#	05/1993 - 09/1995	2
15131-54010	3L..LJ7#	09/1995 - 04/1996	1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54013	3L..LJ72,79	04/1990 - 05/1993	1
15609-54014	3L..LJ7#	09/1995 - 04/1996	1
15609-54013	3L..LJ7#	05/1993 - 09/1995	1
15691 - GASKET, OIL FILTER
15692-54030	2LT,3L..LJ7#	01/1990 - 05/1993	1
15692-54030	3L..LJ7#	05/1993 - 04/1996	1
Common parts
90179-08150
91611-60825
91642-80835
Linked diagrams
1105

(9001-9305)2LT ; (9004-9604)3L

Click highlighted areas on diagram

Part #	Description	Period	Qty
15600A - UNION(FOR OIL FILTER)
90404-19011	3L..LJ72,79	04/1990 - 05/1993	1
90404-19011	3L..LJ7#	05/1993 - 04/1996	1
15600D - PLUG(FOR OIL FILTER)
90341-18015	3L..LJ72,79	04/1990 - 05/1993	3
90341-18015	3L..LJ7#	05/1993 - 09/1995	3
90341-18015	3L..LJ7#	09/1995 - 04/1996	2
15600D - PLUG(FOR OIL FILTER)
90341-18015	3L..LJ72,79	04/1990 - 05/1993	3
90341-18015	3L..LJ7#	05/1993 - 09/1995	3
90341-18015	3L..LJ7#	09/1995 - 04/1996	2
15600D - PLUG(FOR OIL FILTER)
90341-18015	3L..LJ72,79	04/1990 - 05/1993	3
90341-18015	3L..LJ7#	05/1993 - 09/1995	3
90341-18015	3L..LJ7#	09/1995 - 04/1996	2
15600D - PLUG(FOR OIL FILTER)
90341-18015	3L..LJ72,79	04/1990 - 05/1993	3
90341-18015	3L..LJ7#	05/1993 - 09/1995	3
90341-18015	3L..LJ7#	09/1995 - 04/1996	2
15600E - WASHER(FOR OIL FILTER)
90430-18029	3L..LJ7#	09/1995 - 04/1996	2
90430-18001	2LT,3L..LJ7#	01/1990 - 12/1991	3
90430-18021	3L..LJ7#	05/1993 - 10/1993	3
90430-18021	2LT,3L..LJ7#	12/1991 - 05/1993	3
90430-18029	3L..LJ7#	10/1993 - 09/1995	3
15600E - WASHER(FOR OIL FILTER)
90430-18029	3L..LJ7#	09/1995 - 04/1996	2
90430-18001	2LT,3L..LJ7#	01/1990 - 12/1991	3
90430-18021	3L..LJ7#	05/1993 - 10/1993	3
90430-18021	2LT,3L..LJ7#	12/1991 - 05/1993	3
90430-18029	3L..LJ7#	10/1993 - 09/1995	3
15600E - WASHER(FOR OIL FILTER)
90430-18029	3L..LJ7#	09/1995 - 04/1996	2
90430-18001	2LT,3L..LJ7#	01/1990 - 12/1991	3
90430-18021	3L..LJ7#	05/1993 - 10/1993	3
90430-18021	2LT,3L..LJ7#	12/1991 - 05/1993	3
90430-18029	3L..LJ7#	10/1993 - 09/1995	3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026	3L..LJ7#	05/1993 - 09/1995	2
90501-16026	3L..LJ7#	09/1995 - 04/1996	1
90501-16026	2LT,3L..LJ7#	01/1990 - 05/1993	2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026	3L..LJ7#	05/1993 - 09/1995	2
90501-16026	3L..LJ7#	09/1995 - 04/1996	1
90501-16026	2LT,3L..LJ7#	01/1990 - 05/1993	2
15601 - FILTER SUB-ASSY, OIL
15600-41010	3L..LJ72,79	04/1990 - 05/1993	1
15600-41010	3L..LJ7#	05/1993 - 04/1996	1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010	2LT,3L..LJ7#	01/1990 - 05/1993	2
15131-54010	3L..LJ7#	05/1993 - 09/1995	2
15131-54010	3L..LJ7#	09/1995 - 04/1996	1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010	2LT,3L..LJ7#	01/1990 - 05/1993	2
15131-54010	3L..LJ7#	05/1993 - 09/1995	2
15131-54010	3L..LJ7#	09/1995 - 04/1996	1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54013	3L..LJ72,79	04/1990 - 05/1993	1
15609-54014	3L..LJ7#	09/1995 - 04/1996	1
15609-54013	3L..LJ7#	05/1993 - 09/1995	1
15691 - GASKET, OIL FILTER
15692-54030	2LT,3L..LJ7#	01/1990 - 05/1993	1
15692-54030	3L..LJ7#	05/1993 - 04/1996	1
Common parts
90179-08150
91611-60825
91611-60835
91611-60840
Linked diagrams
1105

LJ79LV-MN (1990)

(9004-9604)3L

(9001-9305)2LT ; (9004-9604)3L
