LJ79LV-KR (1990)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(9004-9604)
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-6023006 |
LJ79,RJ77..STD LIGHT SABLE,TRIM4# |
1 | ||
| 67630-6023003 |
LJ79,RJ77..STD LIGHT GRAY,TRIM1# |
1 | ||
| 67630-60230E0 |
LJ79,RJ77..STD LT.OAK,TRIM4# |
1 | ||
| 67630-6023003 |
LJ79,RJ77..STD LIGHT GRAY,TRIM1# |
1 | ||
| 67630-6023006 |
LJ79,RJ77..STD LIGHT SABLE,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
LJ77,79,RJ77 RED |
24 | ||
| 67771-12050 |
KZJ77,LJ79,RJ77 RED |
24 | ||
| 67771-30090 |
LJ77,79,RJ77 YELLOW |
8 | ||
| 67771-30090 |
KZJ77,LJ79,RJ77 YELLOW |
8 | ||
| 67771-22010 |
LJ77,79,RJ77 |
32 | ||
| 67771-22010 |
LJ77,79,RJ77 BLUE X BLACK |
24 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-6023006 |
LJ79,RJ77..STD LIGHT SABLE,TRIM4# |
1 | ||
| 67640-6023006 |
LJ79,RJ77..STD LIGHT SABLE,TRIM4# |
1 | ||
| 67640-6023003 |
LJ79,RJ77..STD LIGHT GRAY,TRIM1# |
1 | ||
| 67640-60230E0 |
LJ79,RJ77..STD LT.OAK,TRIM4# |
1 | ||
| 67640-6023003 |
LJ79,RJ77..STD LIGHT GRAY,TRIM1# |
1 | ||
| 68190C - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH | ||||
| 68190-60030 |
LJ77,79,RJ77 |
1 | ||
| 68190-60030 |
KZJ77,LJ79,RJ77 |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 68240-60020 |
LJ77,79,RJ77 |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69079-90K0016 |
LJ77,79,RJ77 LIGHT SABLE,TRIM4# |
2 | ||
| 69079-90K0016 |
KZJ77,LJ79,RJ77 LIGHT SABLE,TRIM4# |
2 | ||
| 69079-90K0013 |
KZJ77,LJ79,RJ77 LIGHT GRAY,TRIM1# |
2 | ||
| 69079-90K00E0 |
KZJ77,LJ79,RJ77 LIGHT OAK,TRIM4# |
2 | ||
| 69079-90K0013 |
LJ77,79,RJ77 LIGHT GRAY,TRIM1# |
2 | ||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

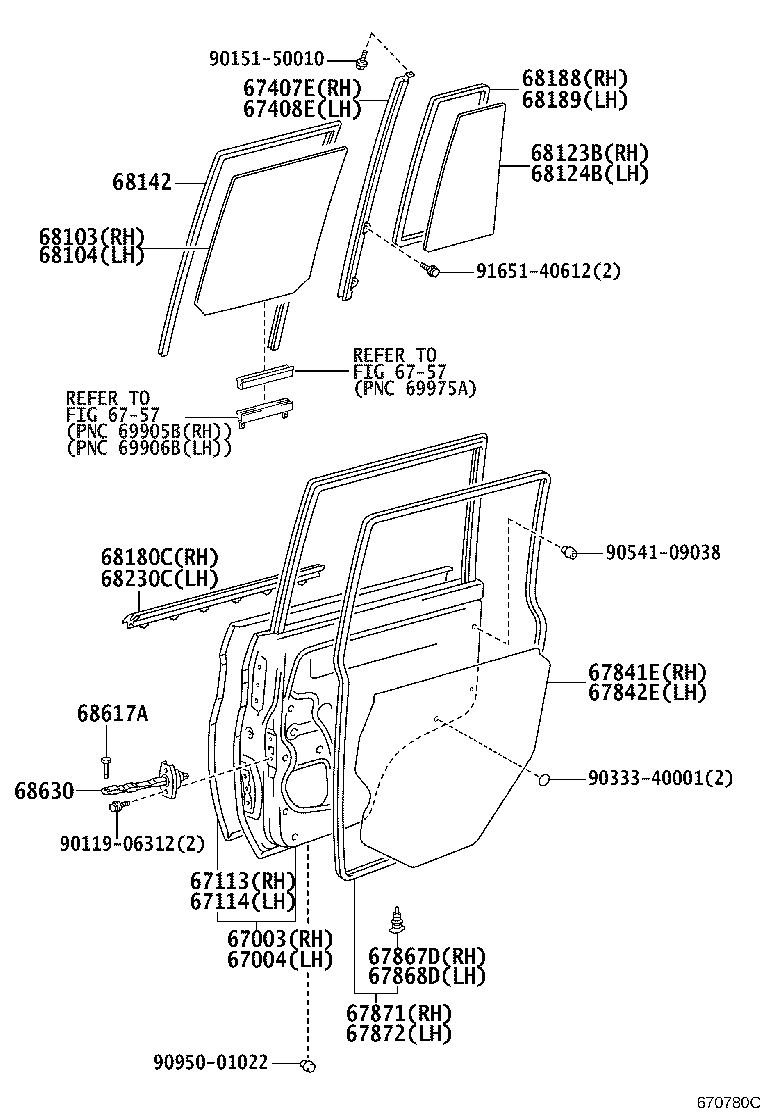

ILLUST NO. 1 OF 2(9004-9604)KZJ77,LJ77,79,RJ77
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-60050 |
LJ79,RJ77..STD |
1 | ||
| 67003-60071 |
LJ79,RJ77..STD W(*OF) |
1 | ||
| 67003-60051 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67003-60051 |
LJ79,RJ77..STD |
1 | ||
| 67003-60071 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN W(*OF) |
1 | ||
| 67003-60070 |
LJ79,RJ77..STD W(*OF) |
1 | ||
| 67003-60051 |
KZJ77,LJ79,RJ77..GEN |
1 | ||
| 67003-60071 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX W(*OF) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-60070 |
LJ79,RJ77..STD W(*OF) |
1 | ||
| 67004-60071 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN W(*OF) |
1 | ||
| 67004-60051 |
LJ79,RJ77..STD |
1 | ||
| 67004-60071 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX W(*OF) |
1 | ||
| 67004-60050 |
LJ79,RJ77..STD |
1 | ||
| 67004-60071 |
LJ79,RJ77..STD W(*OF) |
1 | ||
| 67004-60051 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67004-60051 |
KZJ77,LJ79,RJ77..GEN |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-60050 |
LJ79,RJ77..STD |
1 | ||
| 67113-60070 |
LJ79,RJ77..STD W(*OF) |
1 | ||
| 67113-60050 |
KZJ77,LJ79,RJ77..GEN |
1 | ||
| 67113-60070 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN W(*OF) |
1 | ||
| 67113-60050 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67113-60070 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX W(*OF) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-60050 |
KZJ77,LJ79,RJ77..GEN |
1 | ||
| 67114-60070 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX W(*OF) |
1 | ||
| 67114-60070 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN W(*OF) |
1 | ||
| 67114-60050 |
LJ79,RJ77..STD |
1 | ||
| 67114-60070 |
LJ79,RJ77..STD W(*OF) |
1 | ||
| 67114-60050 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67407-60020 |
LJ77,79,RJ77 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67408-60020 |
LJ77,79,RJ77 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-60050 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67841-60050 |
LJ77,79,RJ77 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-60050 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67841-60050 |
LJ77,79,RJ77 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KZJ77,LJ79,RJ77 |
18 | ||
| 67868-22020 |
LJ77,79,RJ77 |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
LJ77,79,RJ77 |
18 | ||
| 67867-12150 |
KZJ77,LJ79,RJ77 |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-60030 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67871-60030 |
LJ77,79,RJ77 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-60030 |
KZJ77,LJ79,RJ77 |
1 | ||
| 67872-60030 |
LJ77,79,RJ77 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-60050 |
KZJ77,LJ79,RJ77 *TT,T=4.0 |
1 | ||
| 68113-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN *TEM,T=4.0 |
1 | ||
| 68113-60040 |
LJ77,79,RJ77..GEN *TEM,T=4.0 |
1 | ||
| 68113-60050 |
LJ77,79,RJ77 *TT,T=4.0 |
1 | ||
| 68113-60040 |
LJ79,RJ77..STD *TEM,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN *TEM,T=4.0 |
1 | ||
| 68114-60050 |
LJ77,79,RJ77 *TT,T=4.0 |
1 | ||
| 68114-60040 |
LJ77,79,RJ77..GEN *TEM,T=4.0 |
1 | ||
| 68114-60040 |
LJ79,RJ77..STD *TEM,T=4.0 |
1 | ||
| 68114-60050 |
KZJ77,LJ79,RJ77 *TT,T=4.0 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-60040 |
LJ79,RJ77..STD *TEM,T=3.5 |
1 | ||
| 68123-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN *TEM,T=3.5 |
1 | ||
| 68123-60040 |
LJ77,79,RJ77..GEN *TEM,T=3.5 |
1 | ||
| 68123-60050 |
KZJ77,LJ79,RJ77 *TT,T=3.5 |
1 | ||
| 68123-60050 |
LJ77,79,RJ77 *TT,T=3.5 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-60040 |
LJ79,RJ77..STD *TEM,T=3.5 |
1 | ||
| 68124-60040 |
LJ77,79,RJ77..GEN *TEM,T=3.5 |
1 | ||
| 68124-60040 |
LJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..GEN *TEM,T=3.5 |
1 | ||
| 68124-60050 |
LJ77,79,RJ77 *TT,T=3.5 |
1 | ||
| 68124-60050 |
KZJ77,LJ79,RJ77 *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-60020 |
LJ77,79,RJ77 |
2 | ||
| 68142-60020 |
KZJ77,LJ79,RJ77 |
2 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 68180-60020 |
LJ77,79,RJ77 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-60020 |
LJ79,RJ77 |
1 | ||
| 68188-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-60020 |
LJ79,RJ77 |
1 | ||
| 68189-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-60020 |
LJ77,79,RJ77 |
1 | ||
| 68230-60020 |
KZJ77,LJ79,RJ77 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
KZJ77,LJ79,RJ77 |
2 | ||
| 68617-20011 |
LJ77,79,RJ77 |
2 | ||
| 68617-90A01 |
LJ77,79,RJ77 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-60040 |
LJ77,79,RJ77 |
2 | ||
| 68630-60040 |
KZJ77,LJ79,RJ77 |
2 | ||
| 68630-60020 |
LJ77,79,RJ77 |
2 | ||
| Common parts | ||||
| 90119-06312 | ||||
| 90151-50010 | ||||
| 90333-40001 | ||||
| 90541-09038 | ||||
| 90950-01022 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 6757 | ||||
