LJ79LV-KR (1990)
Toyota Land Cruiser

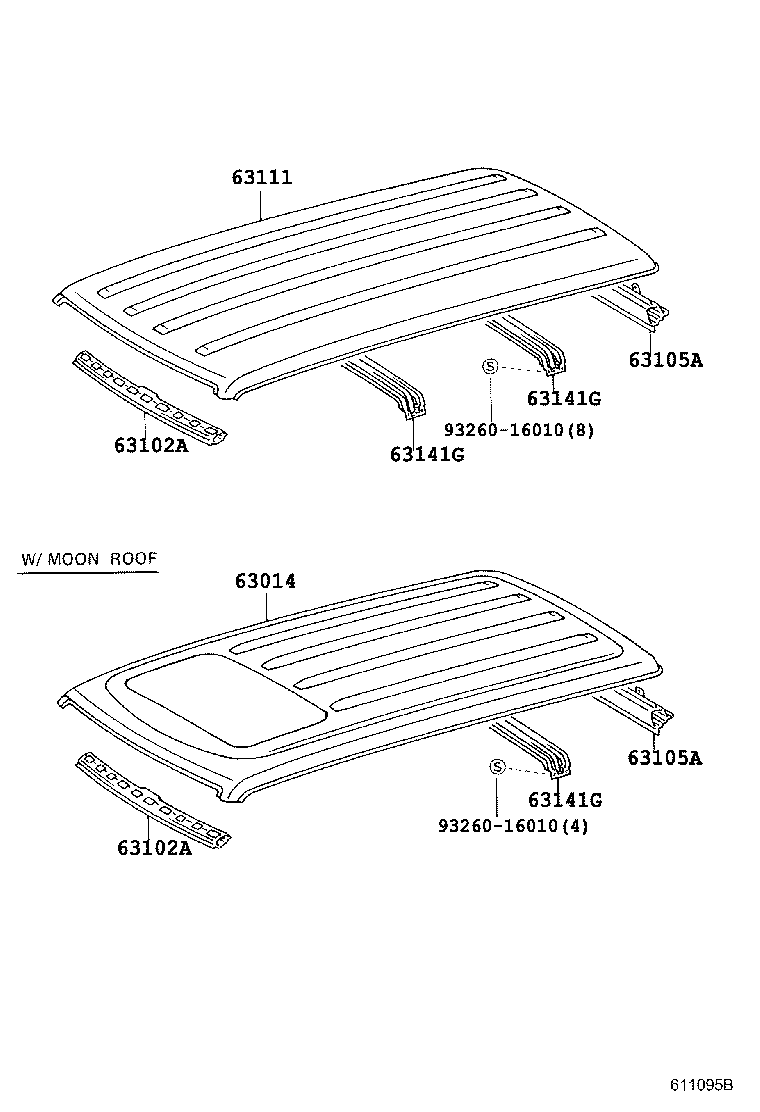

ILLUST NO. 1 OF 3(9001-0106)FZJ71..LHD..STD..GEN ; (9001-0106)FJ70,73,FZJ70,73,HZJ70,73,KZJ70,LJ70,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63102-90K02 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60110 |
LJ77,79,RJ77 |
1 | ||
| 63105-60110 |
KZJ77,LJ79,RJ77 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60160 |
LJ77,79,RJ77 |
1 | ||
| 63111-60161 |
LJ77,79,RJ77 W(*HSL) |
1 | ||
| 63111-60160 |
KZJ77,LJ79,RJ77 |
1 | ||
| 63111-60161 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX W(*HSL) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60160 |
LJ77,79,RJ77 |
1 | ||
| 63111-60161 |
LJ77,79,RJ77 W(*HSL) |
1 | ||
| 63111-60160 |
KZJ77,LJ79,RJ77 |
1 | ||
| 63111-60161 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX W(*HSL) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60020 |
LJ77,79,RJ77 |
2 | ||
| 63141-60020 |
KZJ77,LJ79,RJ77 |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60020 |
LJ77,79,RJ77 |
2 | ||
| 63141-60020 |
KZJ77,LJ79,RJ77 |
2 | ||
| Common parts | ||||
| 67868-3003001 | ||||
| 67868-30040 | ||||
| 90179-06175 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
ILLUST NO. 1 OF 3(9004-9604)KZJ77,LJ77,79,RJ77
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63102-90K02 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K02 |
FZJ79,HZJ79;FZJ70,75..HT..CBR;FZJ70,75,HZJ70..ARL..CBU;FJ70,75,FZJ71,78,HZJ71,75,78,LJ7#,PZJ70,75,RJ7#..HT |
1 | ||
| 63102-90K02 |
KZJ7#,LJ7#,RJ7#..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60110 |
LJ77,79,RJ77 |
1 | ||
| 63105-60110 |
KZJ77,LJ79,RJ77 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60110 |
LJ77,79,RJ77 |
1 | ||
| 63105-60110 |
KZJ77,LJ79,RJ77 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60160 |
LJ77,79,RJ77 |
1 | ||
| 63111-60161 |
LJ77,79,RJ77 W(*HSL) |
1 | ||
| 63111-60160 |
KZJ77,LJ79,RJ77 |
1 | ||
| 63111-60161 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX W(*HSL) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60020 |
LJ77,79,RJ77 |
2 | ||
| 63141-60020 |
KZJ77,LJ79,RJ77 |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60020 |
LJ77,79,RJ77 |
2 | ||
| 63141-60020 |
KZJ77,LJ79,RJ77 |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60020 |
LJ77,79,RJ77 |
2 | ||
| 63141-60020 |
KZJ77,LJ79,RJ77 |
2 | ||
| Common parts | ||||
| 93260-16010 | ||||

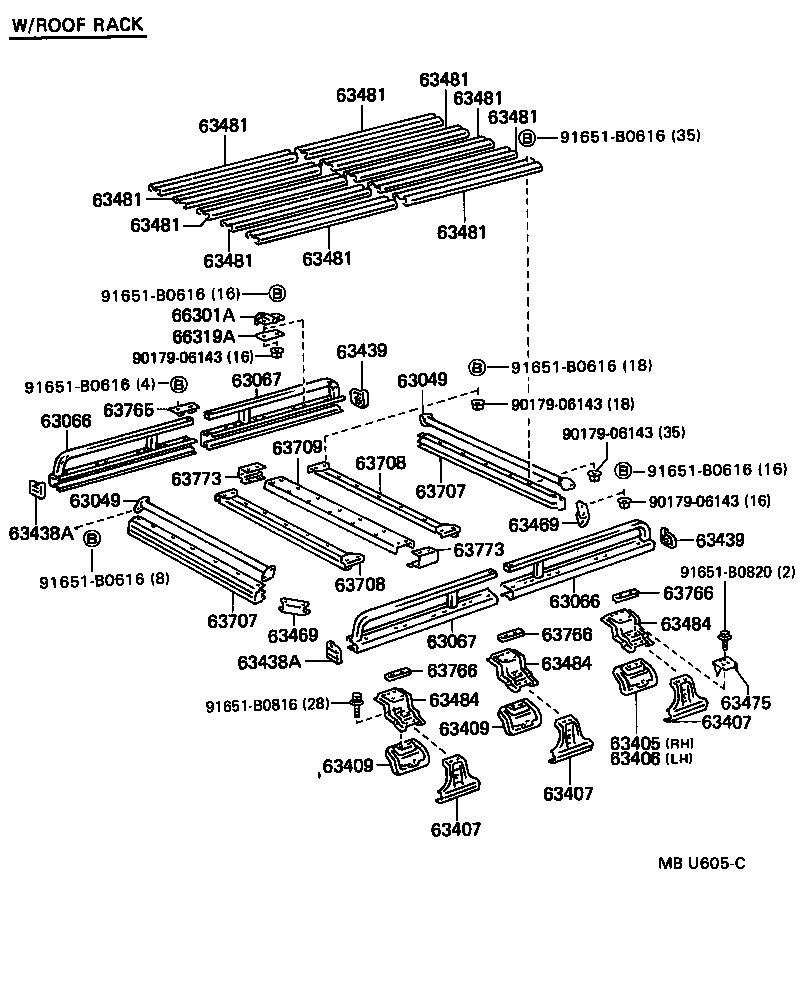

ILLUST NO. 3 OF 3(9004-9604)KZJ77,LJ77,79,RJ77
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K01 |
LJ77,79,RJ77 |
2 | ||
| 63049-90K01 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63049 - FRAME SUB-ASSY, ROOF RACK, UPPER END | ||||
| 63049-90K01 |
LJ77,79,RJ77 |
2 | ||
| 63049-90K01 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63066-60010 |
LJ77,79,RJ77 |
2 | ||
| 63066 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT RH | ||||
| 63066-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63066-60010 |
LJ77,79,RJ77 |
2 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-60010 |
LJ77,79,RJ77 |
2 | ||
| 63067-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63067 - FRAME SUB-ASSY, ROOF RACK, LOWER FRONT LH | ||||
| 63067-60010 |
LJ77,79,RJ77 |
2 | ||
| 63067-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63405 - LEG SUB-ASSY, ROOF RACK, REAR RH | ||||
| 63405-60010 |
LJ77,79,RJ77 |
1 | ||
| 63405-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 63406 - LEG SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-60010 |
LJ77,79,RJ77 |
1 | ||
| 63406-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63491-60020 |
LJ77,79,RJ77 |
6 | ||
| 63407-90K01 |
LJ77,79,RJ77 |
6 | ||
| 63491-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
6 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63491-60020 |
LJ77,79,RJ77 |
6 | ||
| 63407-90K01 |
LJ77,79,RJ77 |
6 | ||
| 63491-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
6 | ||
| 63407 - SUPPORT SUB-ASSY, ROOF RACK LEG, FRONT | ||||
| 63491-60020 |
LJ77,79,RJ77 |
6 | ||
| 63407-90K01 |
LJ77,79,RJ77 |
6 | ||
| 63491-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
6 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60020 |
LJ77,79,RJ77 |
4 | ||
| 63409-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
4 | ||
| 63409 - LEG SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60020 |
LJ77,79,RJ77 |
4 | ||
| 63409-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
4 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63438-90K00 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63438-90K00 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63439-90K00 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-90K00 |
FJ75,FZJ75,HZJ75,LJ77,79,PZJ75,RJ77..HT..(GCC,GEN) |
1 | ||
| 63439-90K00 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
4 | ||
| 63469-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63469 - GUSSET, ROOF RACK LOWER FRAME | ||||
| 63469-90K01 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
4 | ||
| 63469-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63475 - STEP, ROOF RACK | ||||
| 63475-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
1 | ||
| 63475-60010 |
LJ77,79,RJ77 |
1 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63481 - BOARD, ROOF RACK DECK, NO.1 | ||||
| 63481-60010 |
LJ77,79,RJ77 |
10 | ||
| 63481-60010 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
10 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-60020 |
LJ77,79,RJ77 |
6 | ||
| 63484-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
6 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-60020 |
LJ77,79,RJ77 |
6 | ||
| 63484-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
6 | ||
| 63484 - STAY, ROOF RACK | ||||
| 63484-60020 |
LJ77,79,RJ77 |
6 | ||
| 63484-60020 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
6 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K01 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63463-90K01 |
LJ77,79,RJ77 |
2 | ||
| 63707 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.1 | ||||
| 63463-90K01 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63463-90K01 |
LJ77,79,RJ77 |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A02 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63708-90A02 |
LJ77,79,RJ77 |
2 | ||
| 63708 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.2 | ||||
| 63708-90A02 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63708-90A02 |
LJ77,79,RJ77 |
2 | ||
| 63709 - FRAME SUB-ASSY, ROOF RACK, LOWER NO.3 | ||||
| 63795-90K02 |
FJ70,FZJ70,LJ7#,PZJ70,RJ7#..HT..(GCC,GEN) |
1 | ||
| 63795-90K02 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
1 | ||
| 63765 - RETAINER, ROOF RACK, UPPER | ||||
| 63765-90K00 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
2 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
FJ70,FZJ70,LJ7#,PZJ70,RJ7#..HT..(GCC,GEN) |
6 | ||
| 63766-90K04 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
FJ70,FZJ70,LJ7#,PZJ70,RJ7#..HT..(GCC,GEN) |
6 | ||
| 63766-90K04 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
6 | ||
| 63766 - RETAINER, ROOF RACK, LOWER | ||||
| 63766-90K04 |
FJ70,FZJ70,LJ7#,PZJ70,RJ7#..HT..(GCC,GEN) |
6 | ||
| 63766-90K04 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
6 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
LJ77,79,RJ77 |
2 | ||
| 63773-90K01 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 63773 - GUSSET, ROOF RACK CENTER FRAME, RH | ||||
| 63773-90K01 |
LJ77,79,RJ77 |
2 | ||
| 63773-90K01 |
LJ79..STD;KZJ77,RJ77;LJ79..LHD..LX |
2 | ||
| 66301A - HOOK SUB-ASSY, ROPE | ||||
| 66301-90K01 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
8 | ||
| 66301-90K01 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
8 | ||
| 66319A - PLATE, ROPE HOOK | ||||
| 66319-90K00 |
FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..HT..(GCC,GEN) |
8 | ||
| 66319-90K00 |
LJ79..STD;LJ79..LHD..LX;KZJ7#,LJ72,RJ7#..HT |
8 | ||
| Common parts | ||||
| 90179-06143 | ||||
| 91651-B0616 | ||||
| 91651-B0816 | ||||
| 91651-B0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
